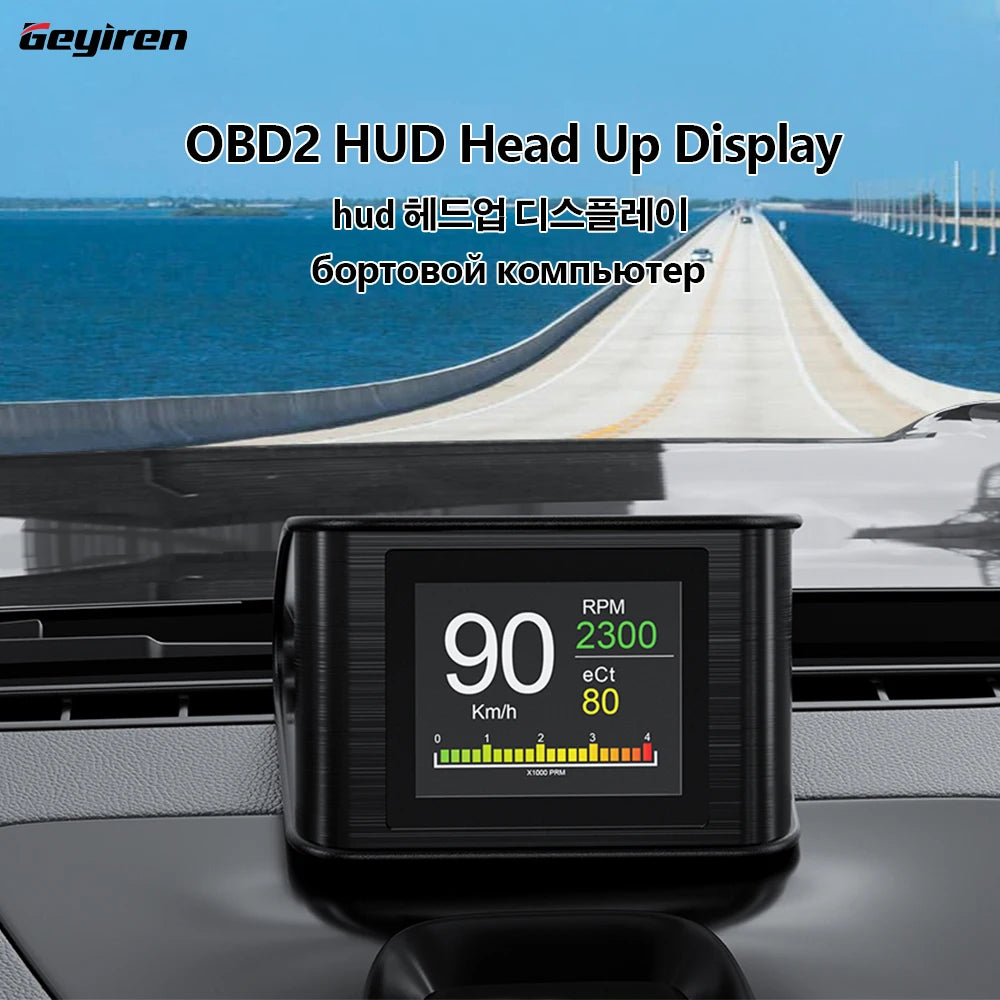

GEYIREN P10 HUD Overview
The GEYIREN P10 HUD combines advanced functionality with smart design for enhanced driving safety and monitoring. Designed for OBD2-equipped vehicles, this device provides a comprehensive set of real-time data, including speed, mileage, water temperature, turbo pressure, and battery voltage. Its 2.6" multi-color TFT LCD ensures clear and customizable visuals, while automatic brightness adjustment enhances usability in varying light conditions.
GEYIREN P10 HUD Key Specifications
- Brand: GEYIREN
- Model: P10
- Display: 2.6" TFT LCD multi-color screen
- Dimensions: 73 x 68 x 46 mm
- Power Source: OBD2 connection (1.8m cable length)
- Material: ABS + PC, environmentally friendly and durable
- Brightness Adjustment: Automatic
- Unit Options: Kilometers/Miles toggle
- Protocol Compatibility: OBDII and EOBD
GEYIREN P10 HUD Features
- Real-Time Diagnostics: Monitor speed, RPM, battery voltage, water temperature, and turbo pressure for safe and efficient driving.
- Driving Performance Tests: Includes acceleration and brake tests for performance analysis.

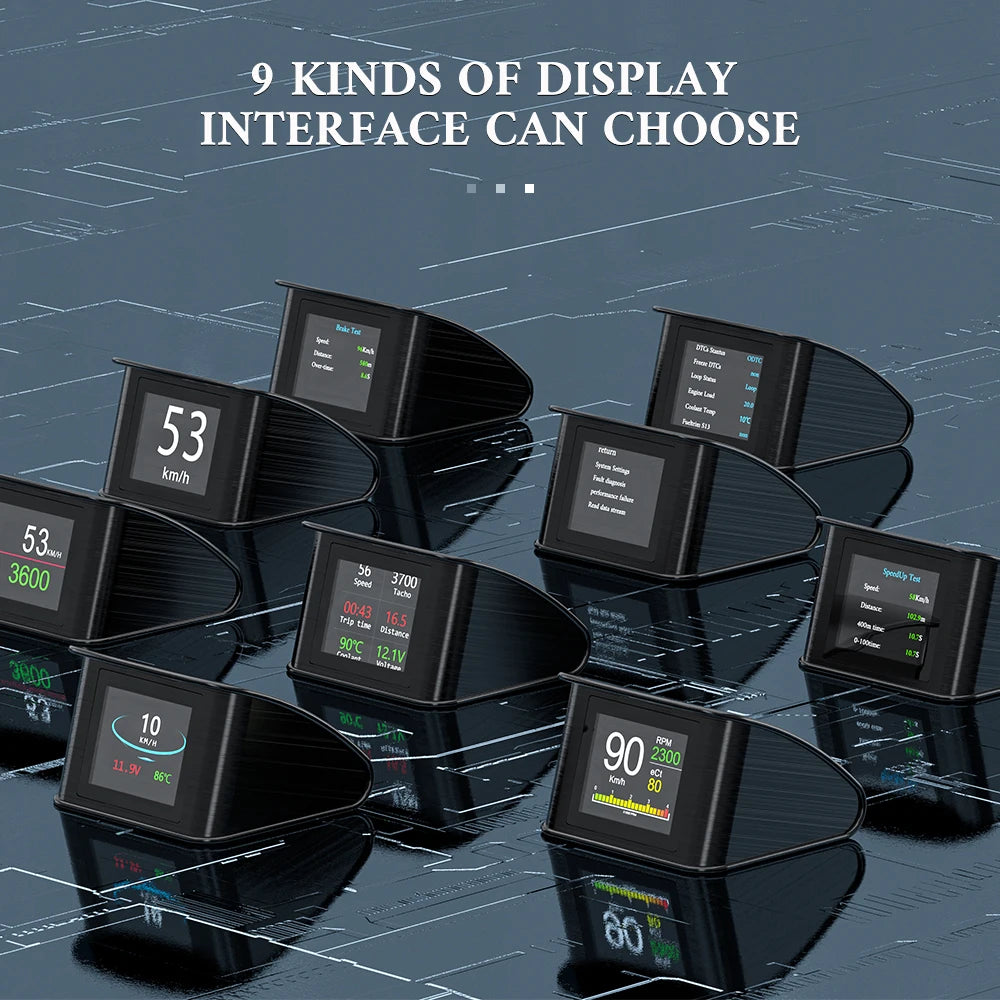

- Customizable Display: Choose from 9 interface styles with 8 adjustable color options for personalized data visualization.
- Alarm System: Set speed, engine temperature, voltage, and fatigue driving alerts to stay informed and secure on the road.
- Automatic Brightness Control: Adapts to ambient light conditions for optimal visibility during day or night driving.
- Compact Design: A sleek and lightweight structure fits seamlessly into any dashboard without obstructing the view.
GEYIREN P10 HUD Functional Highlights
- Compatibility: Works with most OBDII-equipped vehicles from 2003 (U.S.) or 2007 (other regions). Not compatible with diesel, electric, or natural gas vehicles.
- Performance Testing: Measures acceleration from 0-100 km/h and braking distances for tuning and analysis.
- Environmental Build: Manufactured with ABS+PC materials, ensuring resistance to high and low temperatures while maintaining a silent and odorless operation.
- Advanced Alarms: Over-speed reminders, RPM alerts, and fatigue monitoring enhance driving safety.

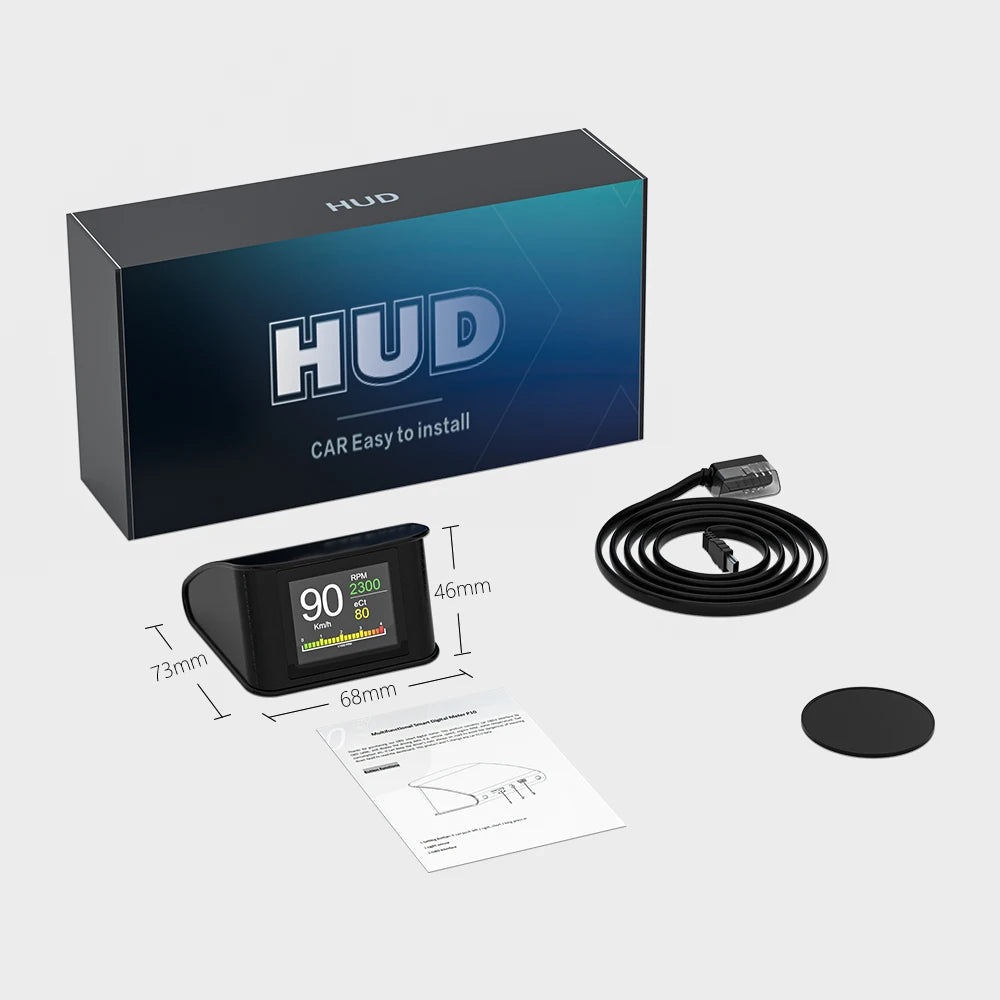

Package Includes
- 1 x GEYIREN P10 HUD
- 1 x OBD2 Cable (1.8m)
- 1 x User Manual
Summary
The GEYIREN P10 HUD is a must-have device for drivers seeking a safer and smarter on-road experience. Its multifunctional design integrates advanced vehicle diagnostics and customizable displays into a compact unit, offering both practicality and sophistication for your vehicle.

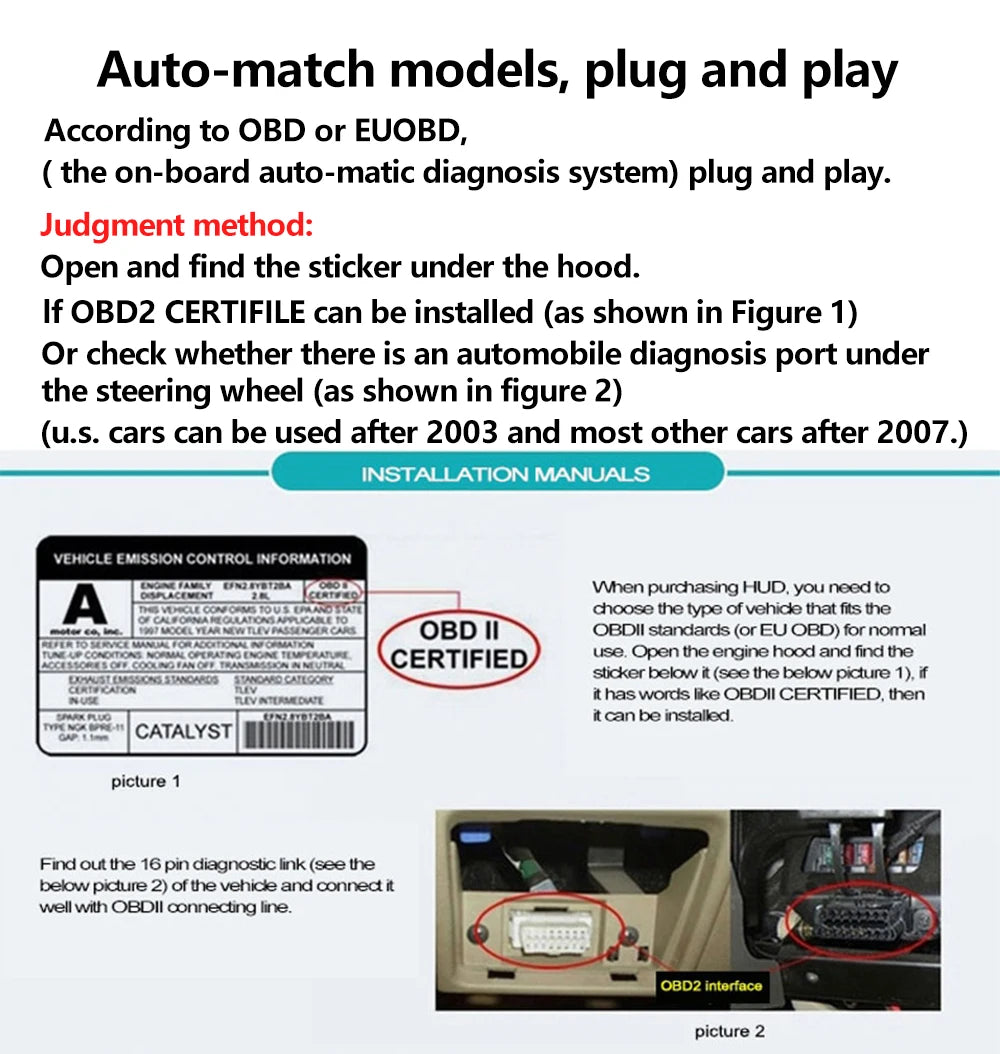

The Geyiren P10 HUD is an on-board diagnostic system that can be plugged in and played. To determine compatibility, check under the hood for a sticker labeled 'OBD II CERTIFIED' or look for a diagnosis port under the steering wheel (as shown in Figures 1 and 2). Installation manuals are available for vehicles with emission control information.

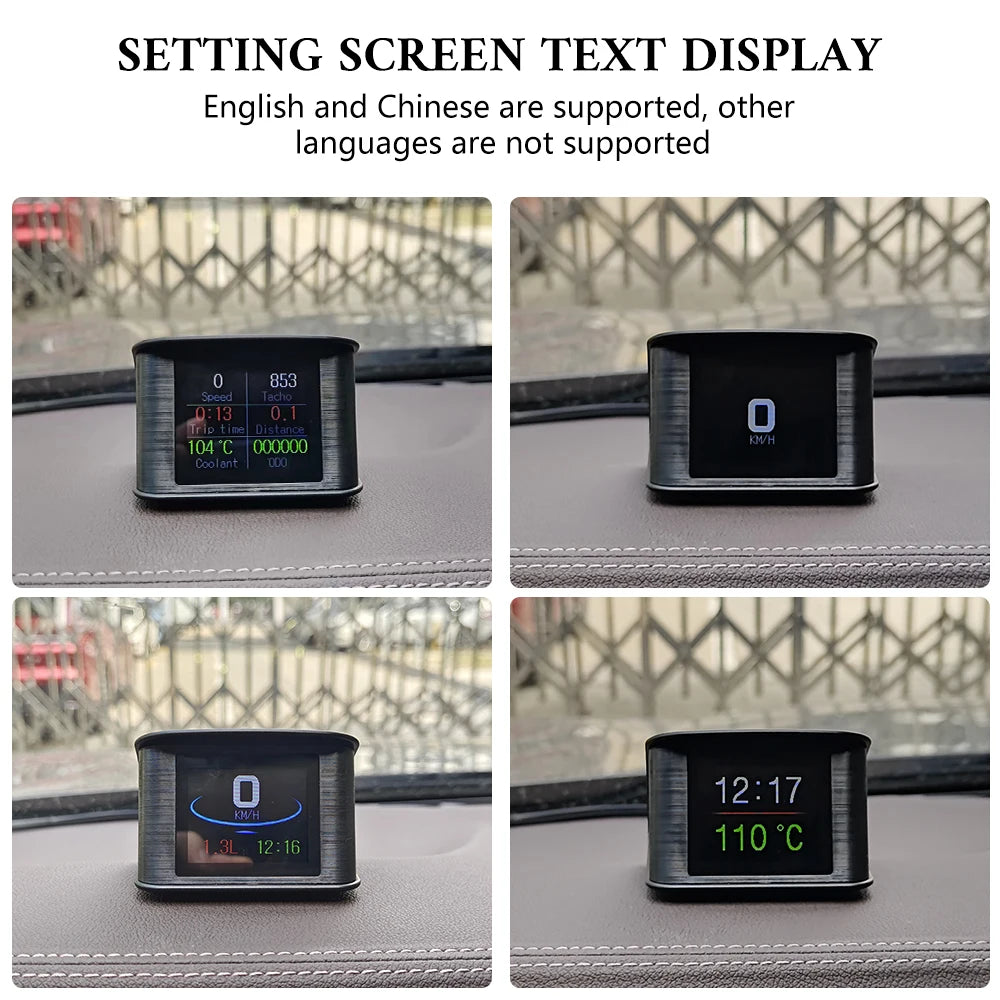

GEYIREN P10 HUD displays OBDII data including speed, engine RPM, and fuel level. It supports multiple languages and has a compact design.

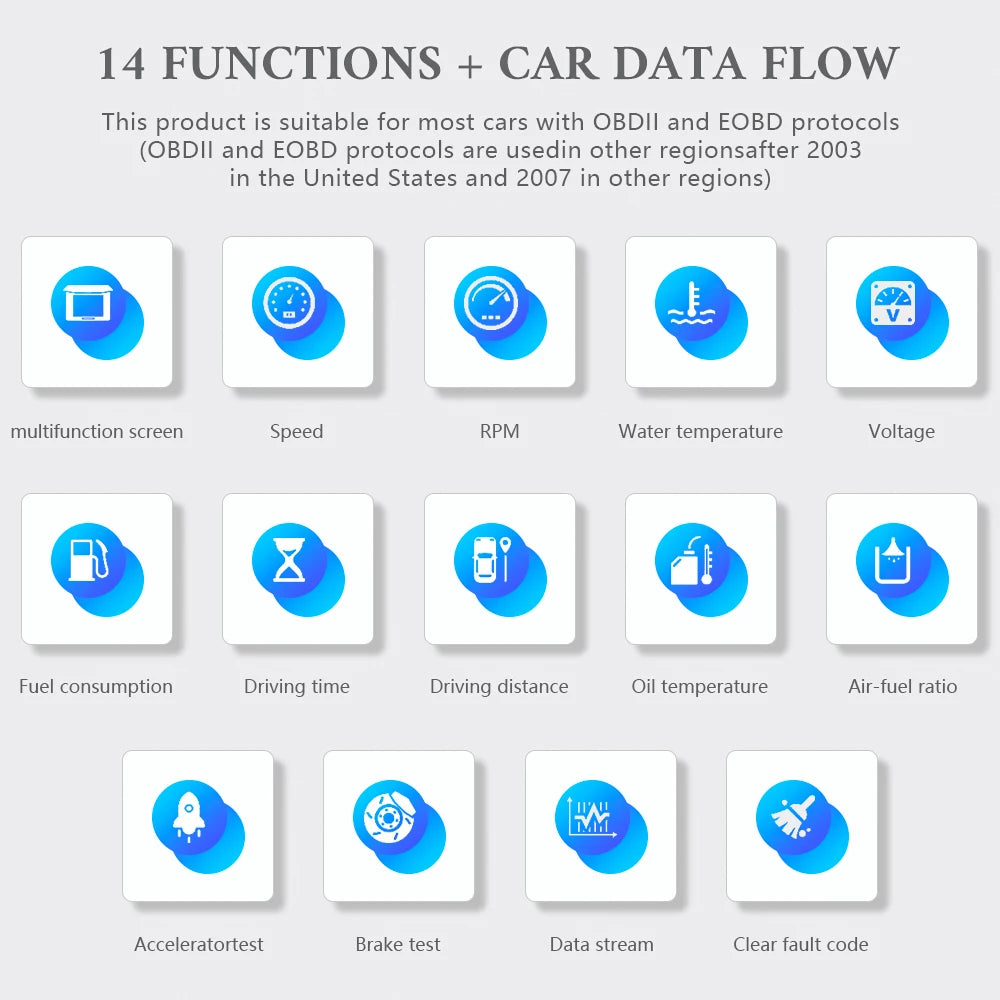

This product is suitable for most cars with OBDII and EOBD protocols, used in other regions after 2003 in the United States and 2007 globally. It features a 6-function display showing speed, RPM, water temperature, voltage, fuel consumption, driving time, distance, oil temperature, air-fuel ratio, acceleration test, brake test, and data stream. Additionally, it clears fault codes.

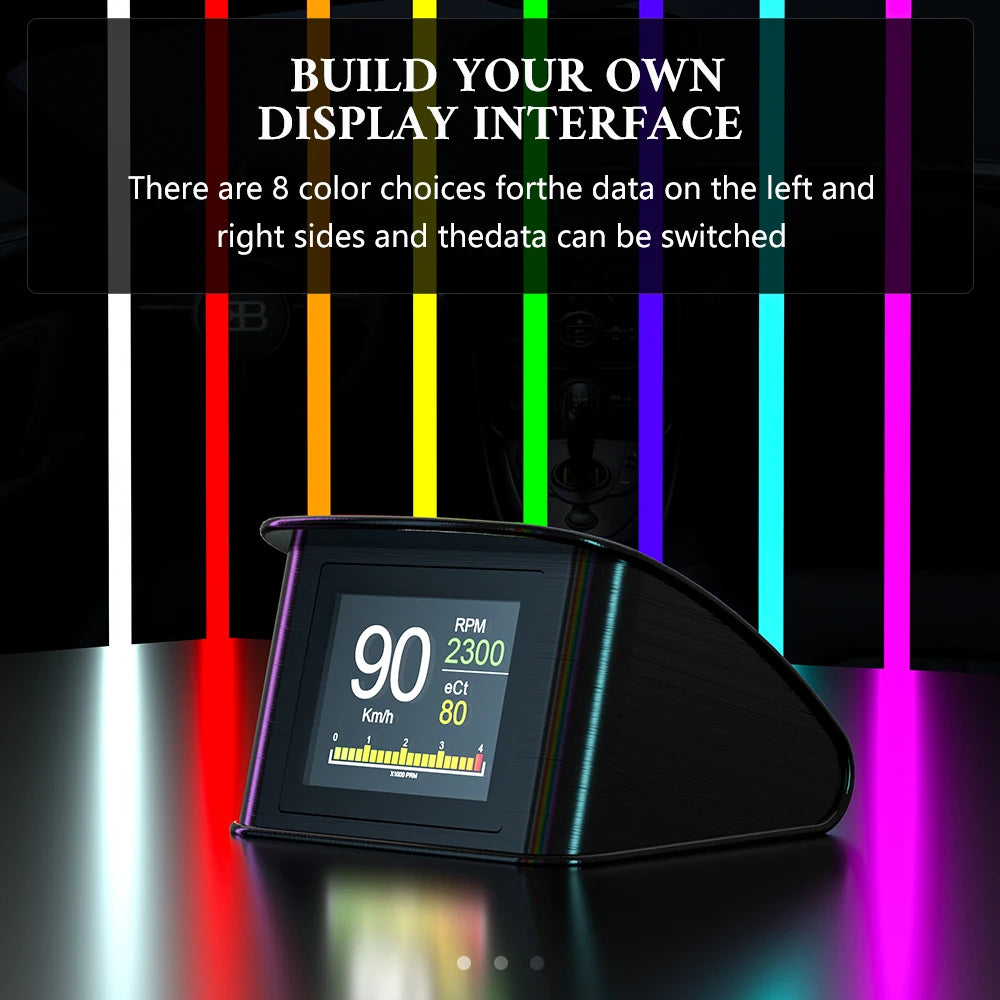

Font color can be changed
There are 8 color choices forthe data on the left and right sides and thedata can be switched.

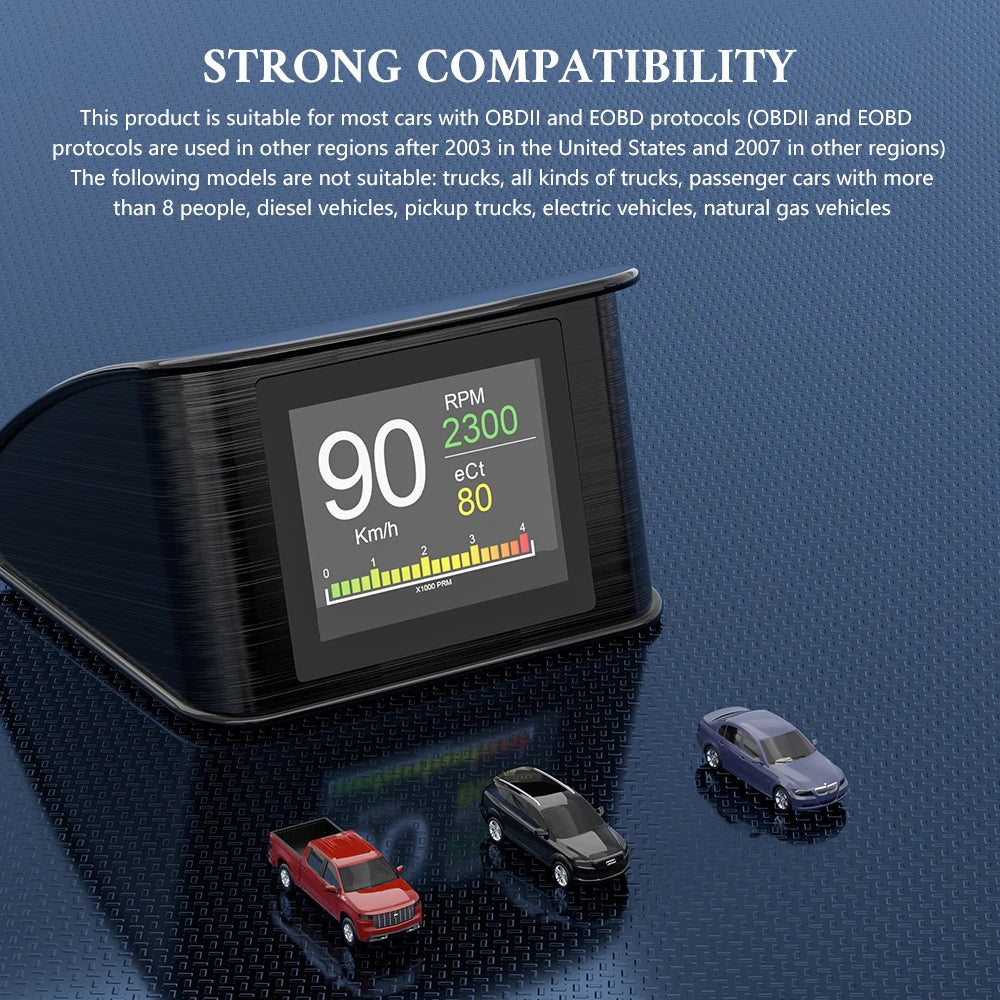

Compatibility:
This product is suitable for most cars with OBDII and EOBD protocols (OBDII and EOBD protocols are used in other regions after 2003 in the United States and 2007 in other regions).The following models are not suitable: trucks, all kinds of trucks, passenger cars with more than 8 people, diesel vehicles, pickup trucks, electric vehicles, natural gas vehicles.

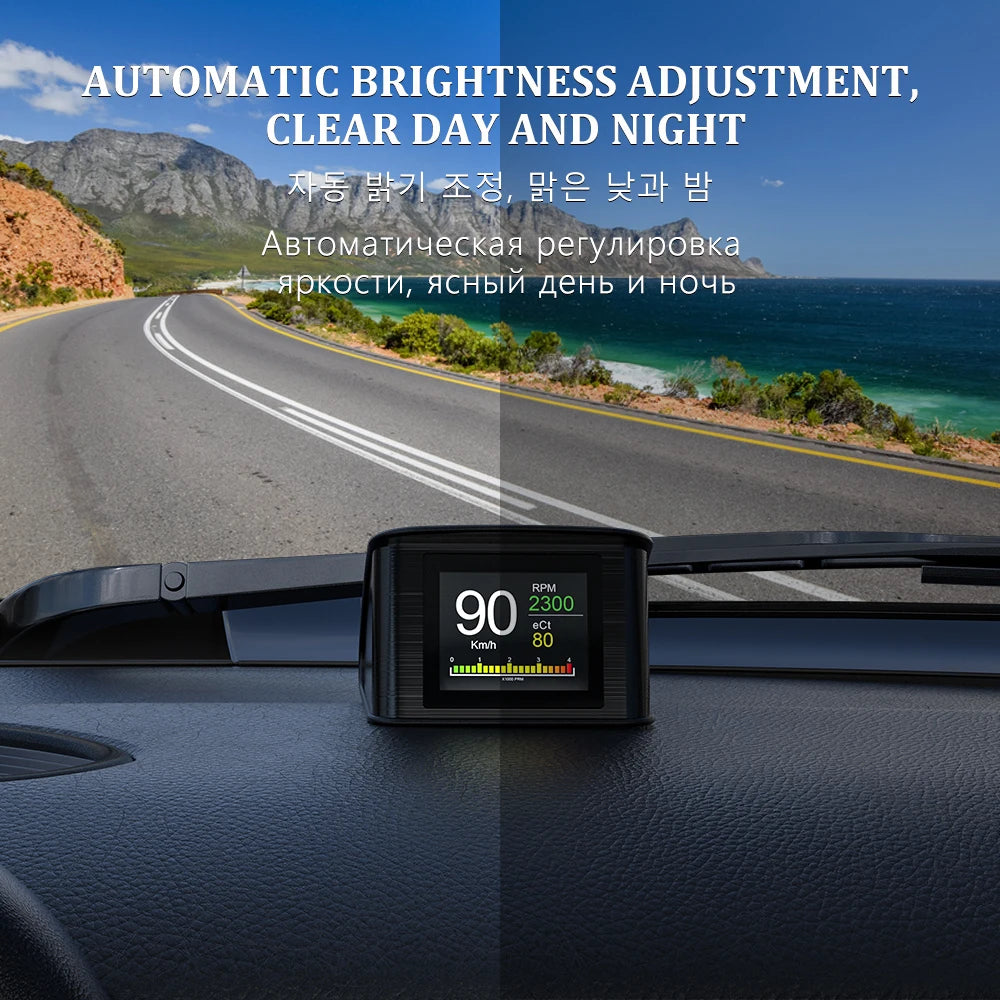

Automatic adjustment of brightness

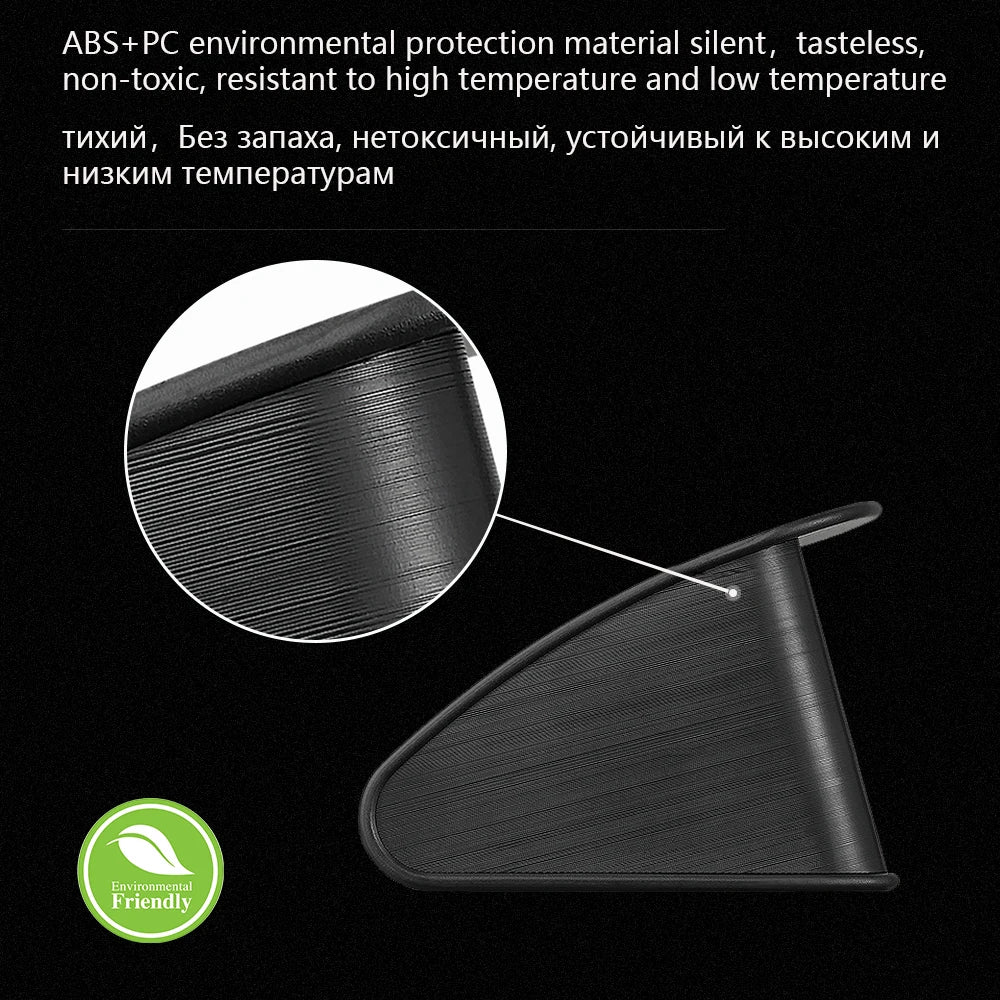

ABS+ PC environmental protection material silent, tasteless,non-toxic, resistant to high temperature and low temperature
The Geyiren P10 HUD product features an ABS+PC environmental protection material with a silent and tasteless design. It non-toxic, resistant to high and low temperatures, making it a safe and reliable choice for use.

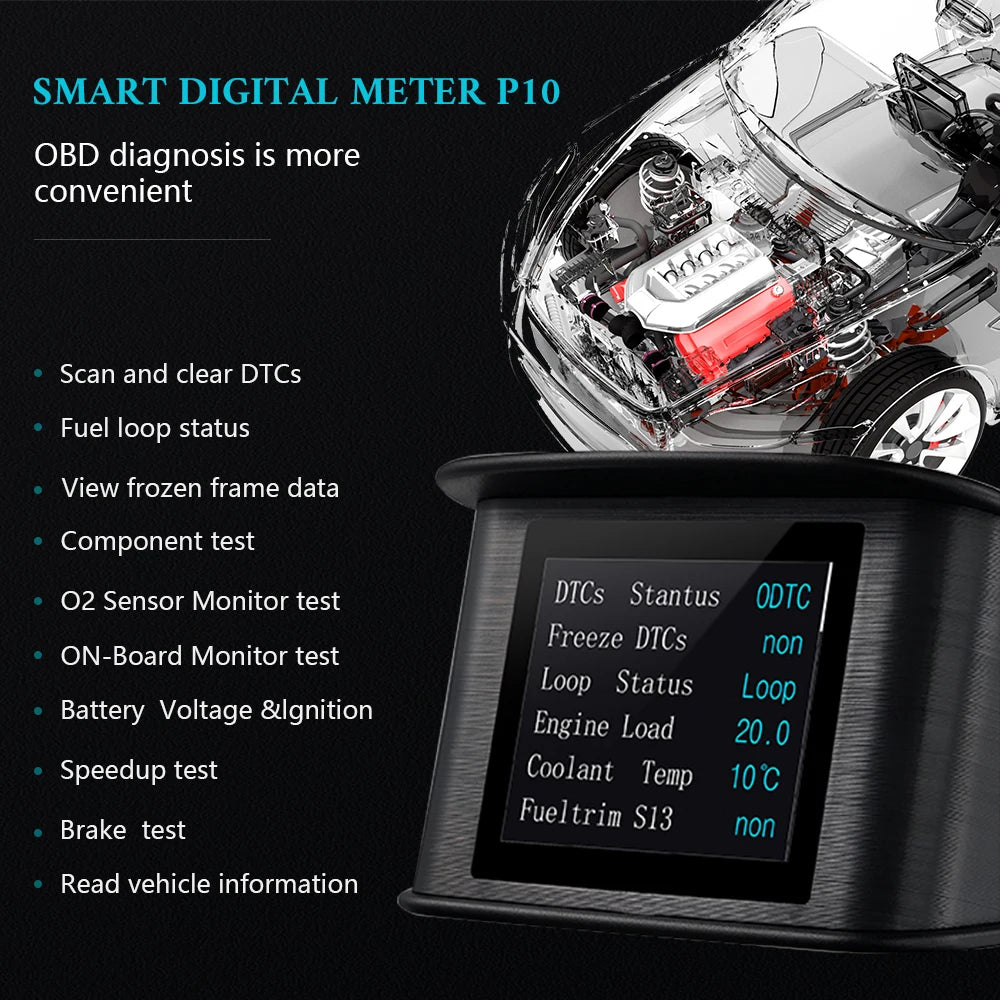

SMART DIGITAL METER P10: OBD diagnosis for a more convenient scan and clear DTCs. View fuel status, frozen frame data, component tests, and monitor sensor status. Conduct DTC status check, non-OBD monitor test, battery voltage, and engine load analysis. Additionally, perform speedup test, coolant temperature check, brake test, and fuel trim analysis. Read vehicle information and loop temperature.

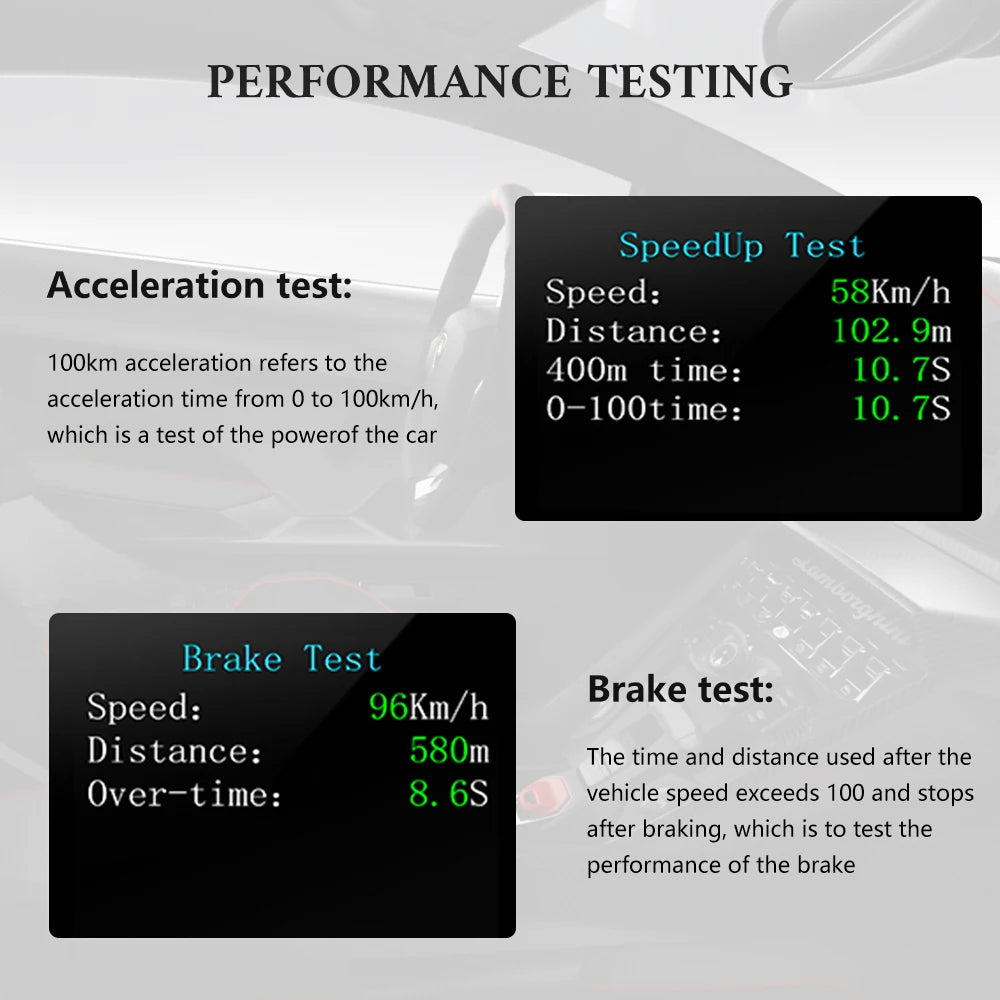

Performance testing: SpeedUp Test Acceleration test: Speed: 58 km/h Distance: 102.9 km acceleration refers to the 400m time: 10.7 seconds acceleration time from 0 to 100 km/h; 0-100 km/h time: 10.7 seconds which is a test of the power of the car Brake Test Brake test: Speed: 96 km/h Distance: 580 m The time and distance used after the over-time: 8.6 seconds vehicle speed exceeds 100 and stops after braking, which is to test the performance of the brake.
ALARM SYSTEM: Set different parameters for over-limit alarm and audible alarm to improve driving safety. System settings include Over Speeding reminder at 120 km/h, Engine temperature alarm at 120°C, Engine RPM alarm at 6000 revolutions per minute, Voltage alarm setting at 10.5V, and Fatigue driving reminder after 4 hours.

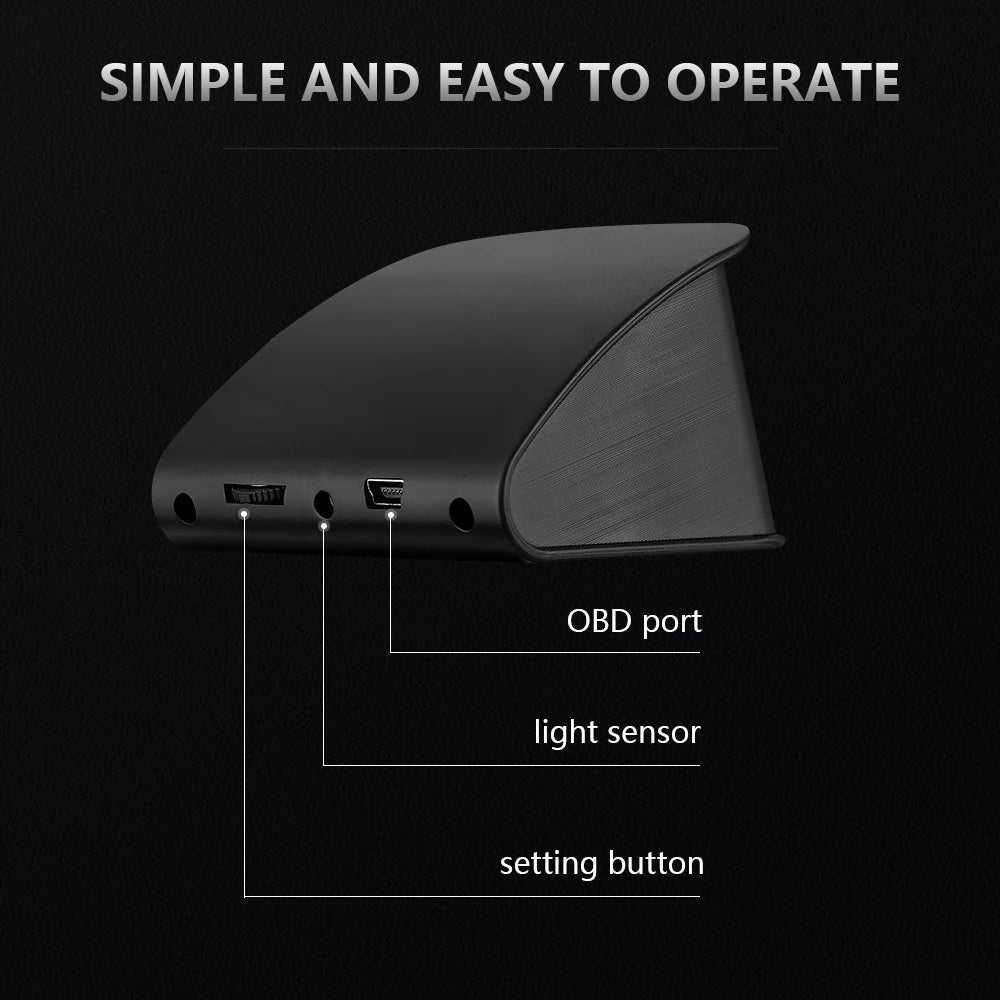

Simple and intuitive OBD port light sensor setup is enabled by a dedicated button, making it easy for users to access and configure the device features.
FAQ:
1. The screen without any display,and no power
Check whether the OBD cableis tight connection,pull down repeatedly to confirm,please try it on another car if still not workable,analysis if it is an error from OBD diagnostic interface,if yes,please repair it and connect the device again.
2.Only shows the car voltage and be automatic power off after 30 second when the device is with power
a. This product only available for cars with OBD2 agreement and EOBD agreement
b. Car production year: after 2008
3.Inaccurate Speed
a.First check the speed unit is correct or not, the speed unit including KM/H and MPH,please refer to the setting to switch the unit.
b.When the product is power on,long press in the button to enter into the menu option, pull right the button to choose the speed adjust, short press in the button to set the value, pull left or right to change the value. (e.g. dashboard displays 100 Km/h,device shows 105Km/h,use default value 107-5=102 ).
4.Inaccurate Fuel consumption
Check your car displacement,and set the device same as your car(if your car is 2.0L,then change the device value at 2.0L).The fuel consumption can be adjusted,but we don’t suggest to change it,because all the dates are read from the car ECU directly.
5.The device cannot auto power off
Adjust the sleep voltage to 13.2V or 13.6V, then HUD will power off in 3 minutes.
6.Auto start-stop cars
Adjust the shutdown voltage setting in the system settings to the COM mode
7.HUD crashes in driving,or Hybrid car
(1) Adjust the shutdown voltage setting in the system settings to COM mode
(2) If it is not resolved, adjust the shutdown delay setting in the system settings to 300 seconds, and shut down after 5 minutes after the car goes out.
8. Wrong operation lead to crashes
(1) Does the OBD2 interface use other OBD equipment (locator, tire pressure monitoring, drop lock, lift window folding, ELM27)
(2)Had your car been modified and brushed (central navigation, electronic throttle controller, fixed speed cruise)
(3) Press and hold the wheel button to enter the setup menu, right-click the wheel button to switch to system settings, press the wheel button vertically to enter the system settings, right-click the wheel button to switch to factory settings, and press the wheel button vertically to confirm.
