GEYIREN P17 HUD - Car Display GPS On-board Computer Digital Speedometer Water&Oil Temp Gauge OBD2 Head Up Display

GEYIREN P17 HUD Overview

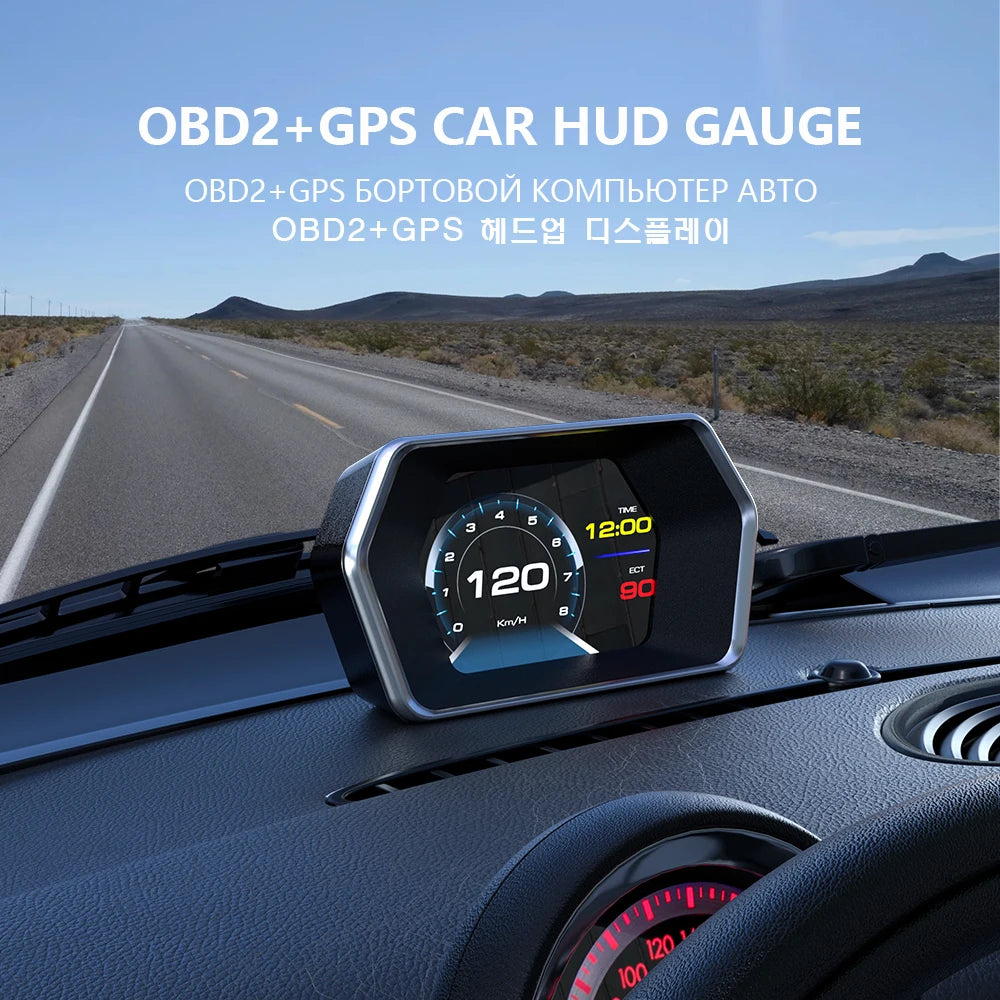

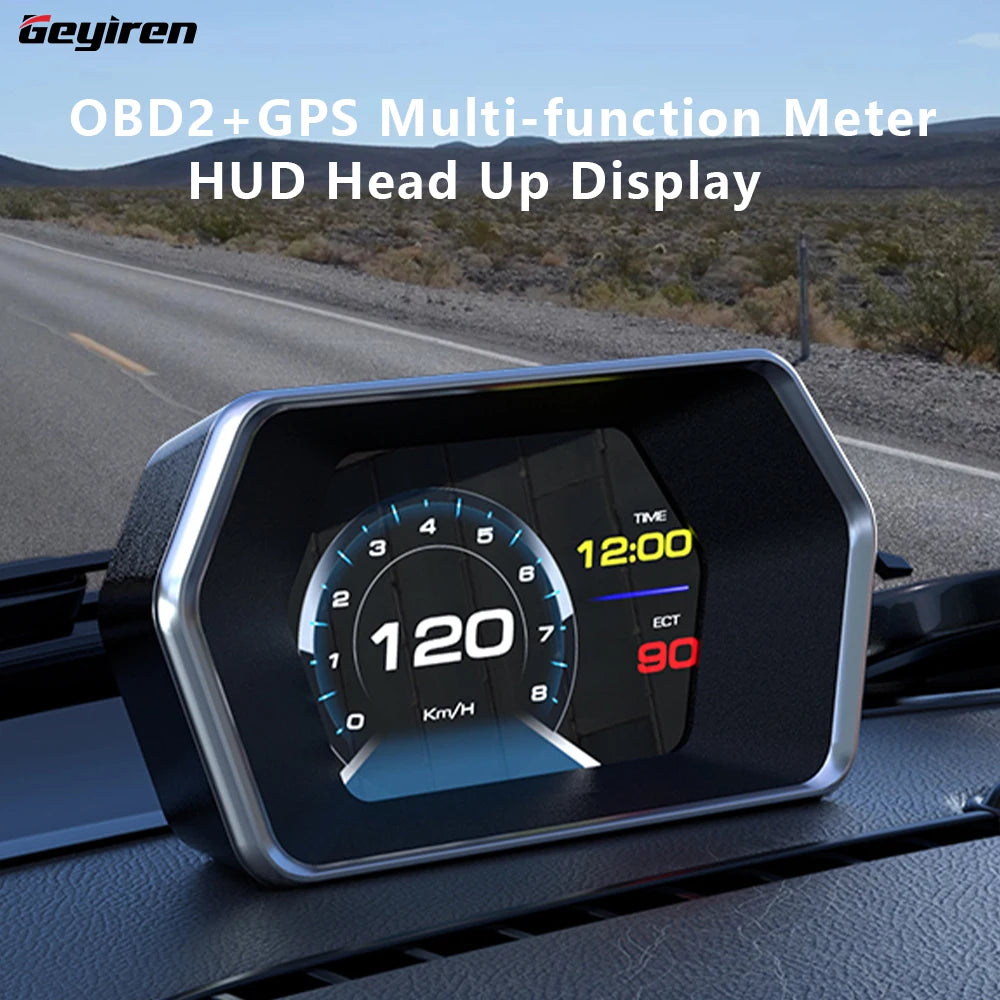

The GEYIREN P17 HUD is a versatile and innovative car head-up display that combines OBD2 and GPS dual systems for comprehensive vehicle data monitoring. Its 1253831mm compact design ensures seamless integration into your car's dashboard. Featuring real-time readings of speed, RPM, water temperature, oil temperature, and fuel consumption, it’s perfect for all car models, thanks to its GPS compatibility for vehicles manufactured before 2008. With a durable ABS+PC construction, automatic brightness adjustment, and nine customizable screen displays, the P17 HUD redefines in-car data visualization while enhancing safety and convenience.

GEYIREN P17 HUD Key Features

• Dual Systems: Equipped with OBD2+GPS for enhanced functionality and compatibility. The OBD2 system supports most cars manufactured after 2008, while the GPS system fits all vehicle types.

• Comprehensive Data Monitoring: Provides real-time vehicle speed, RPM, water temperature, oil temperature, turbo pressure, fuel consumption, mileage, altitude, and more.

• High-Precision Alarms: Includes over-speed, low voltage, and high water temperature alarms to ensure a safer driving experience.

• Multiple Display Modes: Features nine customizable screen styles and eight color options, adapting to various user preferences.

• Automatic Brightness Adjustment: Adjusts display brightness automatically for optimal visibility in any lighting condition.

• Eco-Friendly Materials: Made with durable, odor-free ABS+PC materials suitable for high and low-temperature environments.

GEYIREN P17 HUD Specifications

Specification	Details
Brand Name	GEYIREN
Origin	Mainland China
Material	ABS+PC
Size	1253831mm
Work Voltage	11V-18Vdc (12Vdc/200mA)
Systems	OBD2+GPS
Brightness Adjustment	Automatic
Display Modes	Nine kinds of screen displays
Language Selection	Chinese, English

GEYIREN P17 HUD Advanced Functions

OBD2 Mode:

• Displays: Vehicle speed, water temperature, voltage, RPM, fuel consumption, turbo pressure, and more.

• Performance Tests: Acceleration and brake test data for monitoring vehicle performance.

• Alarms: Includes over-speed, high RPM, low voltage, and high water temperature alarms.

GPS Mode:

• Displays: Speed, altitude, compass, and trip details.

• Satellite Support: Works seamlessly with satellite data for precise readings.

• Universal Compatibility: Suitable for all car models, regardless of manufacturing year.

Exclusive Features:

• Color-Coded Speed Display: Speed readings are color-coded (White: 0-99, Yellow: 100-119, Red: 120+) for quick recognition.

• Eco Data Monitoring: Provides insights into fuel consumption and turbo pressure for efficient driving.

Installation & Troubleshooting

Installation Steps:

1. Plug the OBD2 cable into your car’s OBD2 port.

2. Connect the other end to the P17 HUD.

3. For cars not compatible with OBD2, switch to GPS mode by pressing the ‘-’ button within 5 seconds of powering on.

4. Adjust settings via the intuitive menu options for seamless integration.

Common Troubleshooting Tips:

1. No Display: Ensure the OBD cable is securely connected or test the device on another vehicle.

2. Inaccurate Speed: Adjust the speed settings through the menu to align with dashboard readings.

3. Fuel Consumption Issues: Verify your car’s displacement settings and align them with the HUD for accurate data.

4. Auto Power-Off Issues: Adjust sleep voltage settings to 13.2V or higher to resolve power-off delays.

Why Choose GEYIREN P17 HUD?

Founded in 2013, GEYIREN specializes in developing high-quality HUD devices with over 100 models in production. Designed and manufactured in Shenzhen, China, the P17 HUD combines advanced features, eco-friendly materials, and intuitive usability at a competitive price, backed by an extended warranty of 1 year and 6 months.

Experience enhanced driving safety and performance monitoring with the GEYIREN P17 HUD, your ultimate on-board computer and speedometer solution.

 GEYIREN P17 HUD Details

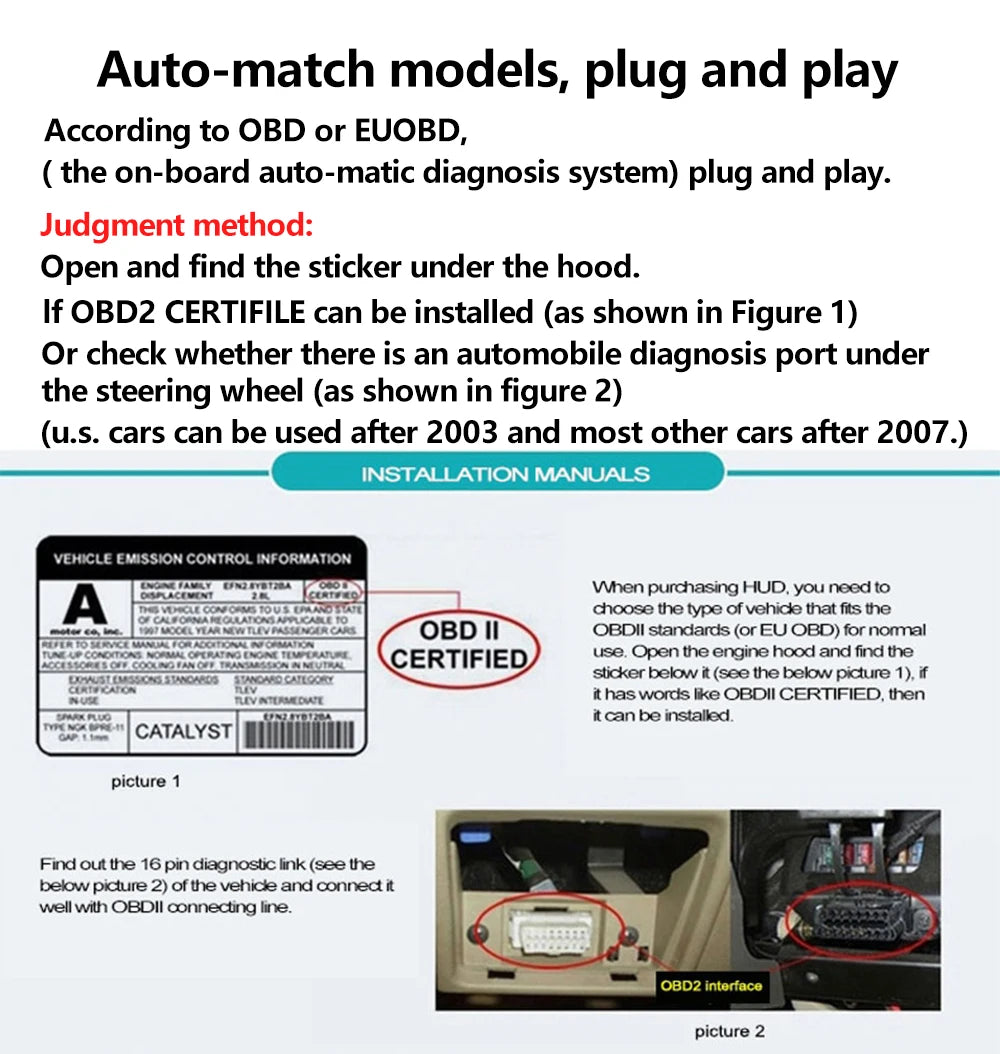

The GEYIREN P17 HUD product features an auto-match model with plug-and-play capabilities. According to OBD or EUOBD, the on-board automatic diagnosis system requires a simple installation process. To install, open and find the sticker under the hood: if it says "OBD II CERTIFIED," you can proceed with the installation (as shown in Figure 1). Alternatively, check for an automobile diagnosis port under the steering wheel (as shown in Figure 2) (US cars can use this system after 2003, while most other cars can use it after 2007).

Product function introduction：

▶OBD mode information display： Vehicle speed, water temperature, voltage, fuel consumption, RPM, one-way mileage, one-way time, system time, intake pressure, air-fuel ratio, turbo pressure, acceleration test, brake test, high water temperature alarm, high-speed alarm, high PRM alarm, Low voltage alarm, fatigue driving alarm, read data stream...

▶GPS mode information display： Vehicle speed, voltage, altitude, compass, system time, one-way time, and one-way mileage.

▶The latest upgrade: GPS function can also be displayed in OBD mode

▶Compatible range：

OBD mode is suitable for 95% of cars with obd2 or EOBD protocol (American cars after 2003, other regions after 2007.) After connecting to the car, it will fire and automatically match. If the matching is unsuccessful, it will show incompatibility. . Can only be used for GPS systems. Please note that the car must be started, and the engine works to match the OBD.

These types of vehicles cannot use OBD mode: all kinds of trucks, large passenger cars, medium passenger cars, pickup trucks, diesel cars, and electric cars.

▶GPS mode is compatible with all car models.

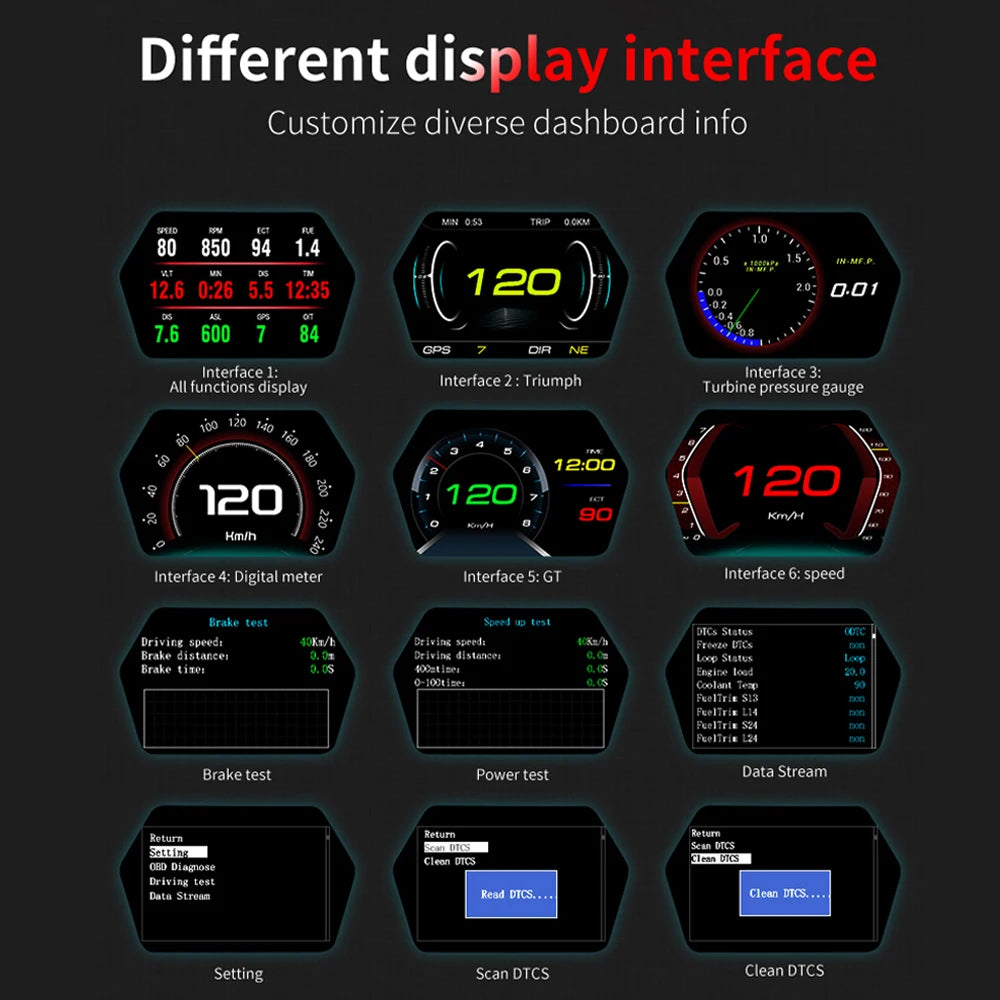

Multiple display styles

Different styles of display patterns. free choice.

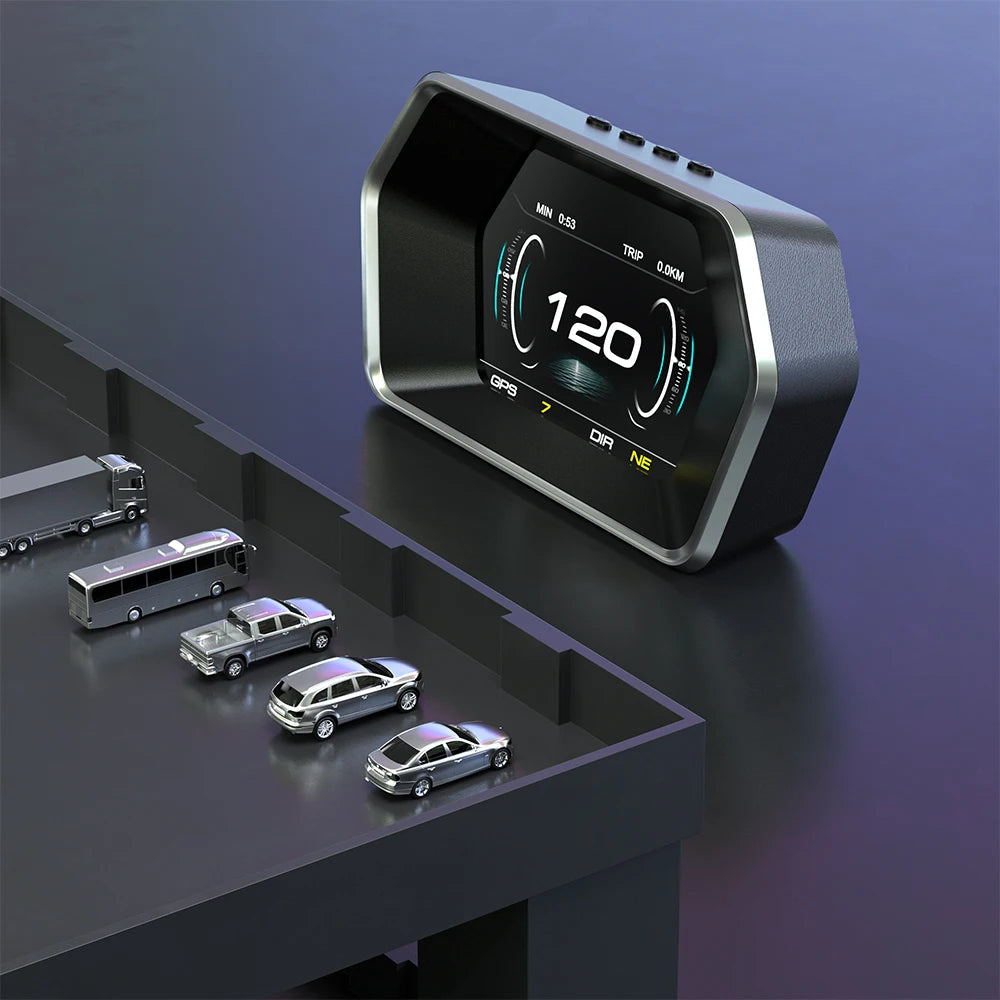

Suitable for all cars to use

If the OBD2 system is not compatible, switch to the GPS system. The GPS system is suitable for all models.

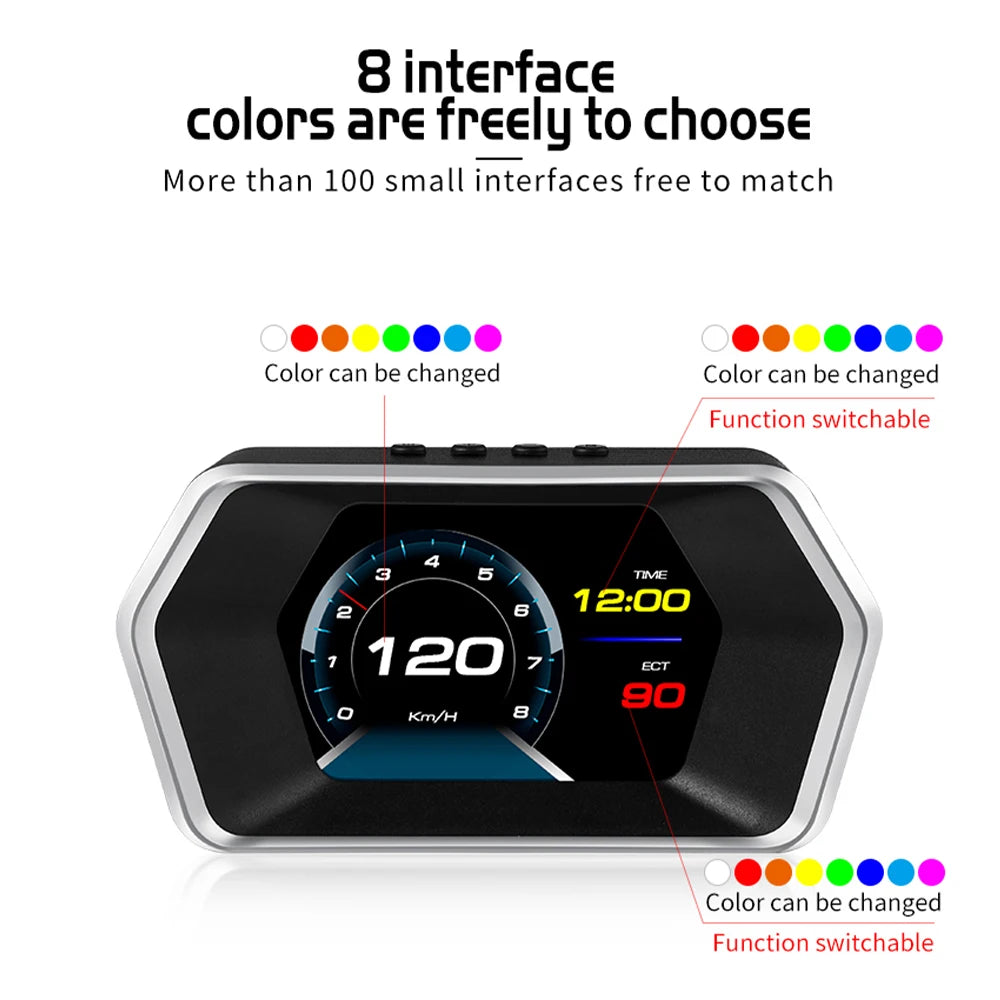

Choose you favorite color

The displayed numbers have 8 colors to choose from.Very flexible match.

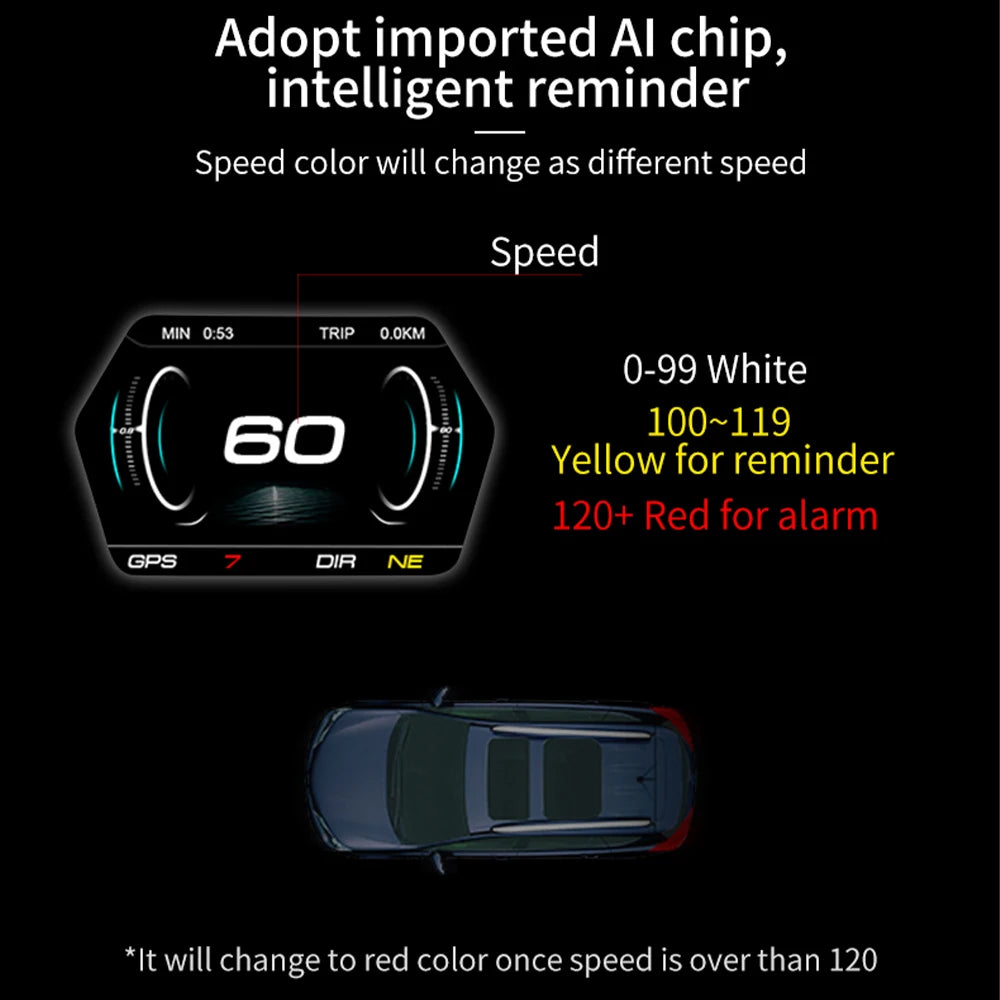

Speed color will change as different speed

0-99 White

100-119 Yellow for reminder

120+ Red for alarm

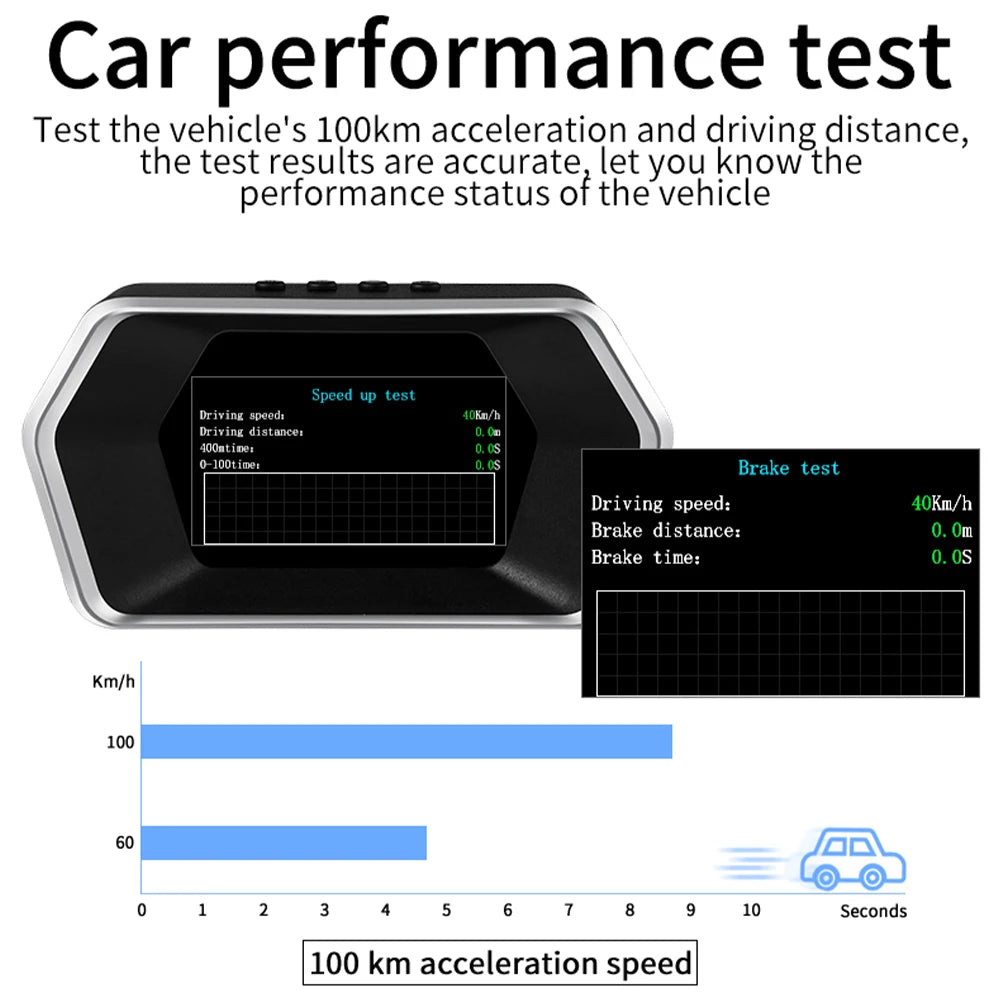

Car performance test

Test the vehicle's 100km acceleration and driving distance,the test results are accurate, let you know the performance status of the vehicle

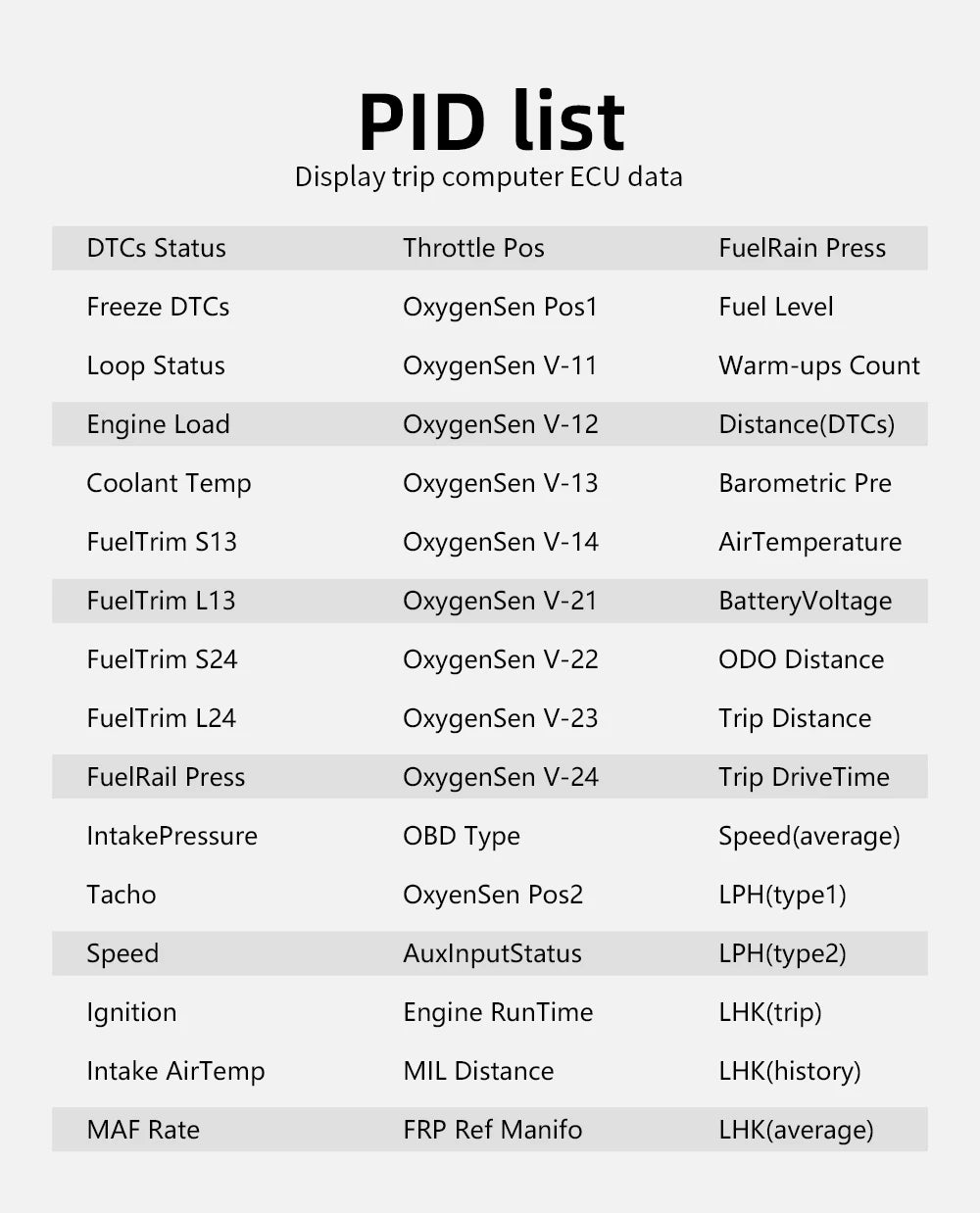

Display trip computer ECU data

List Display Trip Computer ECU Data Diagnostic Trouble Codes Status Throttle Position Fuel Rail Pressure Freeze Diagnostic Trouble Codes Oxygen Sensor Position 1 Fuel Level Loop Status Oxygen Sensor Voltage-11 Warm-up Count Engine Load Oxygen Sensor Voltage-12 Distance Diagnostic Trouble Codes Coolant Temperature Oxygen Sensor Voltage-13 Barometric Pressure Fuel Trim S13 Oxygen Sensor Voltage-14 Air Temperature Fuel Trim L13 Oxygen Sensor Voltage-21 Battery Voltage Fuel Trim S24 Oxygen Sensor Voltage-22 Odometer Distance Fuel Trim L24 Oxygen Sensor Voltage-23 Trip Distance Fuel Rail Pressure Oxygen Sensor Voltage-24 Trip Drive Time Intake Pressure OBD Type Average Speed Tachometer Oxygen Sensor Position Z Low Pressure Hydraulic Kilowatt-hours Per Hour Ignition Engine Runtime Lap History Intake Air Temperature Malfunction Indicator Light Distance Lap Histogram Average Temperature Manifold Absolute Pressure Ref Manual Intake Low High Kilo Watt Hours Trip Temperature

Did you meet these troubles? These troubles are always worrying: oil temperature clear fault code, car status display, cancel the fault to know the cause. Real-time monitoring of vehicle oil temperature is easy, but still need to repair water temperature in long journeys. 6,8 "1A G2048 '54S85 Fuel consumption average fuel consumption. Turbine pressure driving habits [Real-time turbine pressure corresponds or not? How about fuel consumption? Real-time monitoring of fuel consumption increases mean and adjusts engine speed. Car fault alarm air-fuel ratio.

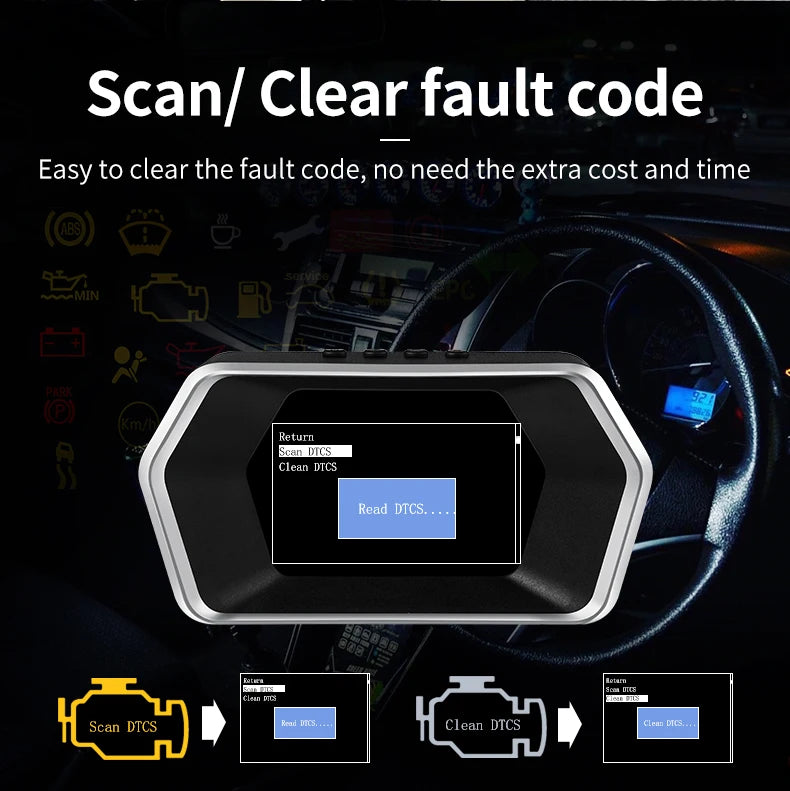

Scan to clear fault code without extra cost or time. Takes approximately 2 minutes. Includes: Return Scan, WCS, Clean DTCS, Read DTCS, Scan DTCS, Collect DC, Easy I/O 0B0 and 800 Clean.

Do you know the driving time from company to home? Driving distance do you know how long from home to the sea. MBY 6426: 50 Digital Clock, 40 Satellite Automatic Timing, and 30 FRI. This satellite clock is not affected by natural factors such as weather.

Human-Machine Interface (HMI) driving direction with orientational guidance. Ensure safe navigation through deserts and plains using car satellites. Satellite-based system provides accurate high-altitude positioning for MIN.

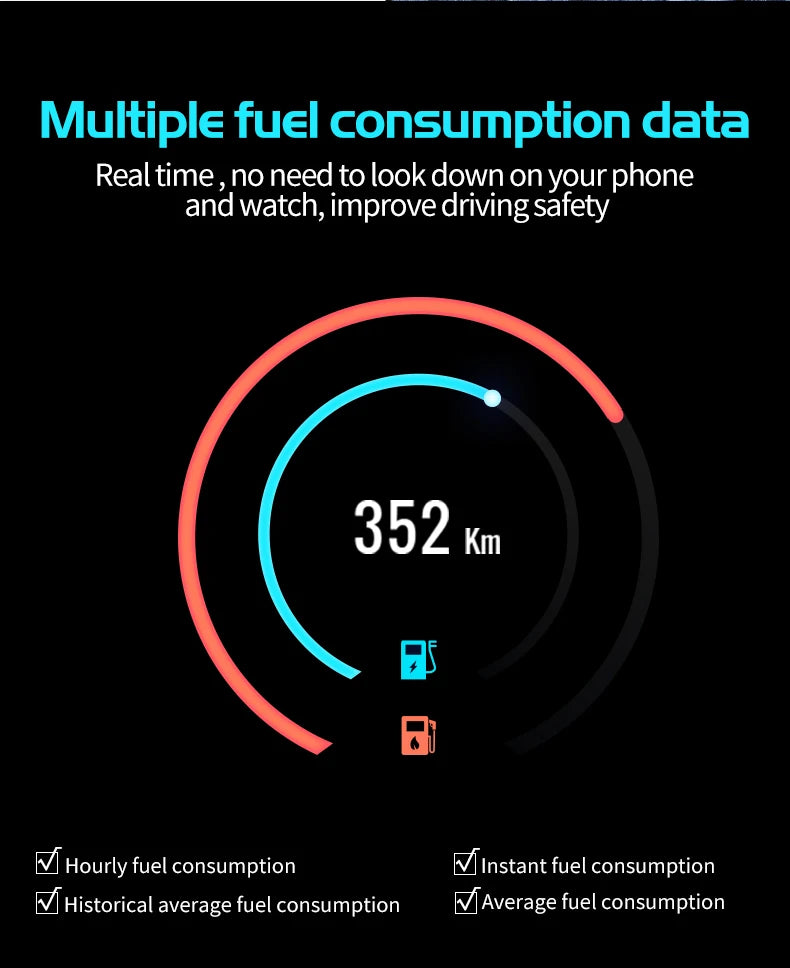

Real-time multiple fuel consumption data; no need to look down at your phone or watch, improving driving safety. Displays instantaneous fuel consumption of 352 km/h and historical average fuel consumption.

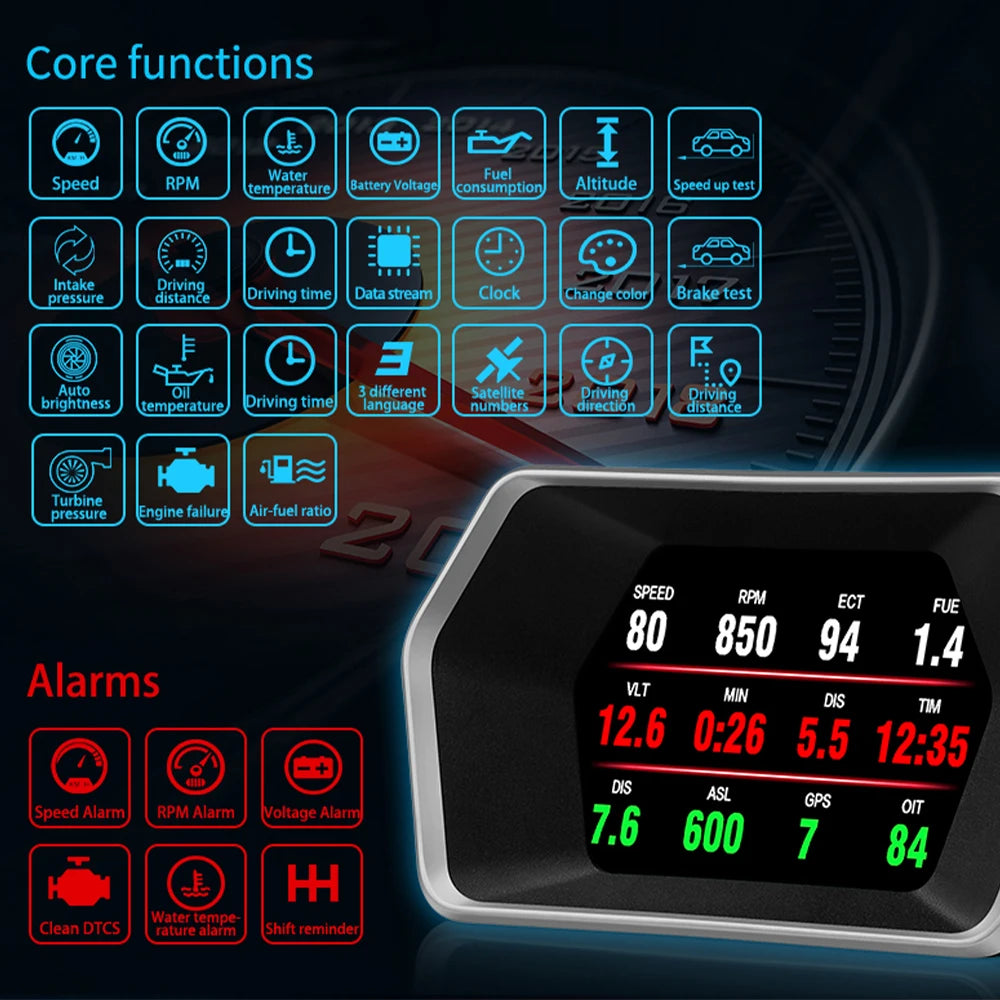

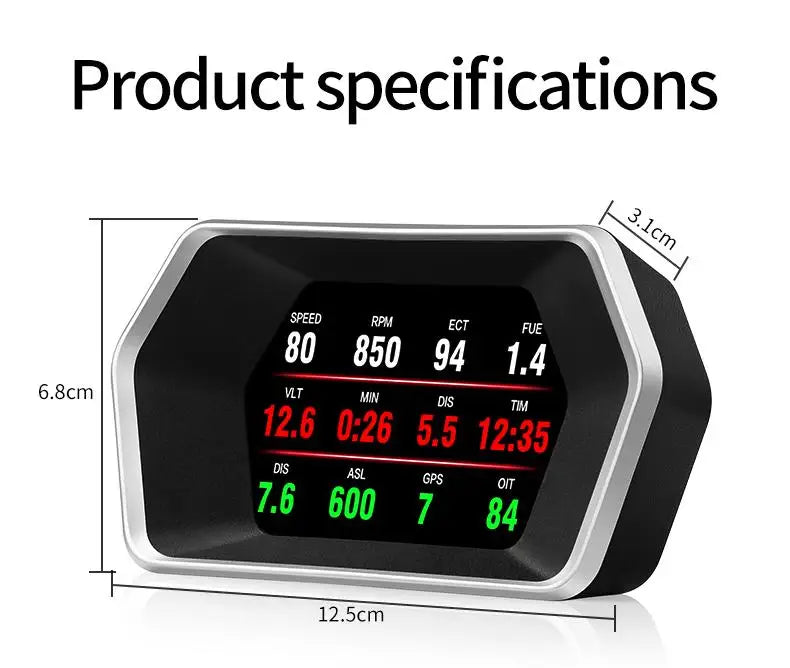

Product specifications: Speed - 80 km/h, RPM - 850, ECT - 94%, FUE - 1.4 liters, MIN TIM - 12.6 seconds, MT - 6.8 cm, ASL - 5.5 meters, GPS - 7.6 meters, OIT - 600, JL - 84 km/h

Please note:

It is recommended to unplug the device if your car doesn’t been used for more than one week.

OBD2 System Troubleshooting

1.The screen without any display, and no power

Please do these operations: If OBD cable is tight enough,pull the OBD cable down several times. Try another car to test. Analyze whether the vehicle OBD diagnostic interface is broken. If the OBD diagnosis is bad, it is recommended to repair the OBD interface and connect the device again.

2.When the device powered on, it only shows the car voltage and be automatic power off after 30 seconds driving.

The device is available for cars with OBD2 and EU-BOD protocols(European:manufactured after 2003, Other region: after 2008)

The Product don’t support JOBD and OBDI

Please switch to the GPS system to display using the USB cable. When the device powered on,press the ‘-’ button within 5 seconds to select the GPS system.

3.Inaccurate Speed

First check the speed unit is correct or not, the speed unit including KM/H and MPH,please refer to the setting to switch the unit.

When the device is powered on, long press in‘M’ button for 2 seconds to enter the menu setting.

Short press the ’+’ button to switch to speed adjust option,and short press the ‘M’ button to choose this option,then short press ‘+’ button or ‘-’ button to change the value. Once finished,long press in ‘M’ to save and exit.

(If the dashboard speed is 100 Km/h, but the device displays 105Km/h,just need to adjust the value at 102)

4.Inaccurate Fuel consumption

Check your car displacement,and set the device same as your car(if your car is 2.0L,then change the device value at 2.0L).The fuel consumption can be adjusted,but we don’t suggest to change it ,because all the datas are read from the car ECU directly.

5.The device can not auto power off

Adjust the sleep voltage to 13.2V or 13.6V, then device will power off in 3 minutes.

6.Auto start and stop cars or Hybrid car,The device crashes in driving

(1)Adjust the sleep voltage setting to COM mode

(2)If it is not resolved, change the power off time to 300s.

(3)If still not resolved, please switch to the GPS system for display, and within 5 seconds after power on, press the ‘+’ key to select the GPS system

7.Wrong operation lead to crashes

(1)Please check the OBD interface if connected withe other device

(2)Modified and retrofitted cars will cause a crash

Please remove other OBD devices and do the factory reset.

If still not solved,please switch to GPS system.

GPS System Troubleshooting

1.The screen without any display,and no power

Start the car engine;check if the cable line is tight;or connect the USB to the computer to check

2.Without car Speed

After the device power-on, the GPS will try to find the satellite. Please driving the car to the road. It will work once gets more than 5 satellite signals.

3. Cannot be turned on automatically or repeatedly extinguished during driving

Please use the USB cable to insert the cigarette lighter

If you use the OBD cable, change the sleep voltage to 13.0V or 12.8V

If use the USB cable, make the sleep voltage off.

4.Inaccurate time

Entering into the setting menu, choose the time adjust, press ‘-’ to adjust the time zone time.

After setting,long press ‘M’ button to save and exit.

5.Inaccurate Speed

a.First check the speed unit is correct or not, the speed unit including KM/H and MPH,please refer to the setting to switch the unit.

b.The car manufacturers usually make the dashboard speed 5-7% higher than the ECU. The international standard is based on satellite data.

(if the dashboard shows 100,and the device shows the 105,change the default value at 102)

6.Driving direction is wrong

The satellite cannot distinguish your direction of travel without speed, after the vehicle speed exceeds 5KM/H, the direction can be displayed normally.

7. The speed is still displayed after the car stops.

When driving in the underground parking lot, tunnel,or under the crossover bridge, there will be unstable satellite drift when there is obstruction. Please drive the vehicle to the empty road. Once the satellites are more than 5,it will display normally.

8. The device cannot auto power off when the car is turned off

If connects by OBD cable, it will auto power off in 3 minutes.

If it still not powers off in 5 minutes,please change the sleep voltage to 13.5V, or use the USB cable.
