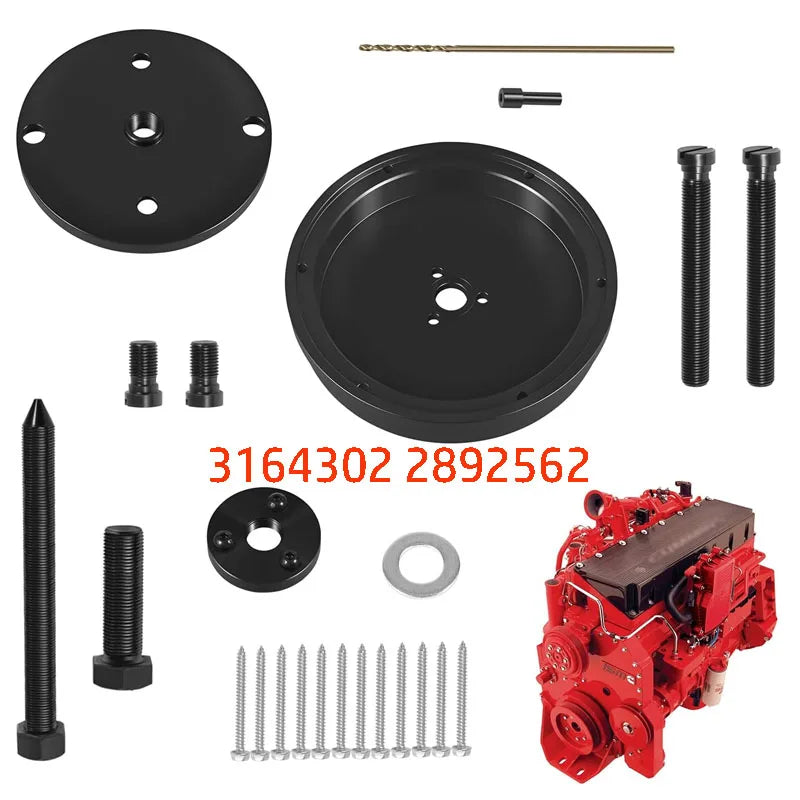

Cummins 3164302 2892562 Seal Remover & Installer Overview:
The 3164302 2892562 Auto Rear Crankshaft Oil Seal Remover & Installer Tool Kit is specially designed for use with Cummins L10, L10G, M11, and ISM engines. This high-quality tool kit is crafted from durable, heavy-duty steel with a rust-resistant black finish, ensuring maximum strength and longevity. Engineered to remove and install the rear crankshaft oil seal efficiently, this tool prevents leaks and reduces the risk of damaging the crankshaft seal surface during removal. It is compatible with seal #4089542, making it an essential tool for any automotive professional or DIY mechanic working with Cummins engines.
Cummins 3164302 2892562 Seal Remover & Installer Specifications:
| Specification | Details |
|---|---|
| Brand Name | Xauto |
| OEM Number | 3164302, 2892562 |
| Material | Heavy-Duty Steel |
| Fitment | Compatible with Cummins L10, L10G, M11, ISM |
| Item Weight | 6.99 KG |
| Finish | Black, Rust-Resistant |
| Type | Rear Crankshaft Oil Seal Remover & Installer |
| Compatible Seals | #4089542, #4089544 |
| Application | Removes and installs rear crankshaft oil seals on Cummins engines |
Key Features:
- Precise Fitment: Specifically designed for Cummins ISM, L10, L10G, and M11 engines, this kit ensures a perfect fit for seamless oil seal installation and removal.
- Heavy-Duty Construction: Made from superior steel with a black finish, the tools are highly durable, rust-resistant, and built to withstand impact, ensuring long-lasting performance.
- Efficient Seal Handling: Works with seal #4089542, and it ensures leak prevention by properly installing and removing crankshaft seals, reducing the risk of surface damage during the process.
- Time-Saving: This tool kit simplifies the oil seal replacement process, saving time and reducing effort for mechanics and technicians.
- Comprehensive Set: Includes all necessary tools for the job, including the installer plate, seal guide, screws, drill, remover screw adapter, and more.

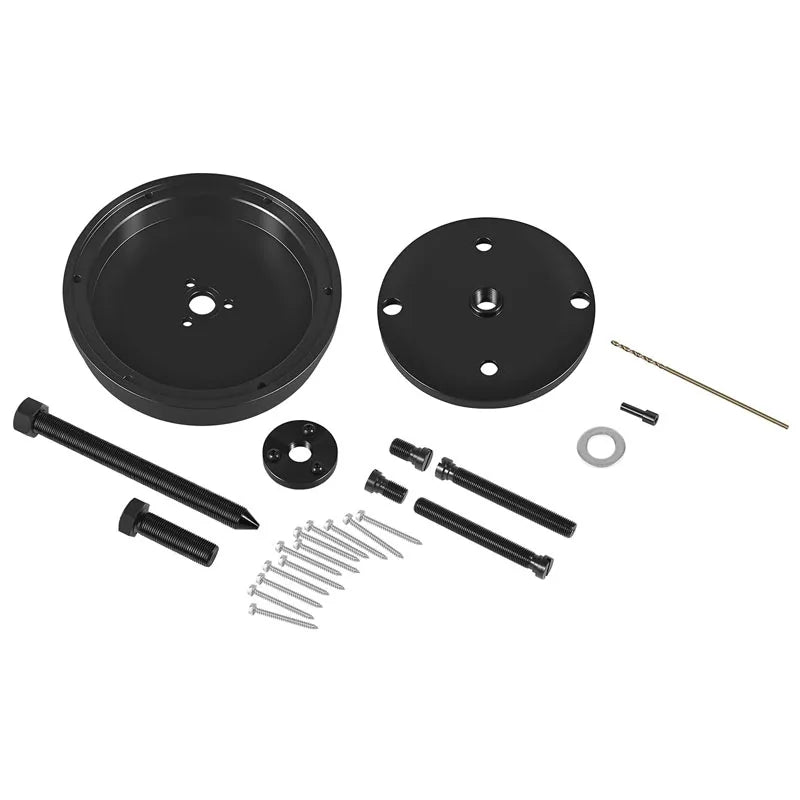

Package Includes:

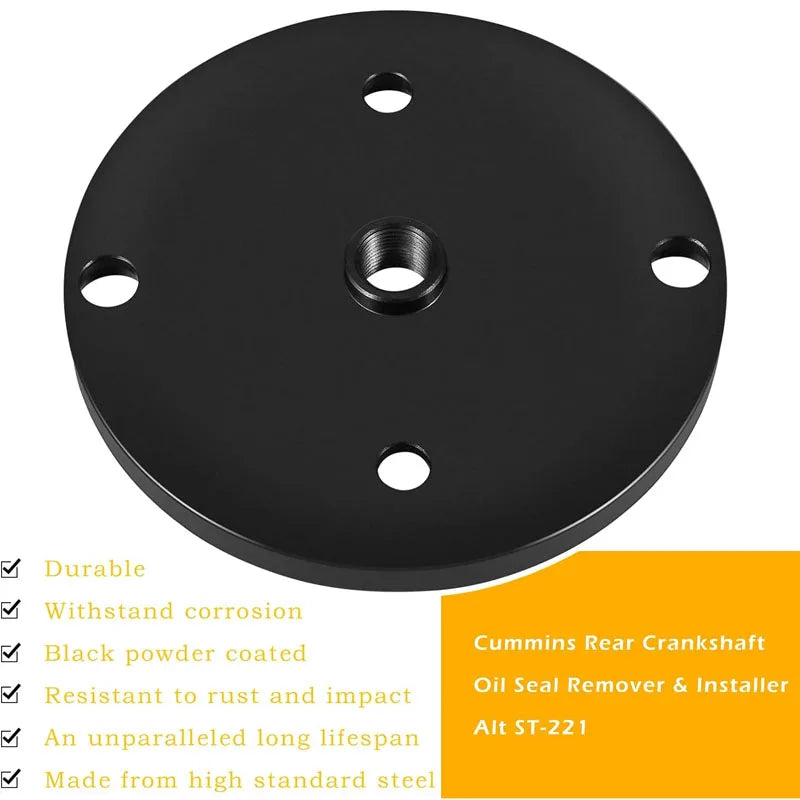

- 1x Installer Plate (#3164365)
- 1x Crankshaft Seal Guide (#3164366)
- 4x Guide Screws (#3164367)
- 1x Washer (#3164454)
- 1x Installer Screw (#3164619)
- 12x Sheet Metal Screws (#3165046)
- 3x Button Head Socket Screws (#3165056)
- 1x Drill (#3165057)
- 1x Remover Screw Adapter (#3165058)
- 1x Remover Screw (#3165059)
Usage Instructions:
- Attach the crankshaft seal guide with the counterbore holes facing outward, away from the crankshaft.
- Tighten the guide screws to secure the assembly.
- Use the tools provided to carefully remove and install the rear crankshaft oil seal, ensuring proper alignment to prevent damage.
Fitment Notes:

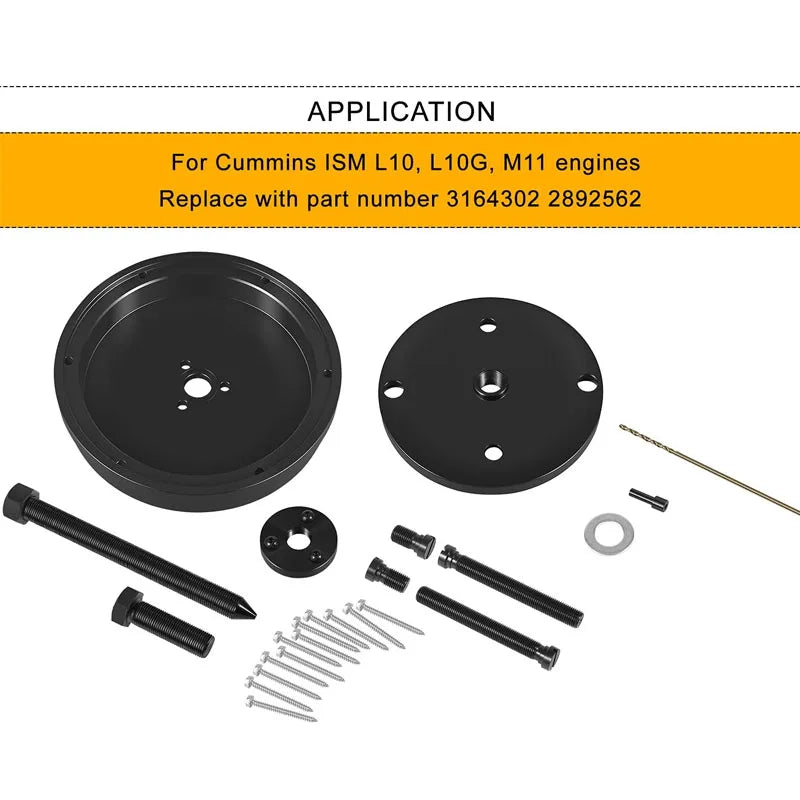

- This tool kit is compatible with Cummins L10, L10G, M11, and ISM engines, and is an alternative to OEM part numbers 3164302 and 2892562.
- For seal #4089542, use tool #3164302 or ST-221. For seal #4089544, use tool AM-4918241.
Benefits:
- Prevents rear crankshaft seal leaks.
- Saves time and reduces the risk of damaging the crankshaft seal surface during removal.
- Comes with a comprehensive 30-day return/refund policy and a 12-month warranty for customer satisfaction.
This rear crankshaft oil seal remover and installer kit is essential for ensuring the proper maintenance of Cummins engines, offering professional-grade performance and durability.
Cummins 3164302 2892562 Seal Remover & Installer Details

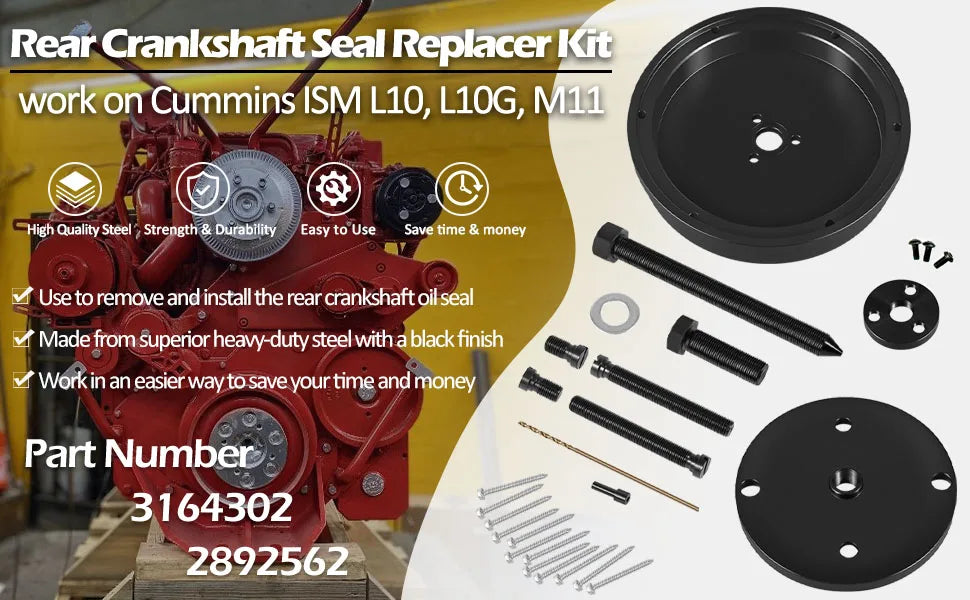

Cummins ST-221 Oil Seal Tool: Rear Crankshaft Seal Replacer Kit for Cummins ISM L10, L1OG, M11. Made from high-quality steel with a durable black finish. Designed for easy use, saving time and money. Use to remove and install the rear crankshaft oil seal. Part numbers include 3164302 and 2892562.

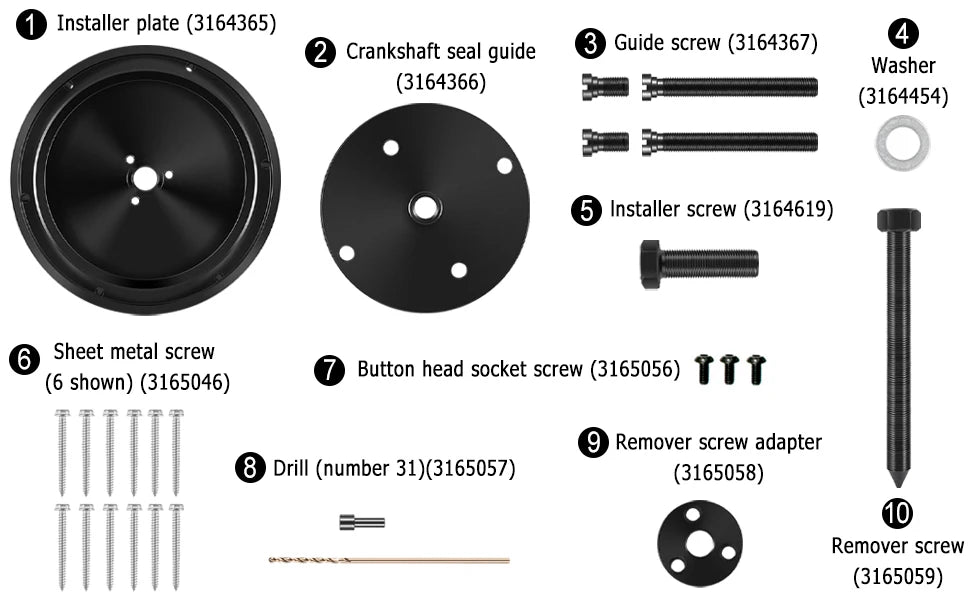

Cummins ST-221 Tool Kit includes an Installer plate (3164365), Crankshaft seal guide, Guide screw (3164367), and Washer (3164366). Additional components include Installer screw (3164619) and 6 Sheet metal screws. The kit also features Button head socket screw (3165056) and Ttt (6 shown) (3165046). A Remover screw adapter is included along with a Drill bit #31, and Remover screw (3165059).

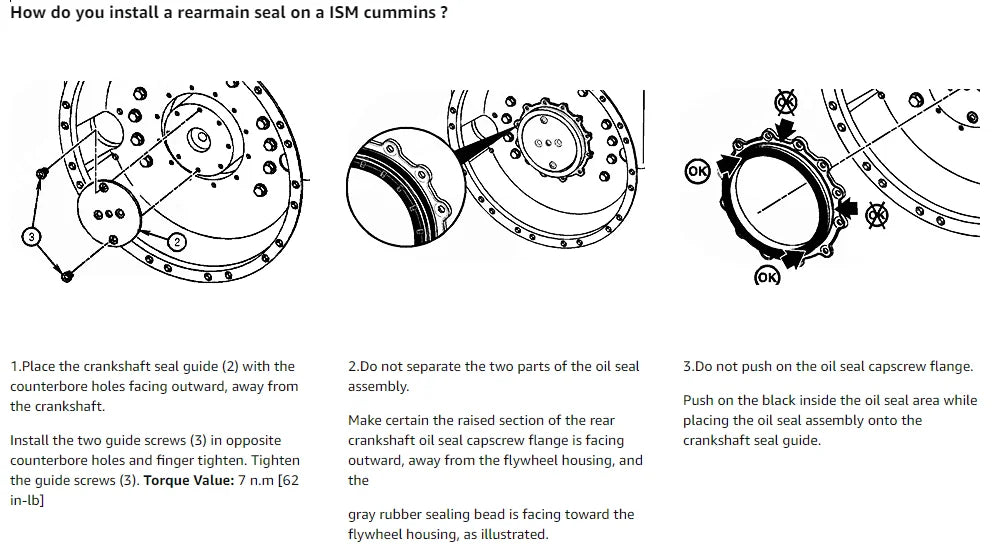

To install a rear main seal on a Cummins ISM 0.00, place the crankshaft seal guide with the two parts of the oil seal together. Do not push on the oil seal cap screw flange counterbore holes facing outward away from the assembly. Push the black inside the oil seal area while making sure the raised section is facing toward the rear. Place the oil seal assembly onto the crankshaft and install the two guide screws in opposite directions. Finger tighten the guide screws, then torque to 62 in-lbs.

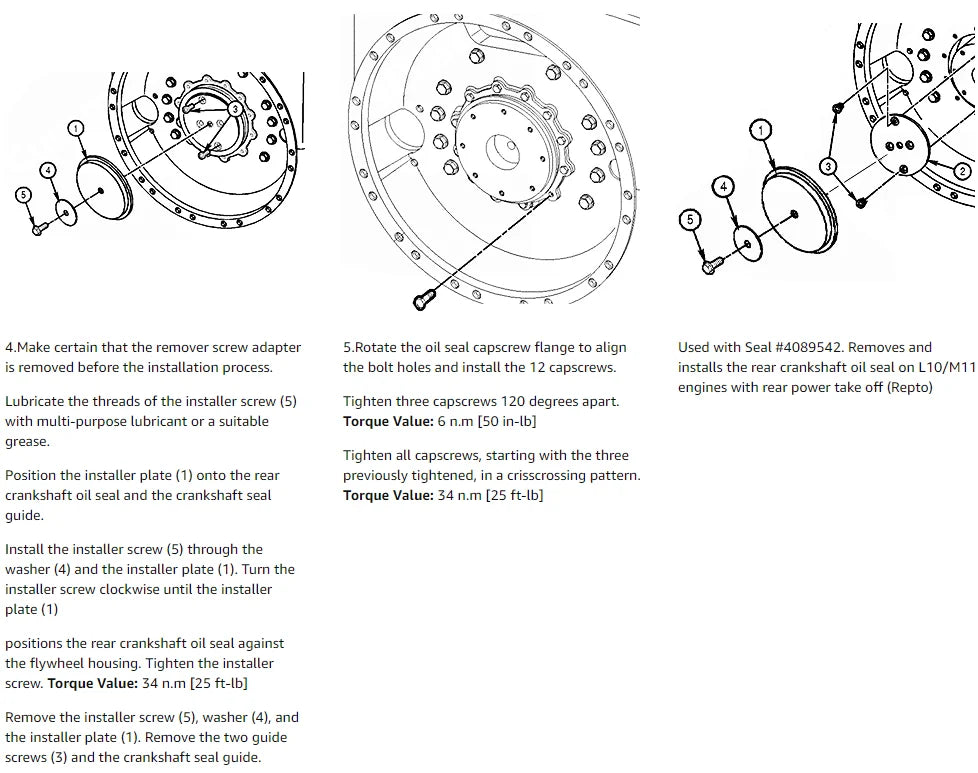

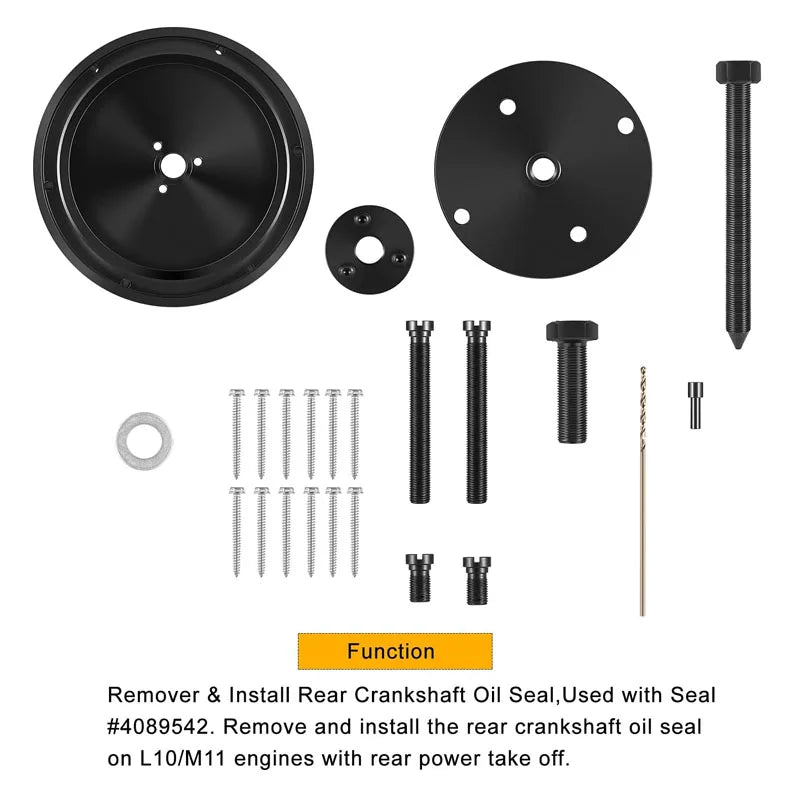

Make sure to remove the remover screw adapter. Rotate the oil seal cap screw flange to align with Seal #4089542, which is used with Seal. Removes removed before the installation process. Install the 12 capscrews that install the rear crankshaft oil seal on L1O/M1 engines with a rear power take off (Repto). Lubricate the threads of the installer screw with multi-purpose lubricant or suitable grease. Tighten three capscrews 120 degrees apart to a torque value of 6 n.m [50 in-lb]. Tighten all capscrews, starting with the three previously tightened crisscrossing pattern. Position the installer plate (1) onto the rear crankshaft oil seal and the crankshaft seal guide. Install the installer screw (5) through the washer (4) and the installer plate (1). Turn the installer screw clockwise until the installer plate (1) positions the rear crankshaft oil seal against the flywheel housing. Tighten the installer screw to a torque value of 34 n.m [25 ft-lb]. Remove the installer screw (5), washer (4), and the installer plate (1). Remove the two guide screws (3) and the crankshaft seal guide.

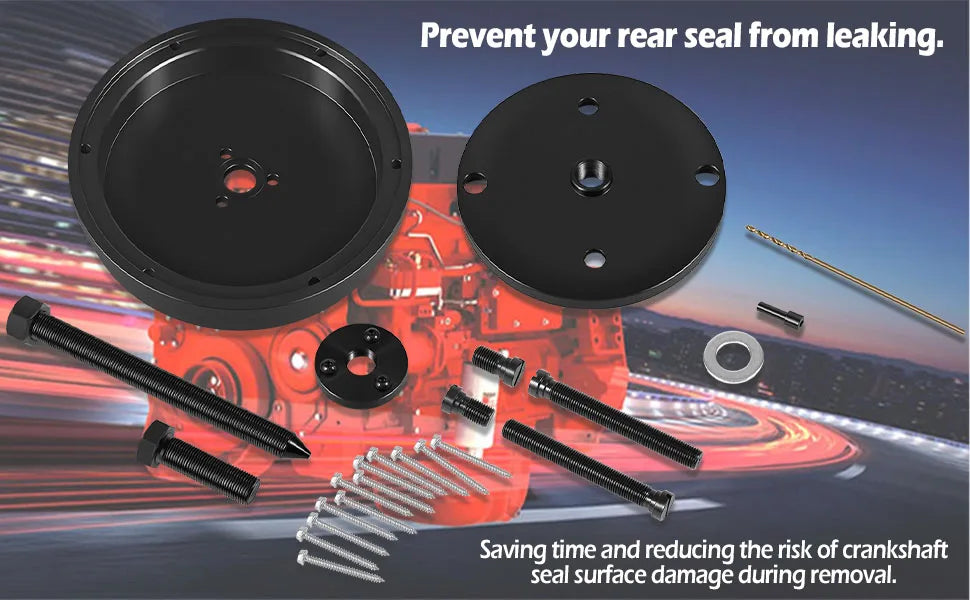

Prevent your rear seal from leaking by saving time and reducing the risk of crankshaft seal surface damage during removal.

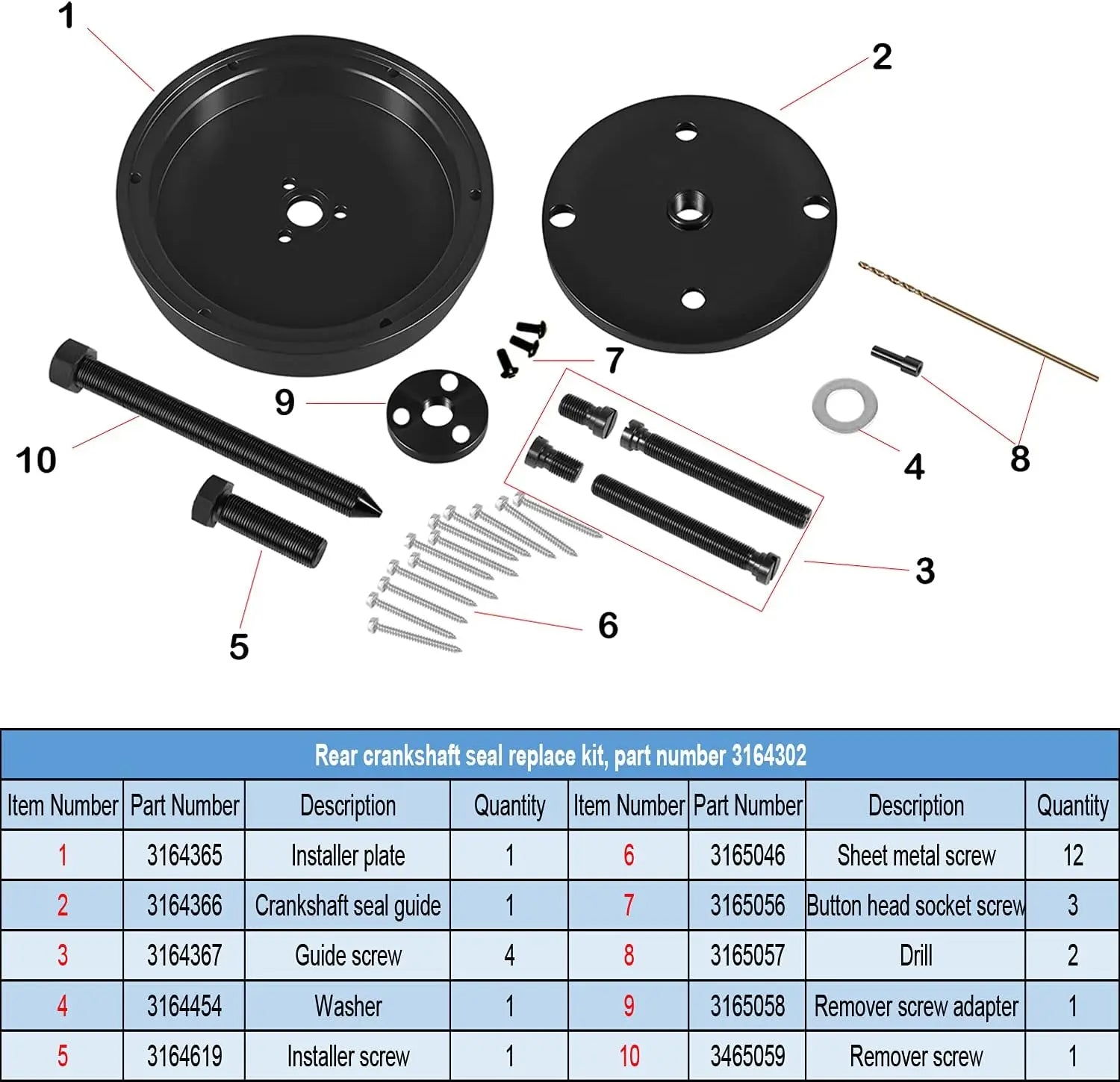

Cummins ST-221 Oil Seal Tool Product Image: Rear Crankshaft Seal Replacement Kit. Contains parts: Item Number: 3164302 Part Number: 3164365 (Installer Plate) Quantity: 1 Description: Installer plate * Item Number: 3165046 (Sheet Metal Screw) Part Number: 3165046 Quantity: 12 Description: Sheet metal screw * Item Number: 3165056 (Iutton Head Socket Screw) Part Number: 3165056 Quantity: 3 Description: Iutton head socket screw * Item Number: 3164367 (Guide Screw) Part Number: 3164367 Quantity: 8 Description: Guide screw * Item Number: 3164454 (Washer) Part Number: 3164454 Quantity: 9 Description: Washer * Item Number: 3165058 (Remover Screw Adapter) Part Number: 3165058 Quantity: 5 Description: Remover screw adapter * Item Number: 3465059 (Remover Screw N-part F) Part Number: 3465059 Quantity: 1 Description: Remover screw N-part F
