GEYIREN C3 HUD Overview
The GEYIREN C3 OBD2 + GPS HUD redefines the driving experience by combining cutting-edge display technology with universal vehicle compatibility. Designed to project vital driving information directly into the driver's line of sight, this Head-Up Display ensures a safer, more efficient journey.
GEYIREN C3 HUD Highlights
Dual-System Integration
- OBD2 System: Designed for gasoline vehicles manufactured after 2007, it seamlessly connects to the car’s onboard diagnostic system to retrieve comprehensive data.
- GPS System: Universally compatible with all vehicles, including older models, electric cars, diesel vehicles, pickup trucks, and buses. The GPS system ensures full functionality even if OBD2 is unavailable.
Comprehensive Display Metrics
- The device provides real-time monitoring of key vehicle parameters:
- OBD2 Metrics: Speed (KM/H or MPH), RPM, water temperature (°C or °F), battery voltage, fuel consumption, driving time, trip distance, and more.
- GPS Metrics: Driving direction, altitude, and satellite connection status.
- Includes advanced warnings for speed, RPM, battery voltage, and water temperature to keep you informed at all times.
Customizable Interfaces
- Features nine dashboard layouts to suit individual preferences, offering clear and concise data visualization.

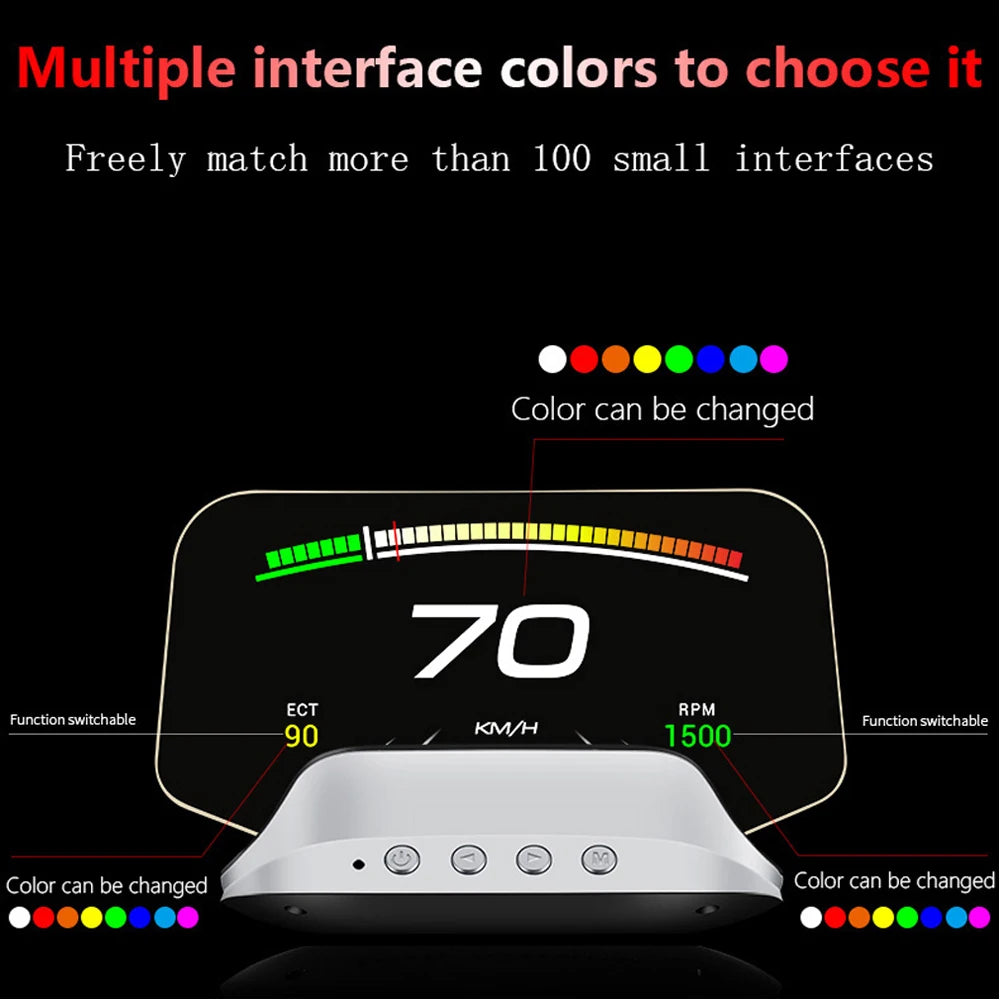

- The multi-color digital display allows users to personalize color schemes for better readability.
Enhanced Safety
- The device's automatic brightness adjustment optimizes visibility during day or night driving conditions, ensuring distraction-free data access.
- The projected display sits at eye level, minimizing the need to look away from the road.
GEYIREN C3 HUD Specifications
| Specification | Details |
|---|---|
| Brand Name | GEYIREN |
| Model | C3 |

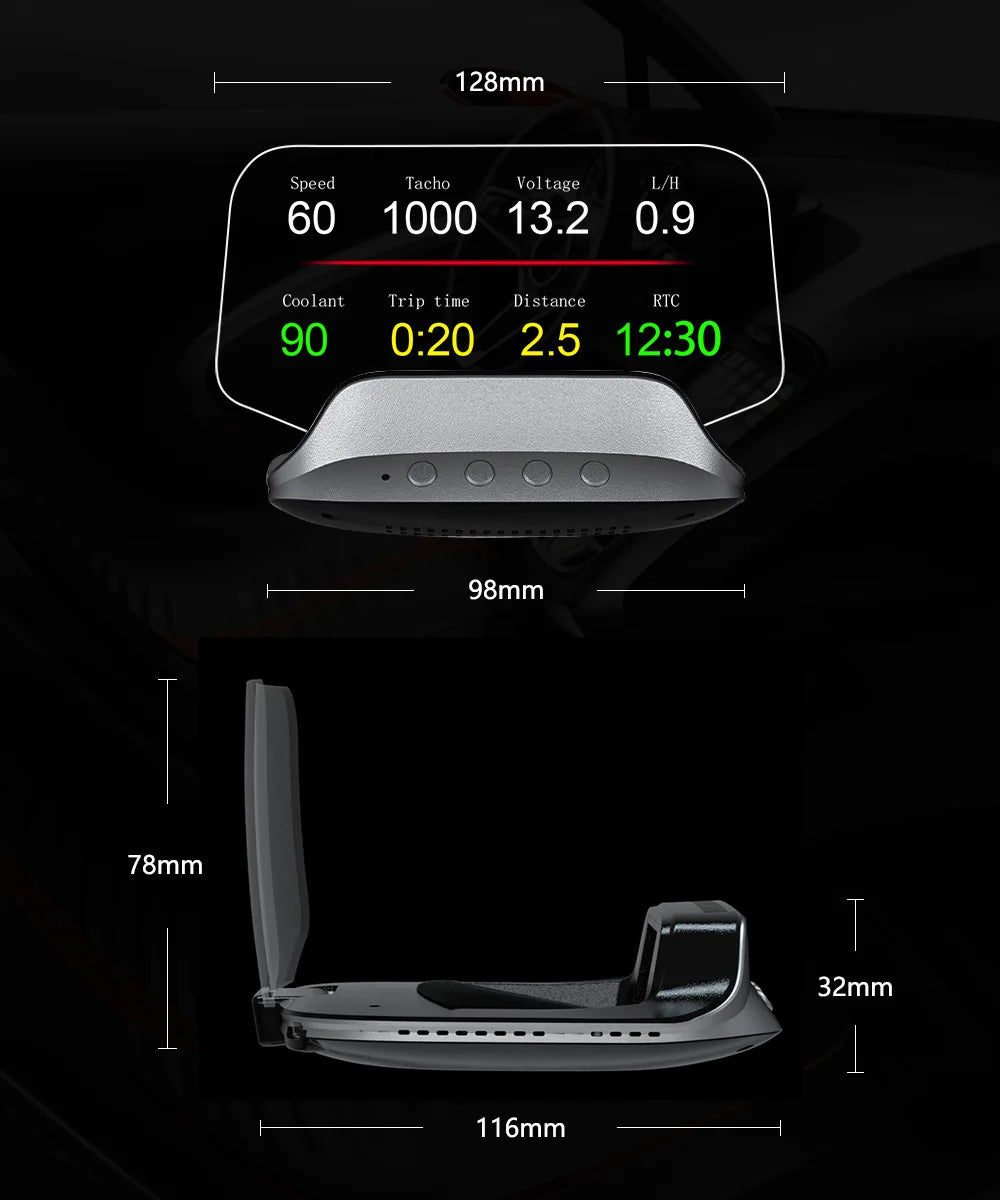

| Dimensions | 116x128x32mm |
| Dual Systems | OBD2 + GPS |
| HUD Display Metrics | Speed, RPM, altitude, direction, fuel, etc. |
| Brightness Adjustment | Automatic |
| Supported Units | KM/H, MPH |
| Alarm Functions | Speed, RPM, water temperature, fatigue |
| Certifications | CE, RoHS, FCC |
| Voltage Range (OBD Mode) | 11V–18V |
| Warranty | 1 Year |
| Compatible Vehicles | All cars via GPS; OBD2 for post-2007 cars |
GEYIREN C3 HUD Key Functionalities
Multi-Alarm System
- Speed Alarm: Alerts when the vehicle exceeds a predefined speed limit.
- RPM Alarm: Notifies if the engine speed surpasses safe thresholds.
- Water Temperature Alarm: Prevents overheating by monitoring engine coolant temperature.
- Voltage Alarm: Warns of abnormal battery voltage levels.
- Fatigue Driving Reminder: Helps drivers avoid prolonged driving fatigue through timely alerts.
Data Stream Monitoring
- Real-time updates on key driving metrics such as intake pressure, air-fuel ratio, turbo pressure, and fuel efficiency.
- View additional diagnostics, including error codes and vehicle status, using the OBD2 system.
Navigation Assistance
- The GPS system provides driving direction, altitude, and satellite status.
- C3 Plus version supports live navigation features for enhanced route guidance.
Detailed Features and Benefits
A. Enhanced Visual Projection
- High-Definition Glass Projection: Displays information clearly and vividly on the windshield without any ghosting or double images.
- Wide Angle Visibility: Ensures that displayed data is legible regardless of the driver’s position.
- Eye-Level Information Display: Keeps critical driving metrics within the driver’s natural line of sight, reducing distractions and enhancing road safety.
B. Automatic Brightness Adjustment
- The C3 HUD features auto-sensing brightness control, adapting to varying light conditions for optimal visibility.
- Brightness levels range from 1 (darkest) to 8 (brightest), providing clear projection during both daytime and nighttime driving.
C. Multi-Functional Alarms

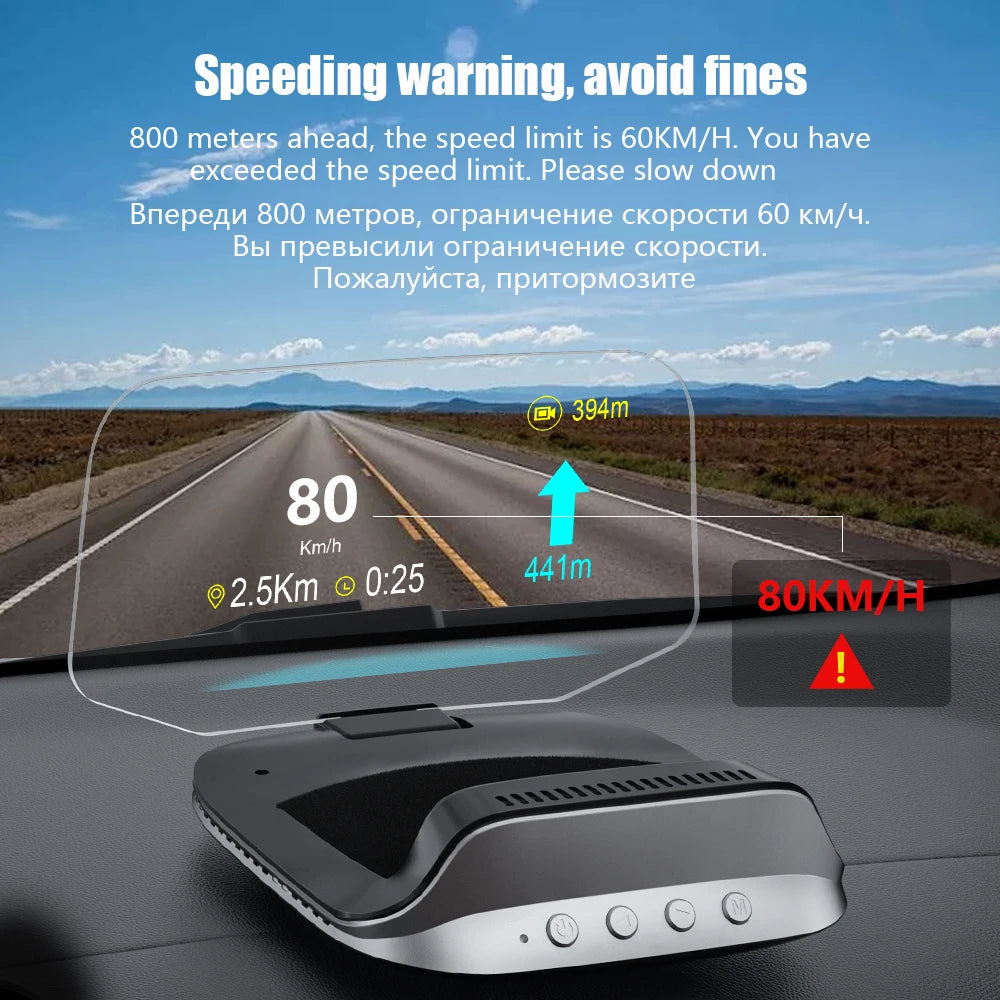

- Over-Speed Alarm: Issues a sound alert if the vehicle exceeds the speed limit.
- RPM Alarm: Prevents engine damage by notifying you when the RPM reaches critical levels.
- Voltage Alarm: Monitors battery health and alerts users of any abnormalities.
- Water Temperature Alarm: Safeguards the engine by providing real-time coolant temperature monitoring.
- Fatigue Reminder: Ensures driver safety by suggesting breaks after prolonged driving sessions.
D. Universal Compatibility
- OBD2 Mode: Works seamlessly with gasoline vehicles manufactured after 2007 and U.S. cars post-2003.
- GPS Mode: Compatible with all vehicle types, including diesel, electric, pickup trucks, and buses.
- Plug-and-Play Setup: Simply connect the HUD to your car's OBD2 port or USB for instant functionality.

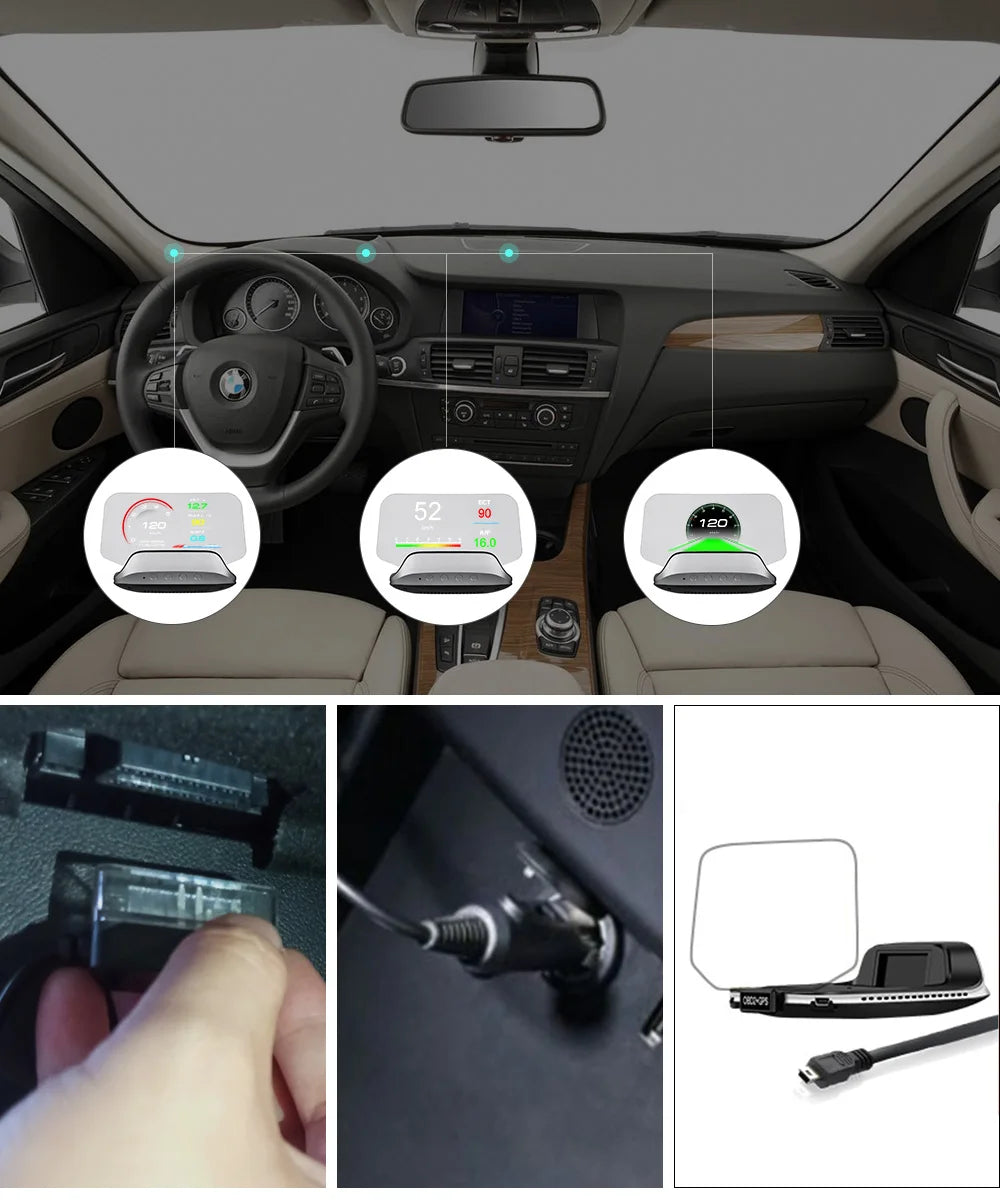

Installation and Setup
A. Installation Process

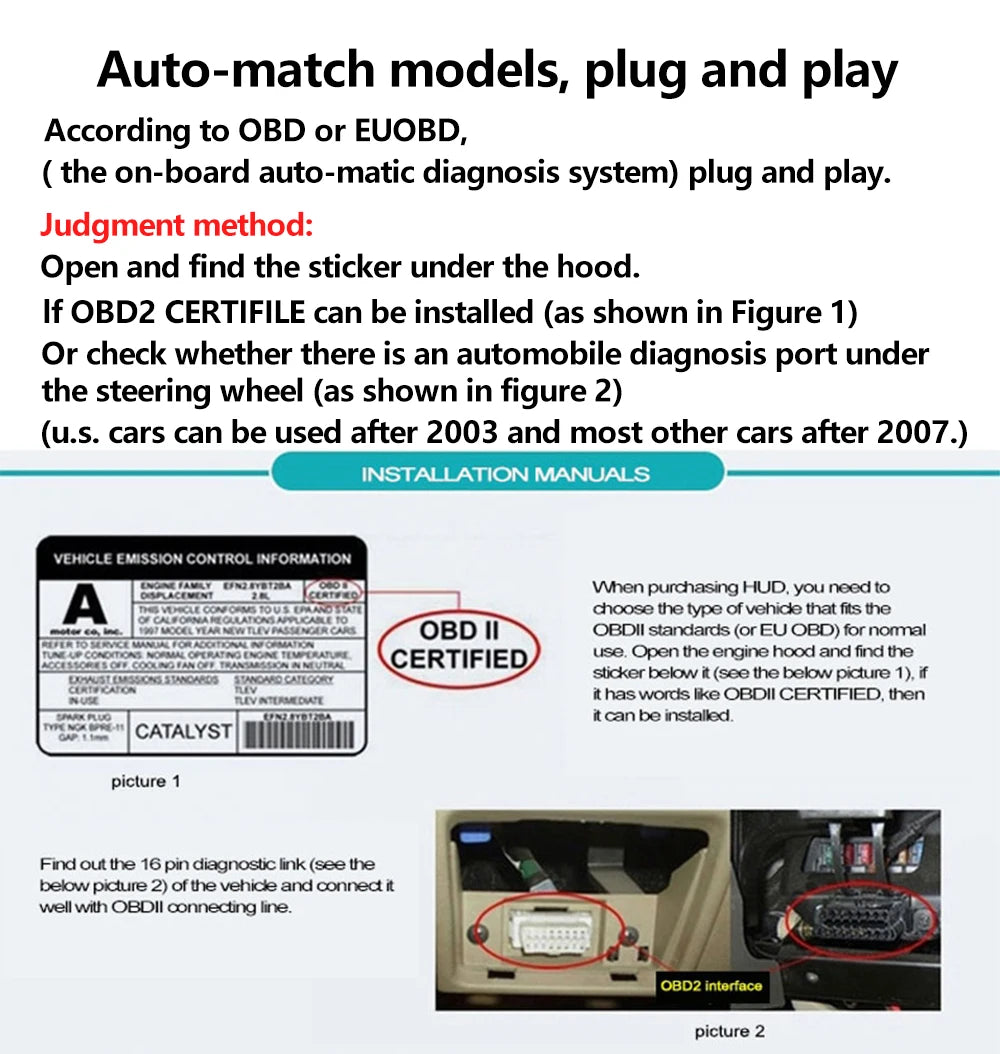

- Locate the OBD2 port in your vehicle, usually found under the dashboard near the steering wheel.
- Connect the OBD cable to the HUD and the car's port for OBD mode.
- Alternatively, use the USB cable for GPS-only mode.
- Place the HUD on the dashboard using the anti-slip pad provided.
- Adjust the display position for optimal projection onto the windshield.
B. Auto-Detection
- The HUD automatically detects the vehicle type (OBD or GPS) and configures itself accordingly.
- Use the intuitive “M” button to navigate through settings, adjust units, and switch between modes.
C. Fine-Tuning Options
- Speed Calibration: Adjust the displayed speed to match your vehicle's speedometer for precision.
- Fuel Consumption Settings: Calibrate fuel efficiency metrics based on your vehicle’s engine displacement for accurate data.
D. System Requirements
- OBD2 System: Compatible with gasoline cars post-2007 (U.S. cars post-2003).
- GPS System: Universally compatible with all vehicles, ensuring full functionality regardless of the car type.
Customizable Display Options
- Nine Display Interfaces: Choose from a variety of layouts to view critical driving data in your preferred style.
- Color Customization: Adjust the digital display colors for improved visibility and aesthetics.
- Unit Conversion: Easily switch between KM/H and MPH to suit regional preferences.
Packaging and Accessories
-

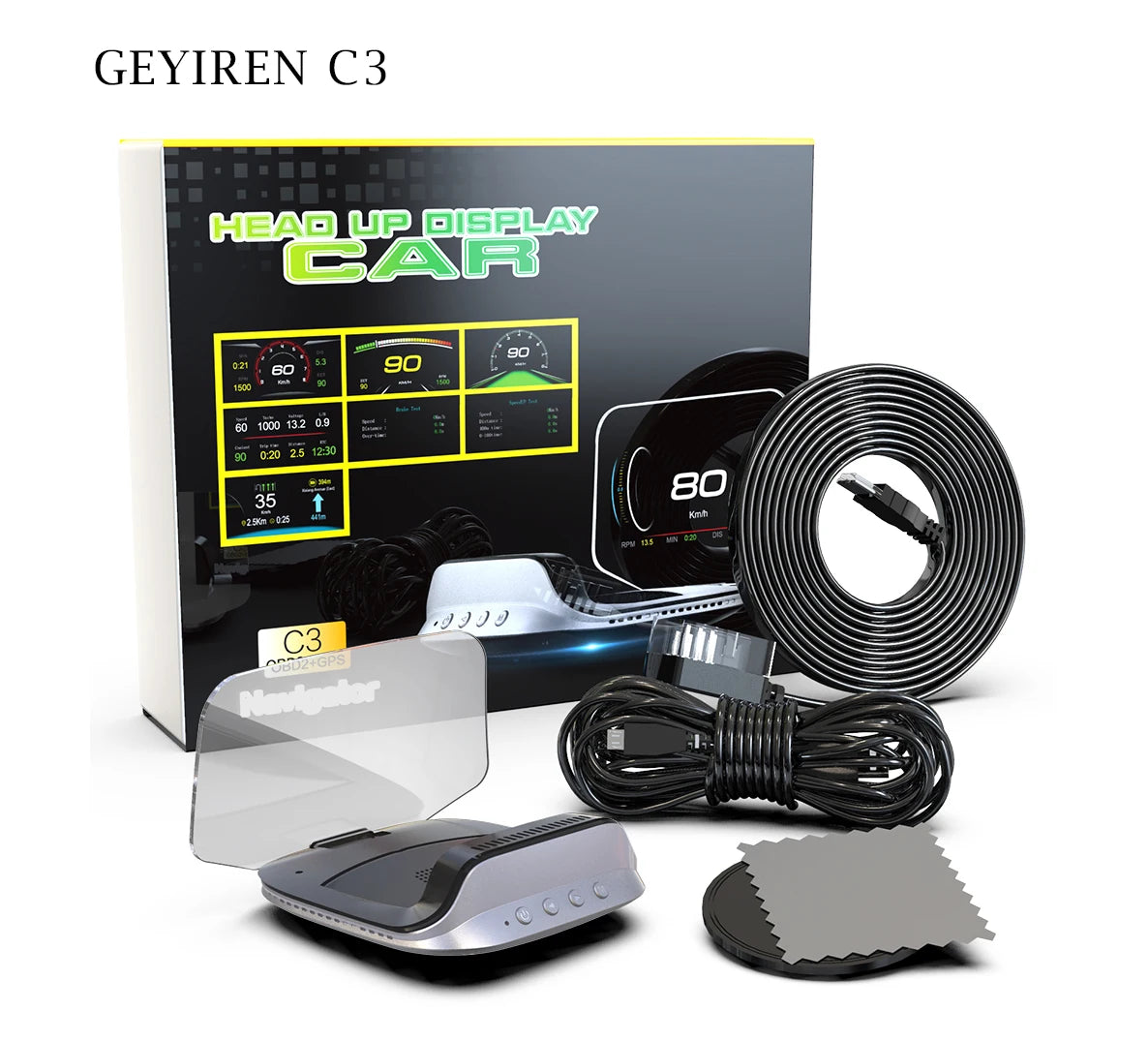

Included in the Box:
- GEYIREN C3 HUD Device
- OBD2 Cable
- USB Cable
- Anti-Slip Dashboard Pad
- User Manual
-
Optional Add-Ons:
- Custom boot animations
- Personalized packaging
- Additional navigation interfaces (C3 Plus version)
GEYIREN C3 HUD Details

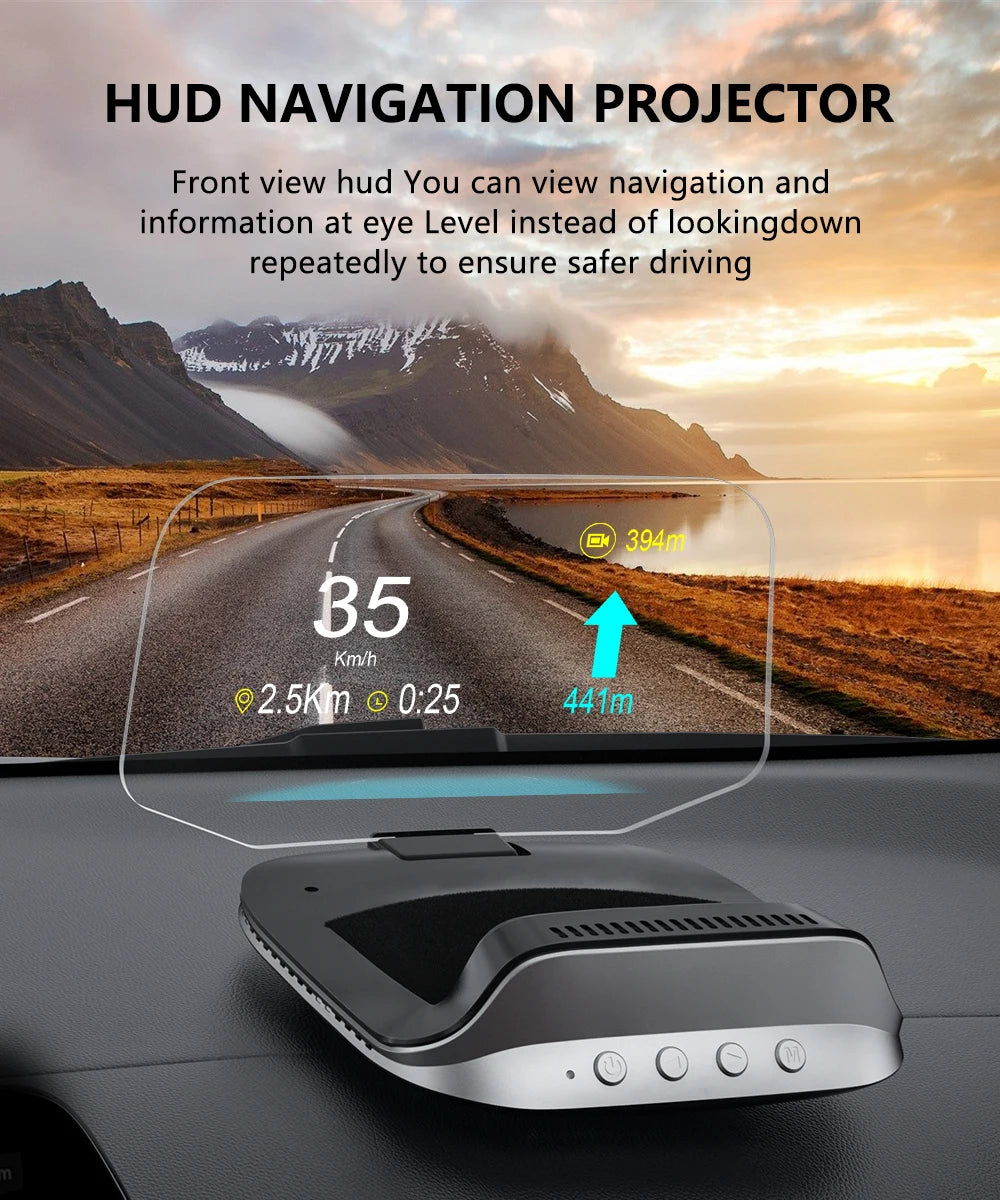

HUD NAVIGATION PROJECTOR
Front view hud You can view navigation and information at eye Level instead of lookingdown repeatedly to ensure safer driving
OBDHUD C3 NOT With live Navigation

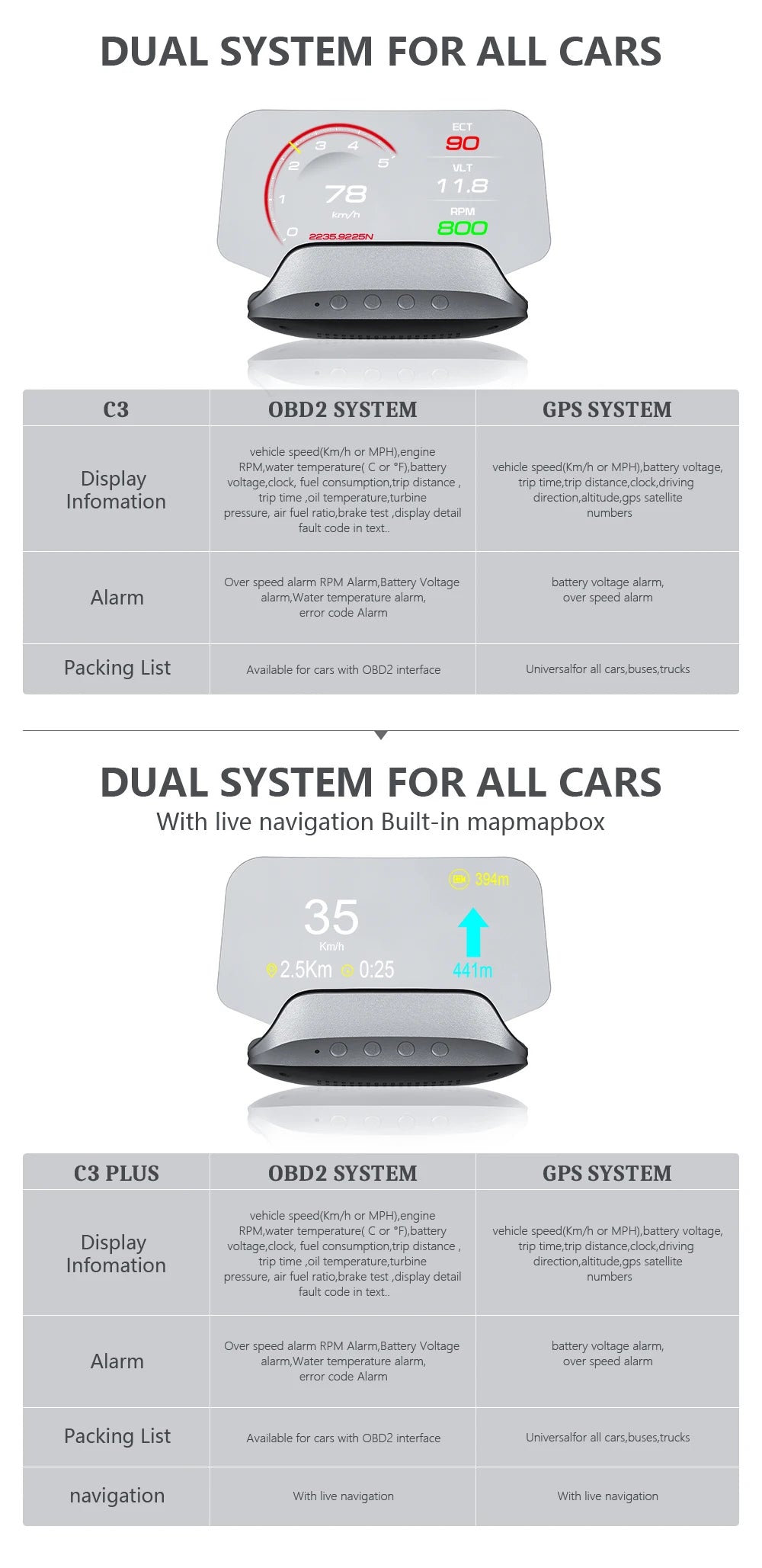

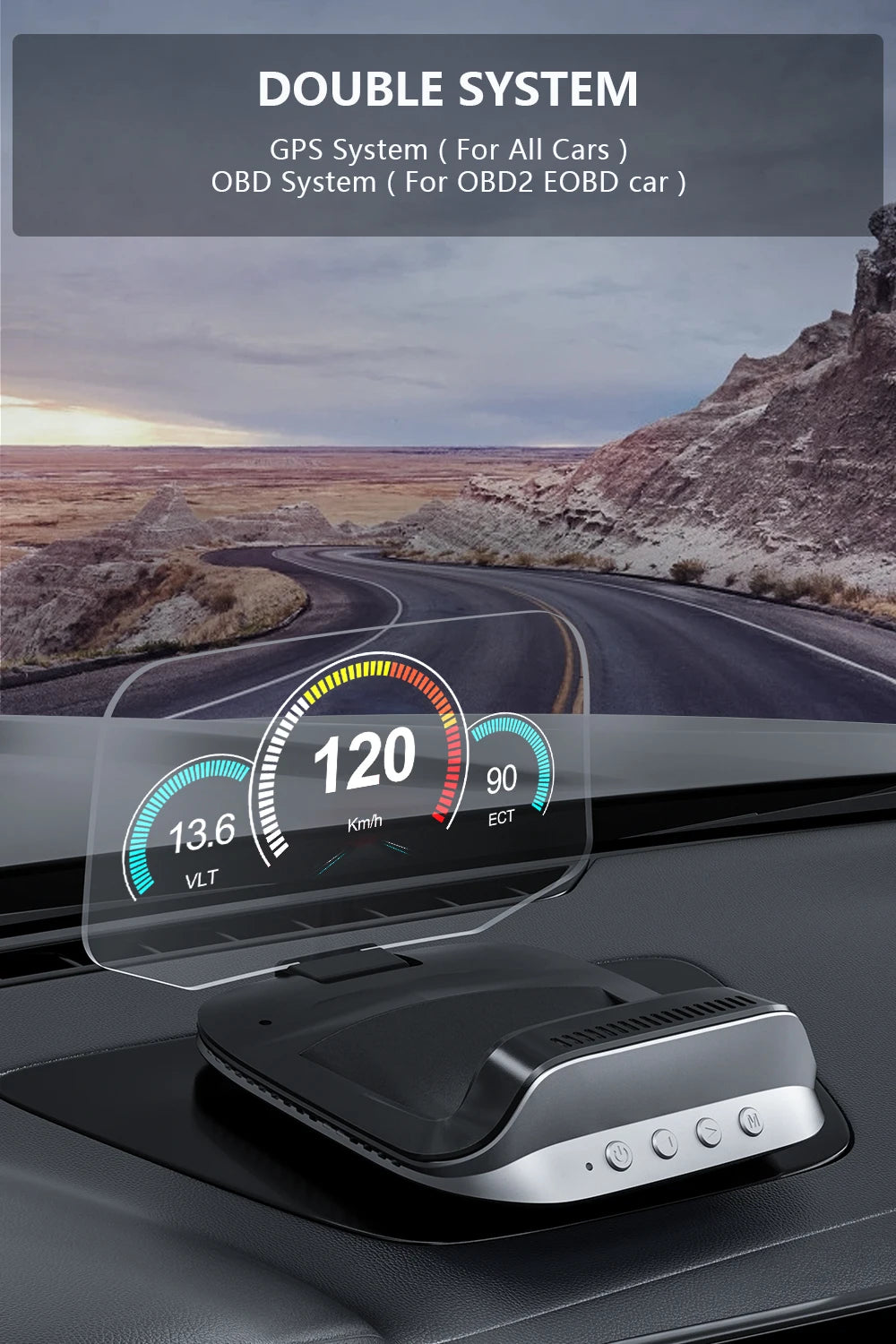

C3 including OBD system and GPS system,dual systems,and has two cables,OBD cable and USB cable.
OBD2 mode working voltage: 11V~18VDC (12vdc/200mA),
GPS mode: when voltage is higher than 24v, please use a USB cable for GPS mode.
So C3 compatible with all cars
OBD2 mode including speed,RPM,water temperature,battery voltage,clock,driving time,driving distance,fuel comsumption,altitude,satellite numbers,turbine pressure,air-fuel ratio,intake pressure,KM/H,MPH,data stream....
GPS mode supports speed,driving time,driving distance,satellite numbers,data stream......
C3 supports speed alarm,RPM alarm,water temperature alarm,voltage alarm,DTCS alarm,fatigue driving reminder.
Brightness can be adjusted according to the environment.Auto automatic light sensitive, 1 for the darkest, 8 for the brightest
OBDHUD C3 Plus With live Navigation

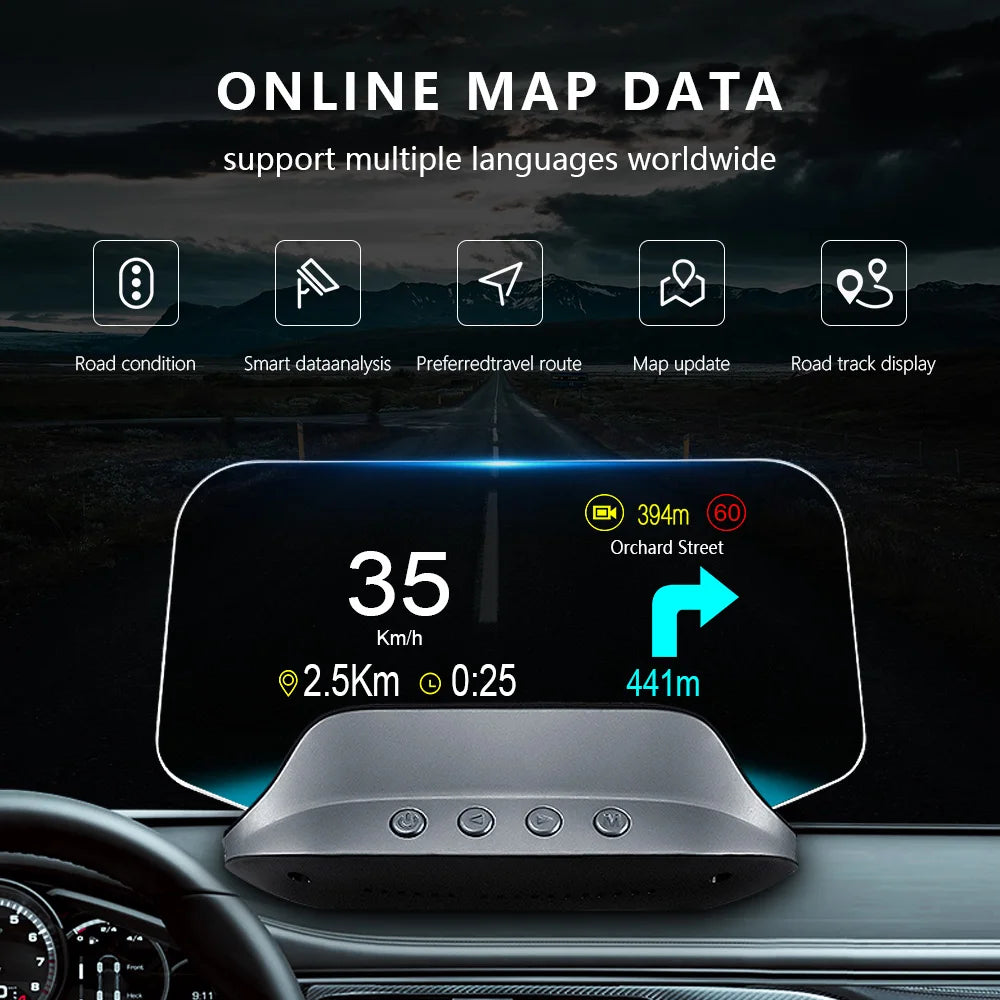

C3 Plus have additional Navigation Features,can display the driving direction.
Brightness can be adjusted according to the environment.Auto automatic light sensitive, 1 for the darkest, 8 for the brightest
C3 supports speed alarm,RPM alarm,water temperature alarm,voltage alarm,DTCS alarm,fatigue driving reminder.
All In Your Line Of Sight.
Note：
C3 NOT With live Navigation.
C3 Plus With live Navigation.

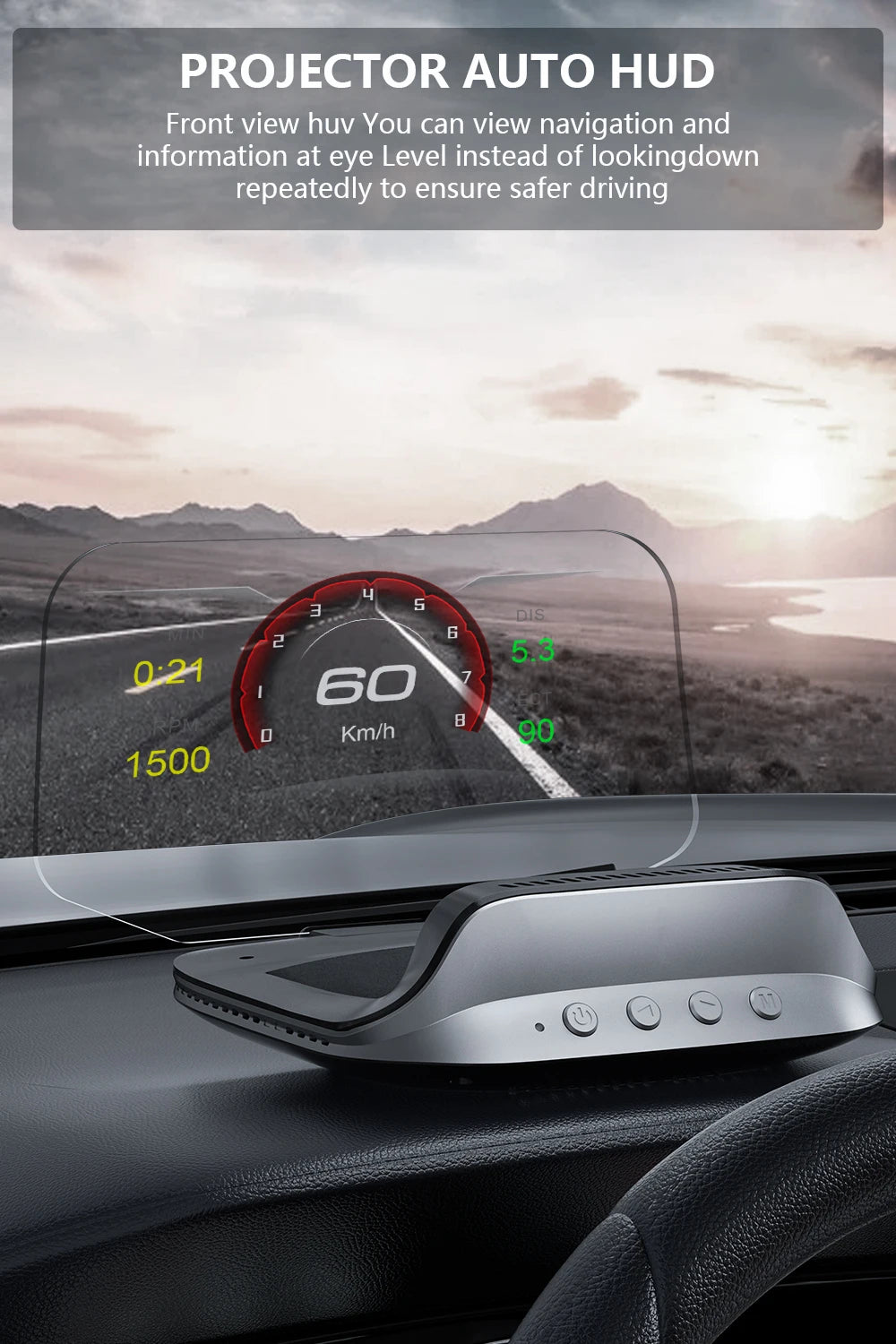

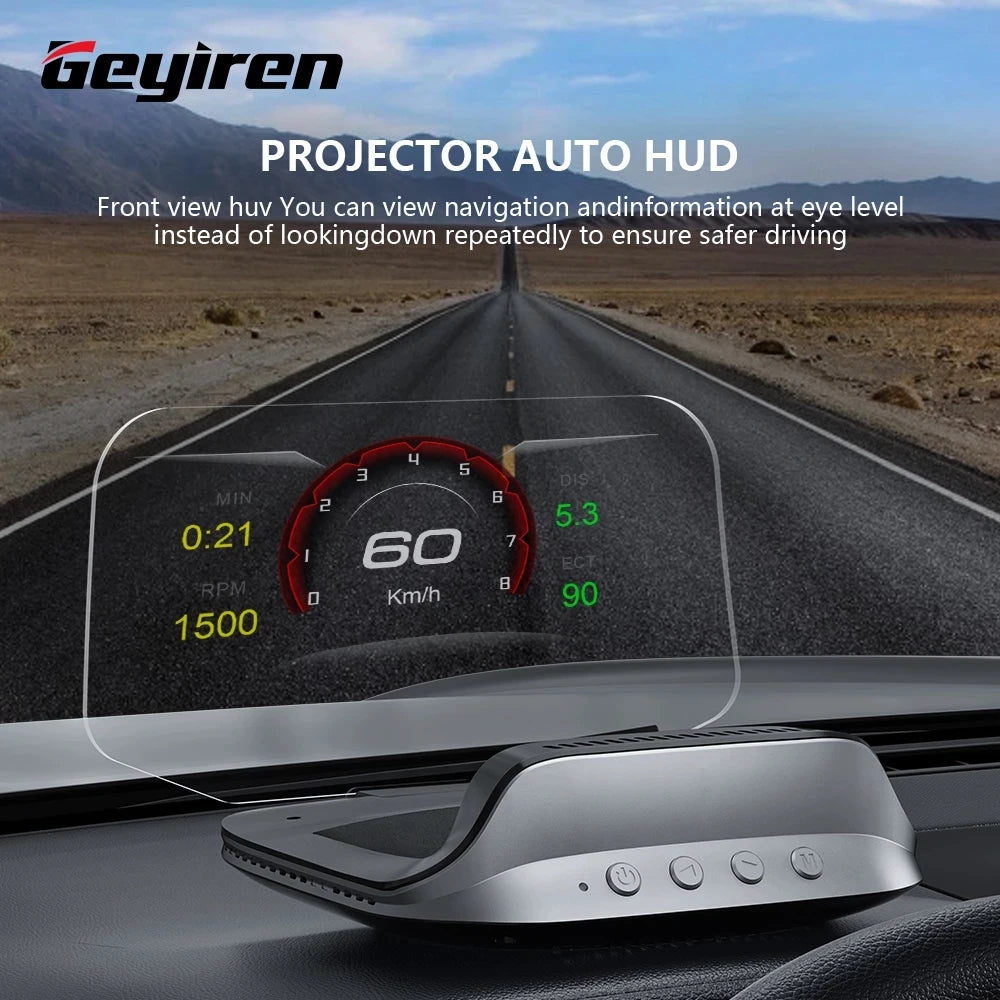

PROJECTOR AUTO HUD
Displays information directly in front of the driver's line of sight. You can learn current road information without any dangerous actions.
PROJECTOR AUTO HUD: A front-view projector that provides navigation and information at an eye-level, allowing you to keep your eyes on the road instead of looking down repeatedly for safer driving. Specifications: DIS 5.3 inches, 0.24 degrees, 60Hz, EcoT Kmlh 90, 1500.
All Cars Can Be Used
GPS can be used in all models, and the navigation position is displayed on the C3 machine while driving.
Multi-function display
View your fuel level, RPM, engine temperature, voltage, and more
together with directions or any other widget.

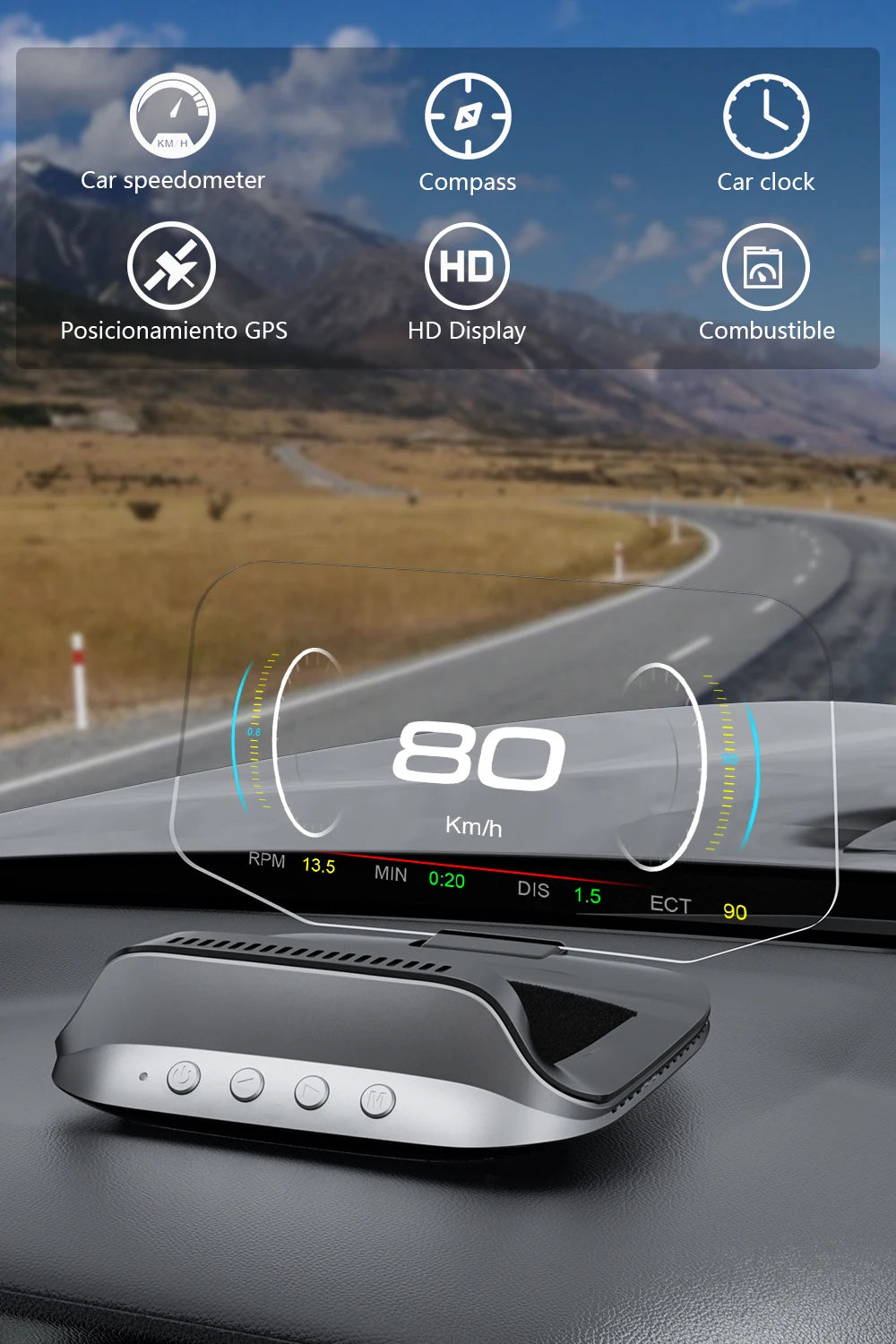

Car Speedometer Compass Car Clock High Definition Positioning GPS Display Fuel Level 80 km/h RPM 135 minutes 0.2 seconds Distance Indicator System ECT 90 km/h 1.5 meters.

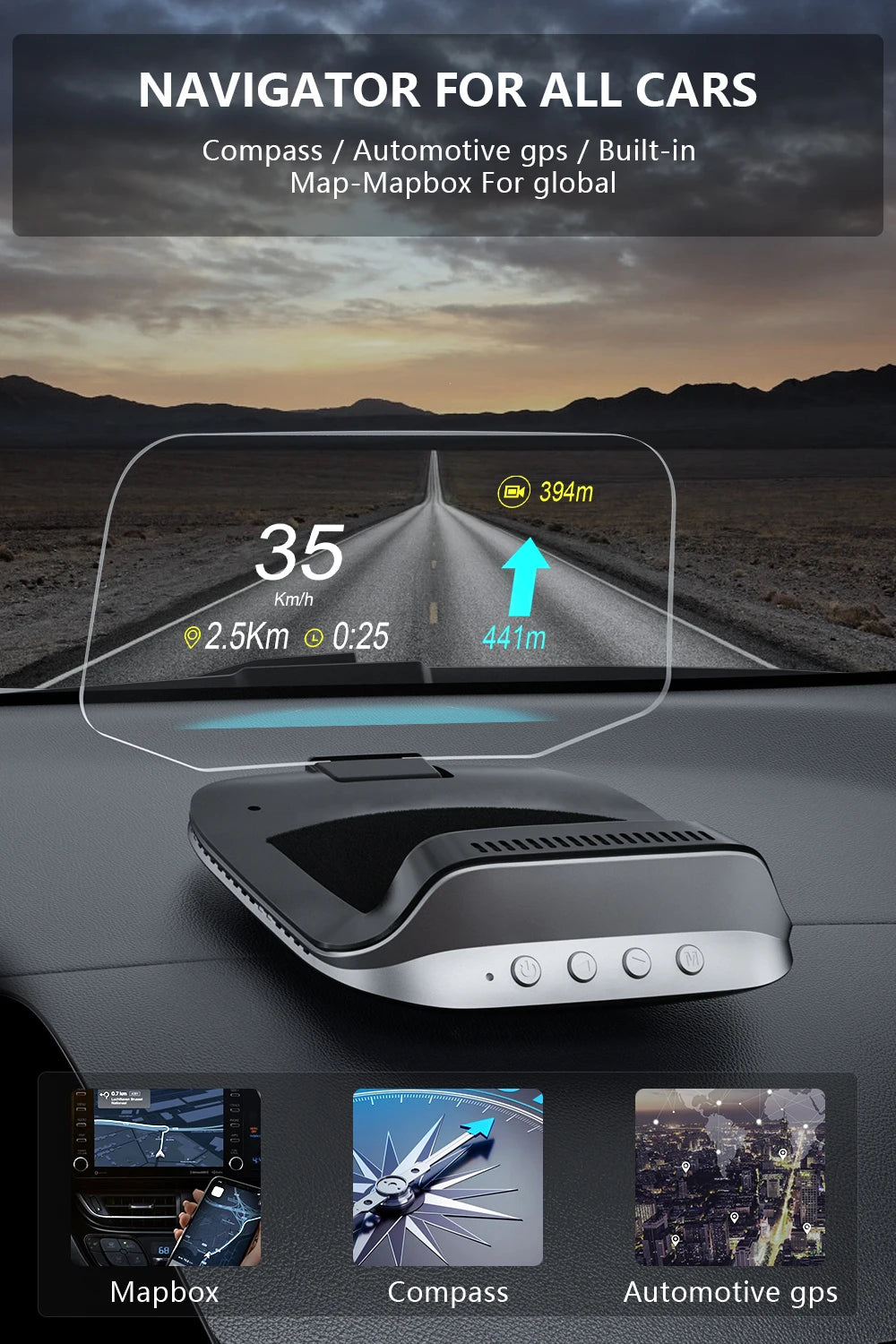

Navigator for All Cars: Compass, Automotive GPS with built-in map using Mapbox, supports 394 meters, 35 km/h, and 2.5 km of turn-by-turn directions.
New Electronic Products Hat Allow You To Drive Safely
The information is displayed directly in front of the driver's line of sight. You can understand the current road information without any dangerous operations.

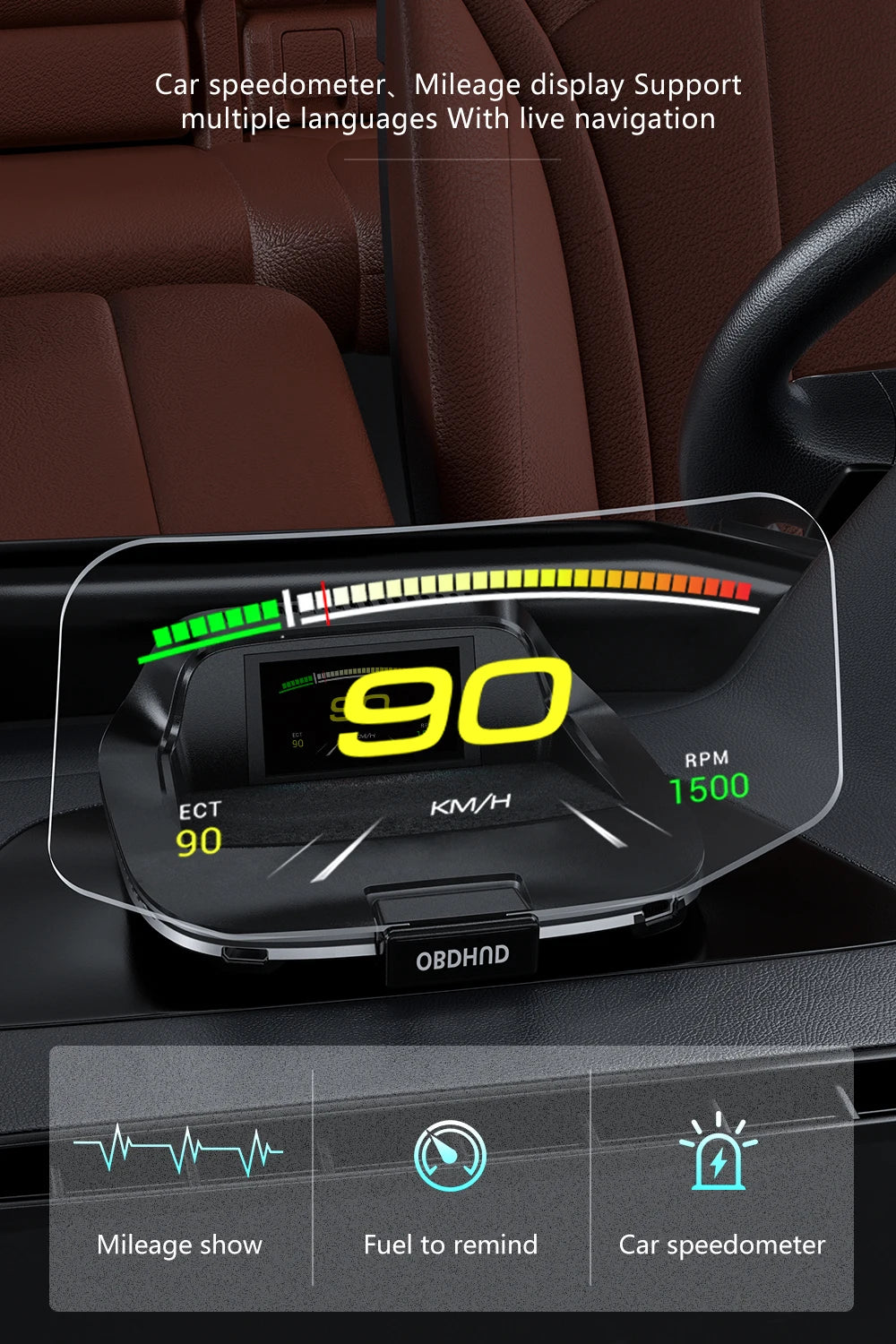

Car speedometer and mileage display support multiple languages with live navigation. It shows 9,000 RPM, 150 km/h, and displays mileage. Additionally, it reminds fuel levels and features car speedometer and ECT.

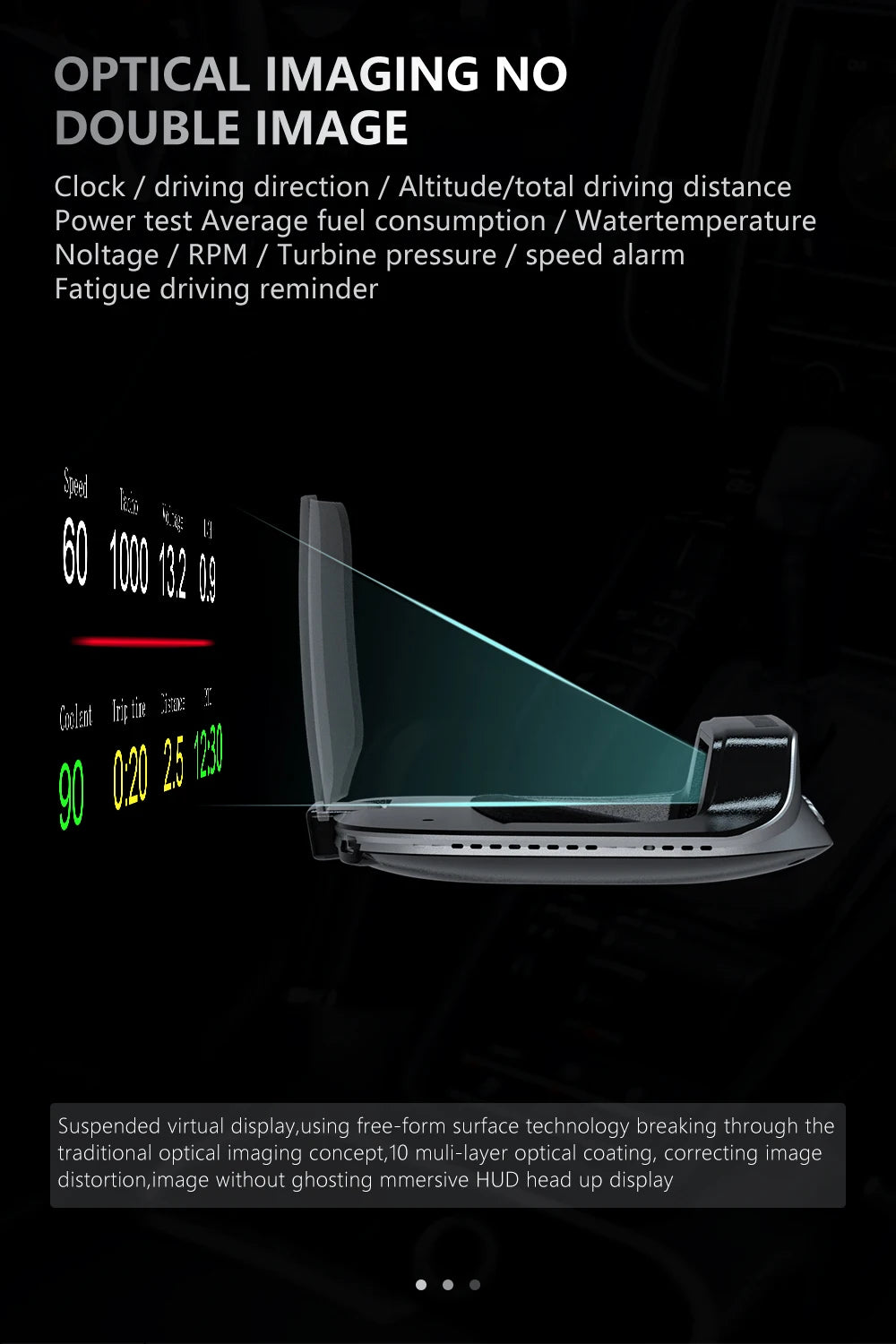

Optical Imaging, No Double Image. Clock driving direction, Altitude/Total Driving Distance, Power Test, Average Fuel Consumption, Water Temperature, Voltage, RPM, Turbine Pressure Alarm, Fatigue Driving Reminder. Suspended Virtual Display using Free-Form Surface Technology breaks through traditional optical imaging concepts; 10 Multi-Layer Optical Coating corrects image distortion, image without ghosting, immersive HUD Head-Up Display speed.

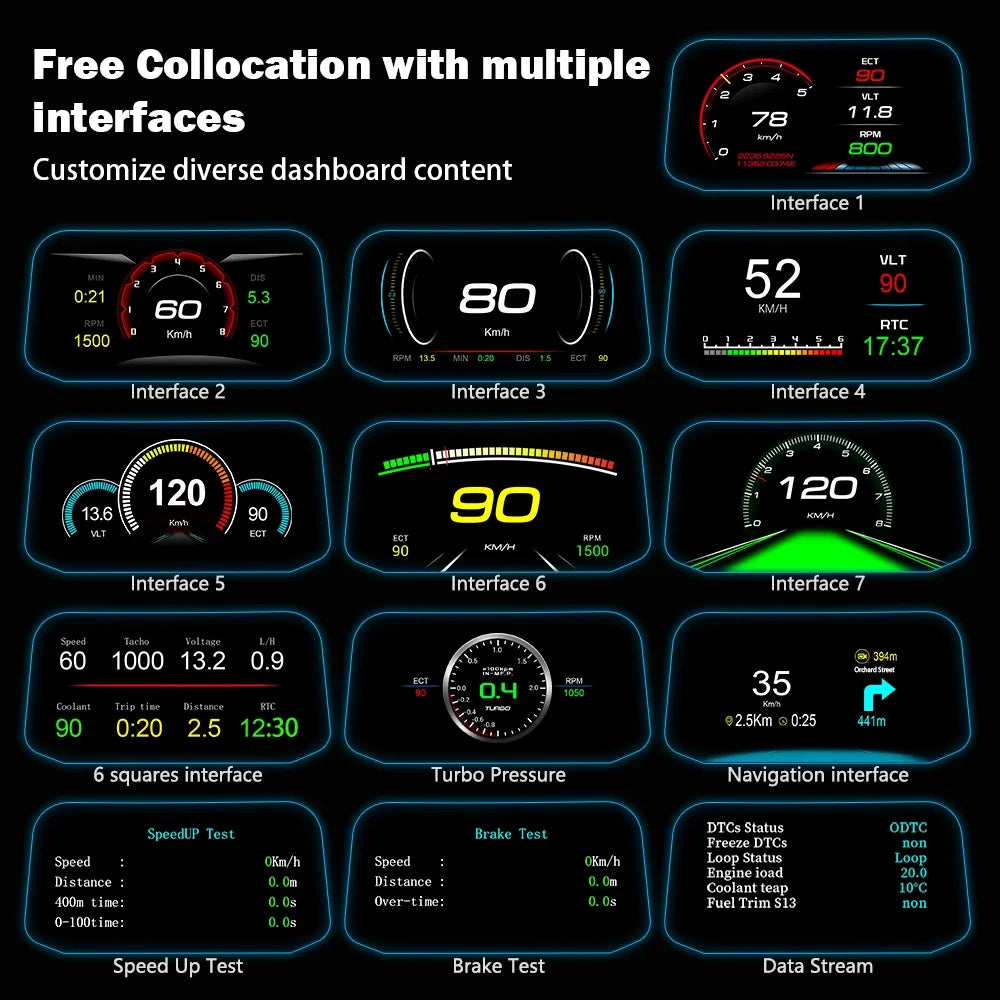

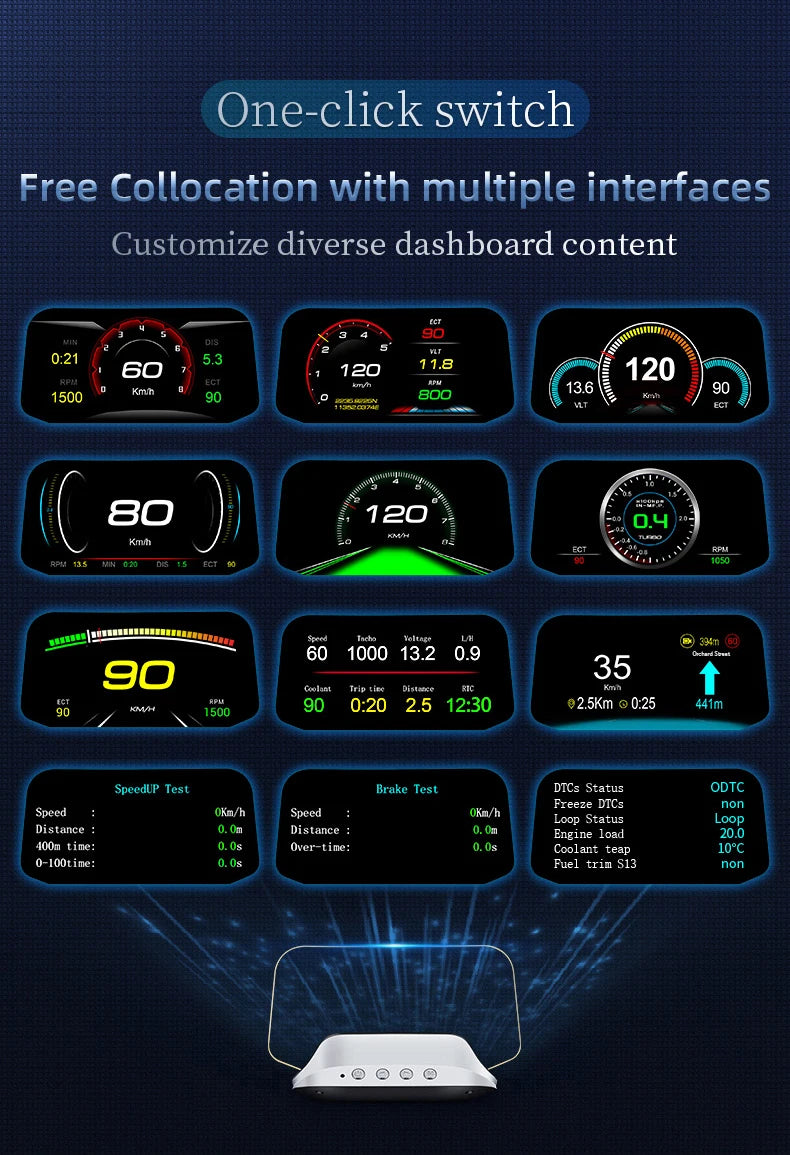

The GEYIREN C3 HUD product features a free collocation with multiple interfaces, allowing for customization of diverse dashboard content. It offers a wide range of settings, including OBD diagnose capabilities and driving test data streaming. The device supports speed values up to 1500 km/h and provides various diagnostic information, such as DICs status, ODTC freeze, and DTCs non-speed OKm/h. Additionally, it displays engine load, distance, and coolant temperature. The system also offers fuel trim monitoring with a value of S13. Overall, the GEYIREN C3 HUD is designed for use in various applications, including driving tests and diagnostic purposes.

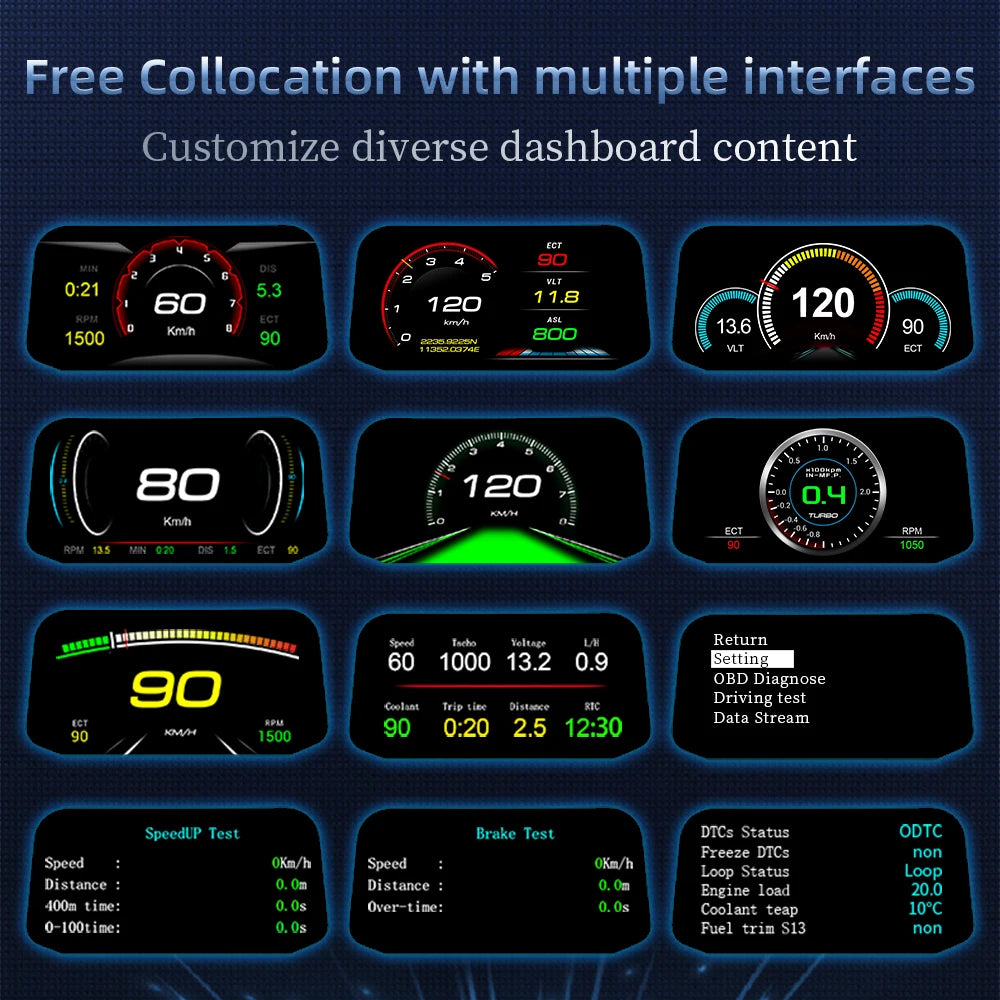

One-Click Switch for Free Collision with Multiple Interfaces, Customize Diverse Dashboard Content.

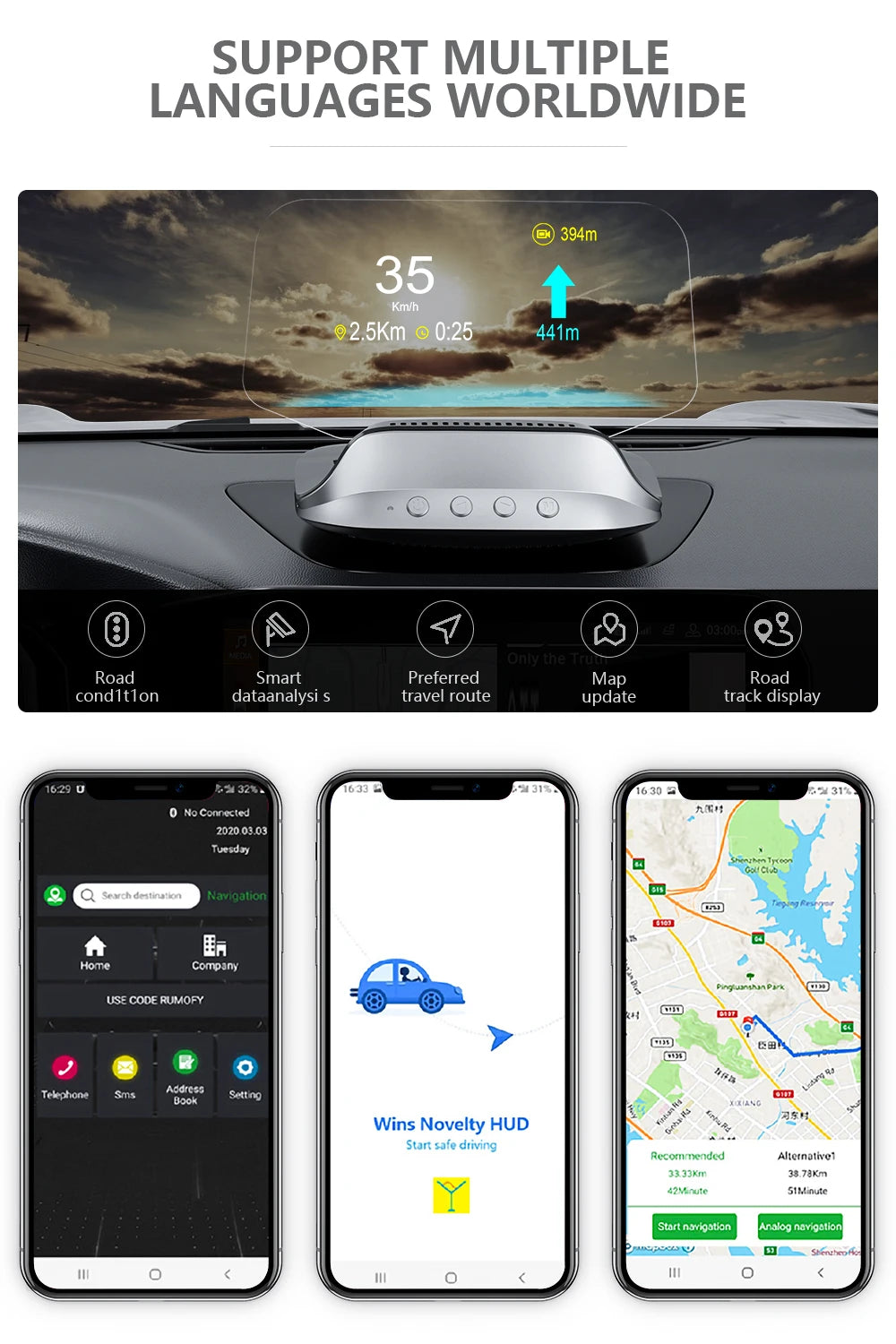

SUPPORT MULTIPLE LANGUAGES WORLDWIDE. The Geyiren C3 HUD product provides a range of features, including 394m visibility at 35 km/h speed, with 2.5km tracking and 0.25 seconds response time. Additionally, it offers 441m high-definition display, global maps, and route updates. Other key features include data analysis, travel route planning, and real-time navigation. The device also supports multiple languages worldwide.

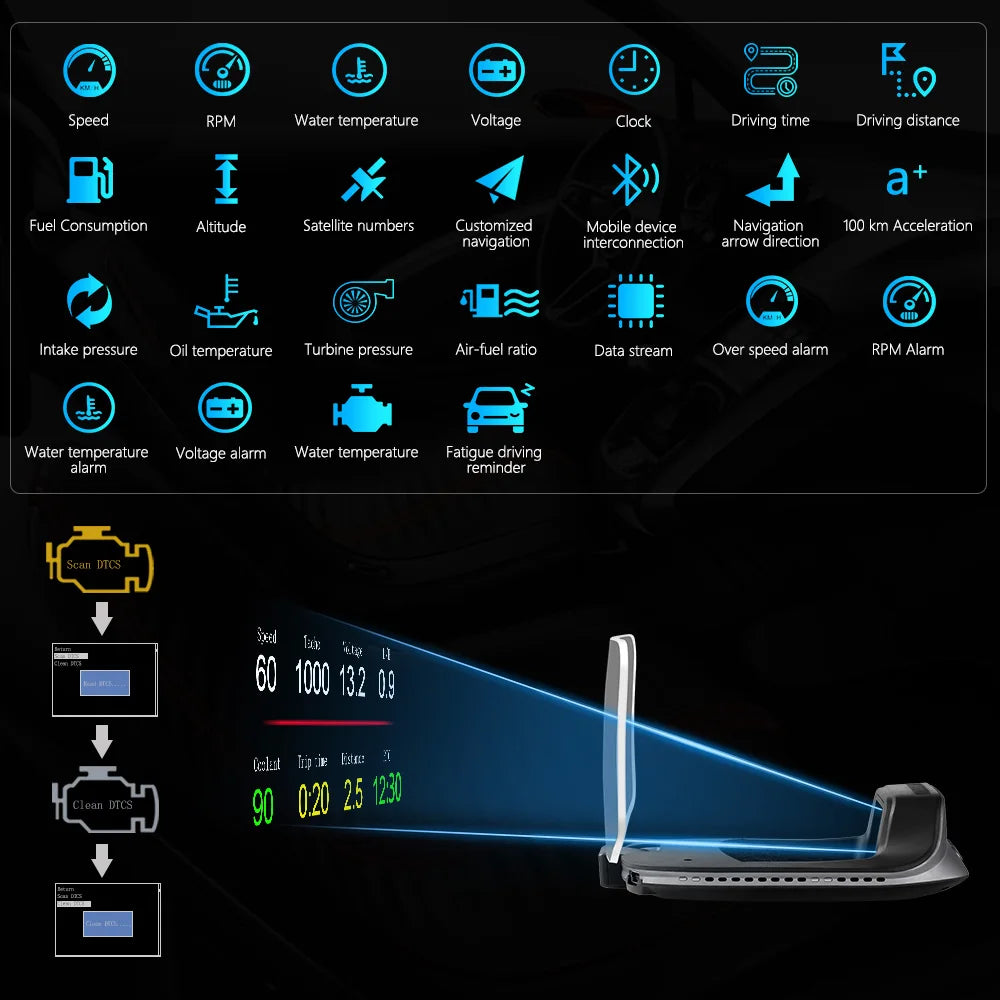

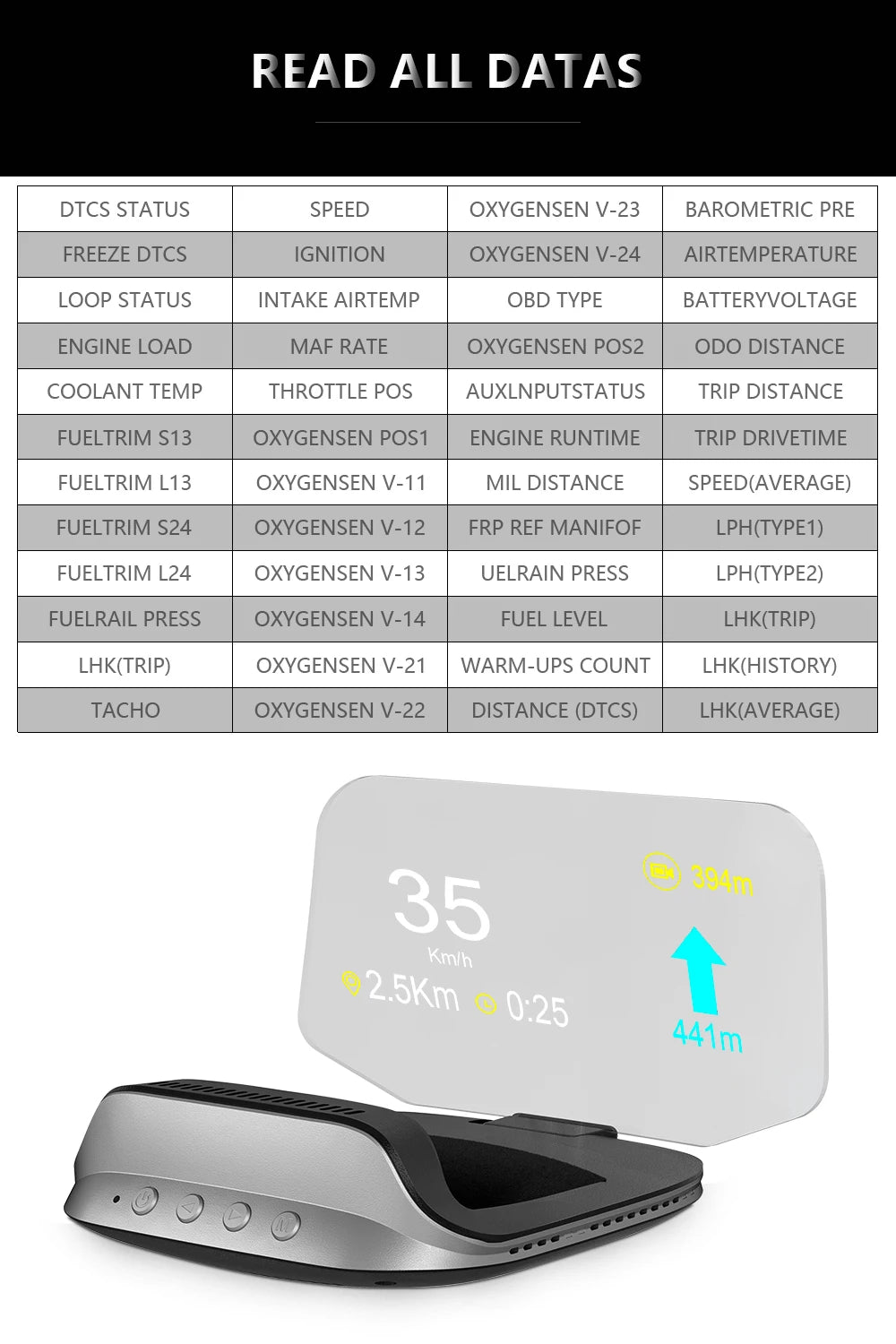

Read all data: DTCs status, speed, oxygen sensor V-23 barometric pressure, pre-freeze DTCs ignition, oxygen sensor V-24 air temperature loop status, intake air temperature, OBD type battery voltage, engine load MAF rate oxygen sensor POS2 odometer distance, coolant temperature throttle position AUX input status trip distance fuel trim S13 oxygen sensor post engine runtime trip drive time fuel trim L13 oxygen sensor V-11 MIL distance speed average fuel trim S24 oxygen sensor V-12 FRP reference manifold pressure type 1 fuel trim L24 oxygen sensor V-13 UEL rain pressure type Z fuel rail pressure oxygen sensor V-14 fuel level LHK trip LHK history tachometer oxygen sensor V-21 warm-up count LHK average.

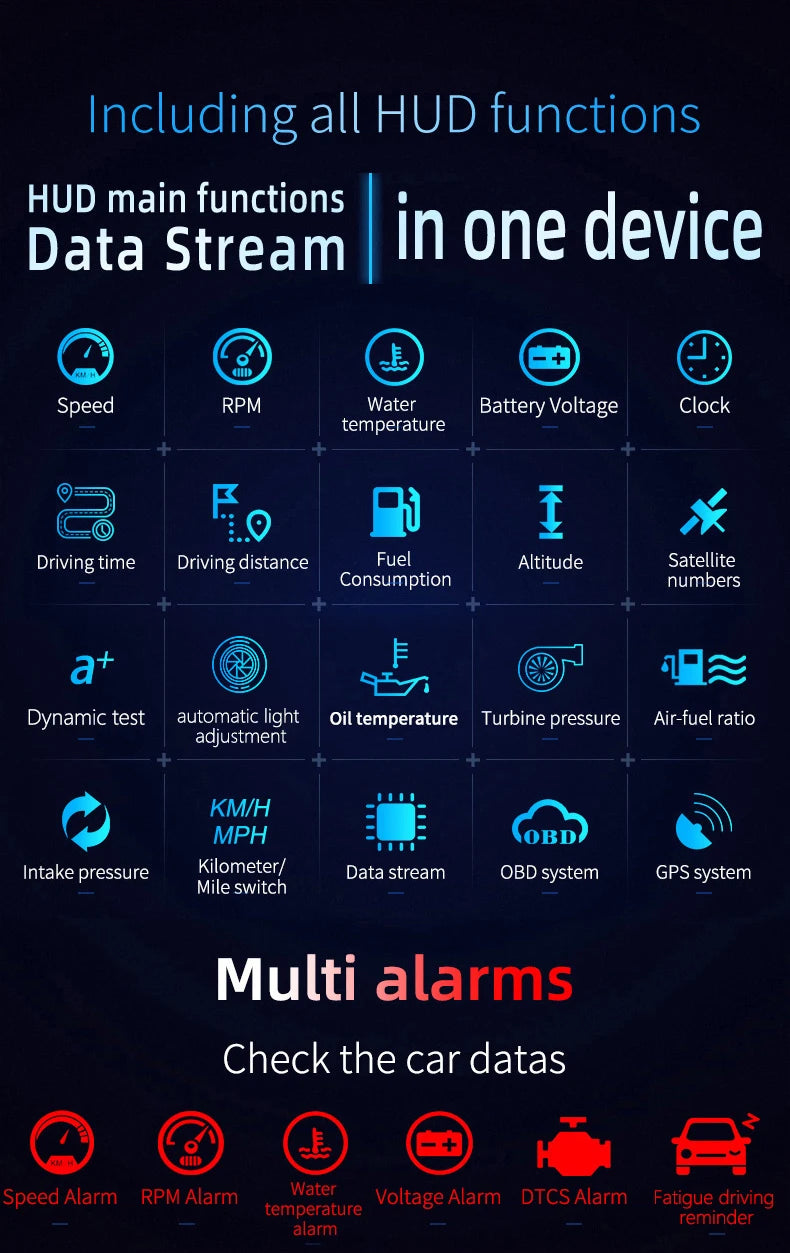

Including all HUD functions

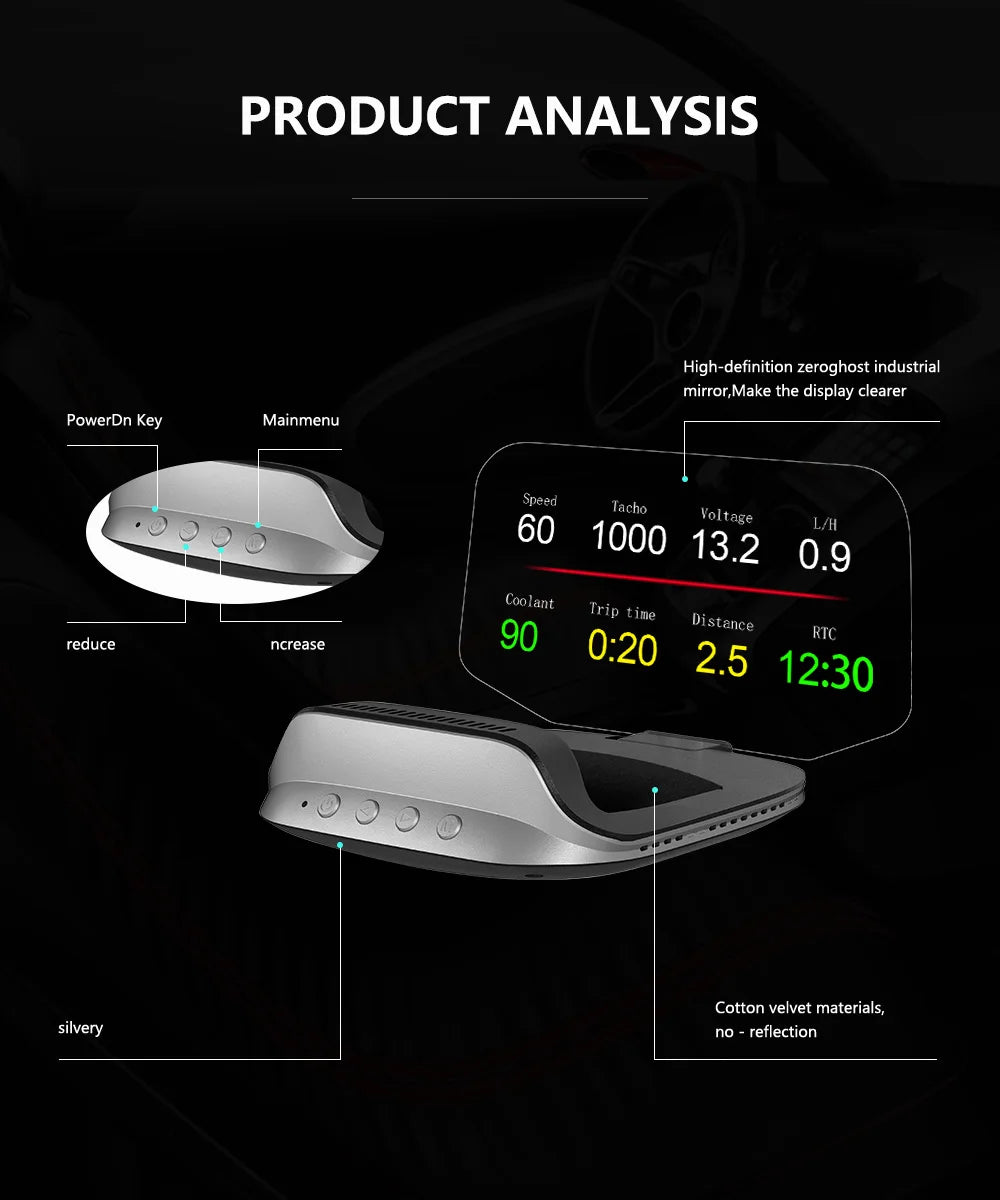

PRODUCT ANALYSIS

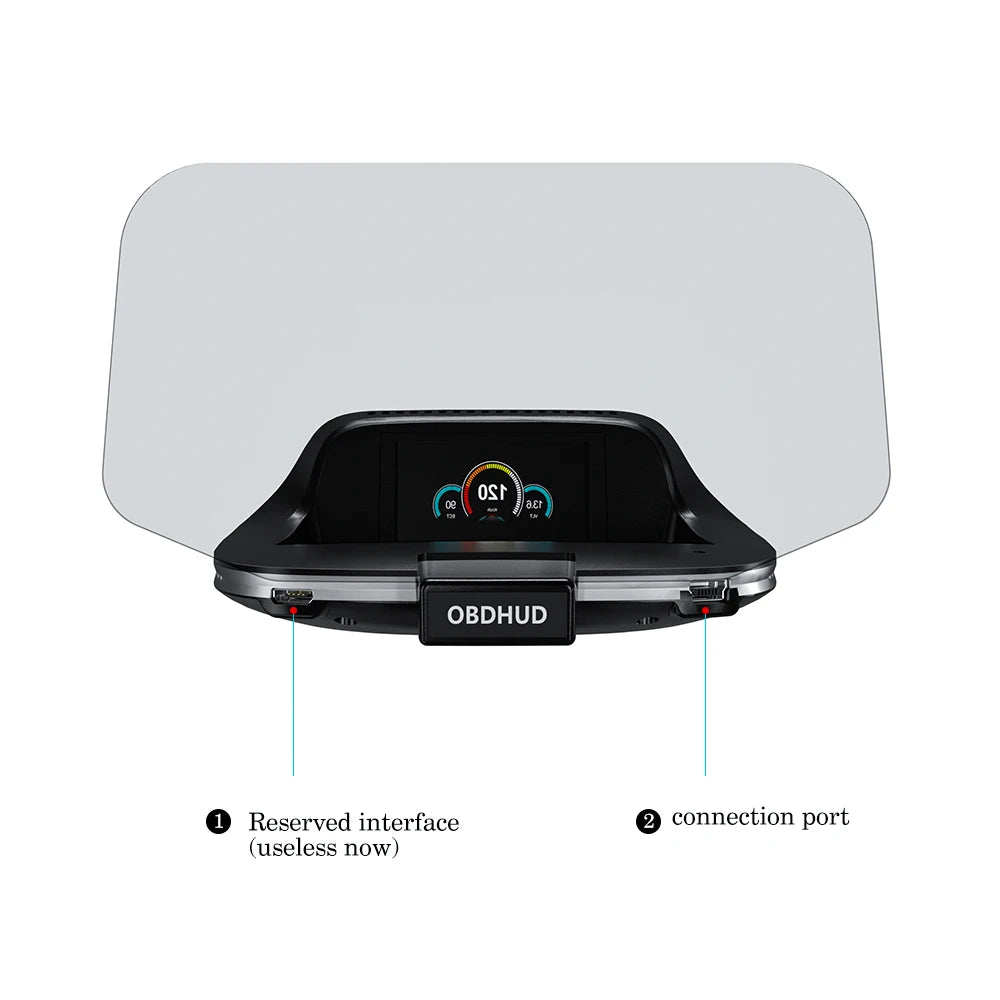

PRODUCT ANALYSIS: High-definition zero-ghost industrial mirror, making the display clearer. Power Down Key provides main menu access at speeds of 60-1000 LMH (13.2 inches) with a 0.9 Coolant Trip reduction of 90% and increase of 0.20 RTC, using cotton velvet materials to eliminate reflection.
①Reserved interface (useless now)
②connection port
Obd hud reserved interface connection port unused now for future use in automotive diagnostic systems and human machine interfaces applications
Buyer evaluation Anonimo. Color: Yellow. From China. Excellent Standard shipping within 7-15 business days. Package includes one Geyiren C3 HUD product. Function tested and works perfectly. Thank you for your purchase.
FQA:
1.The difference between C3 and C3 Plus
C3 ： OBD + GPS---dual systems
C3 Plus ：OBD + GPS+Navigation---dual systems and navigation（Navigation function:driving direction, time, distance,speed）
Navigation FAQ ：
1. How to install APP
(1) Please download software ‘WiiYii’
(2) manually turn on the Bluetooth and location
(3) click the icon of WiiYii,system will automatically search the Bluetooth and connect
2.Bluetooth cannot connect to Phone
(1) HUD host needs to display normally, if the OBD system cannot be connected, switch to GPS system normal display
(2) Whether your phone's Bluetooth is connected to another device, delete the bluetooth device that has been paired, and then bind to WYHUD
(3) Turn Bluetooth off again and then turn on your phone's Bluetooth, or restart your phone
(4) Make sure that other phones turn off Bluetooth
3.APP Bluetooth connection is not successful.
(1)Check the phone system version and whether it supports Bluetooth 4.0, Apple system IOS9 or above, Android 4.4 or above
(2)Need mobile phone to search for WYHUD via Bluetooth,Open traffic
(3)Turn on GPS navigation positioning, you can enter the navigation address after successful positioning
4.App Bluetooth connection is successful,no display of input address.
Please turn on the location service,open your network,check the signal,please move to a place which has a strong signal,and enter the address again
5.HUD stuck during navigation or when you switch the display interface, speed display is normal.
Turn off the power-saving mode of the phone, turn off the screen forbidden function, or click to enter the phone navigation page and stay on the phone navigation page
6.Navigate 10-20m from the indication point.
Because the GPS positioning error is about 5-10 meters, it is normal for the satellite signal to be 10-20 meters when the signal is weak.
OBD2 FAQ:
1.No function is displayed,no power
Check whether the OBD cableis tight connection,pull down repeatedly to confirm,please try it on another car if still not workable,analysis if it is an error from OBD diagnostic interface,if yes,please repair it and connect the device again.
2.Only the car voltage displays and be automatic power off after 30 second
(1) This product is only available for OBDII and EOBD cars when it is in OBD2 mode
(2) This product OBD2 mode does not support OBD I and JOBD
(3) OBD2 is a car protocol(U.S.A Cars:2003 Other regions:2007)
(4) Switch to the GPS system using the USB cable to display, within 5 seconds of power short press the “＞ ”key to select the GPS system.
3.The vehicle speed on HUD is not as same as speedometer’s.
(1) Please check that the unit is correct KM/mile MPH, (speed unit switch please refer to the settings)
(2) Vertical long press the "M" button into the system settings, press "＞"to select the speed adjustment menu,and make a fine-tuning (e.g. meter displays 100 Km/h,device shows 105Km/h,use default value 107-5=102 ).
4. There is an error on fuel consumption.
(1) Checking your car displacement and make sure that the engine displacement of the device is as same as your car’s(e.g. car is 2.0L,please set parameter value to 2.0L)
(2) if the displacement is the same,you can also do a fine-tuning settings(e.g. equipment fuel is higher than 0.2L,please set the parameter to 98%) Recommended: fine-tuning is optional since it is a real data from car computer
5.This device cannot auto shut down.
After the car engine stops,the RPM on the machine can not be turned off,please set voltage to 13.2V or 13.6V,so that the car can be turn off after 3 minutes.
6. Automatic start-up will auto off when step the brake and same situation on Hybrid car in the traffic.
(1) Setting to COM mode(in the menu of shutdown voltage)
(2) Setting shutdown delay to 300 seconds,so that it can turn off after 5 minutes
(3) Please switch to the GPS system(Short press “＞”within 5s)
7.Wrong operation lead to crashes.
(1)Are there other other OBD devices on OBD2 interface (parking sensor,TPMS,lock lift window,ELM27)
(2)Had your car been modified and brushed(central navigation,electronic throttle controller,fixed speed cruise)
(3)No matter engine start stop,keyless entry or remote start will cause a crash,unplug other OBD devices,and do a factory reset (see the menu settings)
Please switch to GPS system(short press ”>” within 5s) which should be connected with a USB.
If the OBD system does not work properly, try to switch the GPS system,use USB cable plug into the cigarette lighter.
