SPECIFICATIONS
Brand Name: AUTOPMALL
Origin: Mainland China
GPS Geographic Location: South America
Voltage: 5V
Battery Life: 30 Hours & Up
Item Size: 90*72*22mm
Special Feature: waterproof
GPS type: GPS Tracker
Model Name: TK905
Screen Size: Under 2 Inches
Gps Module: Yes
Out Power: 0.1W
Certification: CE
Battery: Chargeable 3.7V 5000mAh Li-ion Battery
GPS positioning: Global
Network and Band: 2G GSM/GPRS; Quad Band 850/900/1800/1900Mhz
Location Accuracy: GPS accuracy: 5-10m; LBS accuracy: 100-2000m
GPS Sensitivity: -159dBm
Magnetic: Built-in 5pcs powerful magnets,Easy to be installed
Waterproof: IP65
Web&APP Tracking Software: iOS and Android available; Life Time Free!
Tracking APP: WINNES GPS
Built-in Mic: Support Voice monitor
Working Time: Around 3-10 days
Warranty: One Year
Choice: yes
More Popular Choice,MiCODUS ML500

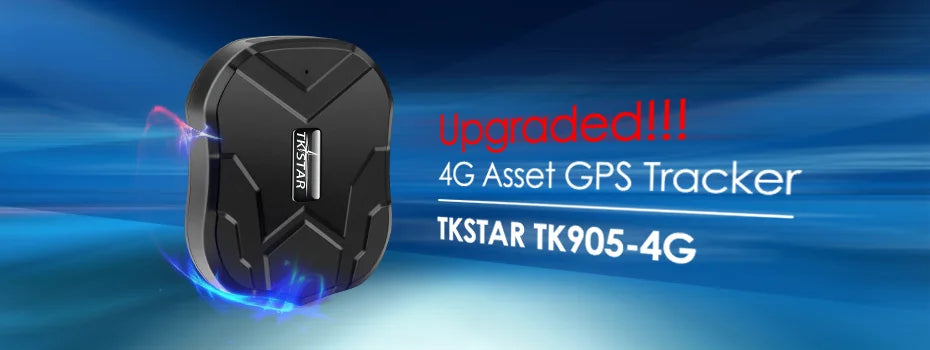

If you are interested in 4G TK905, Please order from this link.

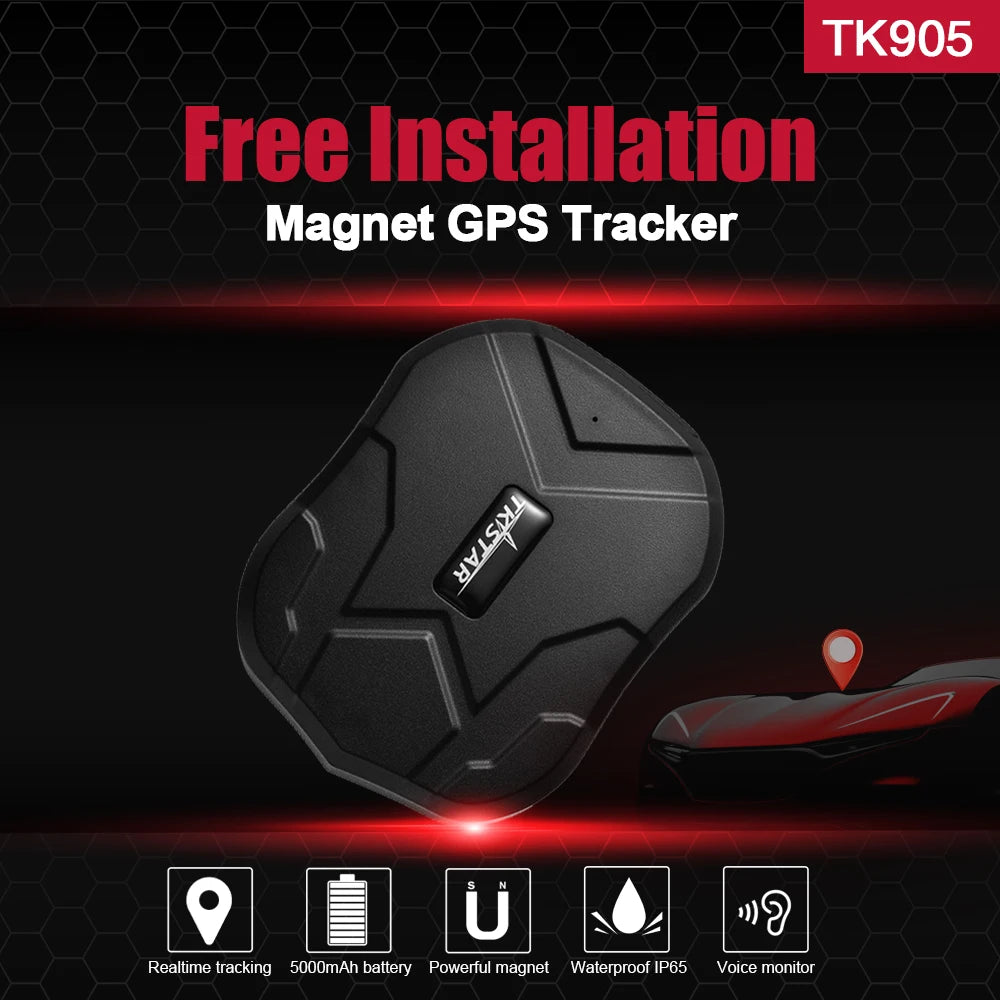

TK905 Magnet 5000Mah 2G GPS Tracker
Please notice
These countries already closed 2G network: Australia, Japan, China Taiwan, Sourth korea, Singapore, Canada, New Zealand, please order our 3G version GPS Tracker
Worldwide Compatibility allows it to work perfectly in almost all countries around the world. Note: These countries have already closed their 2G networks: Australia, Japan, China, Taiwan, South Korea, Singapore, Canada, New Zealand. Please order our 3G versions for these regions.

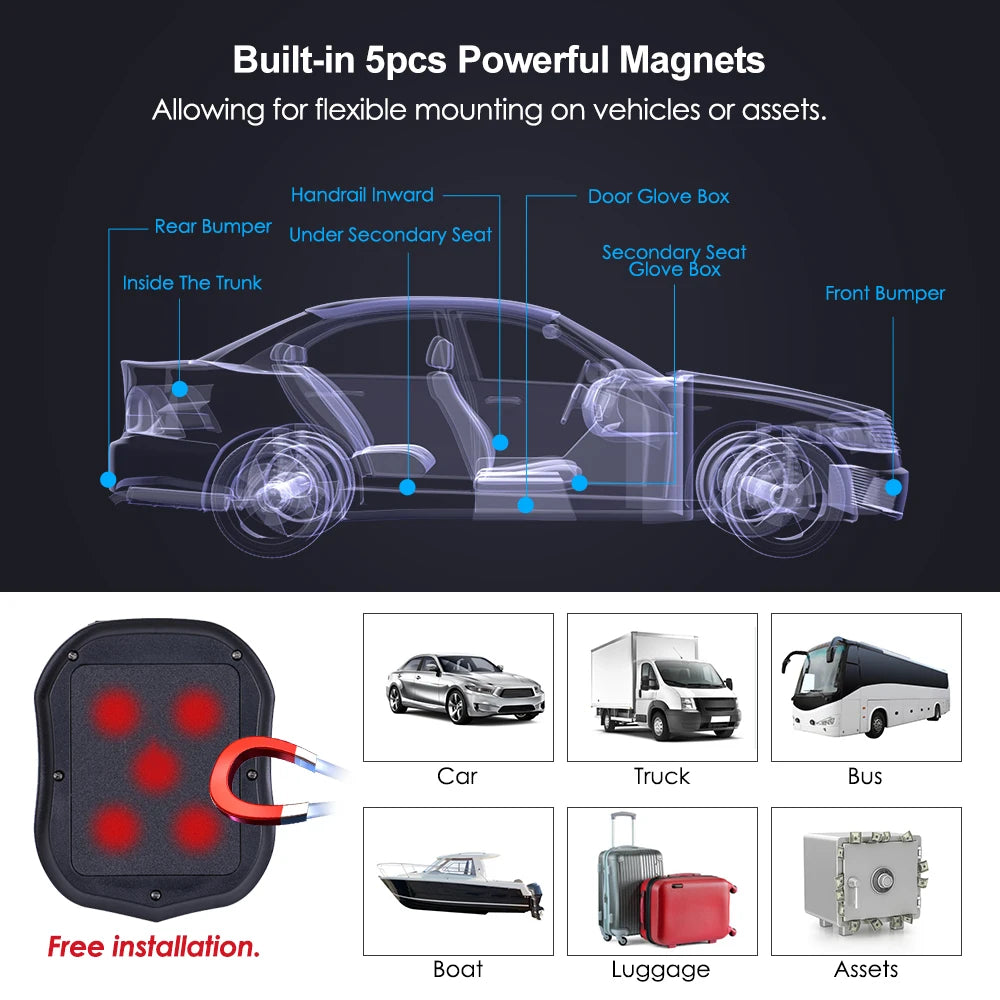

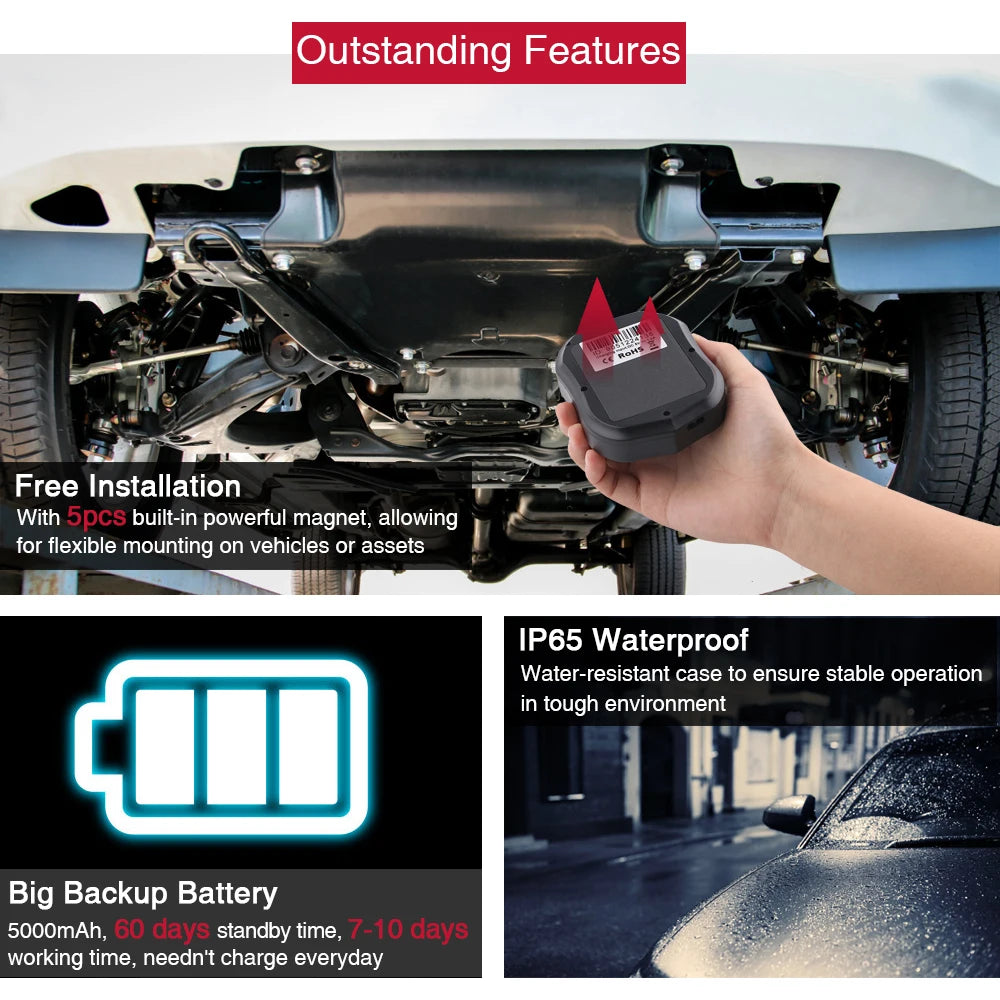

Built-in 5pcs Powerful Magnets
Free installation. Allowing for flexible mounting on vehicles or assets.
The TKSTAR TK905 GPS Tracker features built-in powerful magnets, allowing for flexible mounting on vehicles or assets. It can be installed in various locations such as handrail, inward door, glove box, rear bumper, under secondary seat, seat glove, inside the trunk, front bumper, car, truck, bus, or boat.

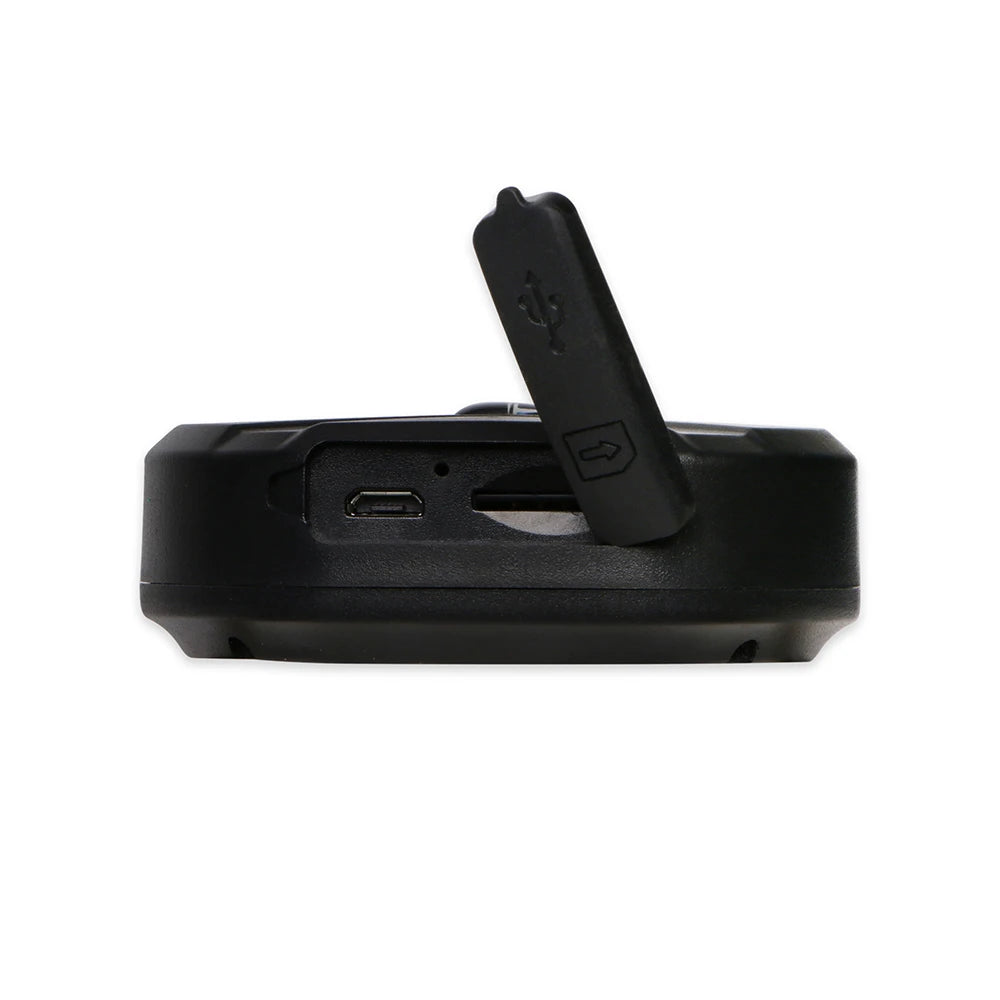

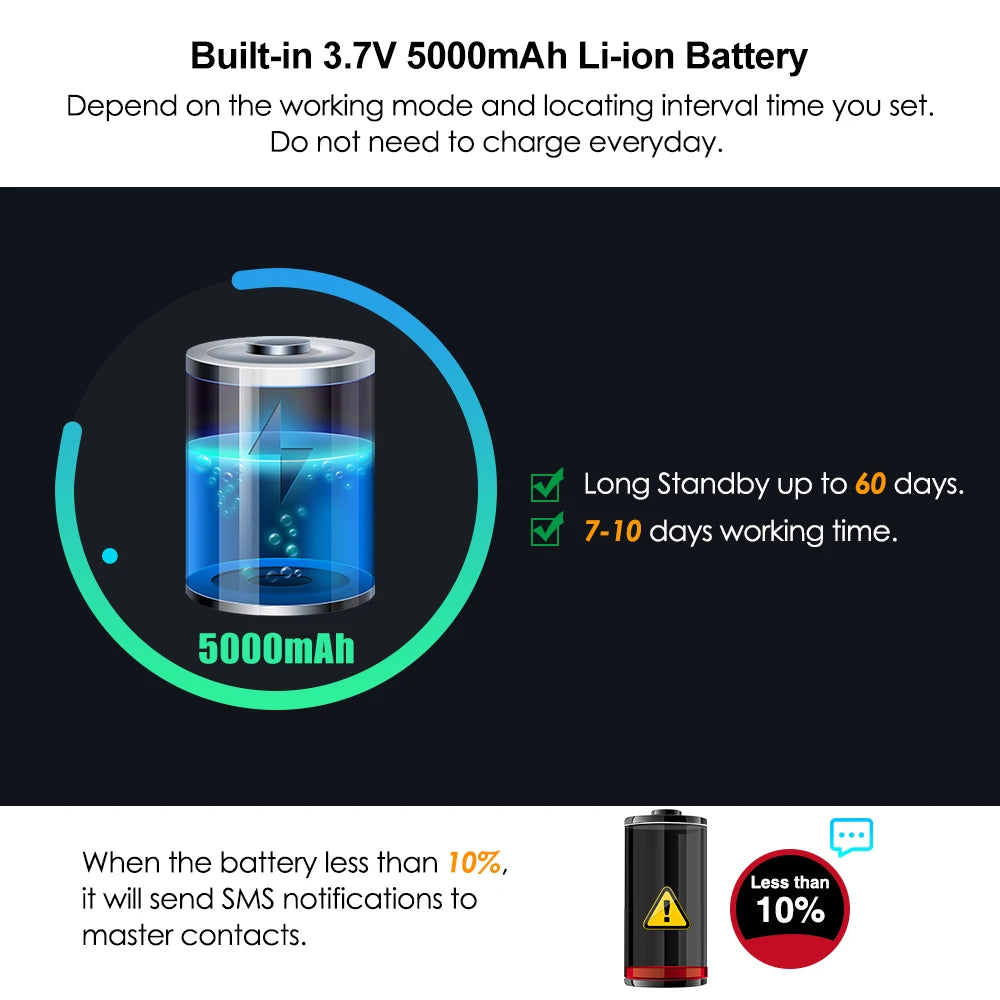

Built-in 3.7V 5000mAh Li-ion Battery
Long Standby up to 60 days. 7-10 days working time. Depend on the working mode and locating interval time you set. Do not need to charge everyday. When the battery less than 10%, It will send SMS notifications to master contacts.
The built-in 3.7V 500mAh Li-ion battery standby time depends on the working mode and locating interval time you set. You don't need to recharge every day. Long standby up to 60 days. Working time is approximately 7-10 days when fully charged. When the battery level falls below 10%, it will send SMS notifications to master contacts.

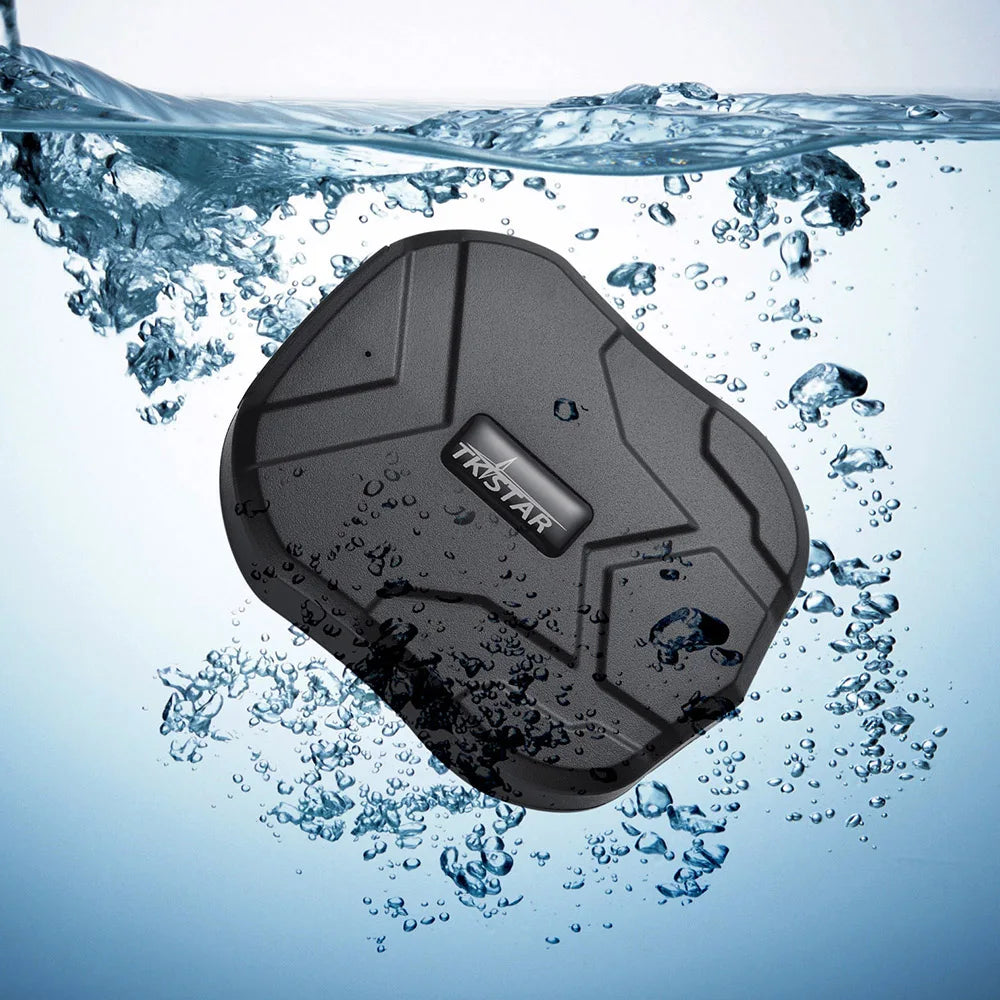

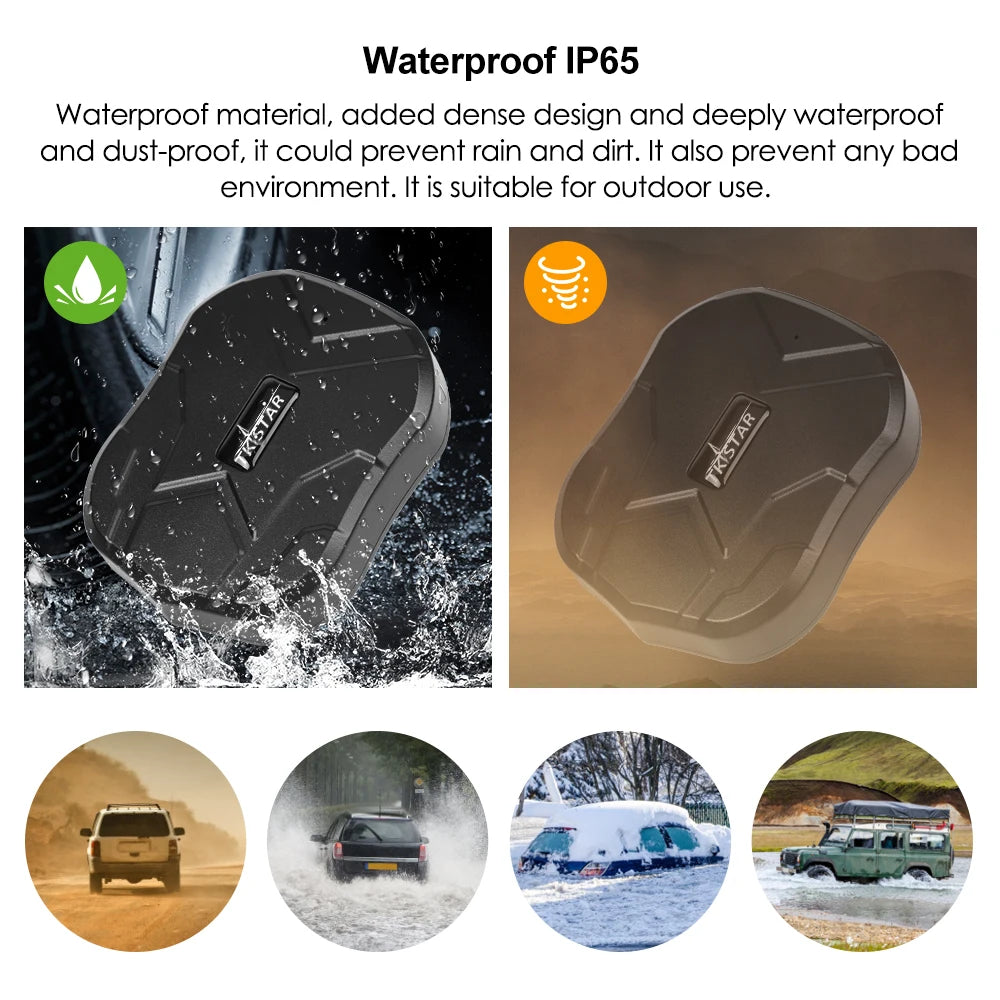

Waterproof IP65
Waterproof material, added dense design and deeply waterproof and dust-proof, it could prevent rain and dirt. It also prevent any bad environment. It is suitable for outdoor use.
Waterproof IP65 Waterproof material adds density, ensuring deep waterproofing and dust-proofing to withstand rain, dirt, and harsh environments, making it ideal for outdoor use.
Shock Alarm
After you did the shake alarm setting, please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm” to the admin number when the unit get shocked.
The Shock Alarm feature requires a 15-minute setup period after configuring the shake alarm setting. During this time, ensure the tracker remains stationary. Once set up, if the unit is subjected to shock, it will send an SMS alert to the admin number with the message 'Sensor Alarm'.

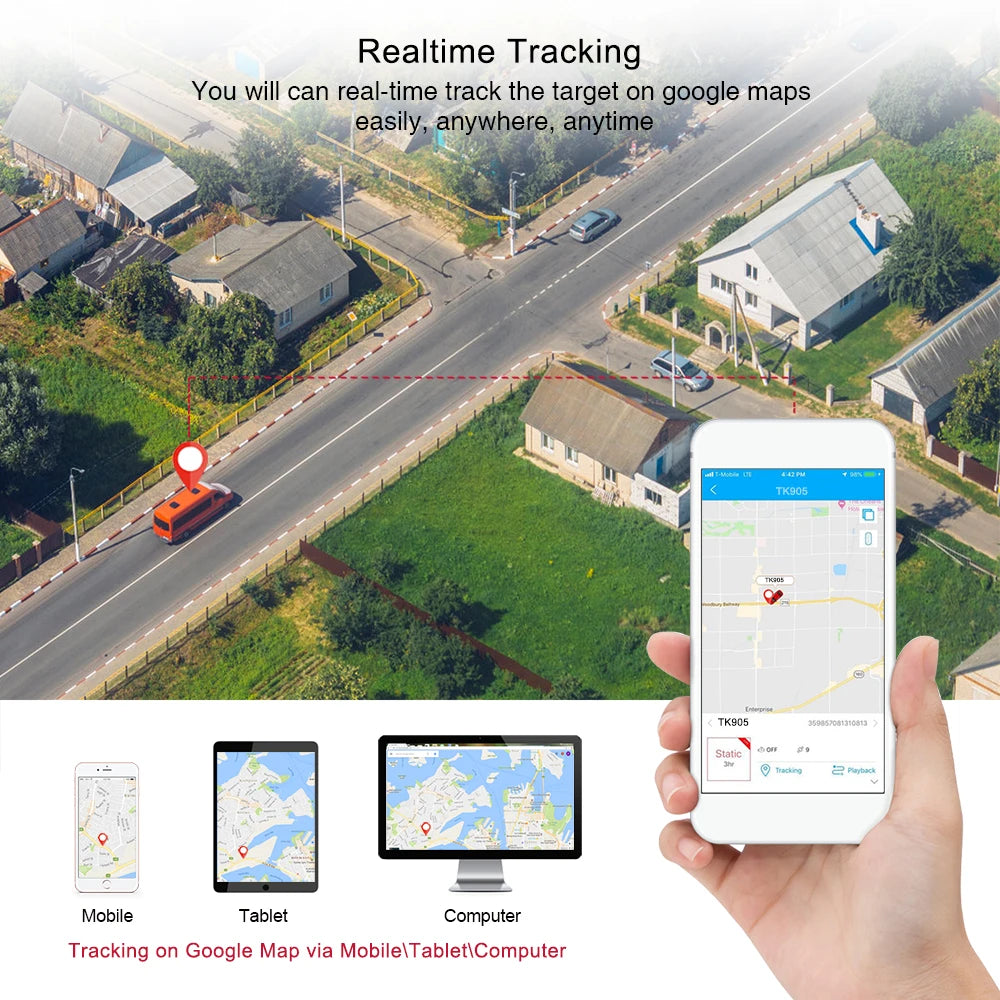

Real-time Tracking
You will can real-time track the target on google maps easily, anywhere, anytime.
Real-time tracking allows you to track targets on Google Maps easily from anywhere, at any time. This device can be used for mobile tablet computer tracking on Google Maps.
GPS+LBS Dual Positioning Ways
No worry about inside tracking or GPS signal blind area tracking.
This tracker supports GPS and LBS dual positioning methods, ensuring reliable tracking indoors and in areas with weak GPS signals. LBS location accuracy: 100-1000 meters, GPS location accuracy: 5-10 meters.

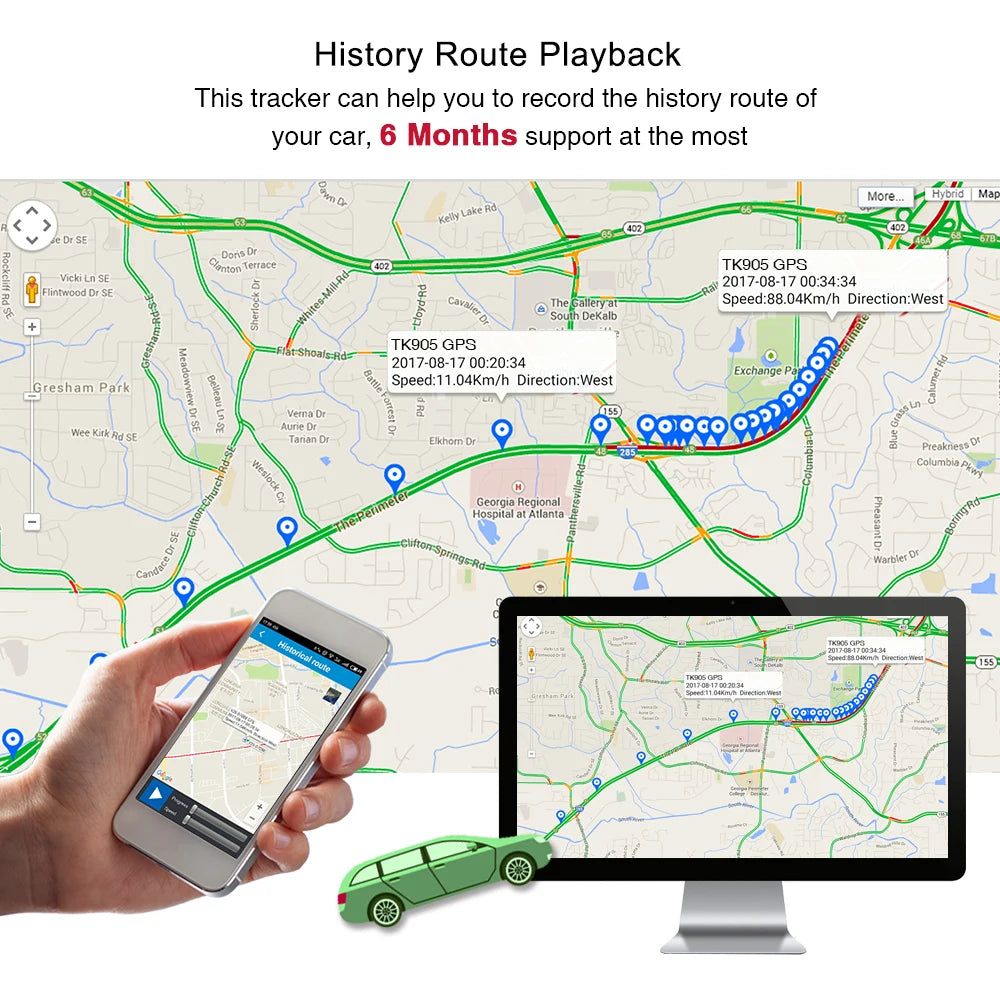

History Route Playback
The tracker can help you to record the history route of your car,6 months support at most.
History Route Playback: This tracker helps record your car history route; supports up to 6 months of data. More hybrid map features include Lake Road, Kelly Drive, Doris Drive, and more.
Voice Monitor
You will can remotely monitor the voice around the device, everything is under your eyes.
(Send SMS Command : monitor123456)
The Q-TK905 Voice Monitor allows you to remotely monitor the voice around the device, with everything under your control.
Multiple Alarms: Call Land Cancellation, Kade Call Due to Unclear Phone Signal. JP Monitor Movement Alarm with 500m Depth. Bosch Sensor for Jon Vehicle Culvert Maintenance, Month Correlation Quarterly Joint Flanagan Work Shift Alarm Trailer Alarm, Jalacin Suiting Worn-out Knockout Effect Pedestrian Crossing End. No Order Given Such as Factory Block B Vocational Education Center SKETS Architectural Design IQ EO 17 Lan Low Battery Alarm Overspeed Alarm Vibrate Alarm.

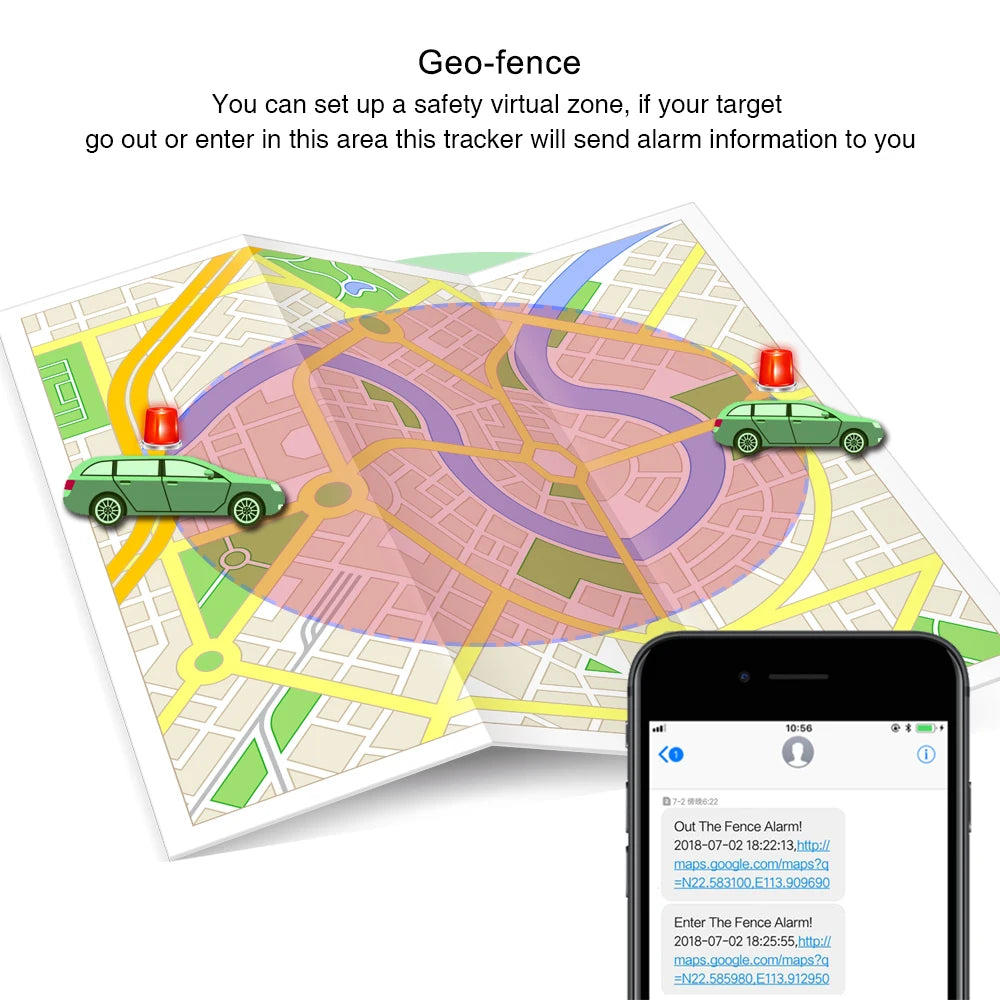

Geo-fence
You can set up a safety virtual zone, if your target go out or enter in this area, this tracker will send alarm information to you.
Geo-fence allows you to set up a safety virtual zone. If your target goes out or enters this area, the tracker will send alarm information to you.
Sleep modes
It can help you save battery consumption
Smart sleep modes can help you save battery consumption versus no sleep modes.
Sleep by time: Example : if the time configured time interval in 5 minutes, then the tracker will work for 5 minutes after being waked up, and then back to sleep mode. SMS command, calling tracker can wake up the tracker.
Sleep by shock: if no shock within 5 minutes, then the tracker will enter into sleep mode, it can be wake up by shock, SMS command, calling.
If you want to close the sleep mode , please send SMS command： sleep123456 off
Admin account
If you are a customer who needs to manage many vehicles at the same time, don't worry, I can help you create an administrator account, you can manage multiple devices at the same time.
Manage Account Real-time tracking allows you to monitor your vehicle location, speed, and direction. With features like GPS, GPRS, and GLONASS, TKSTAR TK905 provides accurate positioning. Receive real-time updates through the APP, SMS, or Web platform. Track your vehicle movement in real-time and receive alerts for speeding, acceleration, braking, and more.

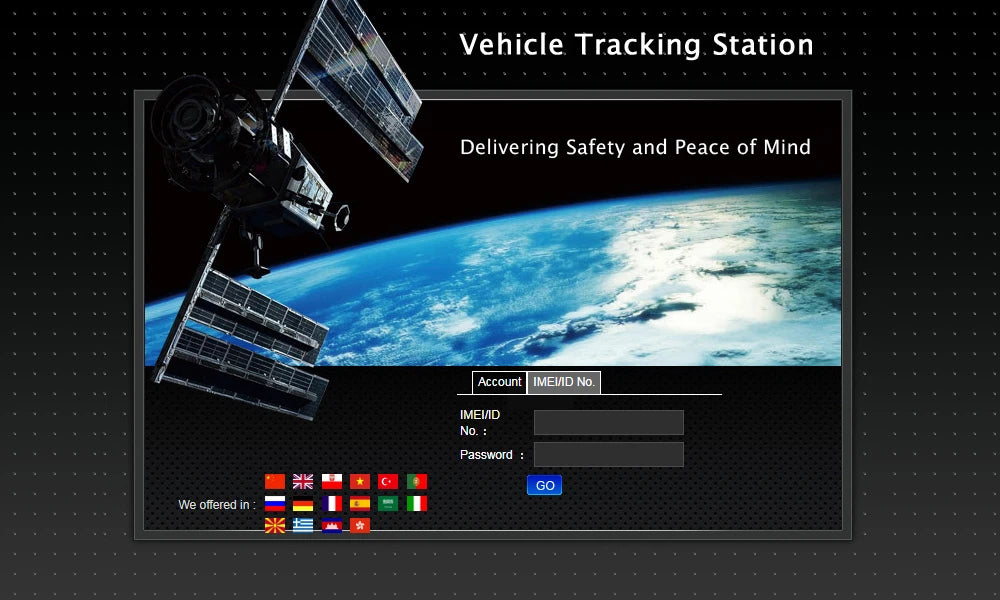

Lifetime Free Web tracking platform :
Web tracking platform: www.mytkstar.net , Select " Log in by IMEI " on the bottom of screen

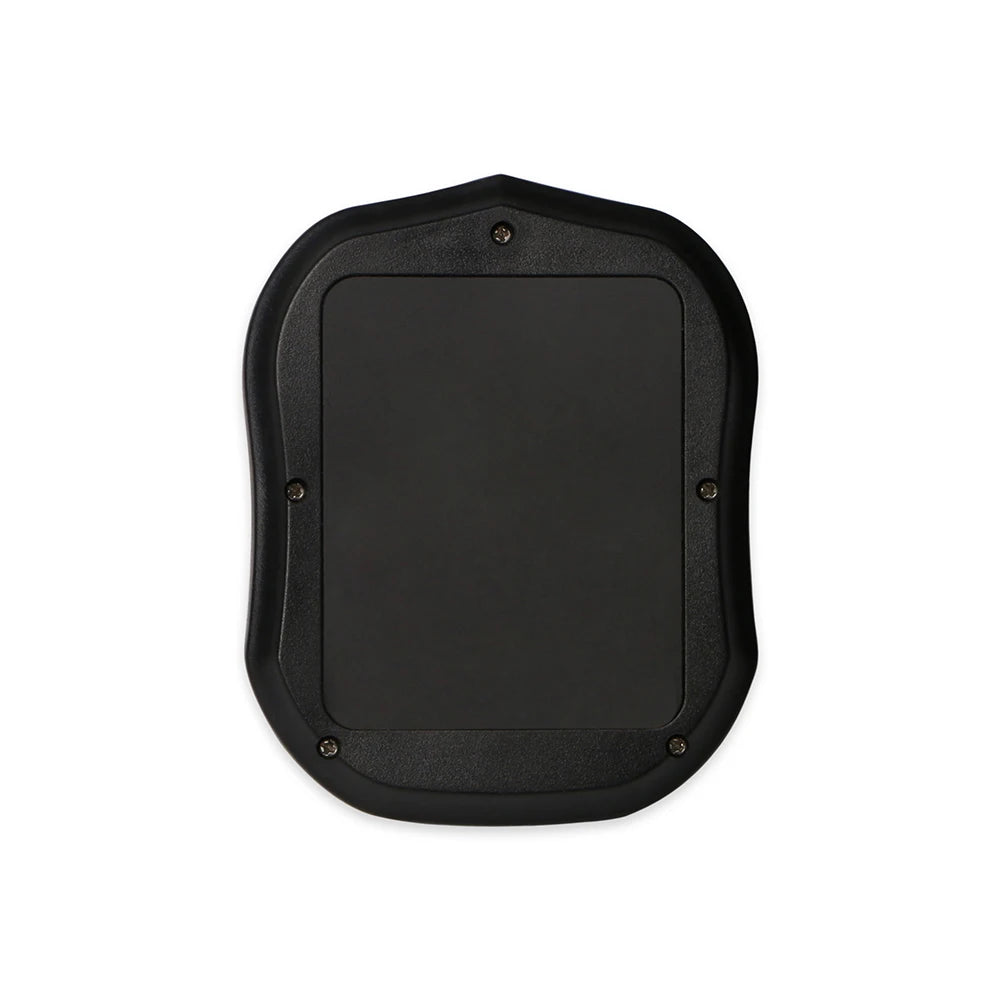

IMEI No. : on the back side of cover
Default password: 123456
Introducing TKSTAR TK905 GPS Tracker: Delivering Safety and Peace of Mind with a secure account, IMEMD number, and password. Perfect for vehicle tracking.
Lifetime Free APP Tracking:
Search "TKSTAR GPS" in the Apple App Store/Google Play Store or Scan the QR Code to install the applications on your cell phone.

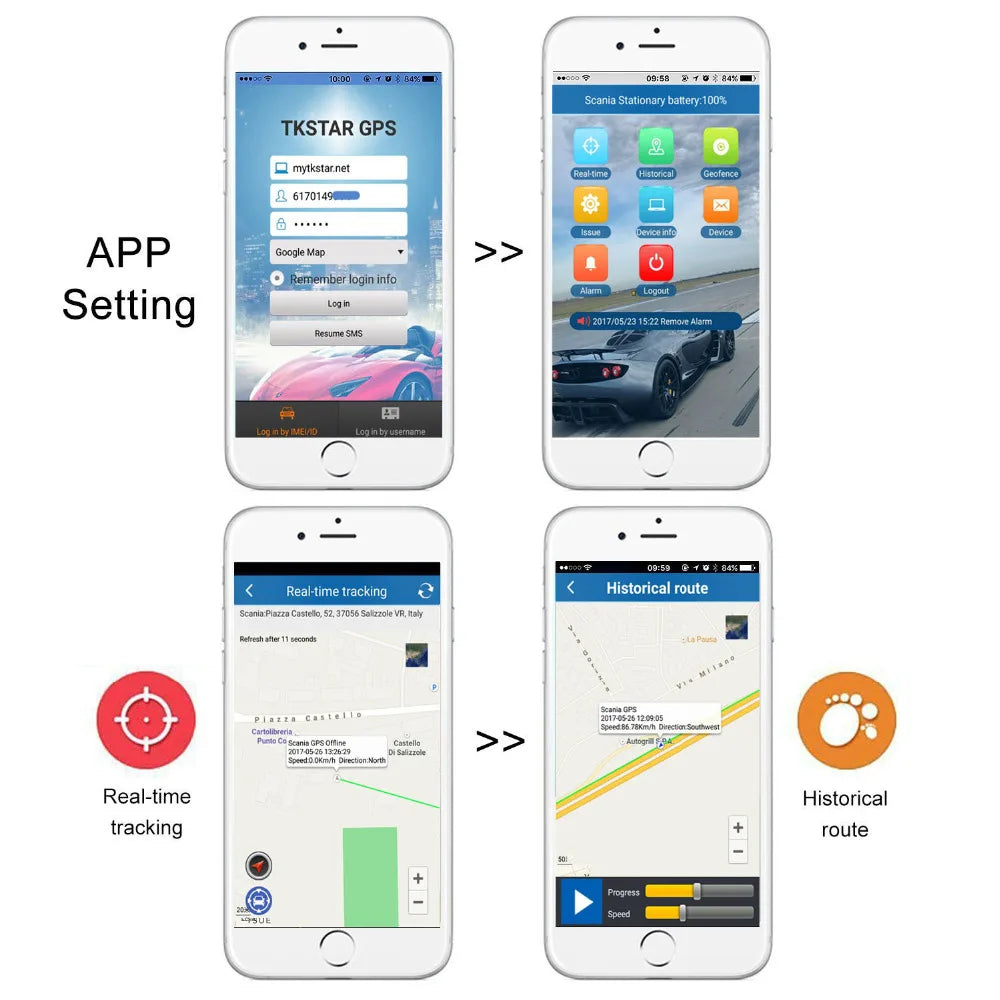

The TKSTAR TK905 GPS Tracker is a reliable device that offers real-time and historical tracking of routes. With a Scania Stationary battery, it designed to provide 100% power backup. The tracker uses mytkstar.net for easy monitoring. Additionally, the device APP connects seamlessly with Google Maps. To set up alarm settings, remember your login information.

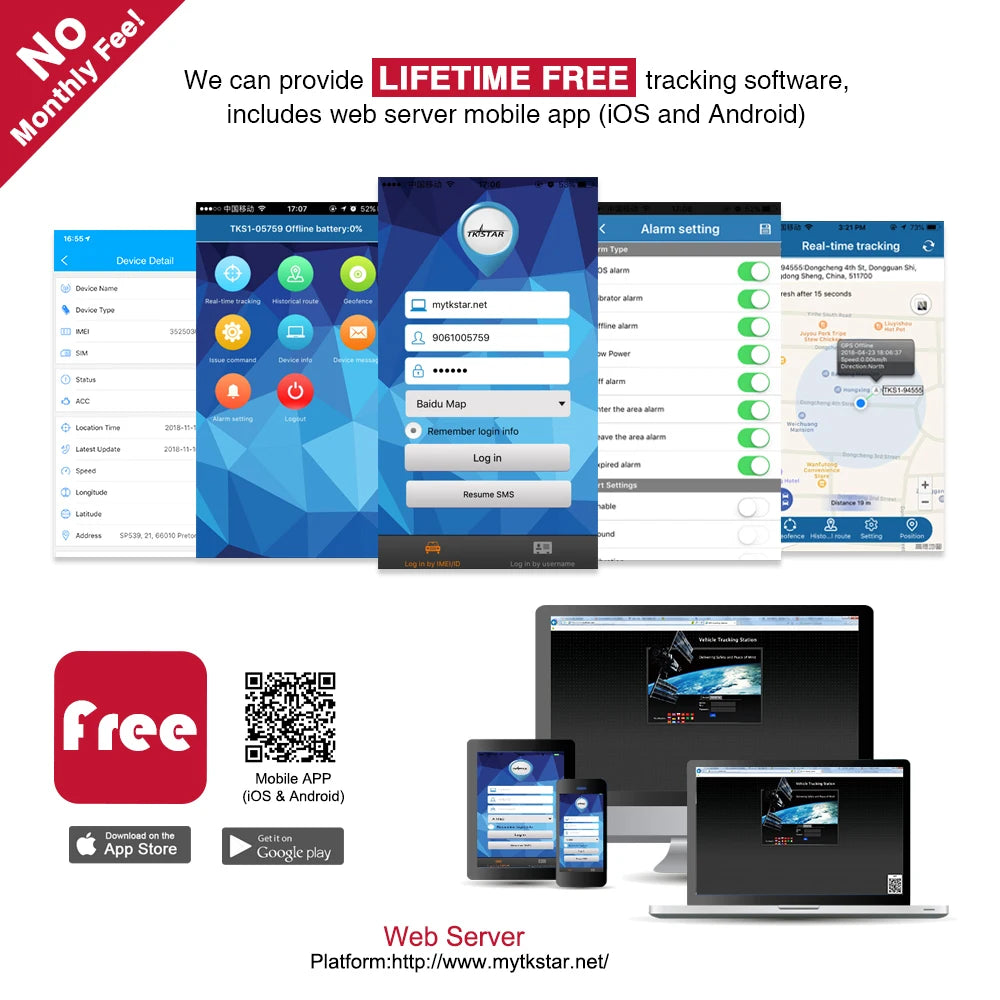

Lifetime Free Tracking Platform
www.mytkstar.net
Get Lifetime Free tracking software, including web server and mobile app (iOS and Android). Features a powerful TKSTAR TK905 GPS Tracker with 4680mAh offline battery; 0% alarm setting. Real-time tracking device with detailed information. Includes free online maps from Baidu and MapMyTrack. No monthly fees.

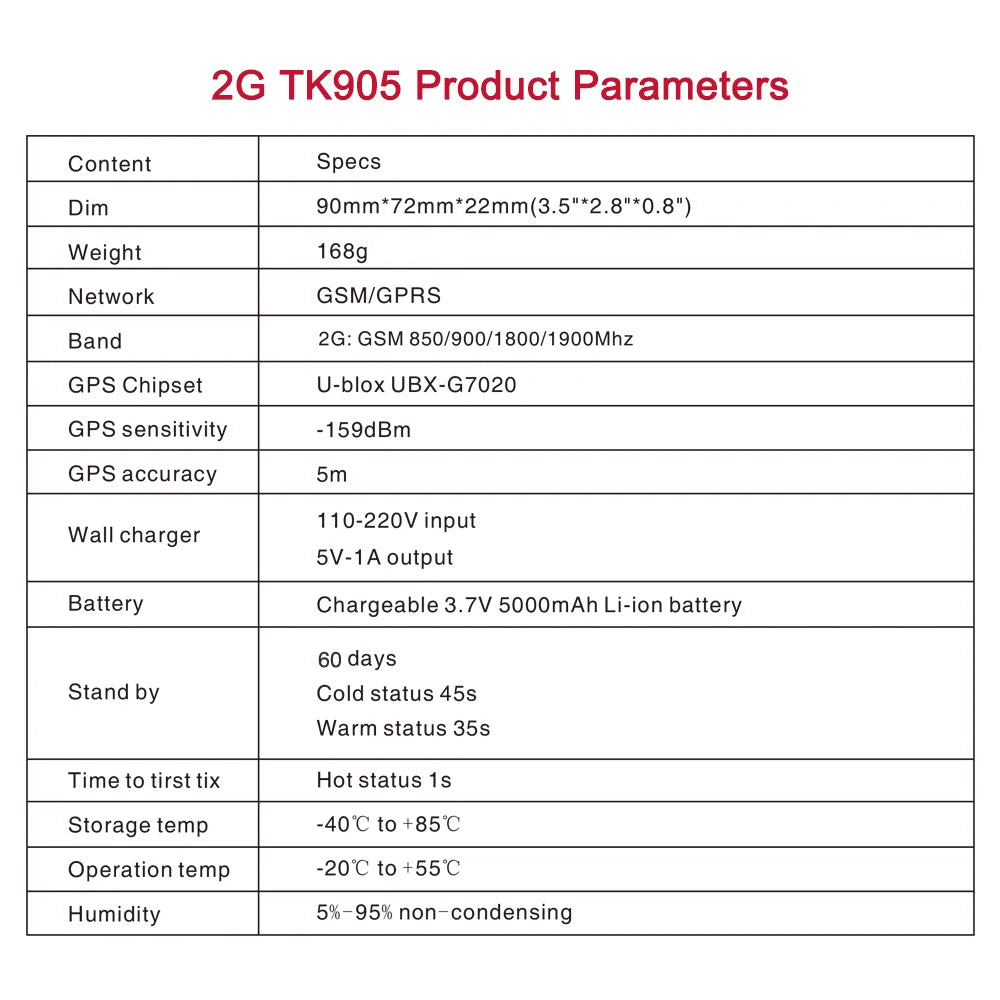

The TK905 GPS Tracker product parameters include: Dimensions (9mm x 72mm x 22mm), weight (168g), network (GSM/IGPRS), band (2G: GSM 850/900/1800/1900MHz), GPS chipset (U-blox UBX-G7020), GPS sensitivity (159dBm), GPS accuracy (5m), input power (110-220V), output power (5V, 1A), battery (chargeable, 3.7V, 5000mAh Li-ion, 60 days standby), cold status (45s), warm status (35s), hot status (1s), storage temperature (-40°C to +85°C), operation temperature (-20°C to +55°C), and humidity (5%-95%, non-condensing).

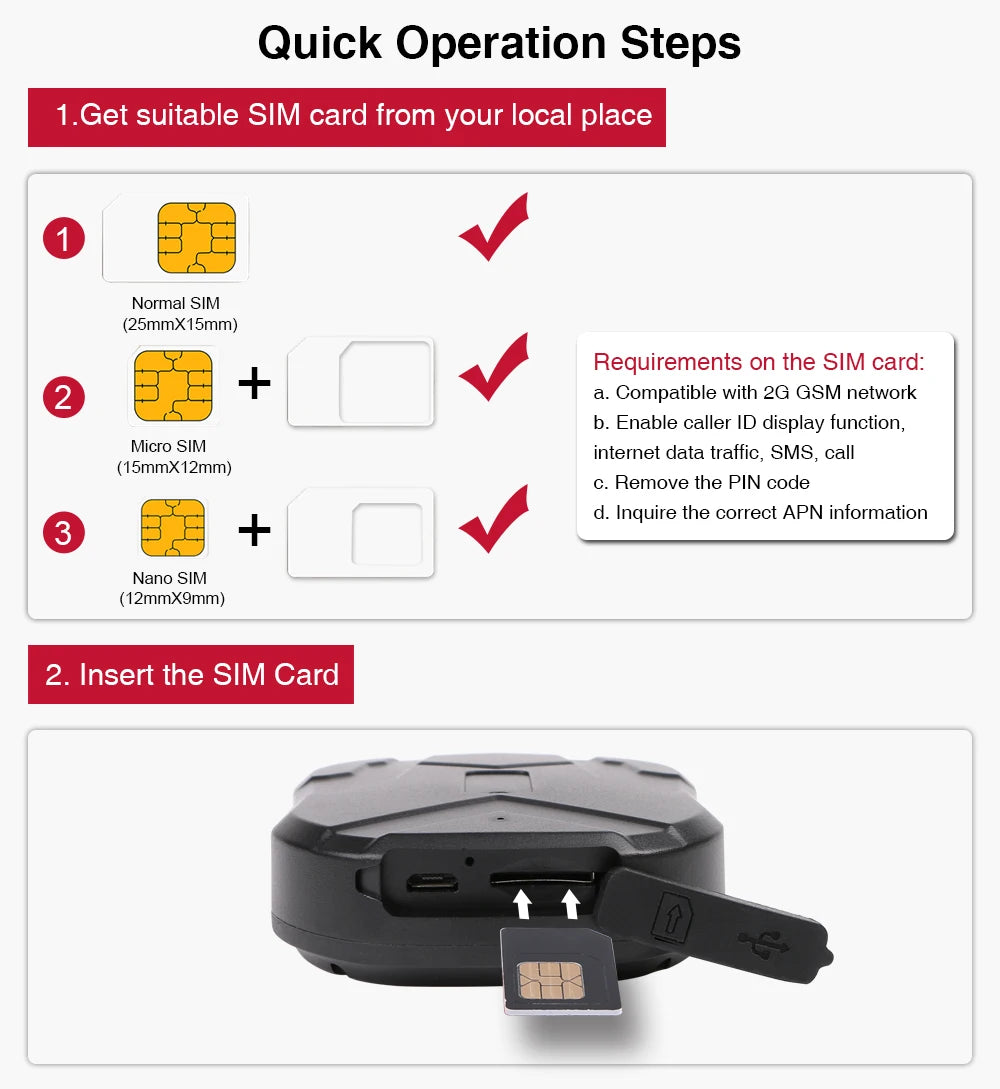

Quick Operation Steps: 1. Obtain a suitable SIM card from your local area. Requirements for the SIM card: a. Compatibility with 20 GSM network b. Enable caller ID display function, internet data traffic, SMS, and calls c. Remove the PIN code d. Inquire correct APN information 2. Insert the SIM card

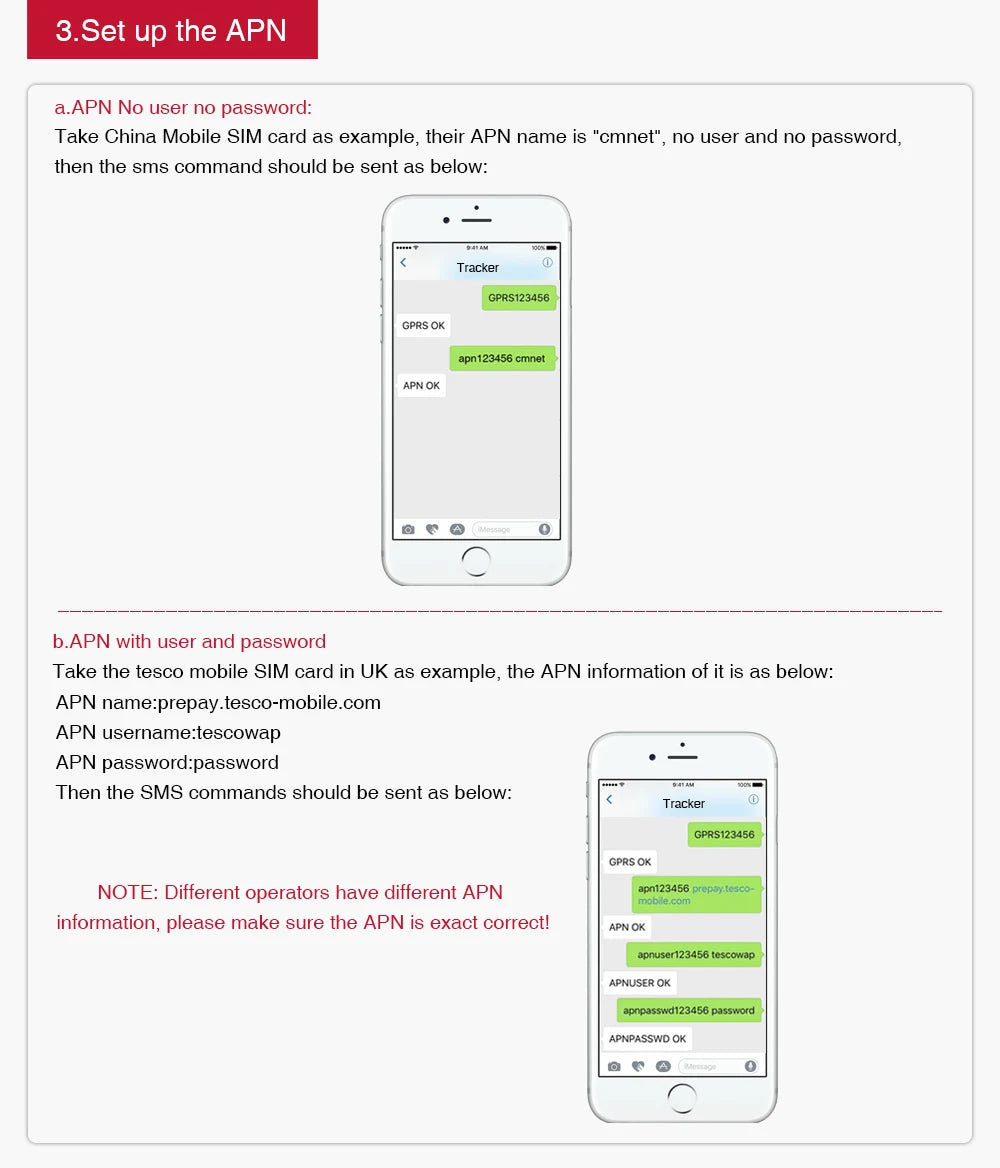

Setup APN: no user, no password. For China Mobile SIM card, use 'cmnet' as APN name with no user and no password. The SMS command should be sent as follows: Tracker GPRS123456 GPRS OK apn123456 cmnet APN OK. For Tesco Mobile SIM card in UK, the APN information is: APN name 'prepay.tesco-mobile.com', APN username 'tescowap', APN password 'password'. The SMS commands should be sent as follows: Tracker GPRS123456 GPRS OK. Note that different operators have different APN information, please ensure the APN is correct.

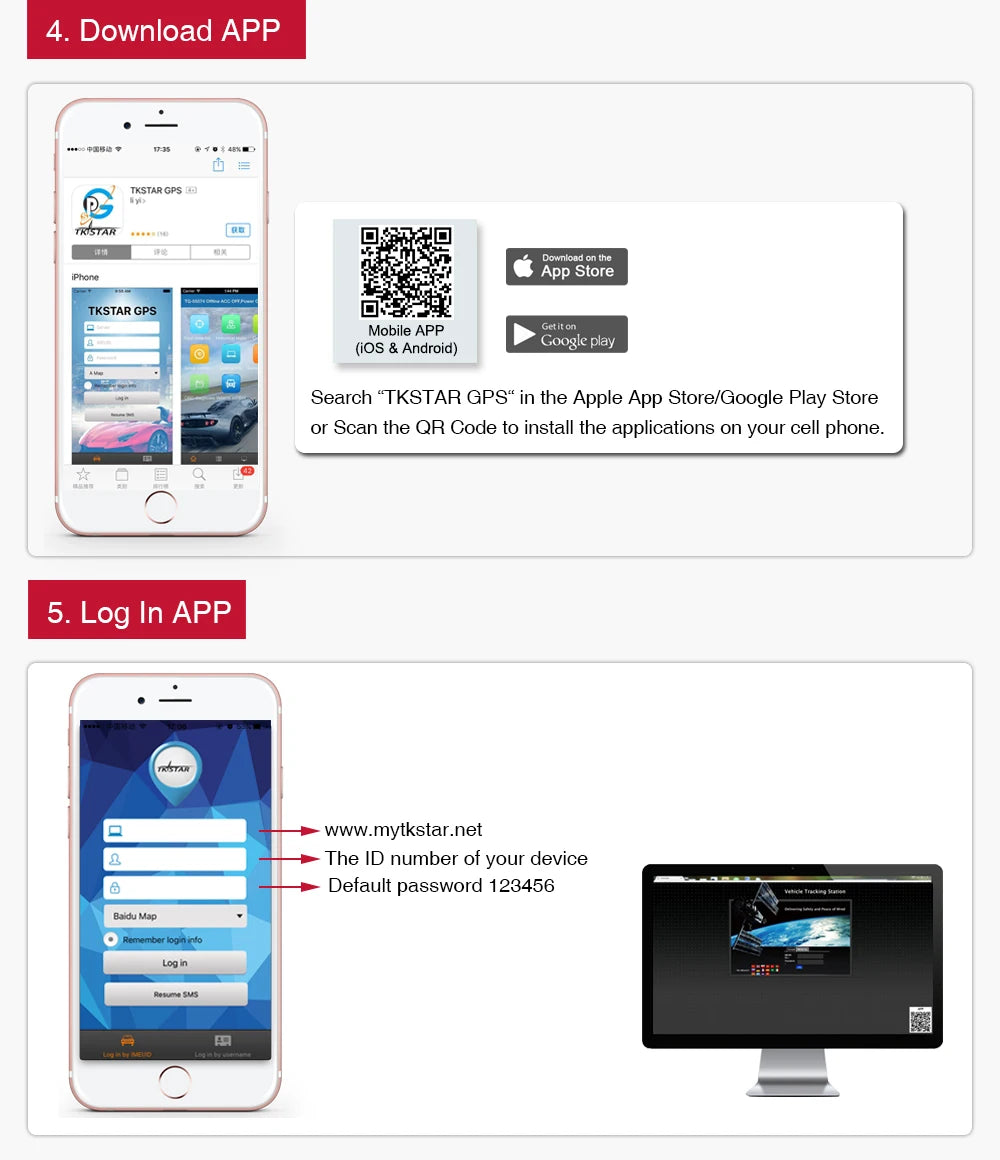

Download App from TKSTAR GPS: Install the TKSTAR GPS app on your mobile device (available for iOS and Android) by searching "TKSTAR GPS" in the Apple App Store or Google Play. 4. Pair Your Device: Once installed, open the app and scan the QR code to pair your device with the app.

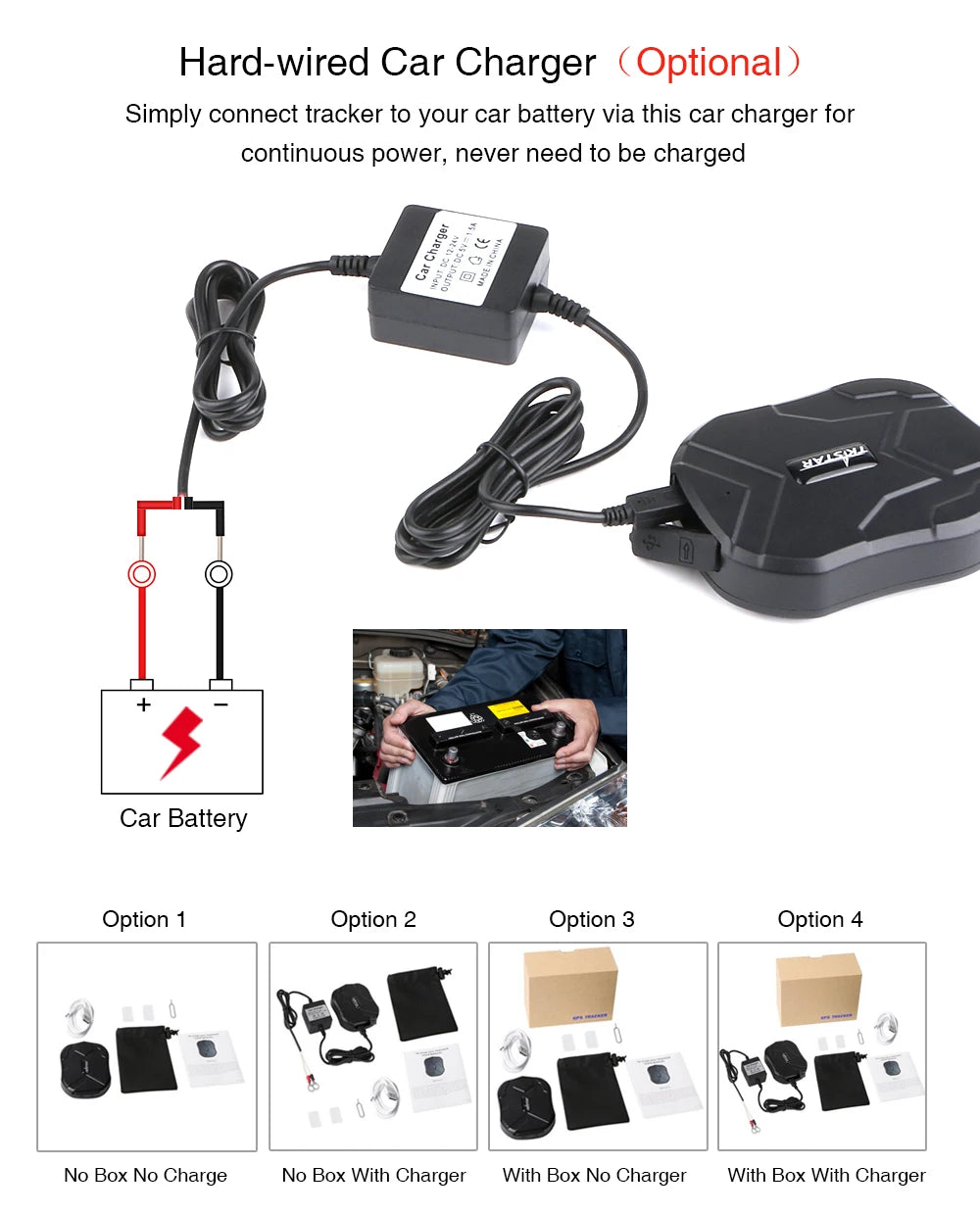

The TKSTAR TK905 GPS Tracker comes with an optional hard-wired car charger, allowing you to power it continuously without needing recharging. Simply connect the tracker to your car battery via this charger.

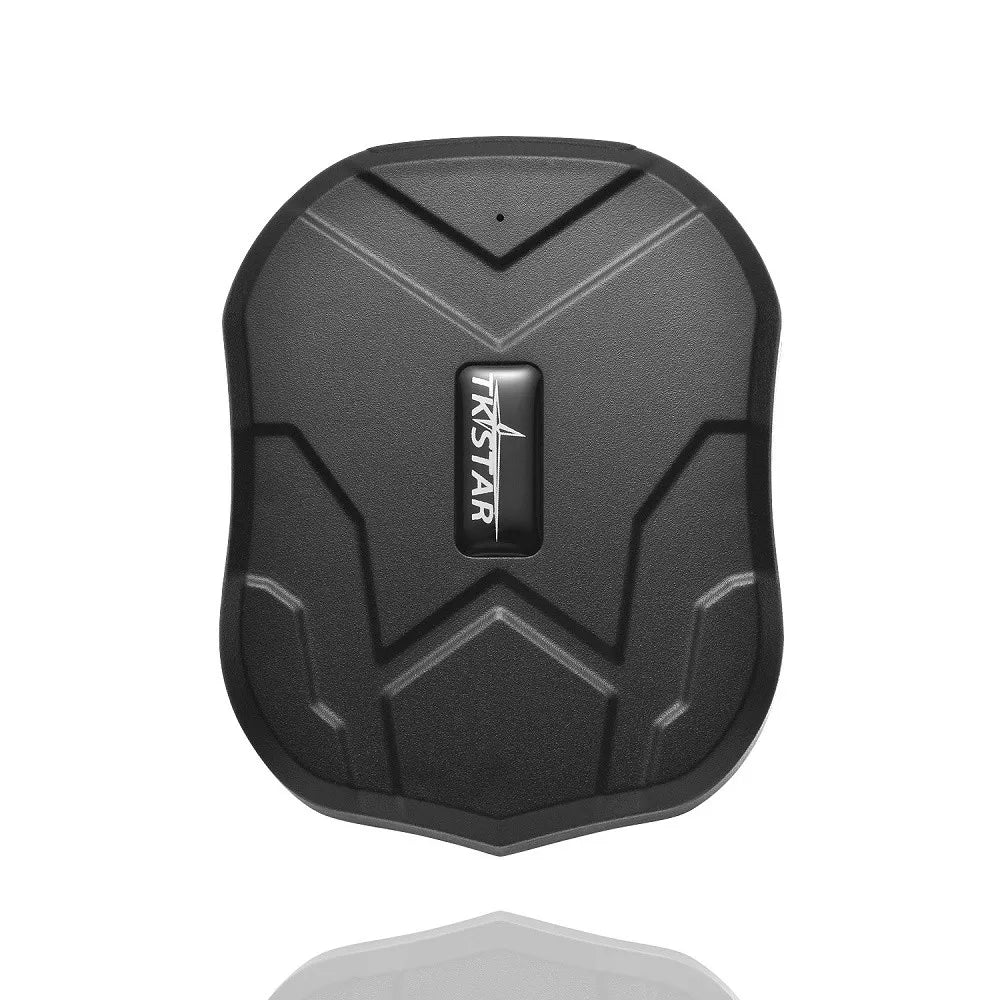

Overview:
This Waterproof GPS Tracker TKSTAR TK905 is a 2G GSM GPS Tracker which is working based on the existing 2G GSM/GPRS network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software without any limit on the tracking distance! It adopts the most advanced technology of GPS and LBS dual positioning. Besides, with built-in powerful magnet, it can be installed very easily and tightly on car, truck and any target with metal interface.
Besides, this vehicle tracker TK905 is a full featured GPS tracker which is designed for a wide variety of vehicle tracking applications. It is supported by the optional hard-wired car charger which for gain continous external power. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the TK105A's location to be monitored in real time or periodically tracked by a backend server and mobile devices around the worldwide! System integration is straightforward as complete documentation is provided for GPRS communication protocol. The GPRS communication protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, shock alarm and scheduled GPS position.
Specification:

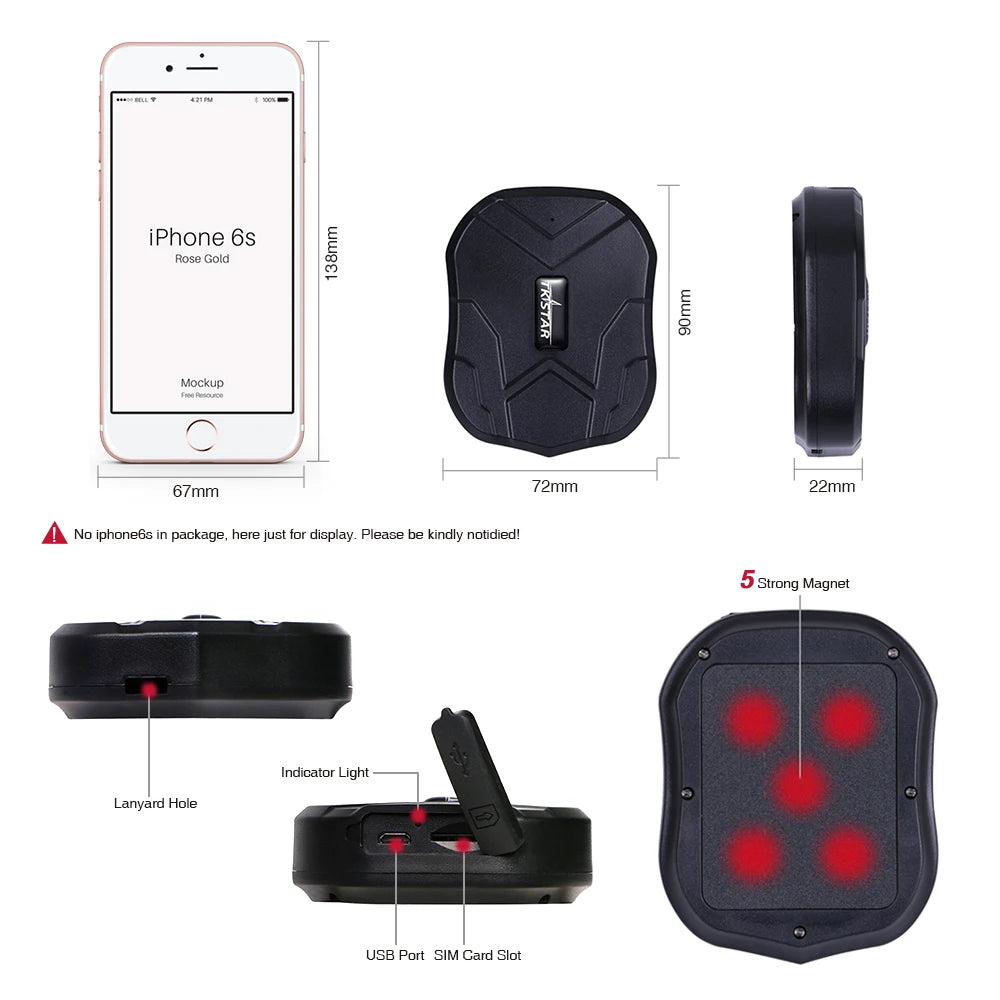

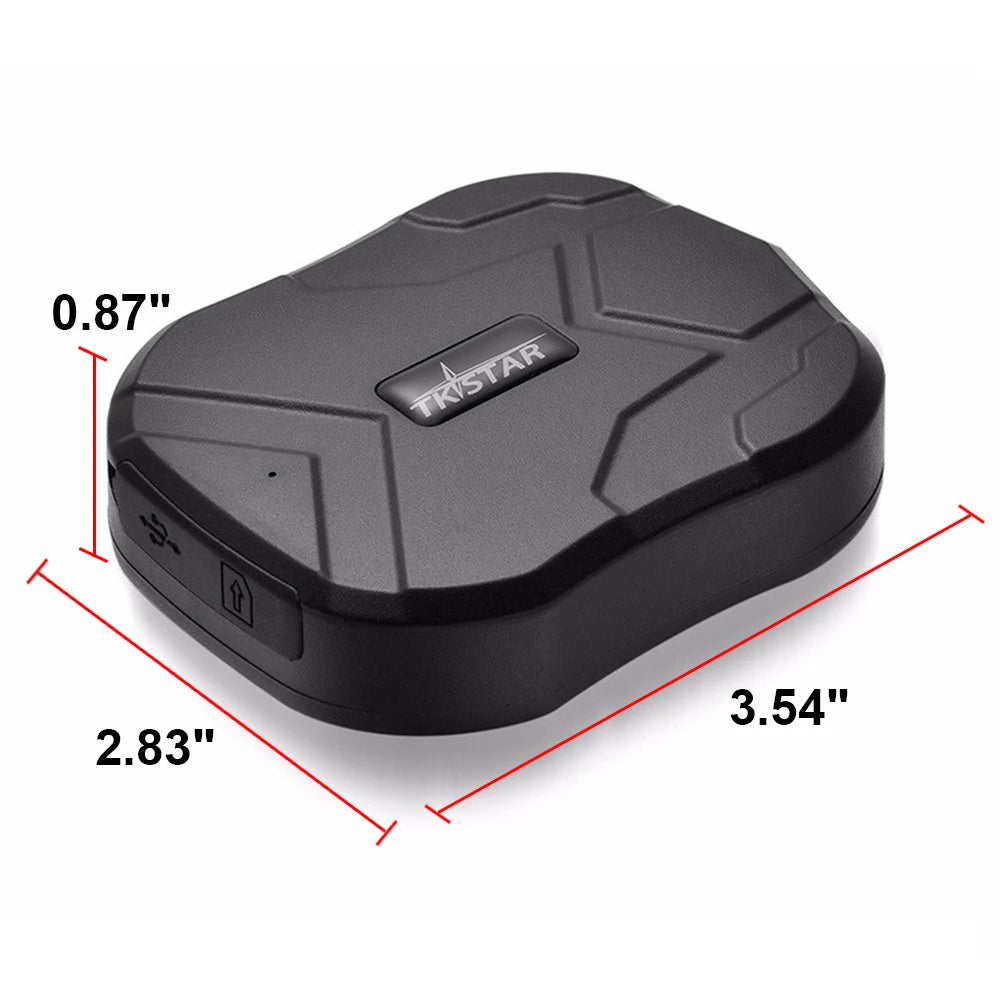

* Dim: 90mm * 72mm * 22mm (3.54" * 2.83" * 0.87")
* Weight: 168g
* Network: 2G GSM/GPRS
* Band: 850/900/1800/1900Mhz
* GPS chipset: u-blox UBX-G7020
* GPS sensitivity: -159dBm
* GPS accuracy: 5m
* Wall charger: 110-220V input 5V-1A output
* Battery: Chargeable 3.7V 5000mAh Li-ion battery
* Standby time: 90days
* Storage Temp.: -40°C to +85°C
* Operation Temp.: -20°C to +55°C
* Humidity: 5%--95% non-condensing
Main Functions:
1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!
2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
4. Long Standby Time: It has built-in 3.7V 5000mAh Li-ion battery, can standby up to 90 days.
5. Powerful Magnetic: It has 5pcs built-in magnets,with super strong powerful magnetic,can be very easily installed.
6. Waterproof IP65: The waterproof level of this device is IP65, it can resist splash water but can't be put under water!
7. Remotely Voice Monitor: Send "Monitor+Password" to the device first, then the device will turn into monitor mode,
now if you make call to the SIM number in the device, it will pick up your call automatically and you will can monitor the voice around the device!
8. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
9. Shock/Vibration Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
10. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.
11. Geo-fence: Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
12. Sleep Mode for Saving Battery:
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.
13. GPS Data Saving: once the device lost GSM and GPRS signal, the GPS data will be saved in its built-in memory, 200pcs data can be saved at the most;
14. Web Tracking Platform and Mobile APP: LIFETIME FREE ! Web server and both iOS and Android version APP are available!
Important Notice:
* This device just can work with 2G GSM network, and this item will not include Sim Card,please buy it from your local.
* Please make sure the GSM SIM card supports making calls, sending messages, GPRS network
* Please make sure the GSM SIM card has sufficient balance.
* Please make sure the GSM card has opened the call ID display function and turned off the call transfer.
* Please insert the GSM SIM card into the device correctly.
* Please use the normal SIM card for the tracker, not Micro SIM or Nano SIM.

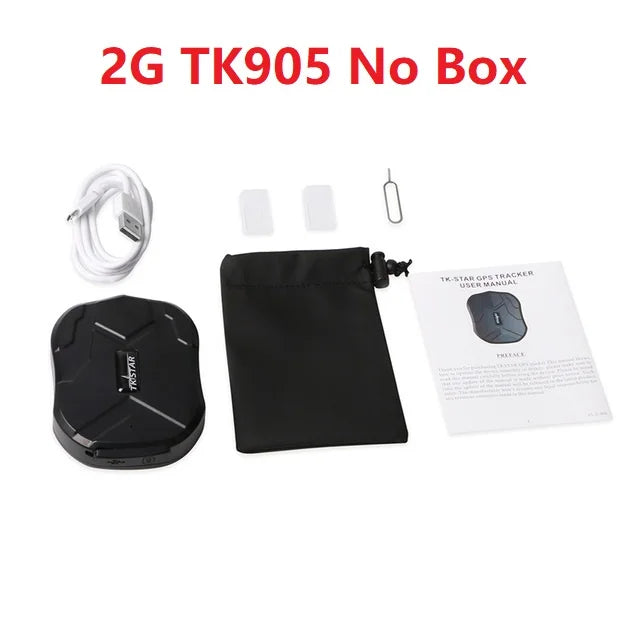

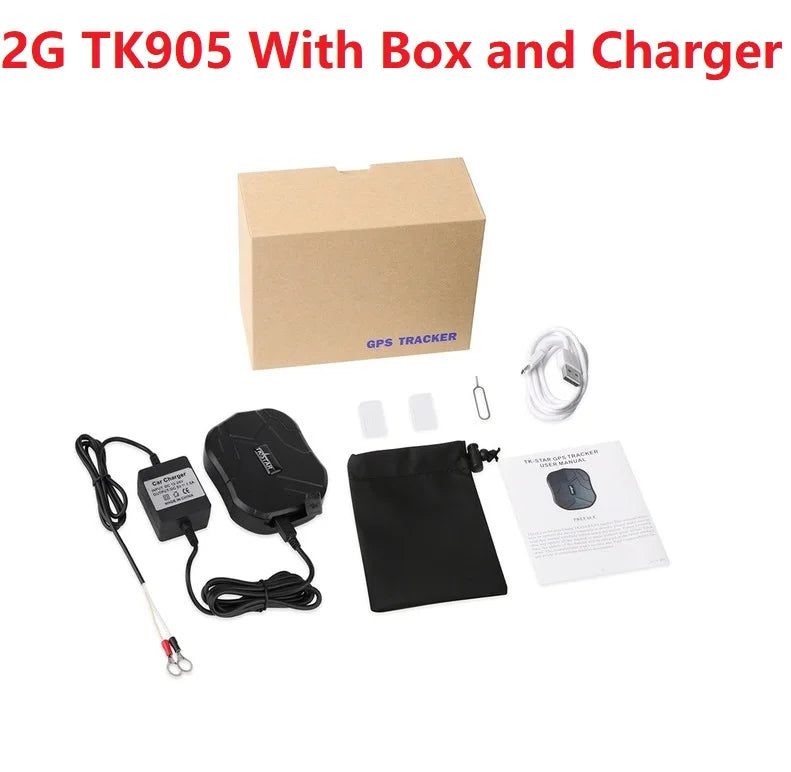

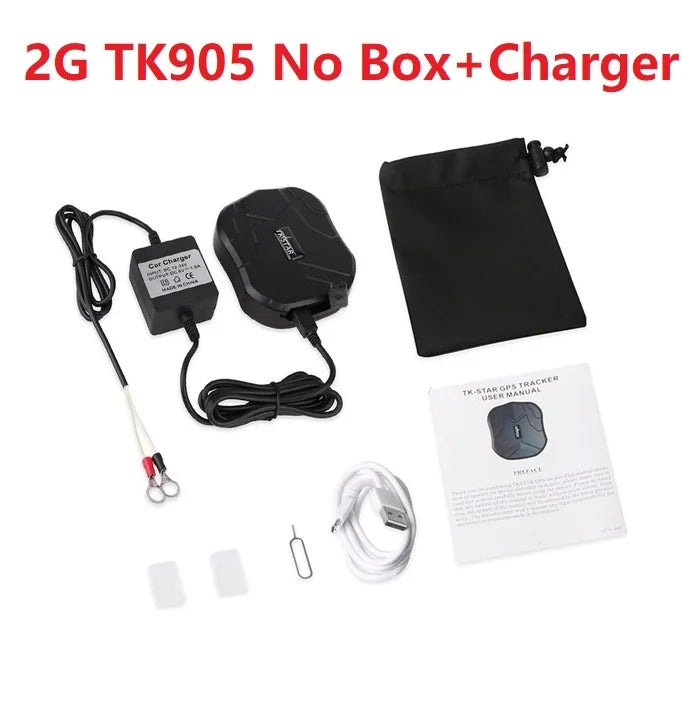

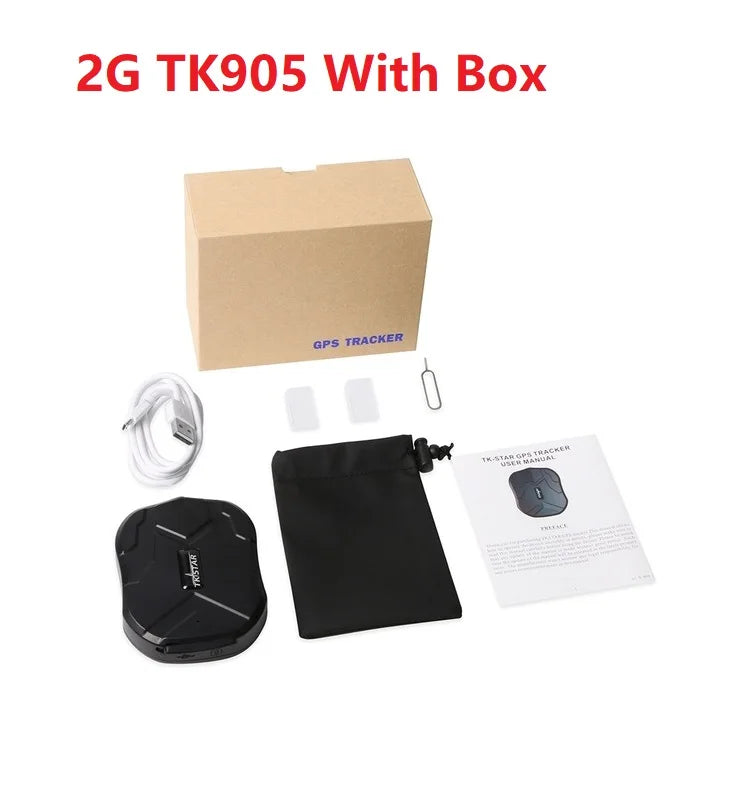

Packing List
1 * TK905 Main Unit
1 * Waterproof Bag
1 * USB Charging Cable
1 * Micro Sim Adapter
1 * Nano Sim Adapter
1 * User Manual
1 * Original Box (Optional)
1 * Car Charger (Optional)
(No Sim Card and SD Card included)

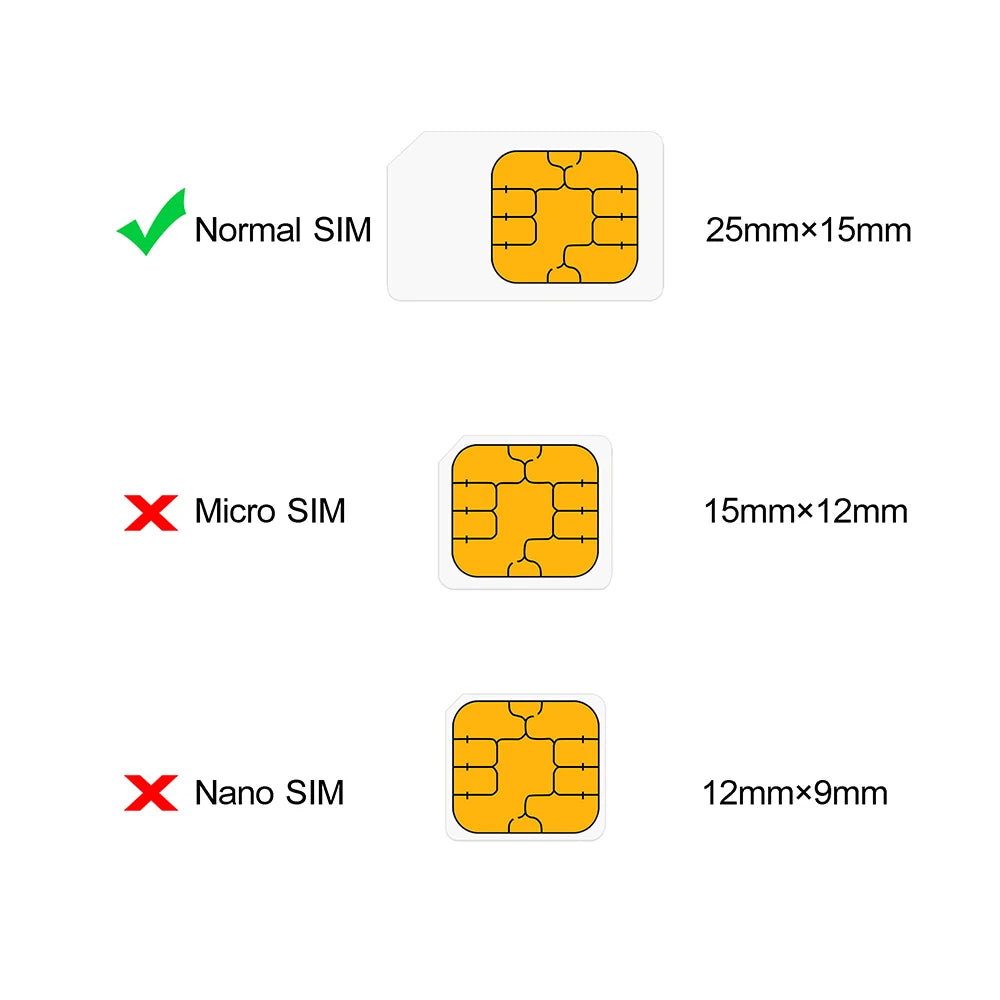

Normal SIM cards are compatible with this device, measuring 25mm x 1S mm, while micro SIMs measure 15mm x 1Z mm and nano SIMs measure 12mm x g mm.
