Product Description

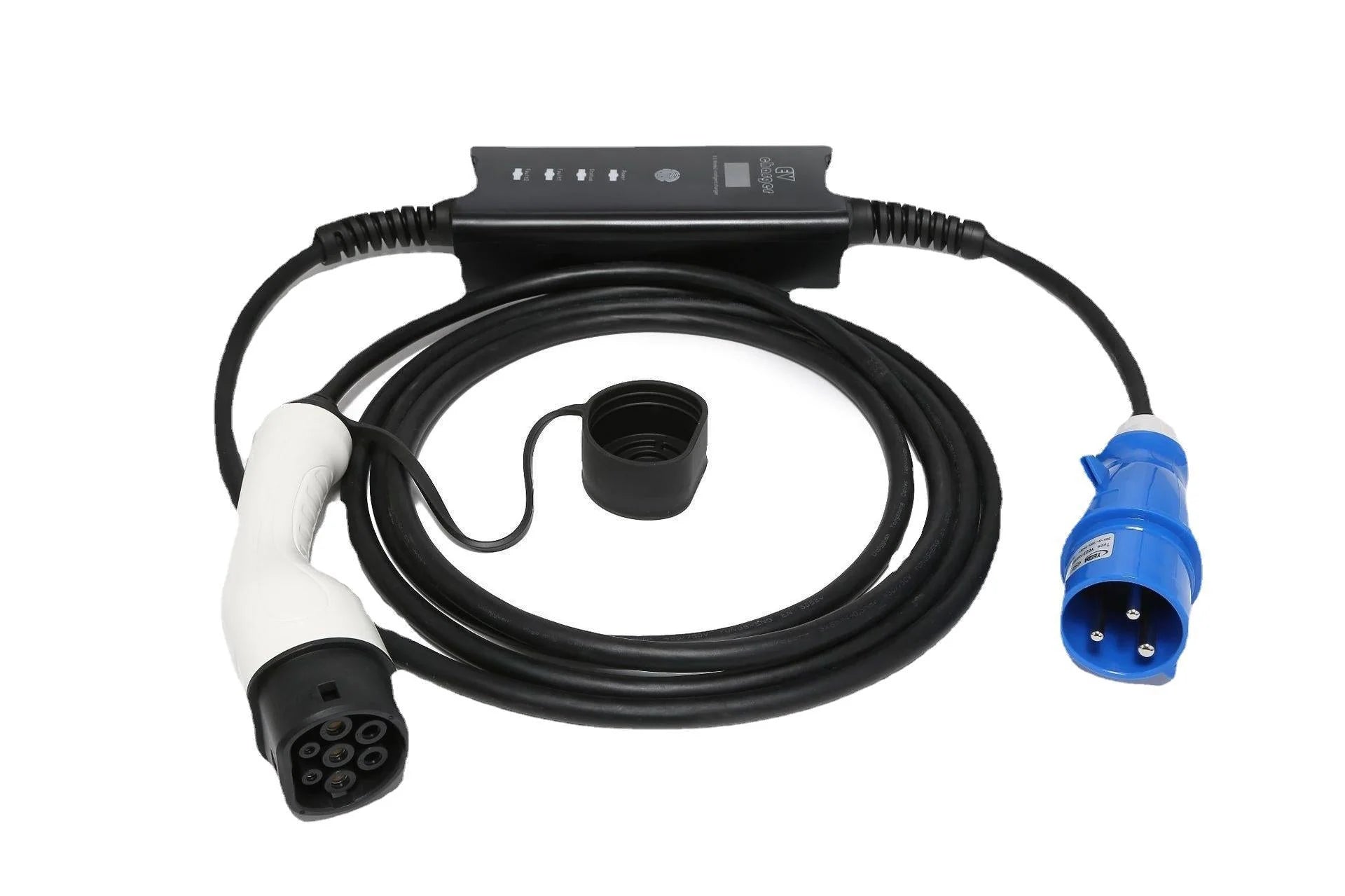

Fast, Safe, and Portable Charging for Any Type 2 Electric Vehicle

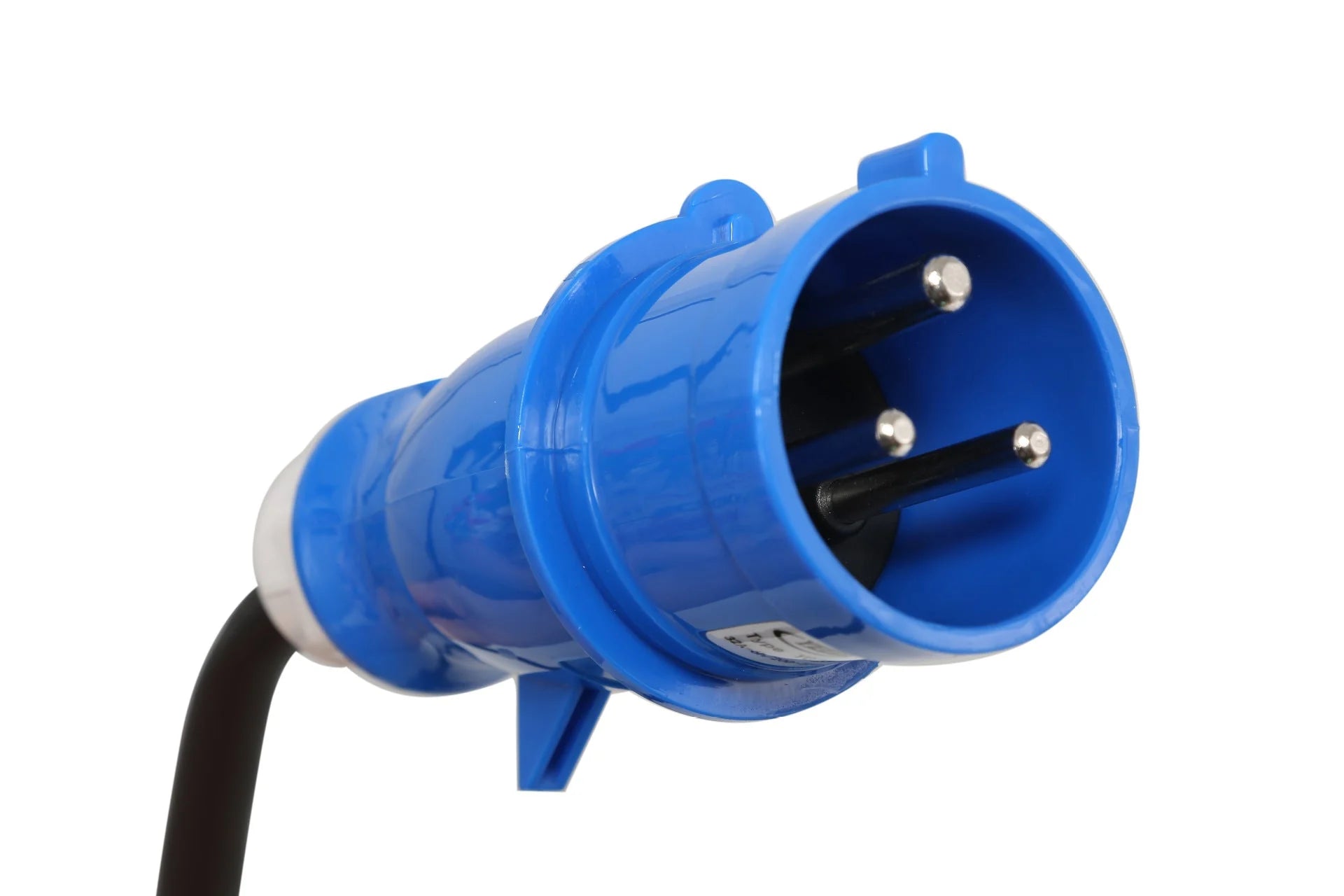

Power your EV anywhere with this compact and durable Type 2 portable charger, equipped with a 32A max output, 250V AC rating, and a 3-pin blue CEE industrial plug. Built for reliability, safety, and ease of use, this portable charger is ideal for home, workplace, or travel charging across Europe and regions using Type 2 standard.
Engineered with premium materials, flame-retardant housing, and high-grade copper alloy pins, this charger delivers consistent performance even in harsh environments. The adjustable amperage (10A/16A/24A/32A) allows flexible charging to match your available power source and protect your vehicle’s battery.
Key Features
✔ Ergonomic & Portable Design
Hand-held, easy-grip design allows smooth plugging/unplugging. Lightweight and ideal for travel.
✔ High Safety Protection (IP55 Rated)
Features full head-pin insulation, flame-retardant thermoplastic housing, 1000MΩ+ insulation resistance, and advanced environmental resistance (UV, oil, impact, abrasion).
✔ Adjustable Amperage Settings
Select your charging current from 10A / 16A / 24A / 32A based on outlet capability for optimized and safe charging.
✔ Durable Industrial-Grade Materials
Uses silver-plated copper alloy pins for improved conductivity and reduced heat. Designed to withstand drops and up to 2 tons of pressure.
✔ Wide Application Across Type 2 Regions
Perfect for users in the UK, EU, Middle East, Africa, and Southeast Asia, where Type 2 charging is standard.
Technical Specifications
Electrical Performance
| Parameter | Specification |
|---|---|
| Rated Working Current | 10A / 16A / 24A / 32A |
| Operating Voltage | 250V AC |
| Insulation Resistance | > 1000MΩ (DC 500V) |
| Terminal Temperature Rise | < 50K |
| Contact Impedance | ≤ 0.5mΩ |
Mechanical Performance
| Parameter | Specification |
|---|---|
| Mechanical Lifespan | > 10,000 plug/unplug cycles |
| Impact Resistance | 1-meter drop resistant; withstands 2-ton vehicle pressure |
Material Composition
| Component | Material |
|---|---|
| Shell | Flame-retardant thermoplastic (UL94V-0) |
| Pins | Silver-plated copper alloy |
Operating Conditions
| Parameter | Specification |
|---|---|
| Working Temperature | -30°C to +50°C |
Regional Compatibility (Type 2 Standard)
| Region | Countries/Areas |
|---|---|
| Europe | UK, Germany, France, Spain, Italy, Norway, Russia, etc. |
| Middle East | UAE, Saudi Arabia, Israel, etc. |
| Africa | South Africa and other regions using Type 2 EV infrastructure |
| Asia | Singapore, Malaysia, and other Southeast Asian countries |
