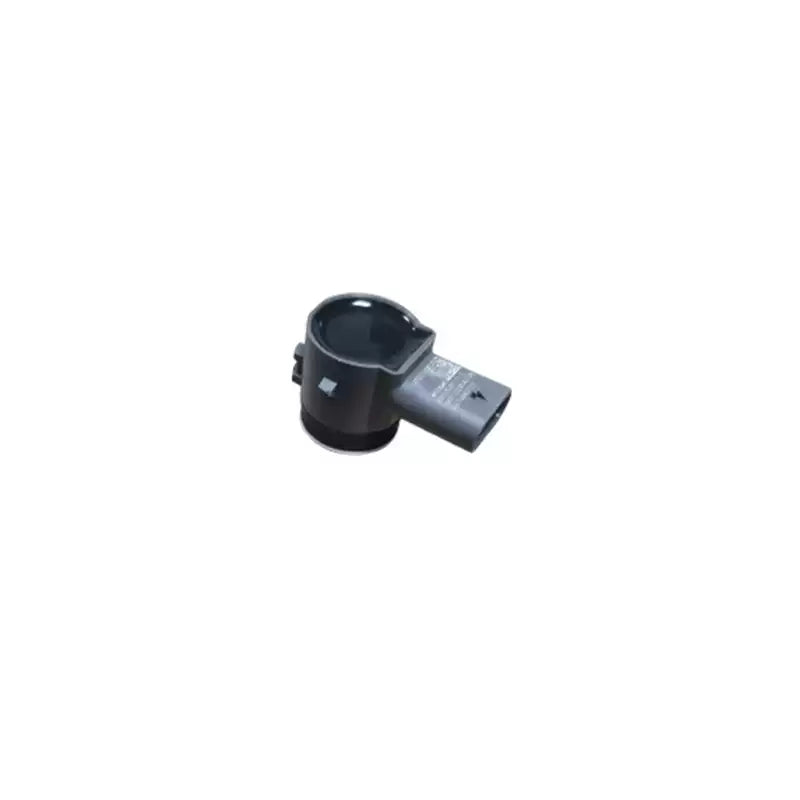

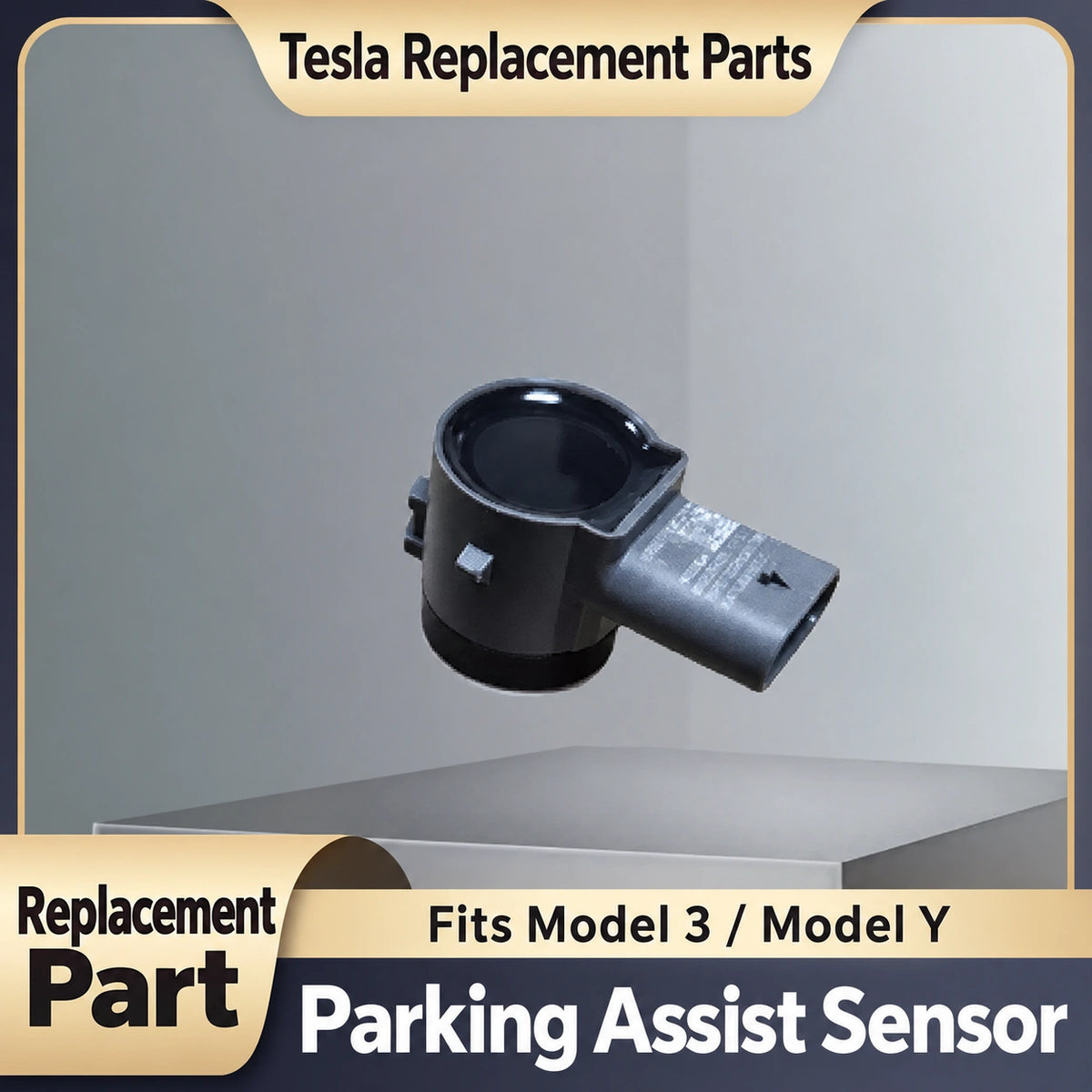

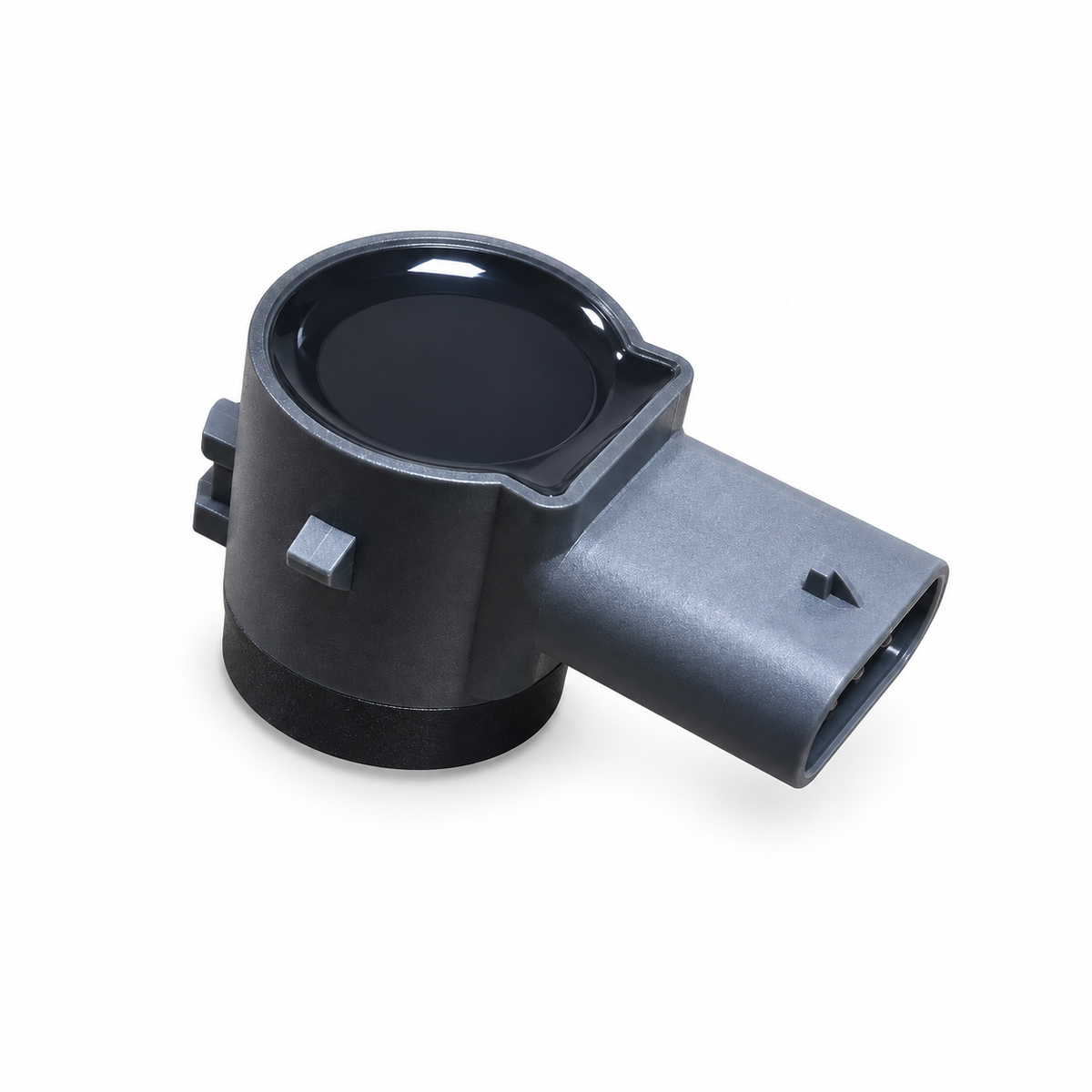

Tesla Parking Assist Sensor for Model 3, Model Y, Model S & Model X
Replace an individual ultrasonic parking-assist sensor by matching the original part number and mounting position. Model 3, Model Y, Model S and Model X options are listed separately, including inner/outer patterns and specific OE references.
Match the sensor, not just the model name
Inner and outer sensors can have different geometry and electrical details. Compare the removed component, complete part number and connector before choosing. An option carrying an OE number does not mean all sensors in the same bumper use that number.
Ring and surface-finish options
The Model 3 / Y ring-inclusive options include the named sealing ring. Gloss and matte Model S 1100297-00-A options are separate selections. Keep the sensing face clean and avoid altering it unless the manufacturer service procedure permits the treatment.
For existing ultrasonic systems only
This is a replacement sensor for an existing compatible system. It will not add ultrasonic parking assistance to a car built without those sensors, and a supplier year range cannot override the original equipment specification. Diagnose wiring and system faults before replacing parts.
Specifications
| Brand / supplier | Xauto |
|---|---|
| Material | Sensor module with molded connector housing; sealing ring on named ring-inclusive options |
| Compatibility | Replacement only for vehicles already equipped with compatible ultrasonic parking sensors. Match original OE number, inner/outer position, connector and surface finish. Not a retrofit for Tesla Vision-only vehicles. Supplier later Model 3 label says 2022-2025; this does not establish ultrasonic-sensor fit for every year or generation. |
| Quantity | One sensor; ring included only where named in the selected option. |
| Important fit restriction | USS-equipped vehicles only. Not an upgrade kit for Tesla Vision-only vehicles. |
| Options | Model 3 2017-2021 - Outer, with ring; Model 3 2017-2021 - Inner, with ring; Model 3 later OE pattern - Outer, with ring; Model 3 later OE pattern - Inner, with ring; Model Y - Outer, with ring; Model Y - Inner, with ring; Model S 1100297-00-A - Gloss; Model S 1100297-00-A - Matte; Model S 1099611-00-B; Model X 1127502-08-C; OE 1014388-00-A - Match original; Model X 1127503-12-C; Model S 1048474-01-A; Model X 1127502-09-C; Model X 1127503-11-C |

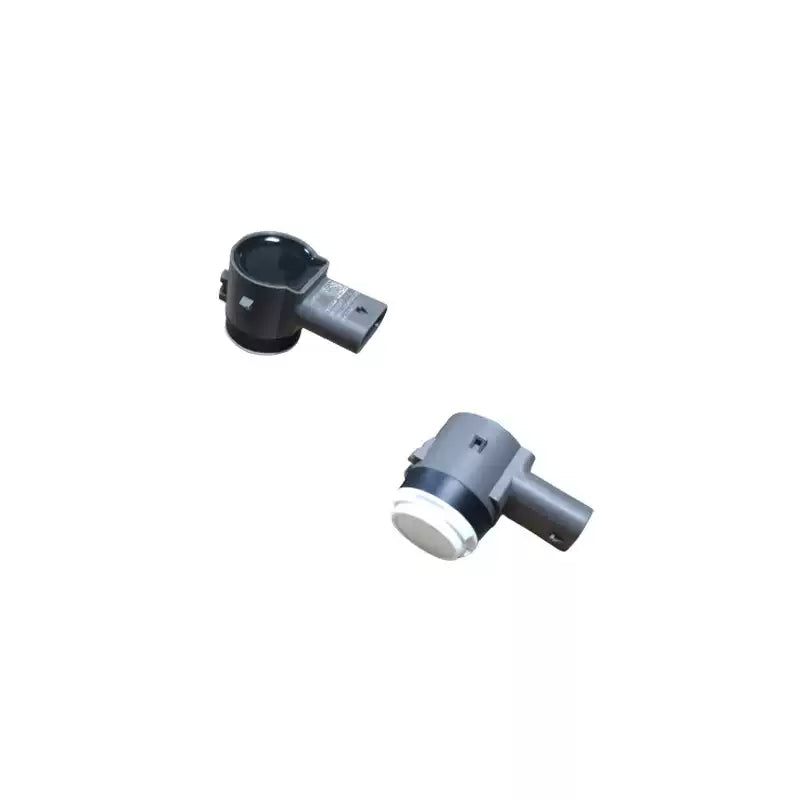

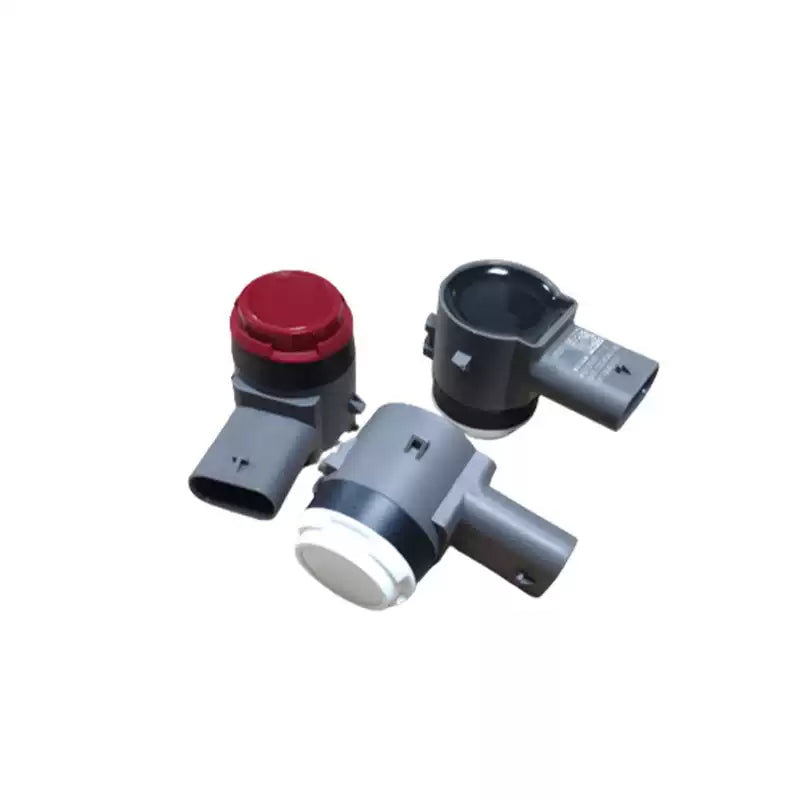

| Product photographs | Photos identify component types and may show an assortment. Some variants share a reference image; the selected option determines the supplied side, generation, finish and quantity. Match the original part before ordering. |
OE Part Number Reference
Numbers explicitly named in the source SKU selector are shown below. They identify only those named options, not the other sensor selections.
| Model S 1100297-00-A - Gloss | 1100297-00-A |
|---|---|
| Model S 1100297-00-A - Matte | 1100297-00-A |
| Model S 1099611-00-B | 1099611-00-B |
| Model X 1127502-08-C | 1127502-08-C |
| OE 1014388-00-A - Match original | 1014388-00-A |
| Model X 1127503-12-C | 1127503-12-C |
| Model S 1048474-01-A | 1048474-01-A |
| Model X 1127502-09-C | 1127502-09-C |
| Model X 1127503-11-C | 1127503-11-C |
| Model 3 / Y inner and outer ring-inclusive selections | Exact full references not confirmed by the source. Match the number printed on the original sensor. |
Match the complete number, revision suffix, connector, side and vehicle configuration. OE numbers are used for identification and do not establish genuine Tesla manufacture. Our XA-prefixed SKU is the Xauto stock code, not a Tesla part number.
