SPECIFICATIONS
Brand Name: NoEnName_Null
Type: DC/AC Inverters
Origin: Mainland China
Certification: CE
Continuous Output Power: 2500W, 3500W, 5000W
Peak/Surge Power: 5000W, 7000W, 10000W
DC Input Voltage: 12V DC(9.5-15.5V)
AC Output Voltage: 120V AC ± 5%
Output Waveform: Pure Sine Wave
Features: LCD Display
Outlet Type: US Outlets
Features: LCD Display
Cooling Mode: Intelligent Fan Cooling
Output Frequency: 60 Hz

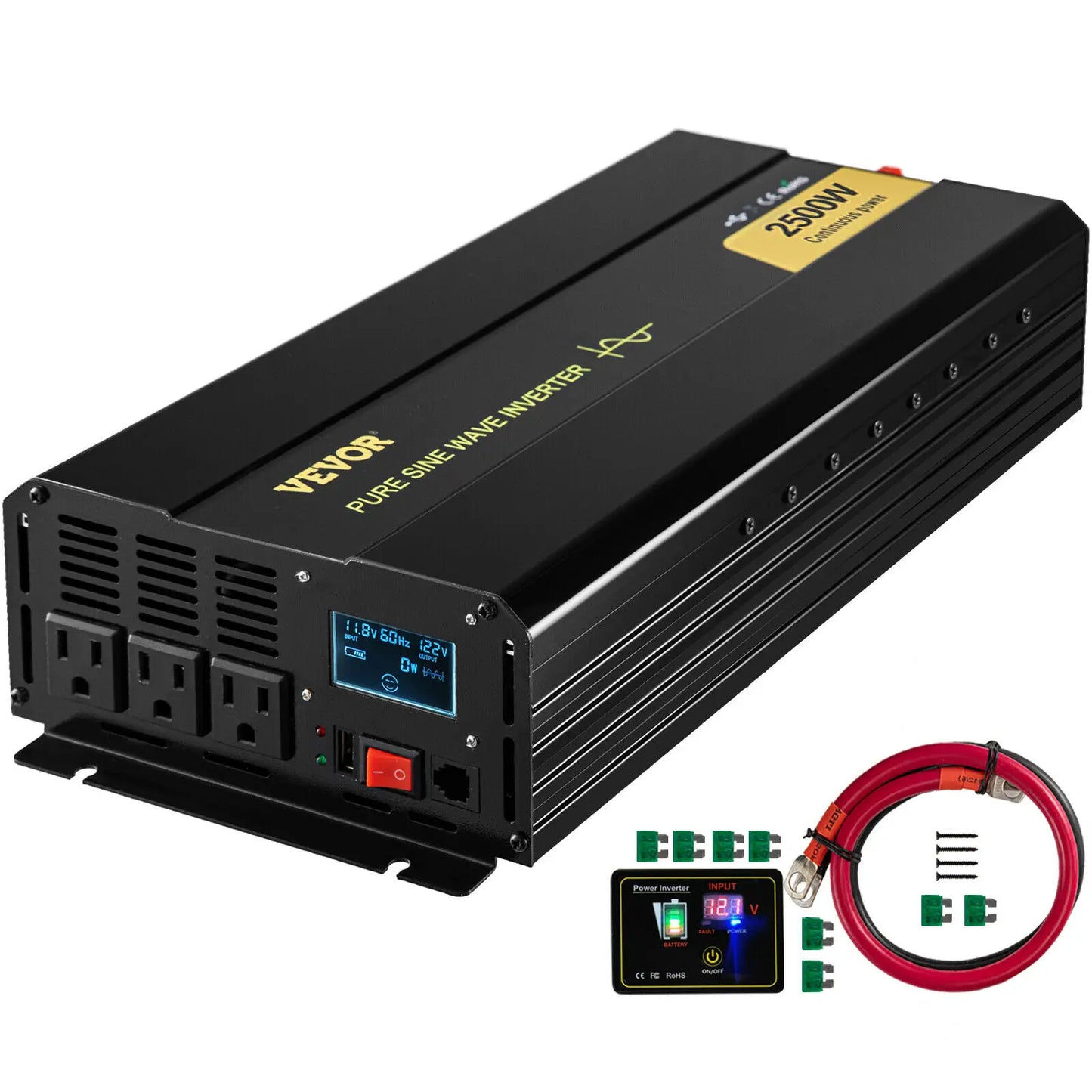

This pure sine wave inverter is highly recommended for sensitive electronic equipment that requires cleaner AC power to operate effectively. In this 12V DC pure sine wave power inverter, the 120V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Therefore, it allows you to power up multiple loads such as office equipment and major household appliances from your vehicle. It is ideal for laptops, motors, freezers, fans, LCD, fridges, air compressors, microwave ovens, notebook computers, switching power supplies, coffeemakers, TV sets, CD players, DVD players, etc.
- Pure Sine Wave Inverter
- Remote Controller & Cables
- High-Speed Cooling Fan
- Fully Security Protections
- Widely Applications
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
-
Pure sine wave inverter provides clean and stable power with low energy consumption and minimal interference

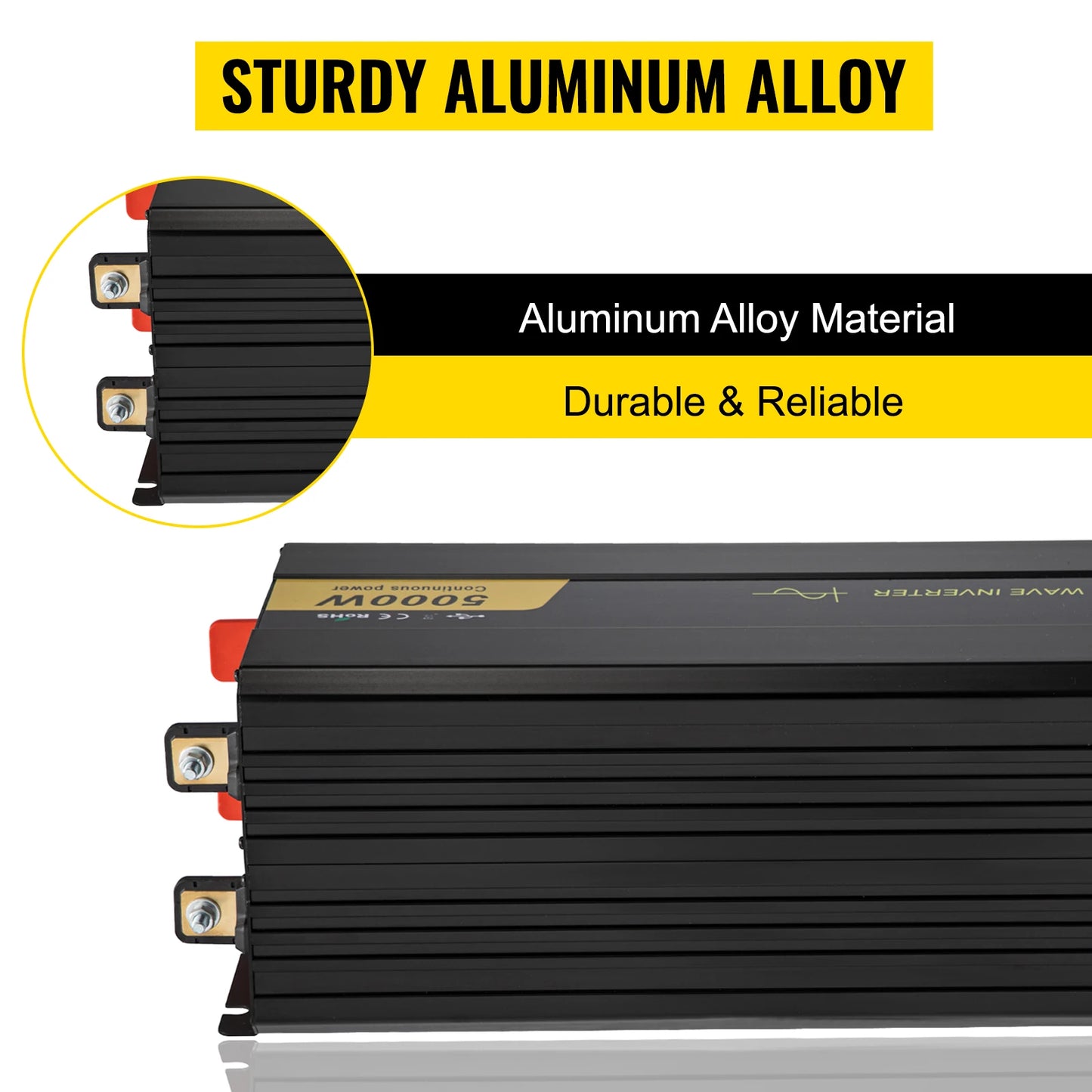

Sturdy Aluminum Alloy
This power inverter is made of aluminum alloy material, which is able to resist oxidation, compression, vibration, and deformation. As a result, a slight drop or impact will not affect the internal parts.
-

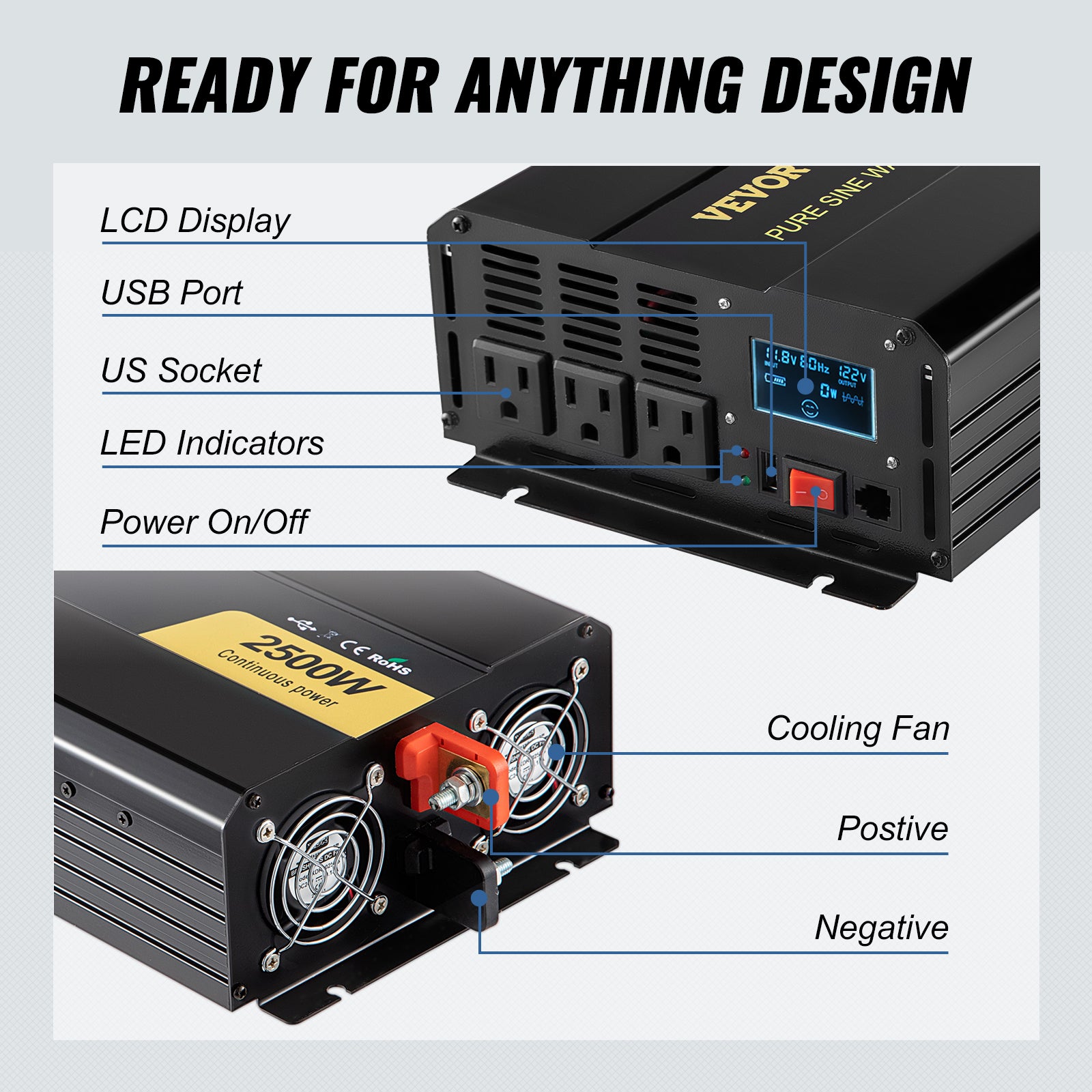

VEVOR 12V Power Inverter: Ready for Anything Design, 3-inch LCD Display, USB Port, 8V US Socket, R2V LED Indicators, Power On/Off, 4C Cooling Fan, Positive/Negative 4-Amp Surge Protector, Pure Sine Wave, 2500W Continuous Rating.

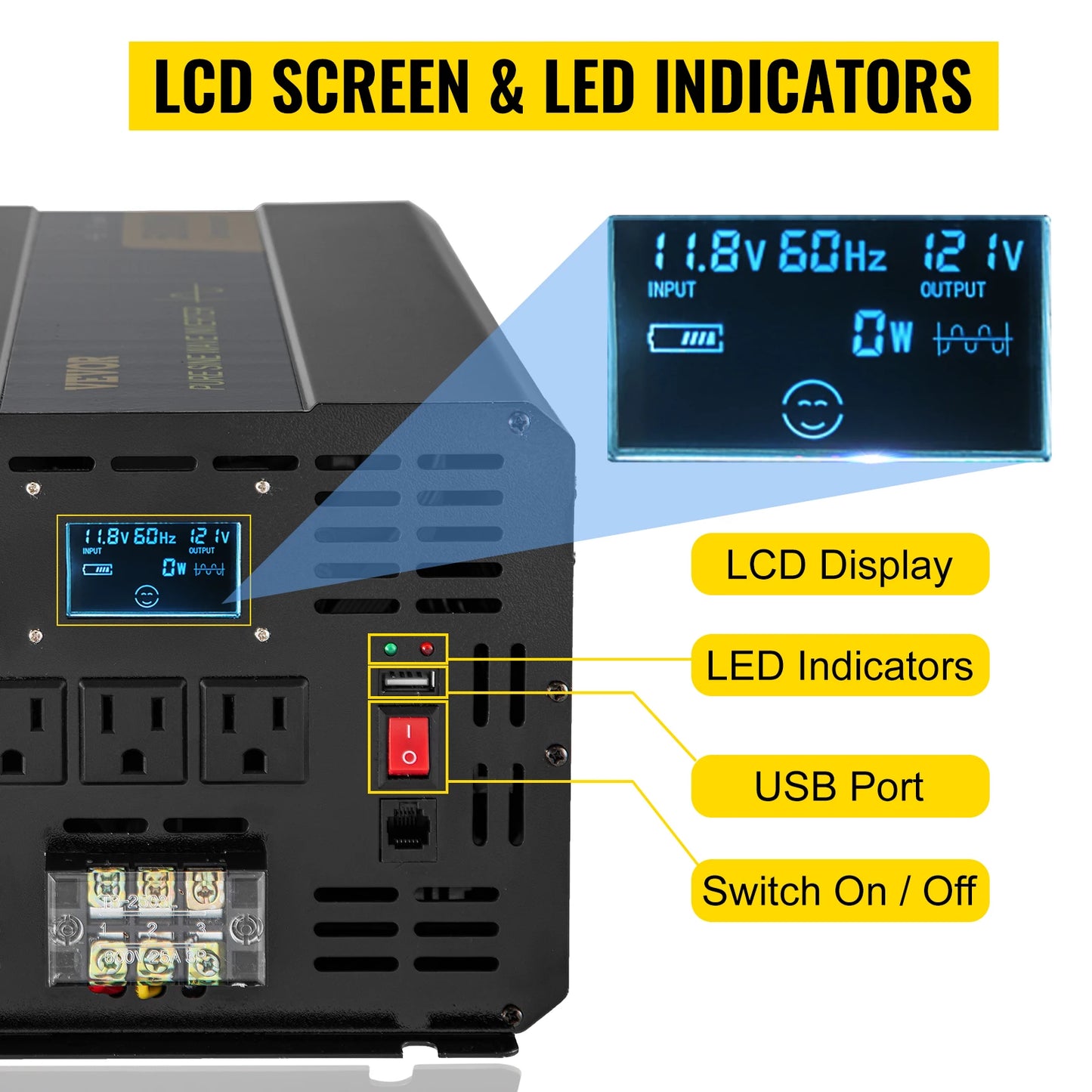

LCD Screen & LED Indicators
The LCD screen easily watches the input/output power and LED indicators to facilitate the user to observe the machine's regular operation more directly. In addition, an Independent power switch is easy to control the inverter.
-
VEVOR 12V Inverter, Reliable Certification, Certificate of Conformity, FCC Supplier Declaration of Conformity, CE Compliance, RoHS Compliance, PSE Compliance. The product meets all safety and environmental regulations.

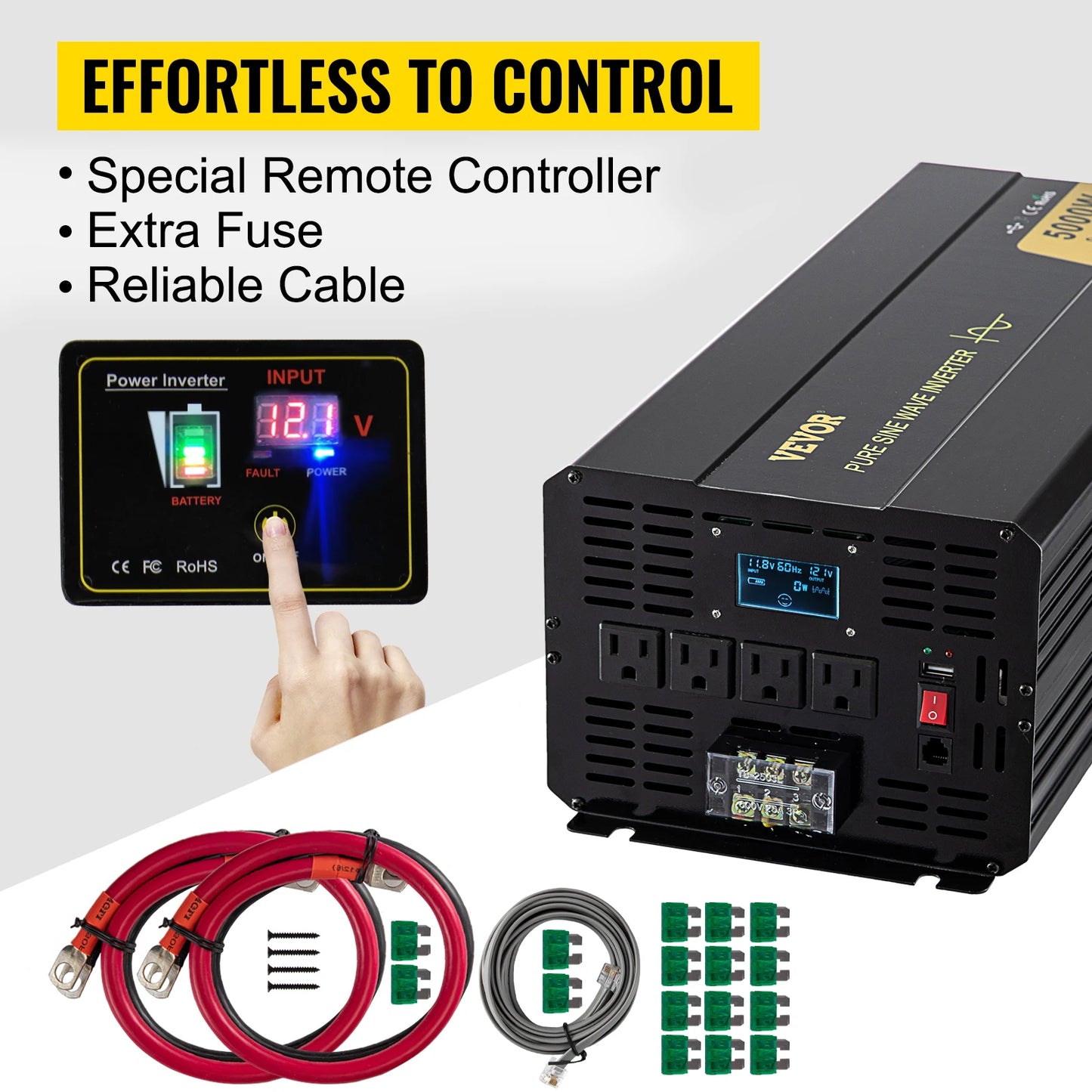

Effortless to Control
The remote controller uses a high-quality plastic shell for wear resistance and fall resistance. This LCD remote controller with cable and fuses accurately controls the ac to dc converter in the room and open area.
-

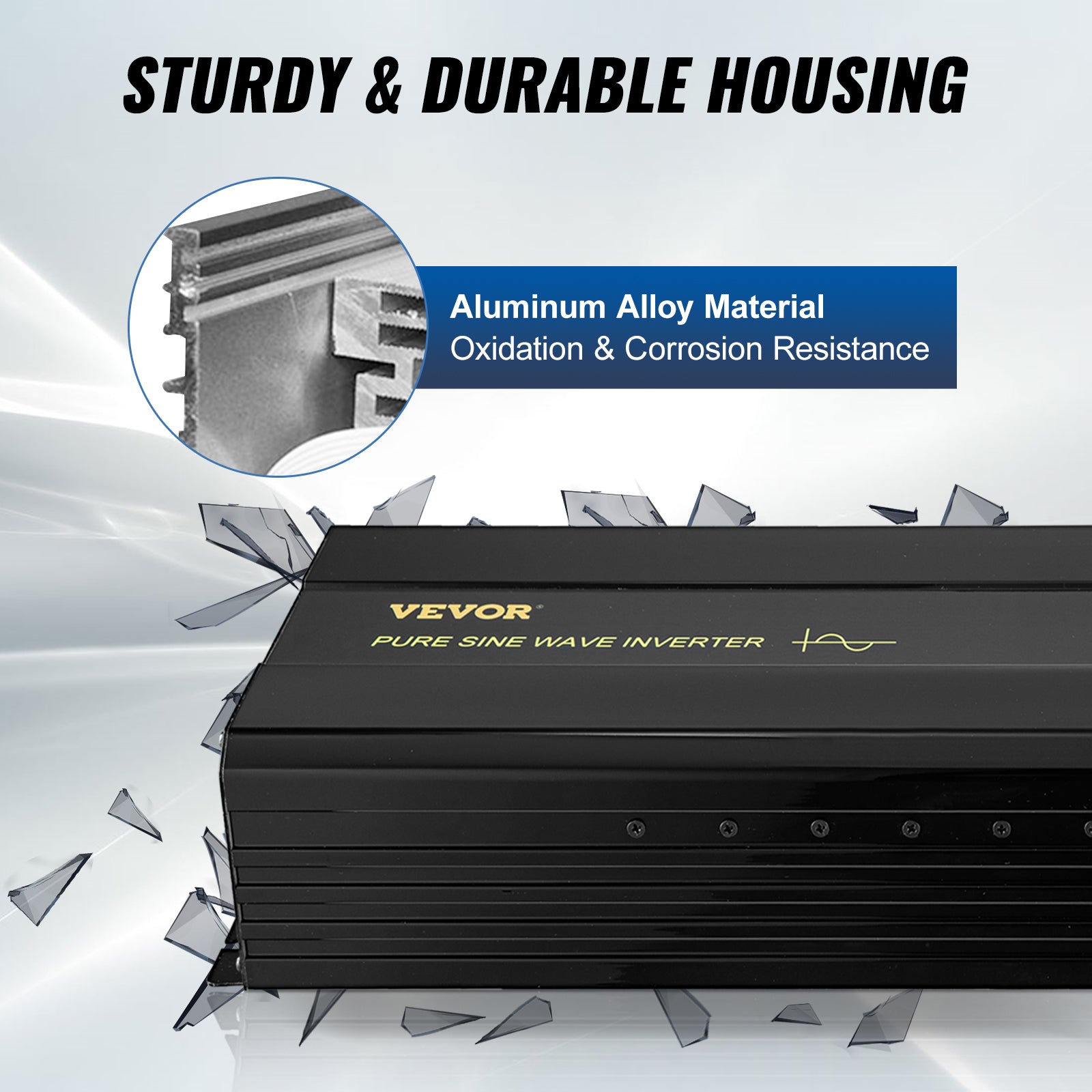

VEVOR Pure Sine Inverter features sturdy and durable housing made of aluminum alloy with oxidation and corrosion resistance, ensuring a long-lasting performance.

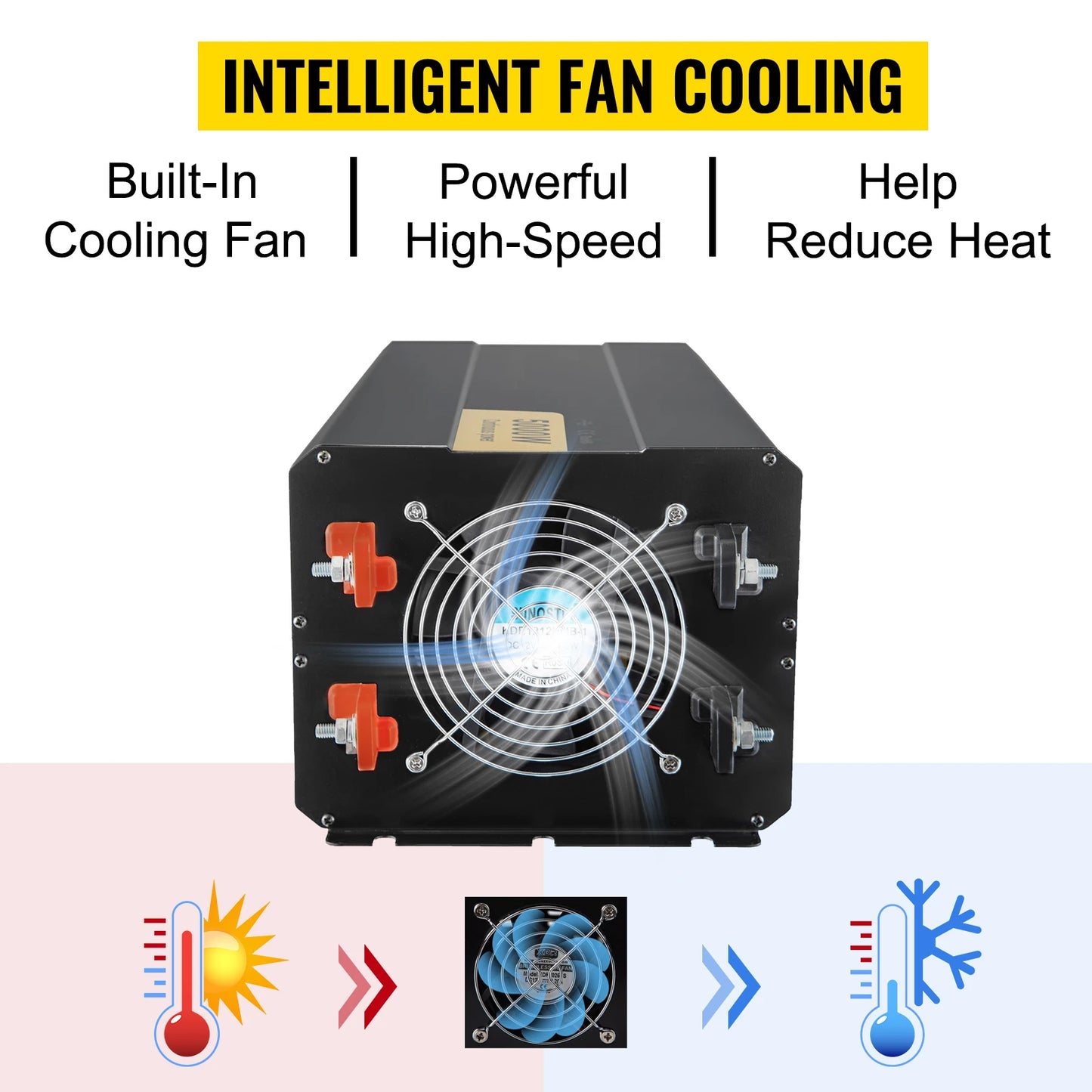

Intelligent Fan Cooling
A built-in silent cooling fan will effectively rotate at a different speed according to power load and temperature. In addition, fan net cover prevents small animals from flying into the machine.
-
The Intelligent Cooling Fan starts at 11.3°C with a 45.8°C efficient heat dissipation, featuring a 4-cell IR/R JA rating of 76°F to 2500W continuous output.
Multiple Protection Designs
There are six main protection measures for an inverter: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, reverse polarity protection.
-

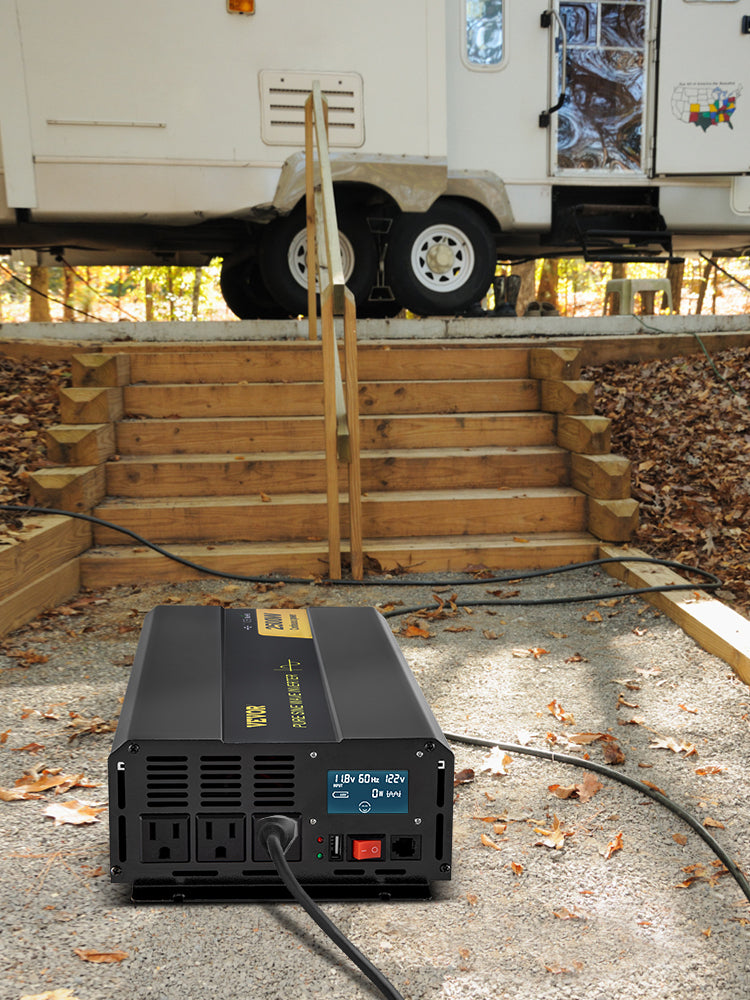

This pure sine wave inverter provides universal compatibility, suitable for TVs, camping appliances, refrigerators, microwaves, travel, power outages, laptops, cameras, electric drills, and fans.
Various Application
The power inverter is able to output the more stable pure sine wave. Therefore, it is ideal for grinder, sandblast/punching/weeding/scanning/sewing machine, air compressor, LCD monitor, fridge, freezer, microwave oven, electric saw, etc.
- Model: GYS-2500W
- Continuous Output Power: 2500W
- Peak/Surge Power: 5000W
- DC Input Voltage: 12V DC(9.5-15.5V)
- AC Output Voltage: 120V AC ± 5%
- Output Waveform: Pure Sine Wave
- Features: LCD Display
- Outlet Type: 3 x US Outlets
- Cooling Mode: Intelligent Fan Cooling
- No Load Current: < 1.2A
- USB Output: QC 3.0
- THD: ≤ 3%
- Efficiency: ≥ 85%
- Output Frequency: 60 Hz
- Low-voltage Shutdown: 9.5 ± 0.5V
- Low-voltage Alarm: 10.5 ± 0.5V
- Over-voltage Shutdown: 15.5 ± 0.5V
- Fuse: 30A
- Over-temperature Protection: 176 ℉ / 80 ℃
- Over-load protection: Alarm at 125% overload, stop working after 20s
- Built-in Cooling Fan: Starts when the internal temperature is 113 ℉/ 45 ℃

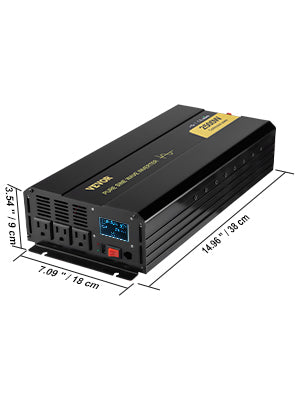

- Product Dimensions(L x W x H): 14.96 x 7.09 x 3.54'' / 380 x 180 x 90 mm
- Net Weight: 9.92 lbs / 4.5 kg

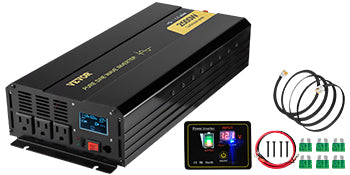

Package Content
- 1 x Pure Sine Wave Power Inverter
- 8 x 30A Fuses
- 2 x Battery Cables
- 4 x Fixed Screws
- 1 x User Manual

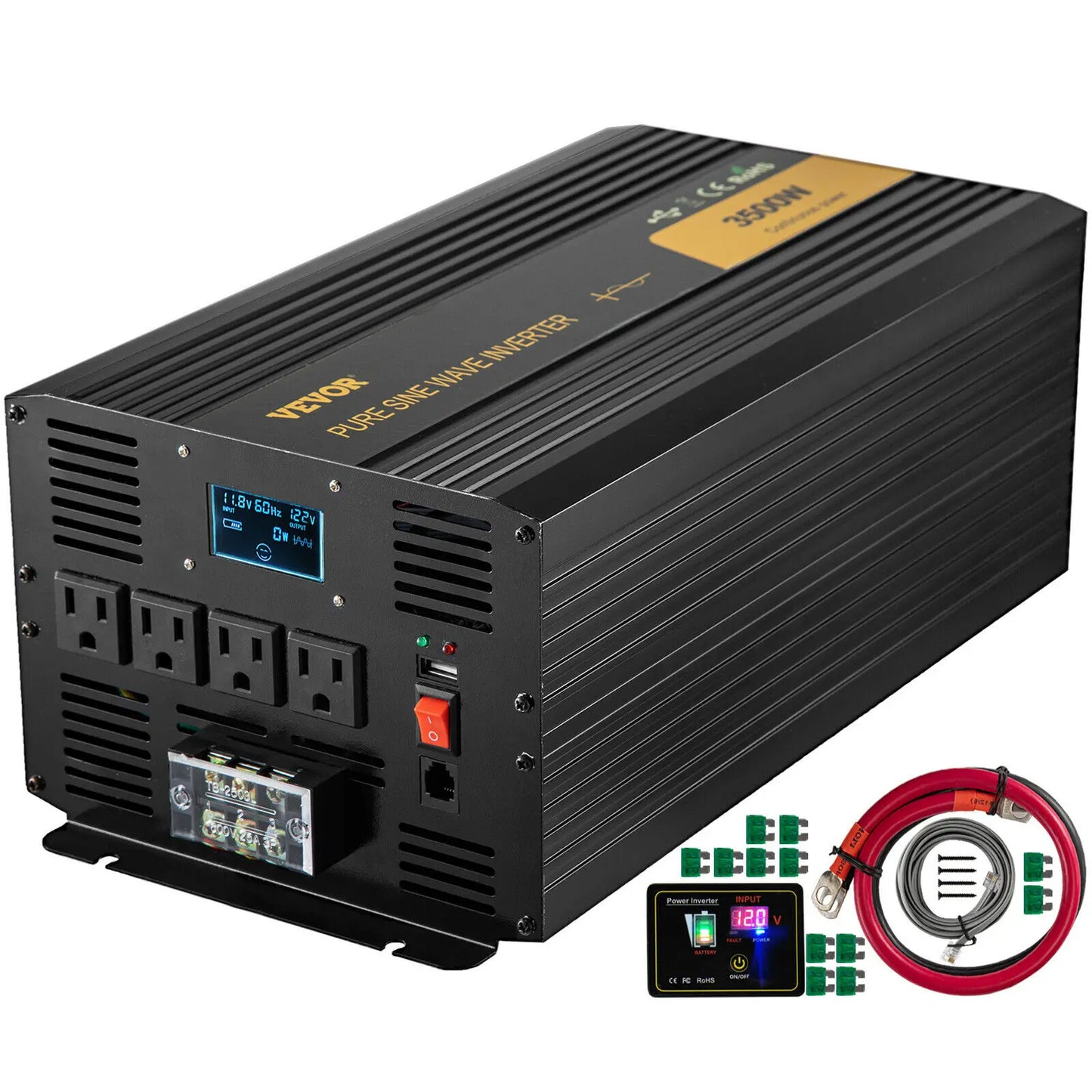

- Model: GYS-3500W
- Continuous Output Power: 3500W
- Peak/Surge Power: 7000W
- DC Input Voltage: DC12V(9.5-15.5V)
- AC Output Voltage: 120V AC ± 5%
- Output Waveform: Pure Sine Wave
- Features: LCD Display
- Outlet Type: 4 x US Outlets
- Cooling Mode: Intelligent Fan Cooling
- No Load Current: < 1.2A
- USB Output: QC 3.0
- THD: ≤ 3%
- Efficiency: ≥ 85%
- Output Frequency: 60 Hz
- Low-voltage Shutdown: 9.5 ± 0.5V
- Low-voltage Alarm: 10.5 ± 0.5V
- Over-voltage Shutdown: 15.5 ± 0.5V
- Fuse: 30A
- Over-temperature Protection: 176 ℉ / 80 ℃
- Over-load Protection: Alarm at 125% overload, stop working after 20s
- Built-in Cooling Fan: Starts when the internal temperature is 113 ℉/ 45 ℃

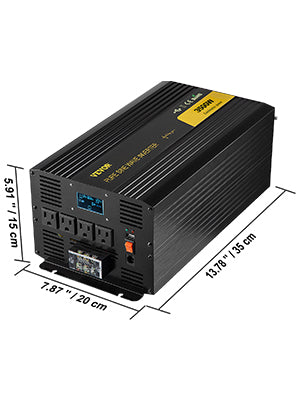

- Product Dimensions(L x W x H): 13.78 x 7.87 x 5.91'' / 350 x 200 x 150 mm
- Net Weight: 15 lbs / 6.8 kg
Package Content
- 1 x Pure Sine Wave Power Inverter
- 12 x 30A Fuses
- 2 x Battery Cables
- 4 x Fixed Screws
- 1 x User Manual
- Model: GYS-5000W
- Continuous Output Power: 5000W
- Peak/Surge Power: 10000W
- DC Input Voltage: 12V DC(9.5-15.5V)
- AC Output Voltage: 120V AC ± 5%
- Output Waveform: Pure Sine Wave
- Features: LCD Display
- Outlet Type: 4 x US Outlets
- Cooling Mode: Intelligent Fan Cooling
- No Load Current: < 1.2A
- USB Output: QC 3.0
- THD: ≤ 3%
- Efficiency: ≥ 85%
- Output Frequency: 60 Hz
- Low-voltage Shutdown: 9.5 ± 0.5V
- Low-voltage Alarm: 10.5 ± 0.5V
- Over-voltage Shutdown: 15.5 ± 0.5V
- Fuse: 30A
- Over-temperature Protection: 176 ℉ / 80 ℃
- Over-load Protection: Alarm at 125% overload, stop working after 20s
- Built-in Cooling Fan: Starts when the internal temperature is 113 ℉/ 45 ℃

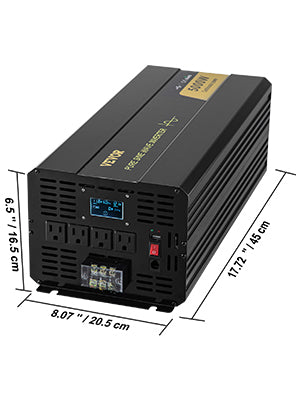

- Product Dimensions(L x W x H): 17.72 x 8.07 x 6.5'' / 450 x 205 x 165 mm
- Net Weight: 22.05 lbs / 10 kg

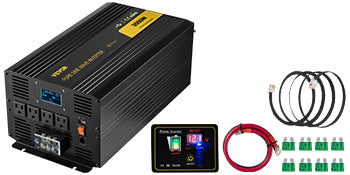

Package Content
- 1 x Pure Sine Wave Power Inverter
- 16 x 30A Fuses
- 4 x Battery Cables
- 2 x Fixed Screws
- 1 x User Manual
Features & Details
- 【Pure Sine Wave Inverter】: Continuous Output Power: 2500W / 3500W / 5000W, Peak Power: 5000W / 7000W / 10000W, Input Voltage: 12V DC, Output Voltage: 120V AC, Frequency: 60Hz. Pure sine wave inverter adopts an aluminum alloy shell to resist heat, cold, and corrosion. LCD screen and LED indicators are convenient for users to master the power inverter working promptly.
- 【Remote Controller & Cables】: The inverter pure sine wave is equipped with high-quality plastic-wrapped remote control, which resists friction, not easy to damage, and more convenient for users to control the inverter indoor and outdoor.
- 【High-Speed Cooling Fan】: The power inverter features a built-in intelligent temperature-controlled cooling fan. When the machine's internal temperature reaches a certain level, the fan will rotate and effectively reduces the operating temperature.
- 【Fully Security Protections】: The pure sine wave power inverter applies multiple intelligent security protections to ensure the inverter is fully protected in the process of use so that the electrical appliances will operate stably and safely.
- 【Widely Applications】: This power inverter is designed for equipment that requires careful protection to provide a more stable pure sine wave output. This inverter is built with the universal standard, suitable for power tools, office supplies, household / kitchen appliances.
Note: How to choose suitable power inverters for your equipment?
- If you need the car power inverter to run the resistive loads (like TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.
- If you need the pure sine wave inverter to run the inductive loads(for appliances such as drill, saw, compressor, motor, water pump), please calculate the inverter's rated power 3 to 7 times higher than the rated power of your appliance. You would better ask the seller for advice if you are not sure.

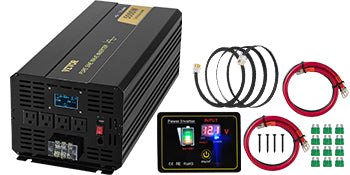

- If you power the battery charger on the inverter output side, please contact us to ensure the inverter performance.
