Vjoycar V60 SPECIFICATIONS
Brand Name: VJOYCAR
Origin: Mainland China
Wire or Wireless: wired
Rated Power: 11V~18Vdc(12Vdc/200mA)
Size Name: 109*86mm
Output Frequency: Vjoycar V60 OBD2 HUD Car GPS Head Up Display
Product Name: Vjoycar V60 OBD2 HUD Car GPS Head Up Display
Model No.: V60
OBD System Features: RPM, Fuel Consumption, Voltage, Water Temperature, total Mileage,
Dual systems: Suitable for all cars
2021.09 Latest software: OBD2 +GPS dual systems
OBD2 compatibility: Suitable for most cars after 2008
Display Mode: Car Speed Projector On-Board Computer
Display page: 9 kinds of different display pages
Display channel: HD LCD Display
Work voltage: 11V~18Vdc(12Vdc/200mA)
GPS System Features: Speed, voltage, time, and altitude...
Unit of Fual Consumption: KM/L, L/100KM, L/H
Speed Unit: KMH,KPM
Special Feature: the only OBD hud with oil temperature on the world
Oil temperature: oil temperature gauge
Multi-languages: EN / RU / KR / ES / TH / JP
Software: 2023 Updated Vjoycar V60
Vjoycar V60 Newest Head Up Display Auto Display OBD2+GPS Smart Car HUD Gauge Digital Odometer Security Alarm Water&Oil Temp. RPM
Vjoycar Latest software is released in 2023-10-11
Please Read Carefully before Place the Order:
OBD2 protocol is incompatible with some Chevrolet cars, OBD2 Data of chevrolet can't display correctly. Only GPS Mode can work well.
1. Our V60 OBD HUD can be compatible with most cars with below protocols:
-ISO 15765-4 (named CAN and SAE J2480 also);
- K-line → ISO 14230-4 (named KWP2000 also, it include KWP FAST and KWP 5BAUD);
- K-line → ISO 9141-2
2. But if some car manufacturers don't open the protocols completely, some data can't read out from the car.
We keep upgrading our software all the time to improve the protocols/functions/features, and V60 supports software upgrading. After receive the order, please kindly test it on your car asap. If it's not compatible, please contact with us with " your car manufacture / model / year / protocol and ask for the latest software supporting asap.
3. V60 OBD is not compatible with some special vehicles, eg, electric vehicle, few diesel car / hybrid vehicles / pick-up, bus...and V60 OBD Mode is incompatible with most cars before 2008. If you still have questions, please contact with us before buy , and it's better to tell us your car manufacture / model / year / protocol before buy.
4. V60 includes two chipsets OBD and GPS, although OBD may not be compatible with your car, it's still a cool car gauge, because its GPS is universal for all vehicles and display speed, travel time, satellite time, altitude, number of satellites, driving direction, single mileage, voltage, acceleration test, brake test. also include kinds of alarms: Over-speed alarm, Low voltage alarm, Free switching between kilometers and miles.
Product Functions:
1. OBD mode information display: vehicle speed, water temperature, voltage, fuel consumption, RPM, single travel mileage, single travel time, system time, intake pressure, oil temperature, gearbox oil / transmission Temperature, air-fuel ratio, turbo pressure, intake pressure, acceleration test, brake test, read data stream...
Alarm: Over-speed alarm, Speed alarm, High water temperature alarm, Low voltage alarm, Engine fault alarm, Clear fault code, Free switching between kilometer and miles,KM/h & MPH Switch freely,°C & ℉switch freely.
2. GPS mode information display: speed, travel time, satellite time, altitude, number of satellites, driving direction, single mileage, voltage, acceleration test, brake test.
Alarm: Over-speed alarm, Low voltage alarm, Free switching between kilometers and miles.
Product Highlights:
1.-OBD + GPS dual system, can work on all cars.If You Car OBD2 Protocol is Not Open, You Can Choose GPS Working System, GPS is Compatible with All Cars
2. -Two installation methods:1) stand on dashboard, 2) upside down on windshield
3. -The bracket can be rotated in 360 degree to adjust the visual angle and height.
4. -Speed Unit KM/H & MPH Switch freely;
5. -Turbine pressure: PSI and KPA switch freely.
6. -Fuel consumption units: KM/L and L/100KM, L/H;
Engine is on but Stationary (Speed is at 0): show instant fuel consumption, unit is L/H.
When car is in motion, the interface will automatically change into KM/L or L/100KM as your setting;
7.-The first HUD to show all data of OBD+GPS dual mode, no need to switch working system if OBD2 protocol is compatible.

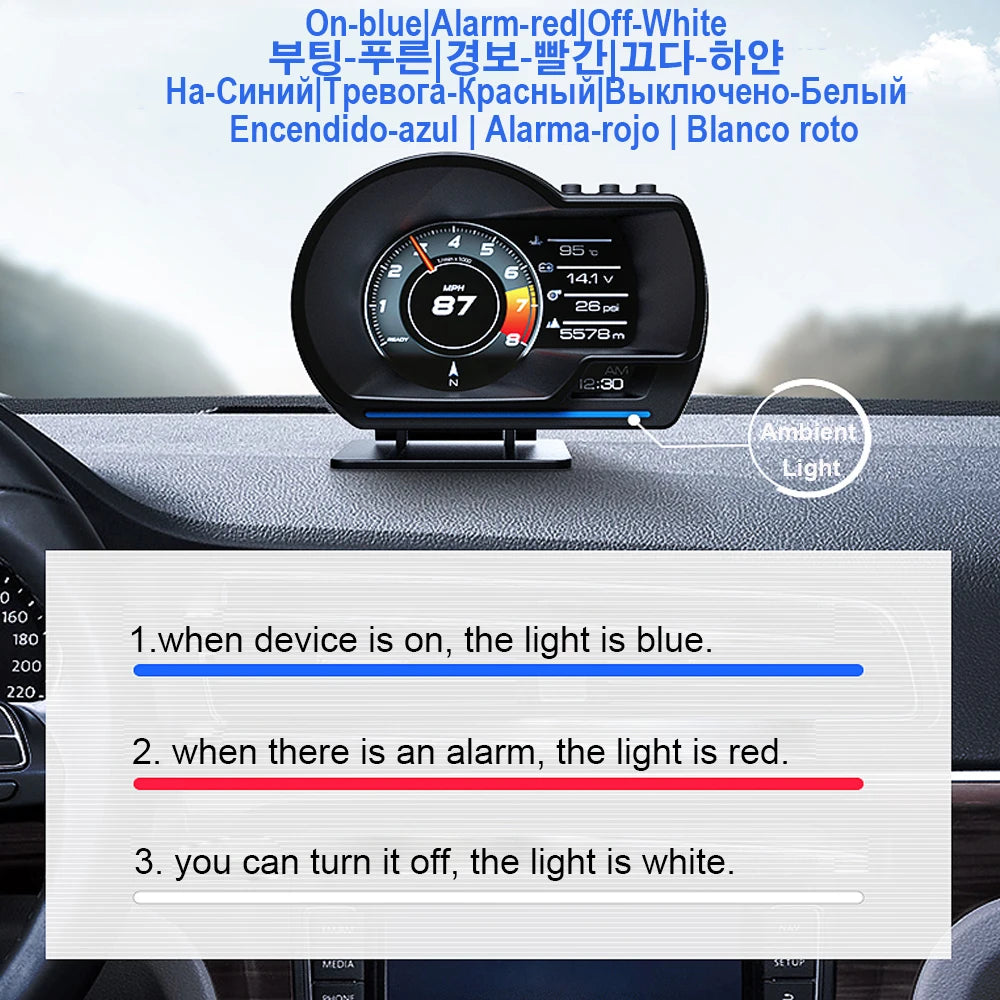

8.-Add AMBIENT LIGHT:the default color is in Blue
When there is an alarm,change to red and flashing (remains the brightest) to Remind the driver.
9.-Modern design and high quality: New tooling design, driver can see the clock (right corner) all the time.
10.-9 kinds of different interface, you can choose any display interface you prefer.
11. 6 versions of different languages are available now: English, Russian, Korean, Spanish, Japanese and Thai, the default version is in English (please choose the version you need):
12. Support Update Software Remotely (Optional): Latest software updated in October, 2023
13.-Accept OEM & ODM Orders: Add Start-up Screen with your logo; Customize Package; Add new functions and display interfaces...

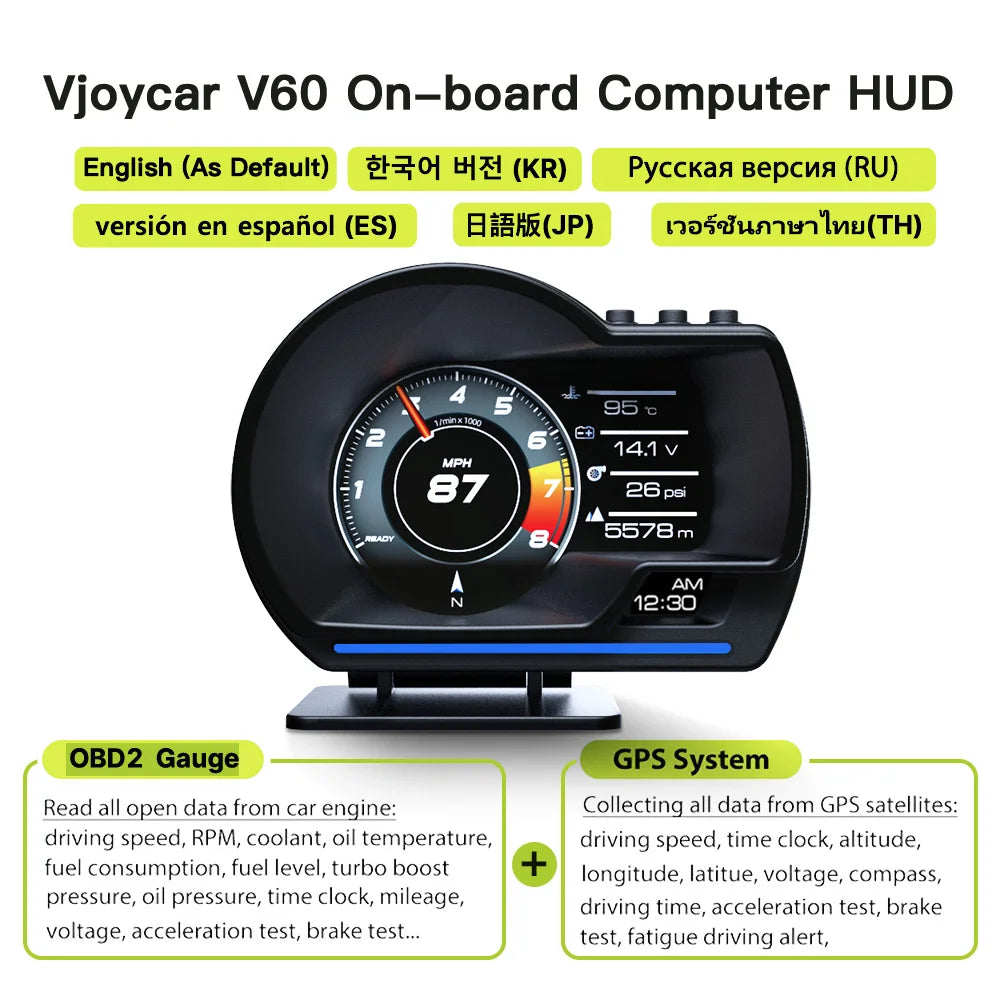

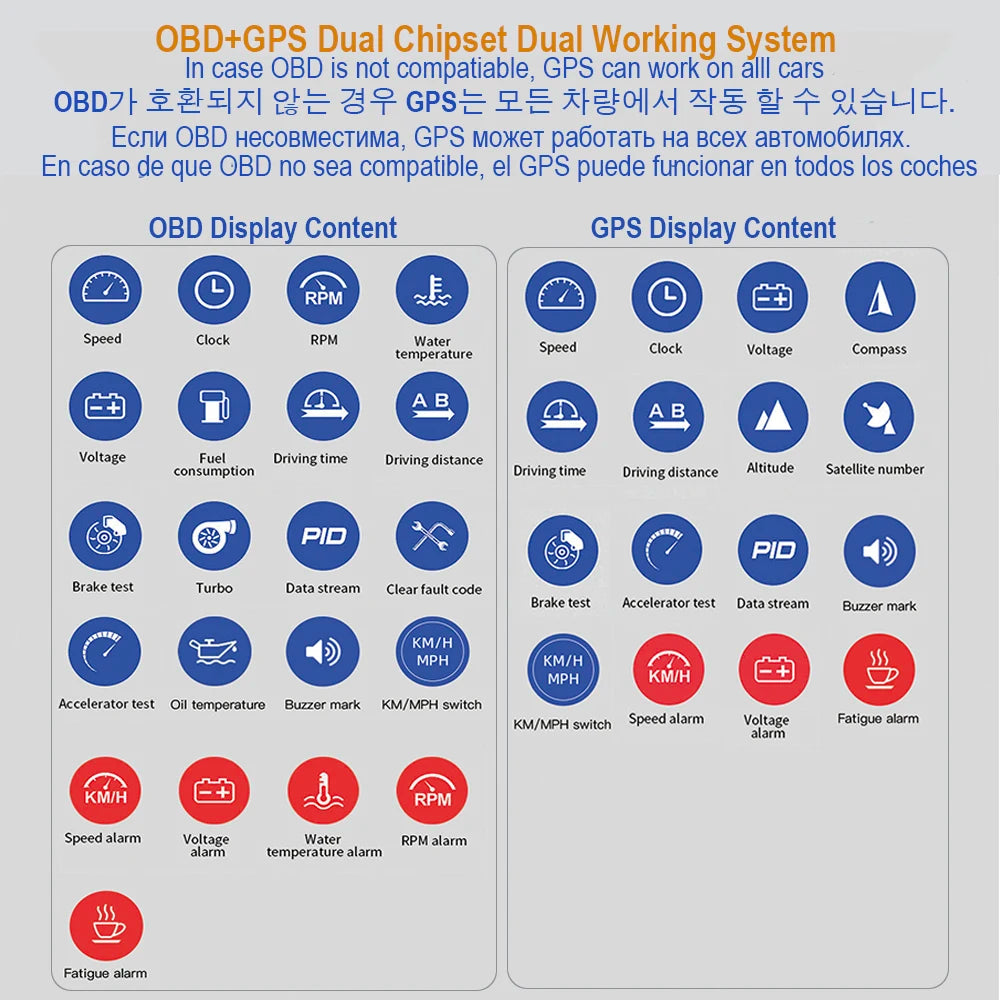

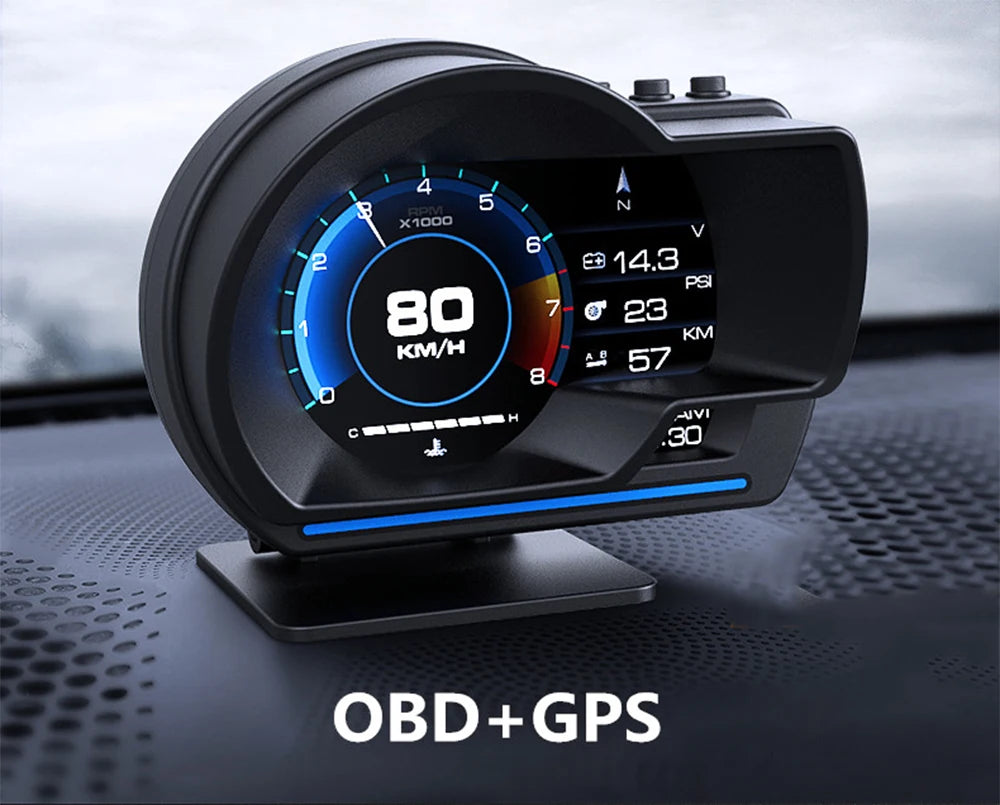

OBD+GPS Two Chipsets, Dual Working Mode, Can Work on All Vehicles:
Default working mode is OBD. If your car doesn't have obd port or obd2 is not compatible, pls go to "set" and off OBD, it will switch GPS. GPS will work on all vehicles.

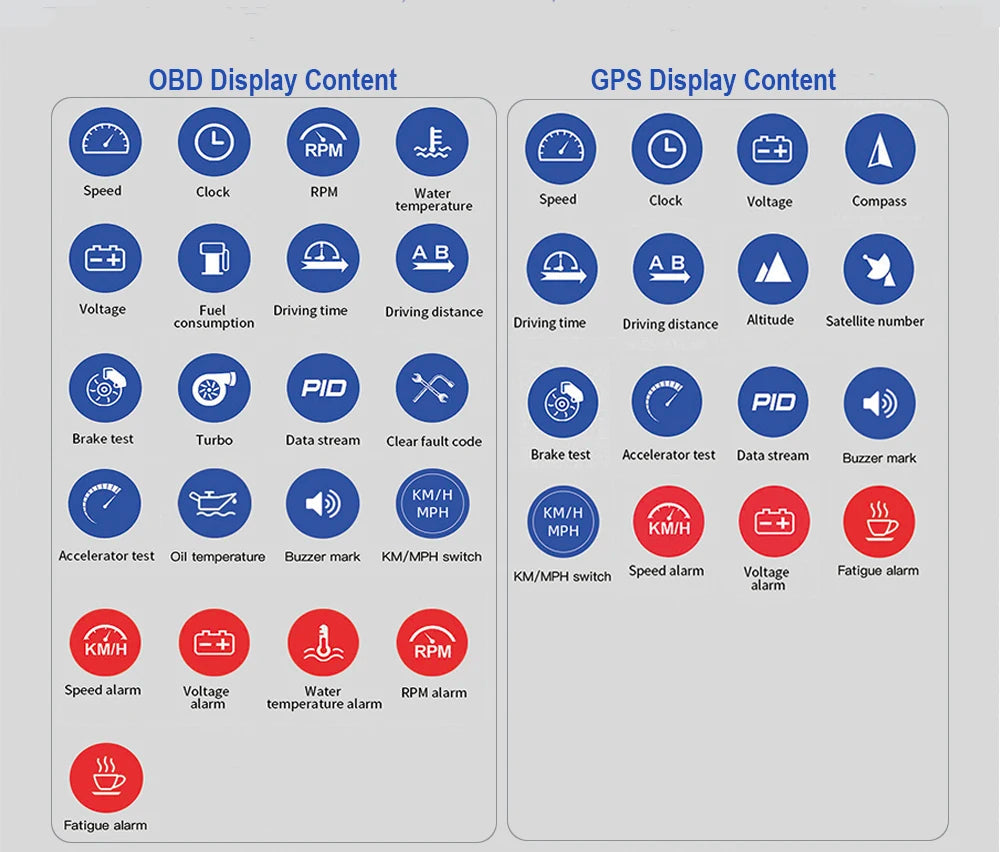

OBD display shows various parameters. GPS displays location and navigation information. The display also shows vehicle status such as RPM, speed, clock, water temperature, and voltage. Additionally, it shows driving time, distance, consumption, altitude, and satellite number. PID and data stream functions are available for diagnostic purposes. The display also includes alarm features for fatigue, high speed, and water temperature. Furthermore, it offers test modes for brake, accelerator, and oil temperature.

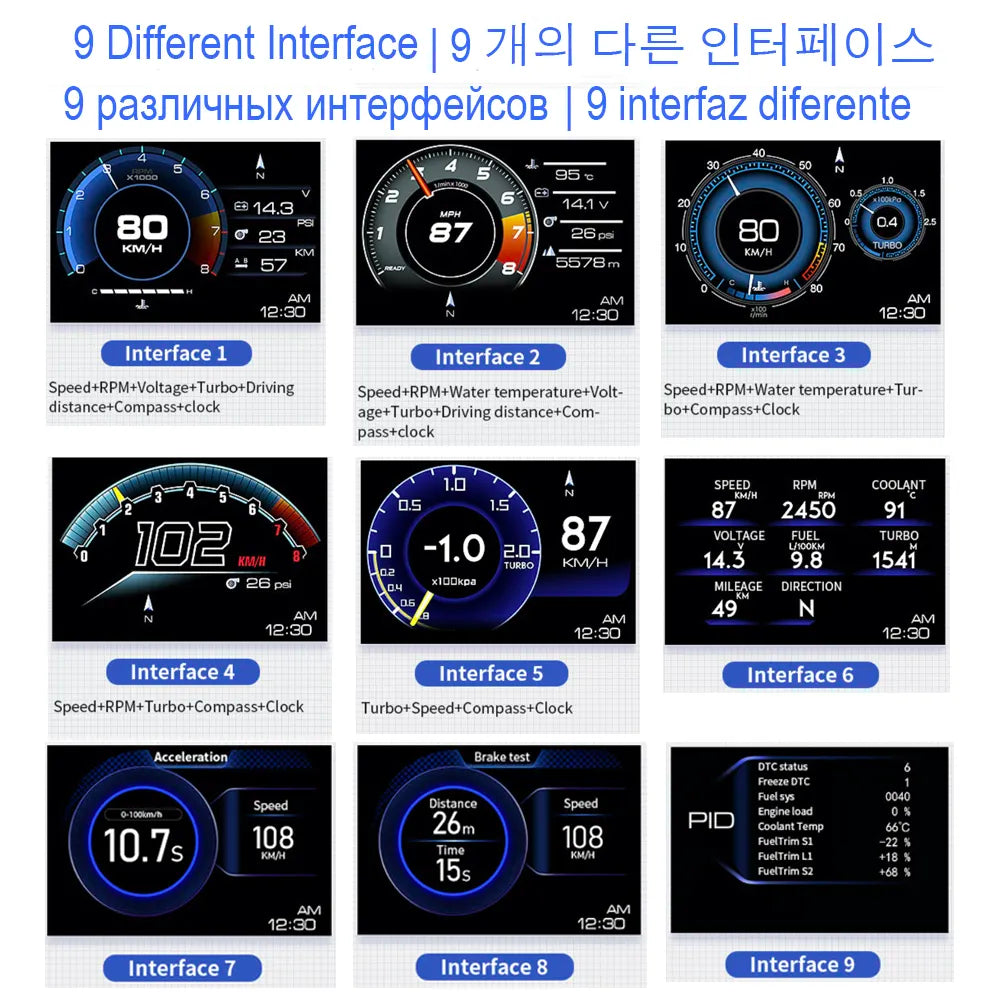

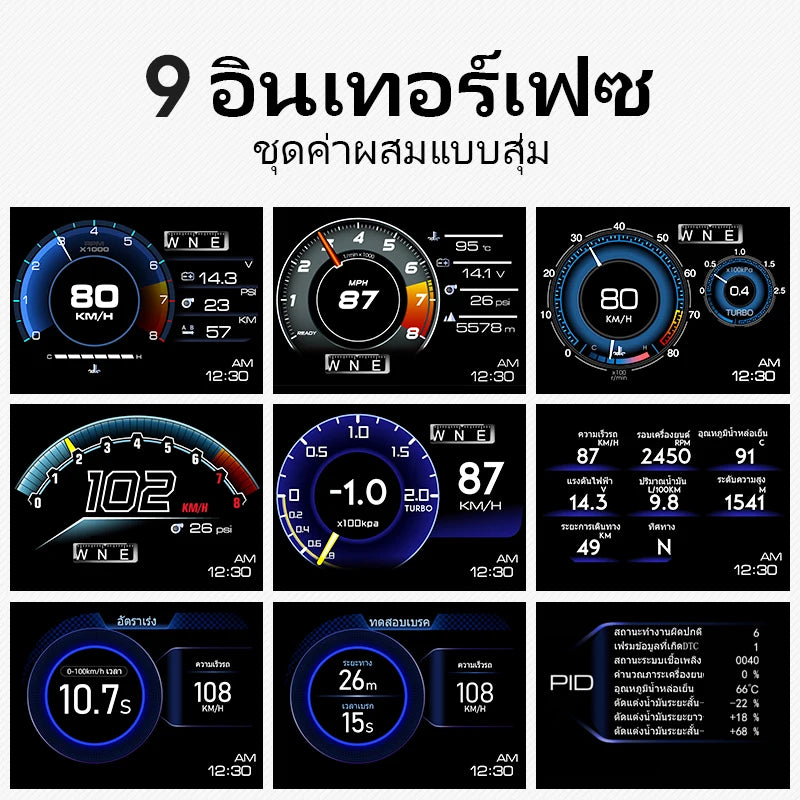

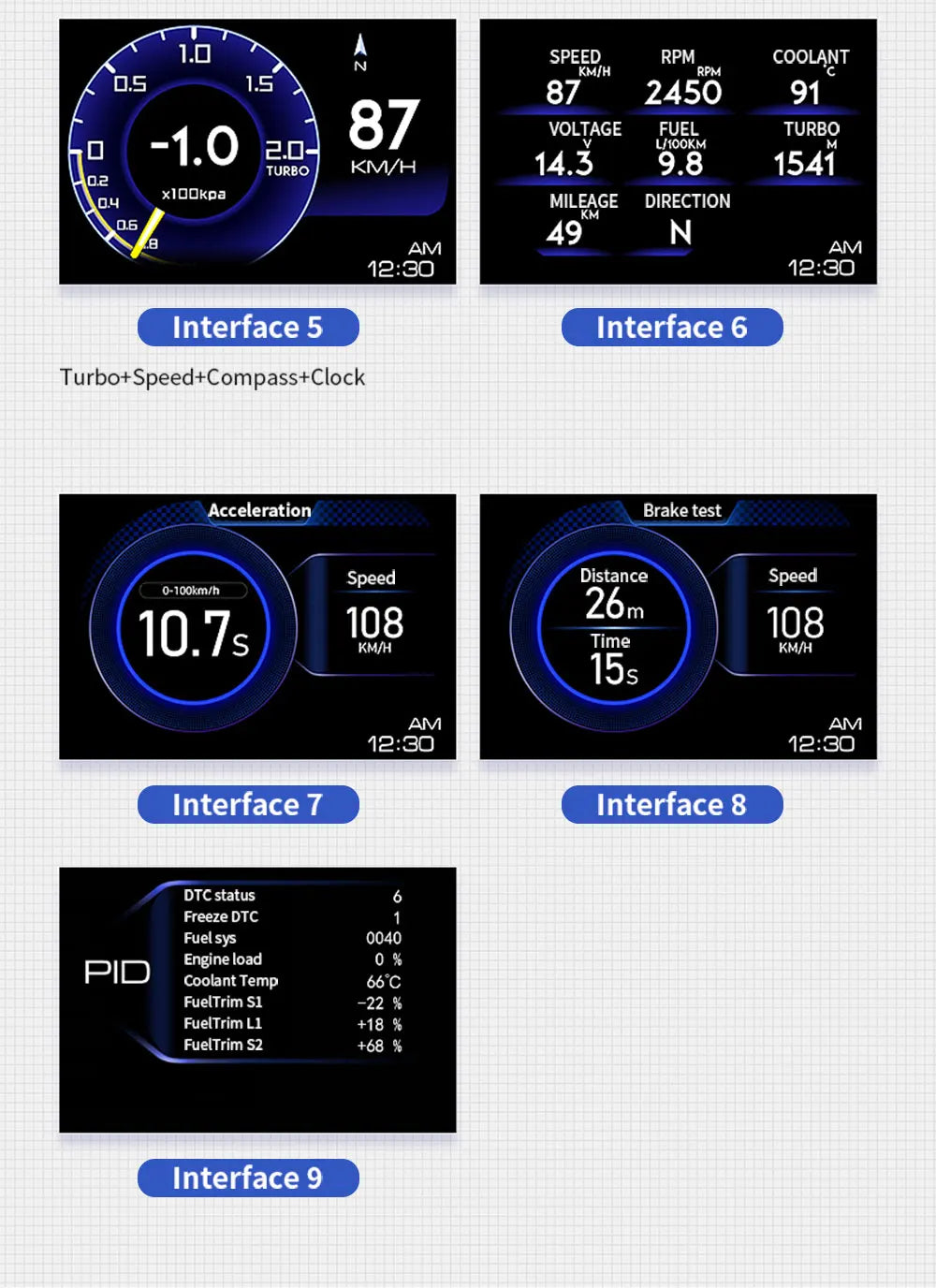

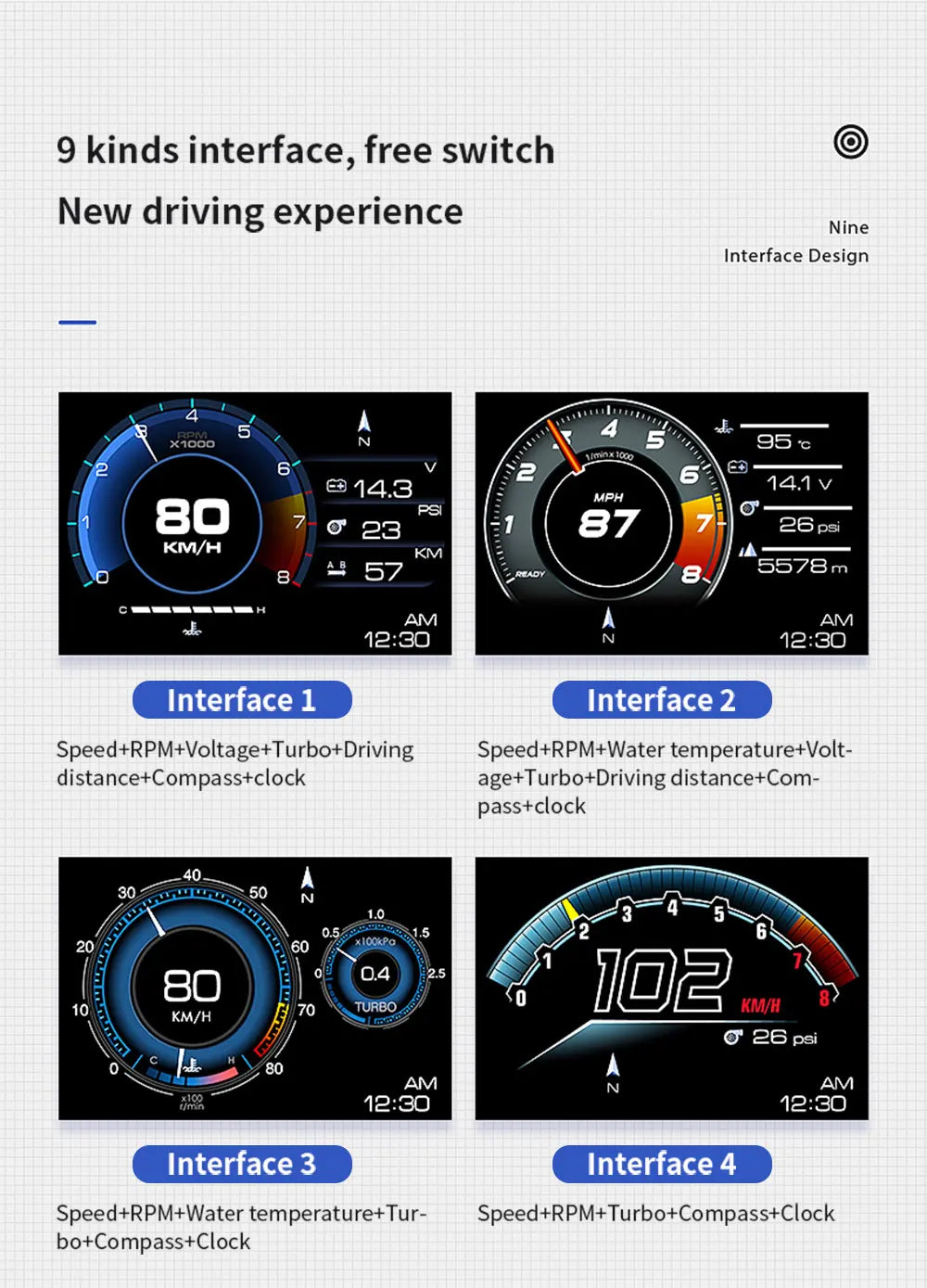

9 Kinds of display interface, freely switch
This device has built in 9 kinds of interface, just click to the "OK" button to choose your favourite interface.

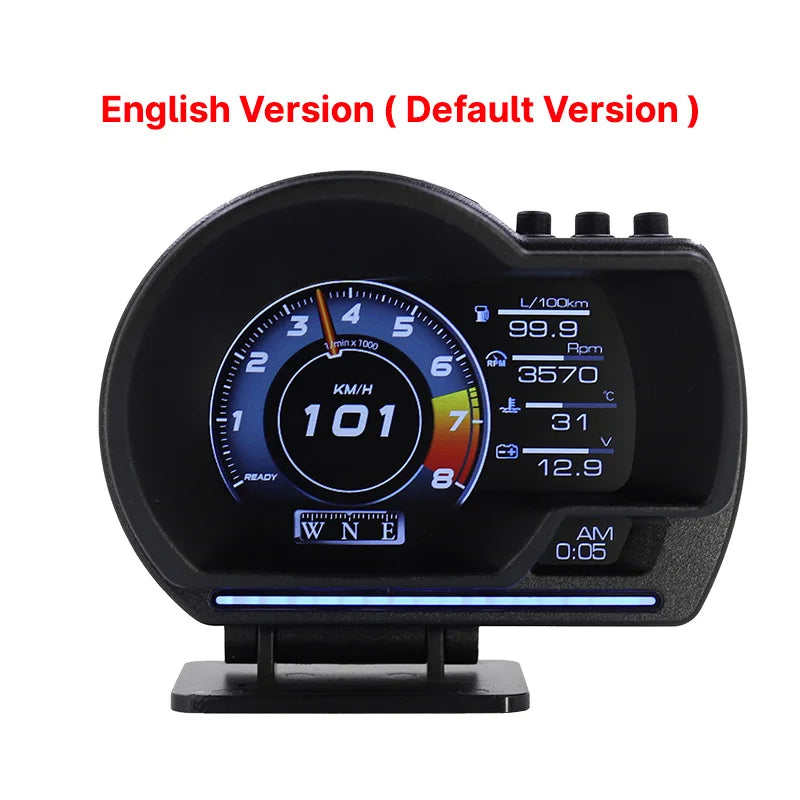

English version: (Default version)
9-Inch Interface; Free Switch New Driving Experience. Nine Interface Designs: 1. Speed, RPM, Voltage, Turbo; 2. Speed, RPM, Water Temperature, Turbo; 3. Speed, RPM, Compass, Clock; 4. Speed, RPM, Compass, Clock, Driving Distance.
Speed, RPM, coolant temperature, and other car-related information are displayed. The main screen shows the speedometer, tachometer, and turbo boost gauge. The fuel gauge and engine load indicator are also visible. Navigation information such as distance, direction, and mileage are shown on the top left corner. The clock is displayed at the bottom right corner.

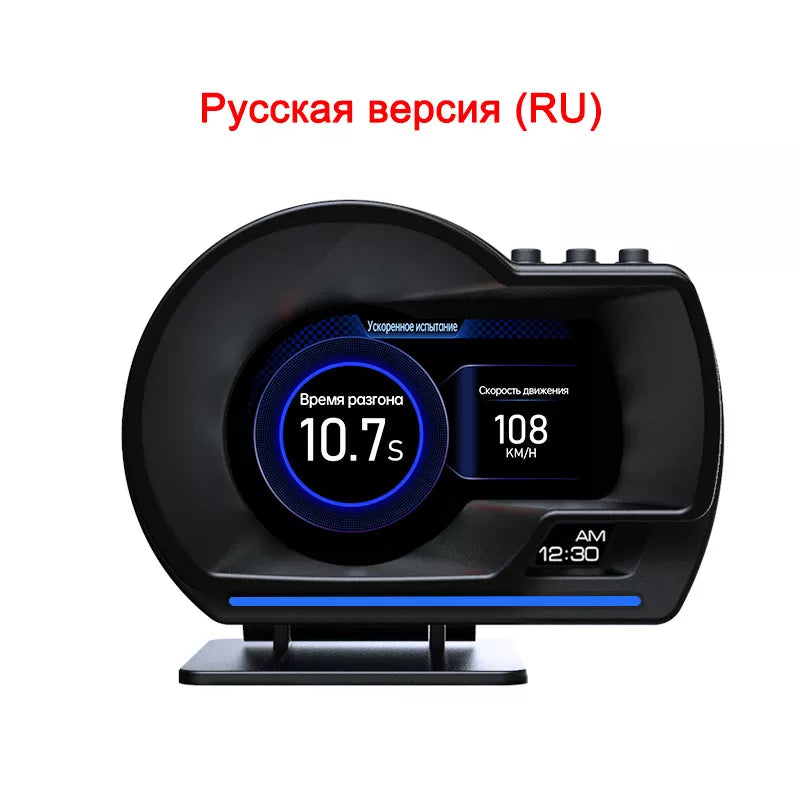

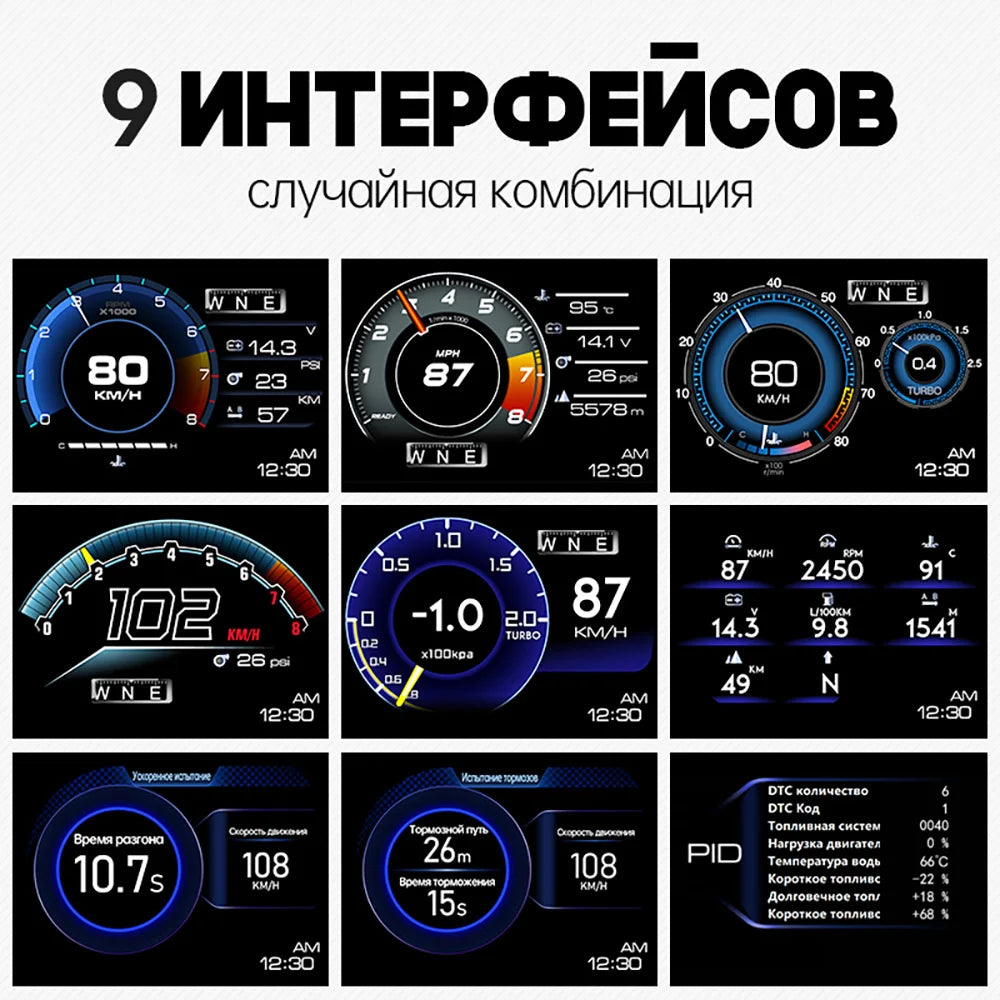

Russian Version:

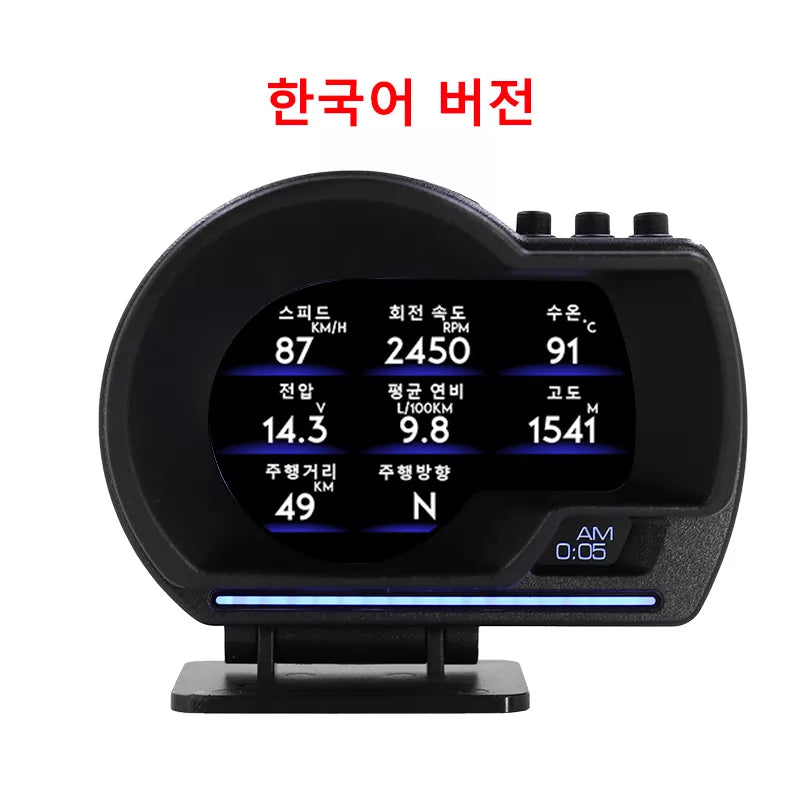

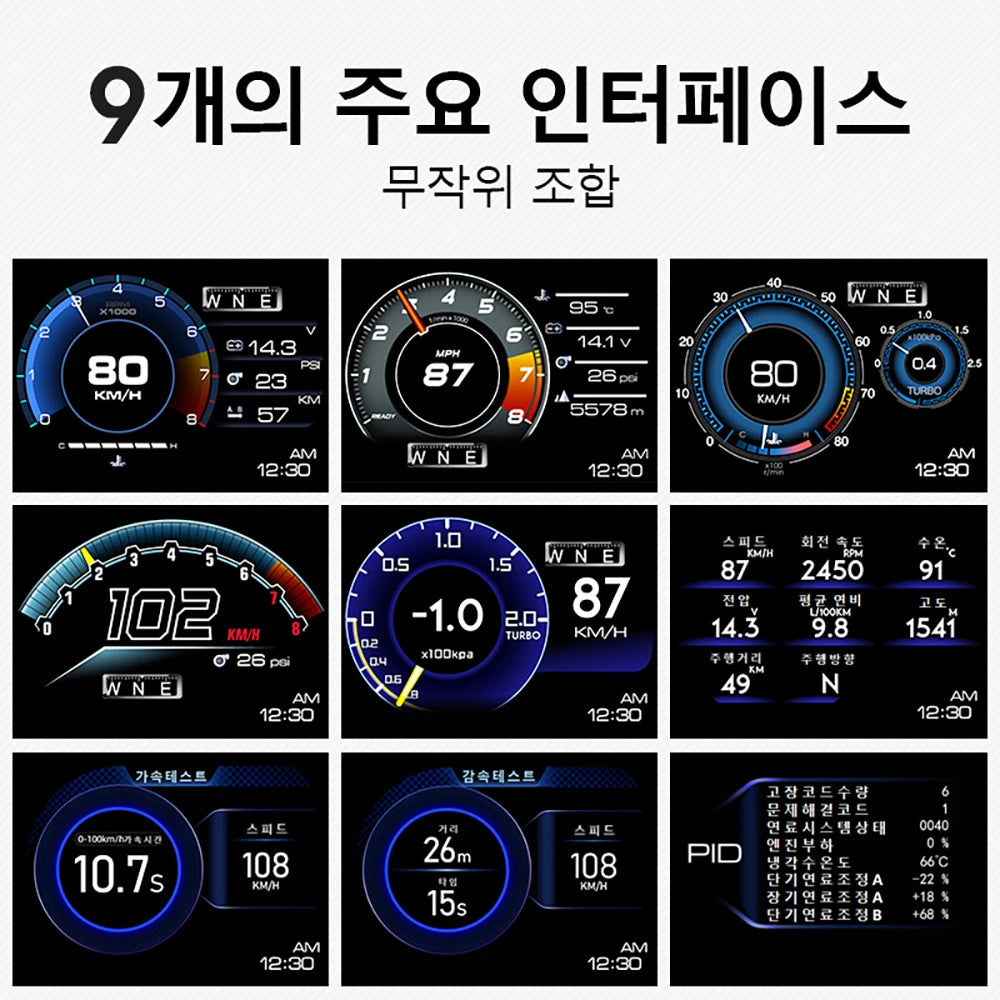

Korean Version:

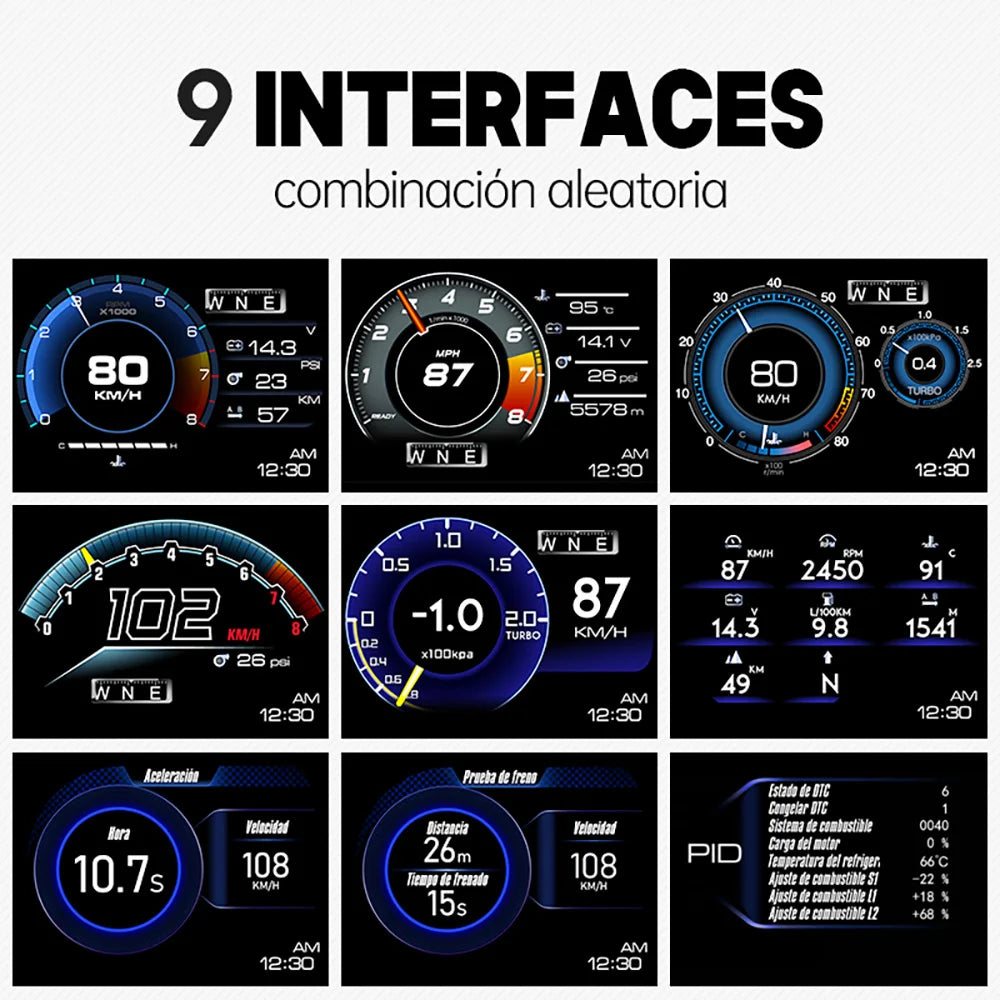

Spanish Version:

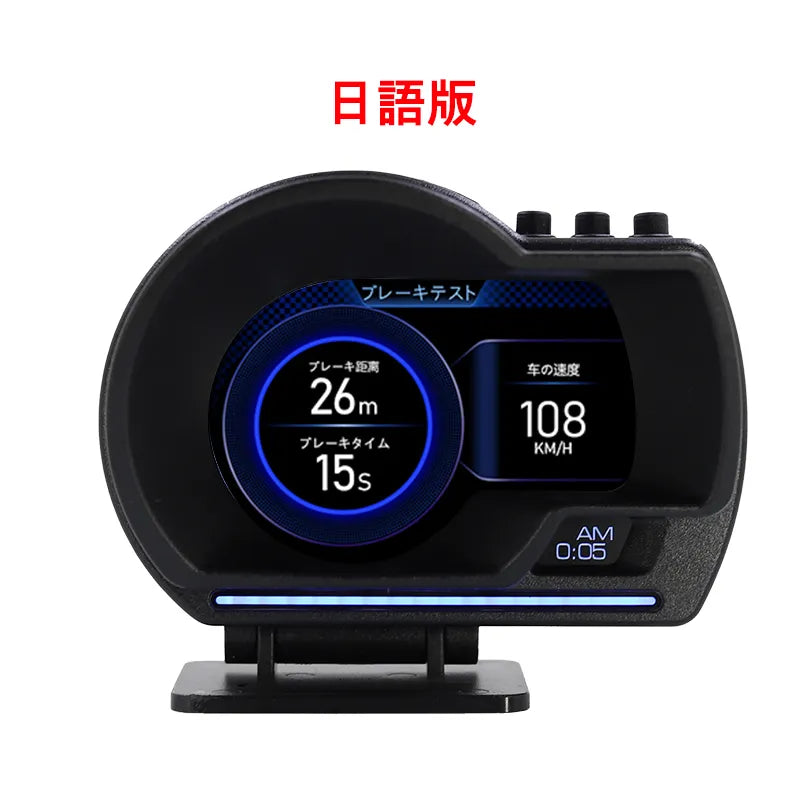

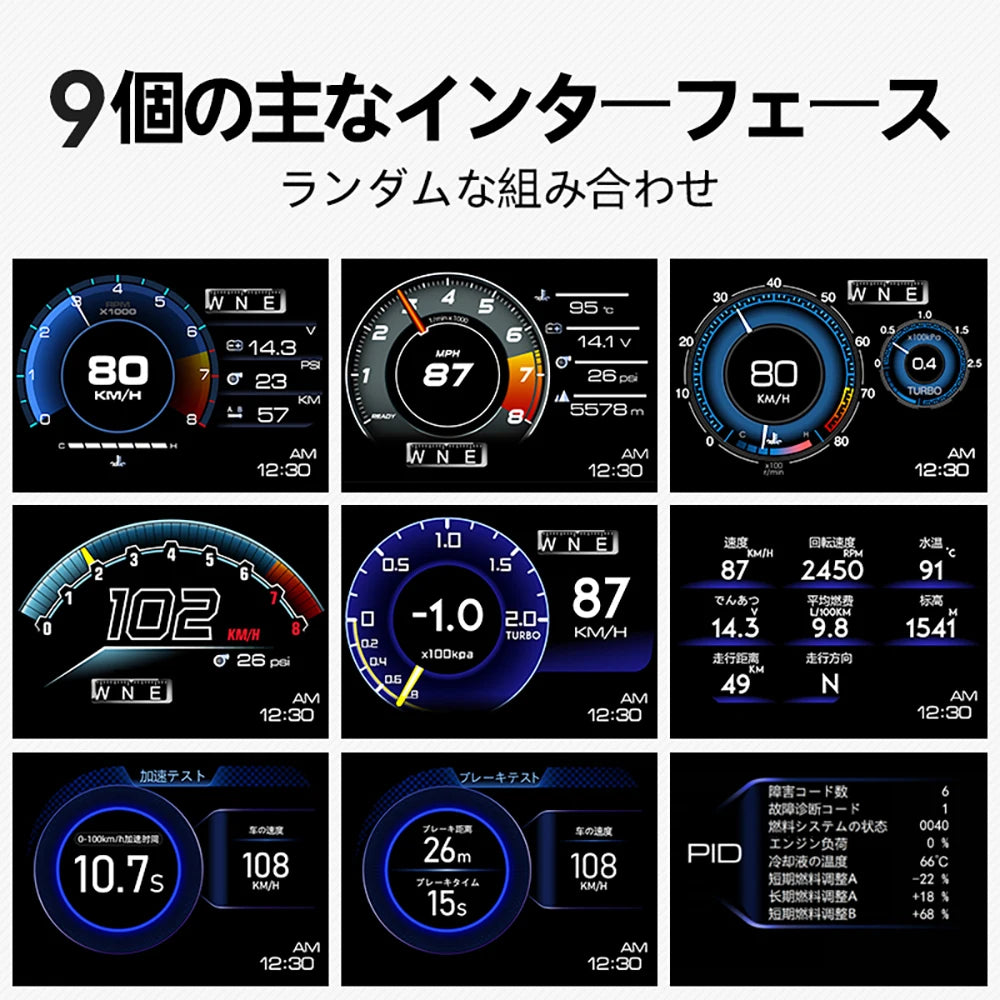

Japanese Version:
Thai Version:
VJoycar V60 HUD Product Image: Navigation System: NH WNE Yard CD Display Resolution: 95-14.3 inches, 147 pixels, 04/80, 23/87, 26p7 Maximum Speed: 80 km/h, Iaria KM MH 57,5578 meters Altitude: 12.20, 12.30, 12.30, 1.0 WND at Nvgosn Oomiertjut Anunuuahaoluu Date and Time: 05/15/87, 24:50, 91/87 Utjauixah Viinooitu Jauan710J Altitude Limit: -1.0 meters, 20- Turbc KMH 14.3, 9.8 km/h Fuel Level: Kiddkoj Wedentnautn Nanis WNEL 49 A AV AM Altitude and Speed: 12.30, 12.30, 12.30 J0,7[50 Maravivja Konusmttovaaund [uautauaxinadtc Aamloed enen aatllitro Rojuet-Vuidalnaj Date and Time: 00/40/04 or auhuJ Annoninascardjui 108,26m, 108 PID Qnunuunuadiuu 66C Altitude and Speed: 10.7s KMih Wonlutn Ha Halajutuuazuzru Hallajutuuazur077 +18,15s halajutuutzuzru +68 AM AM
6 versions of different languages are available now, the default version is in English (please choose the version you need):
The Pyrocar V60 OBD HUD device provides real-time vehicle data and diagnostics. With a maximum speed of 108 km/h, it features a powerful motor with a displacement of 1541 cc. The battery has a capacity of 12.30 Ah and can idle for up to 9 hours. The device also measures acceleration, engine speed, and wheel base. It supports multiple languages, including English, Spanish, and Russian.

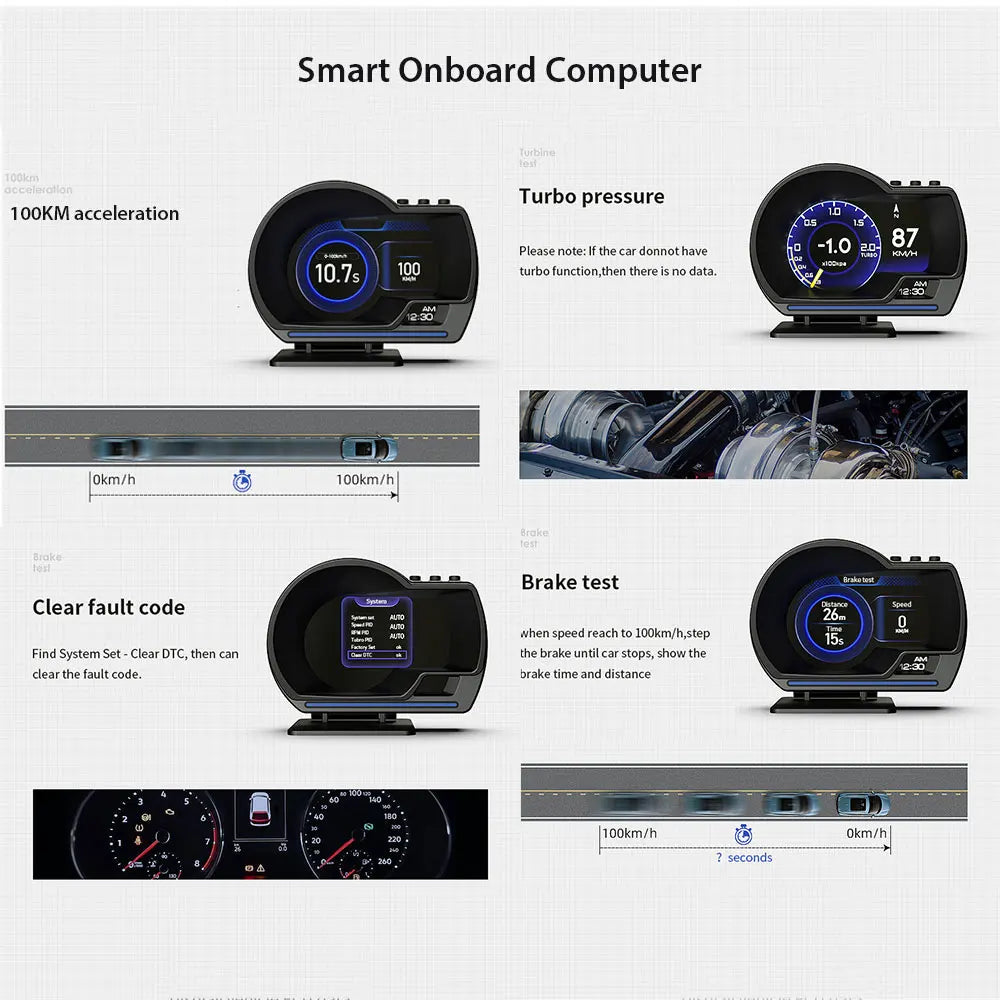

Smart Onboard Computer: More Features:
Smart Onboard Computer Tutorial: I/O Mode Acceleration Turbo Pressure. Please note that if the car does not have a Hz, then there is no data. 2) 87 Lane West, 10.7s 100 turbo function. 3) 12.3 Okm/h, 10Okm/h. Arole Broke: Brake Test Clear Fault Code. "When speed reaches to 10Okm/h, step 15 seconds. Find System Set - Clear DTC, then can OTA the brake until car stops. Show the clear fault code and brake time/distance at 1OOkm/h and 23 seconds.

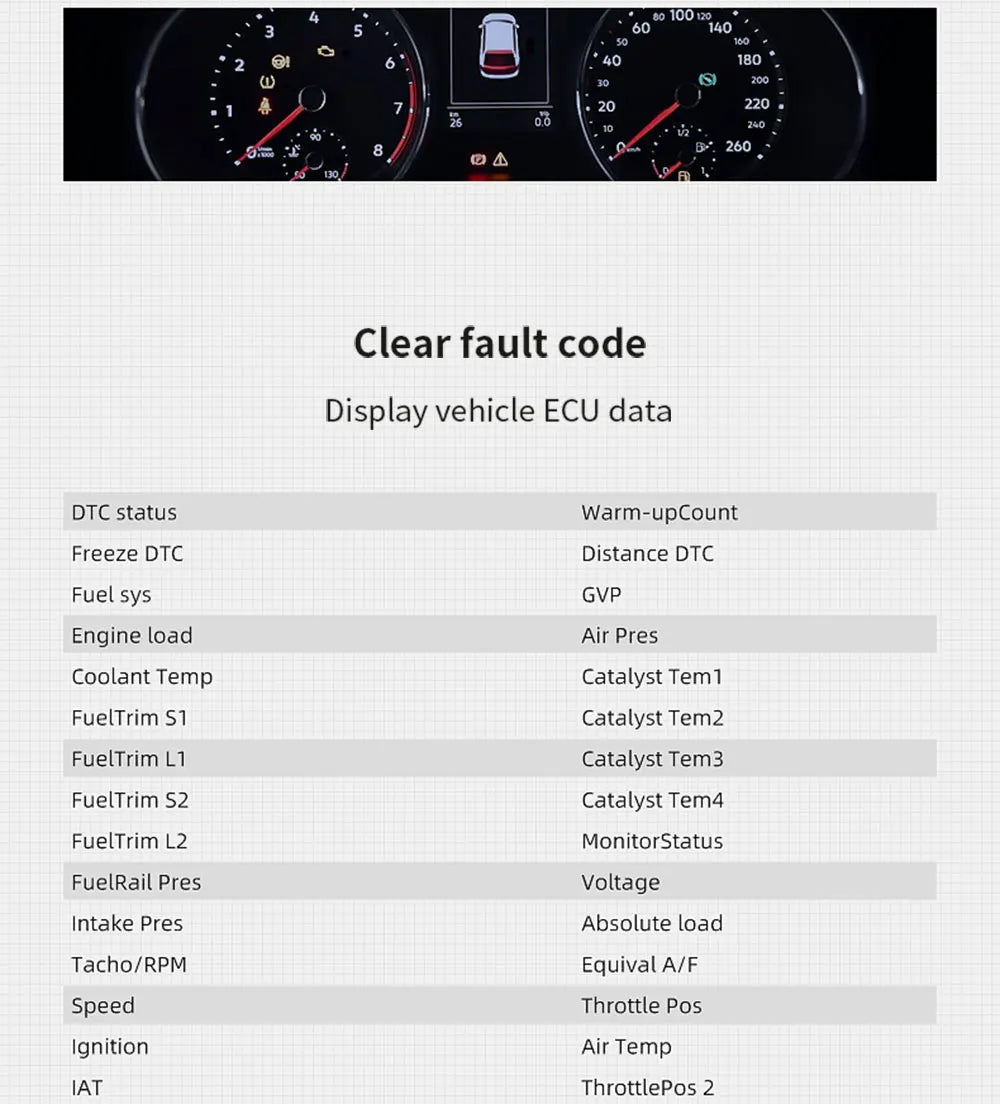

The Vjoycar V60 HUD product features a range of data displays, including vehicle ECU information, DTC status, and various system parameters. The display includes metrics such as engine load, air pressure, coolant temperature, catalyst temperatures, fuel trim levels, and more.

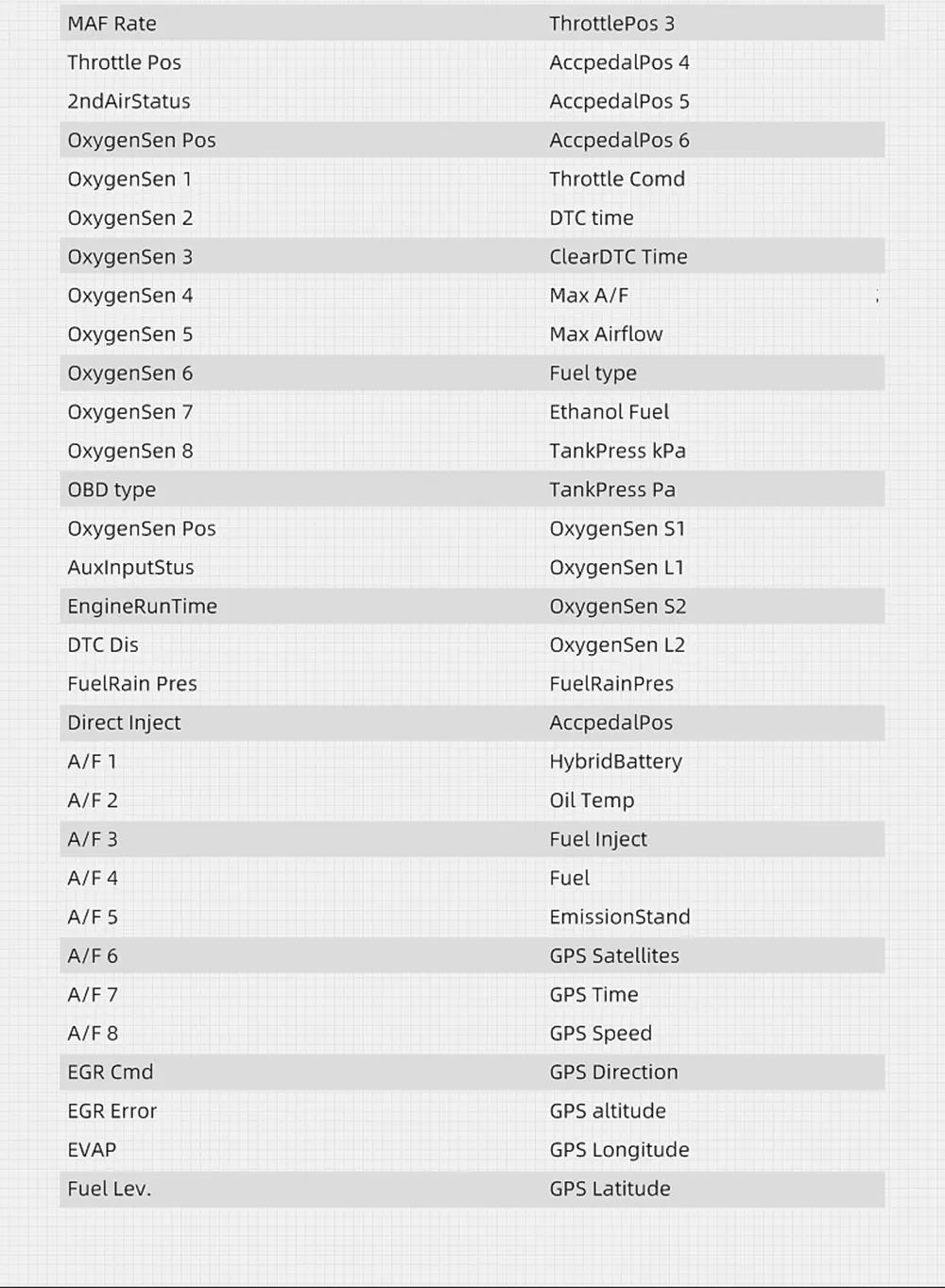

MAF Rate Throttle Position Accelerator Position Air Status Oxygen Sensor Position Maximum Air Fuel Ratio Ethanol Fuel Tank Pressure Hybrid Battery Oil Temperature Emission Standard GPS Satellites GPS Time GPS Speed Exhaust Gas Recirculation Command Direct Inject Evaporative System
Support Update Software remotely and the latest version is as below:

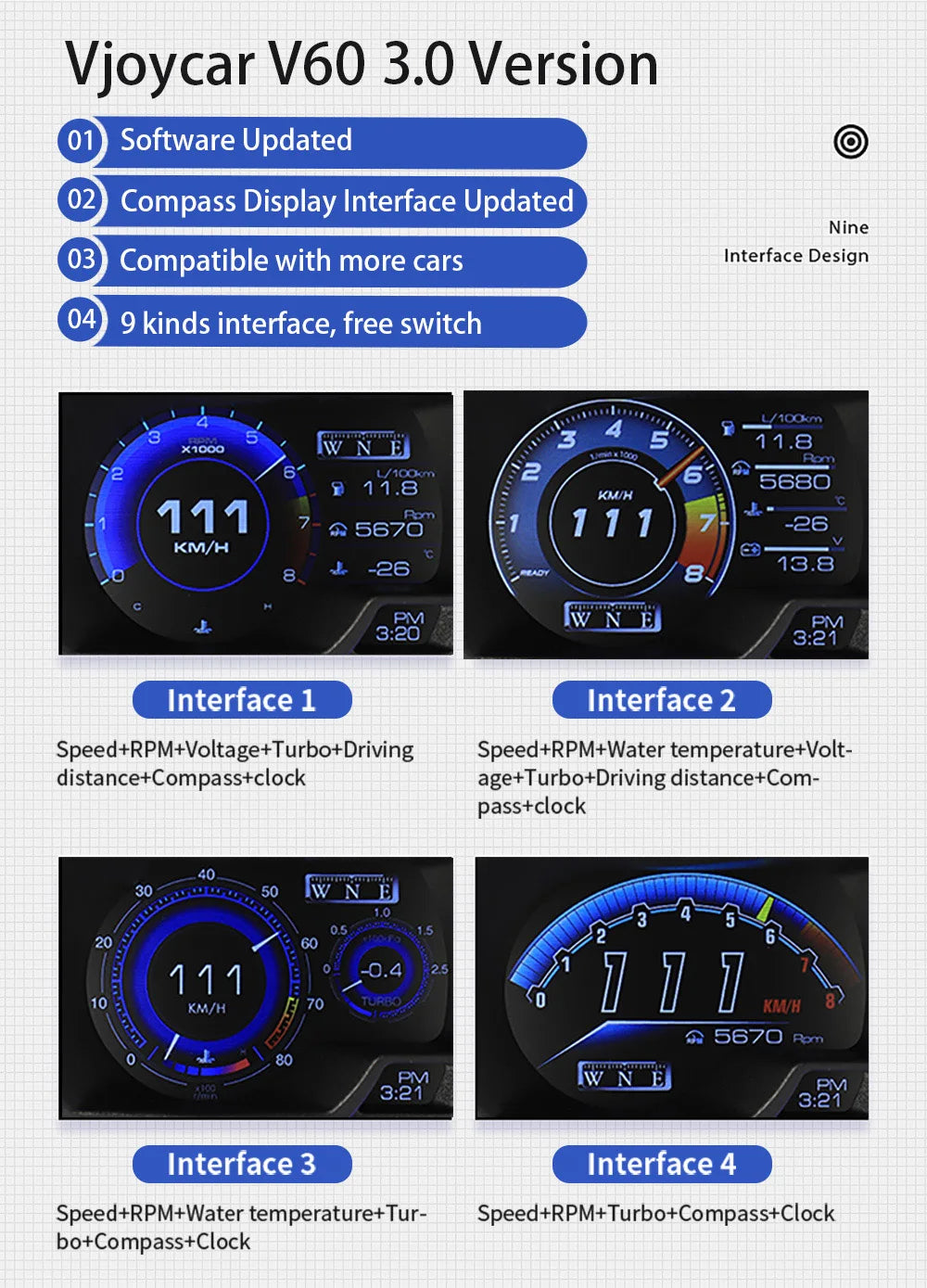

2023 Upgraded Vjoycar V60 3.0 Version (Latest software updated in Oct, 2023)
A. Software Updated: Add more protocols for more cars
B. Compass Display Interface Updated
C. Compatible with more cars
D. Enter engine model to choose your car model as well as your own specific car data.
The VJoycar V60 3.0 version features a software update with enhanced compass display interface capabilities. The updated design is compatible with more car models and includes four free-switchable interfaces (Hoo Xadoo W NB). The device measures 11.8 inches by 14.8 inches with a power consumption of 5680 Kwh. It has a range of features, including speed, RPM, voltage, turbo boost, water temperature, distance, compass clock age, and driving distance.

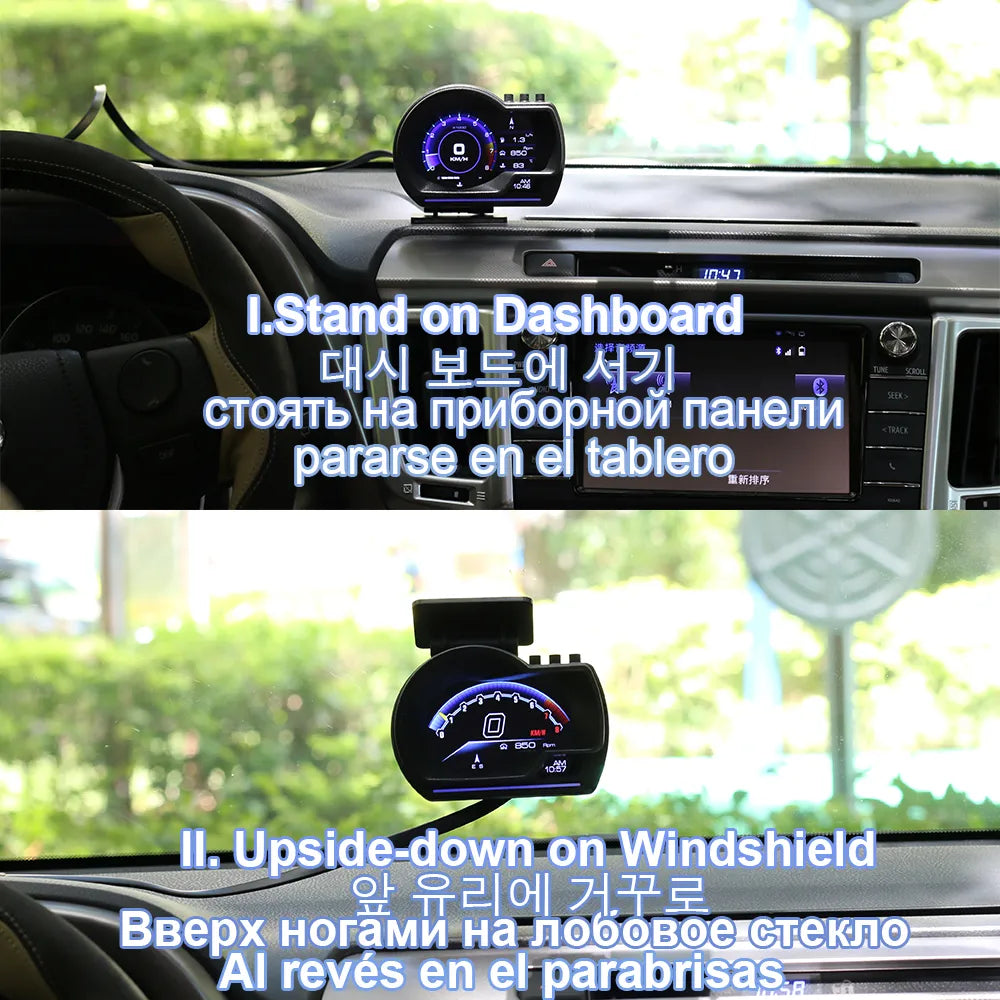

2 Kinds of Install Solutions:
Stand on the dash board or Upside-down on the windshield shown as below:

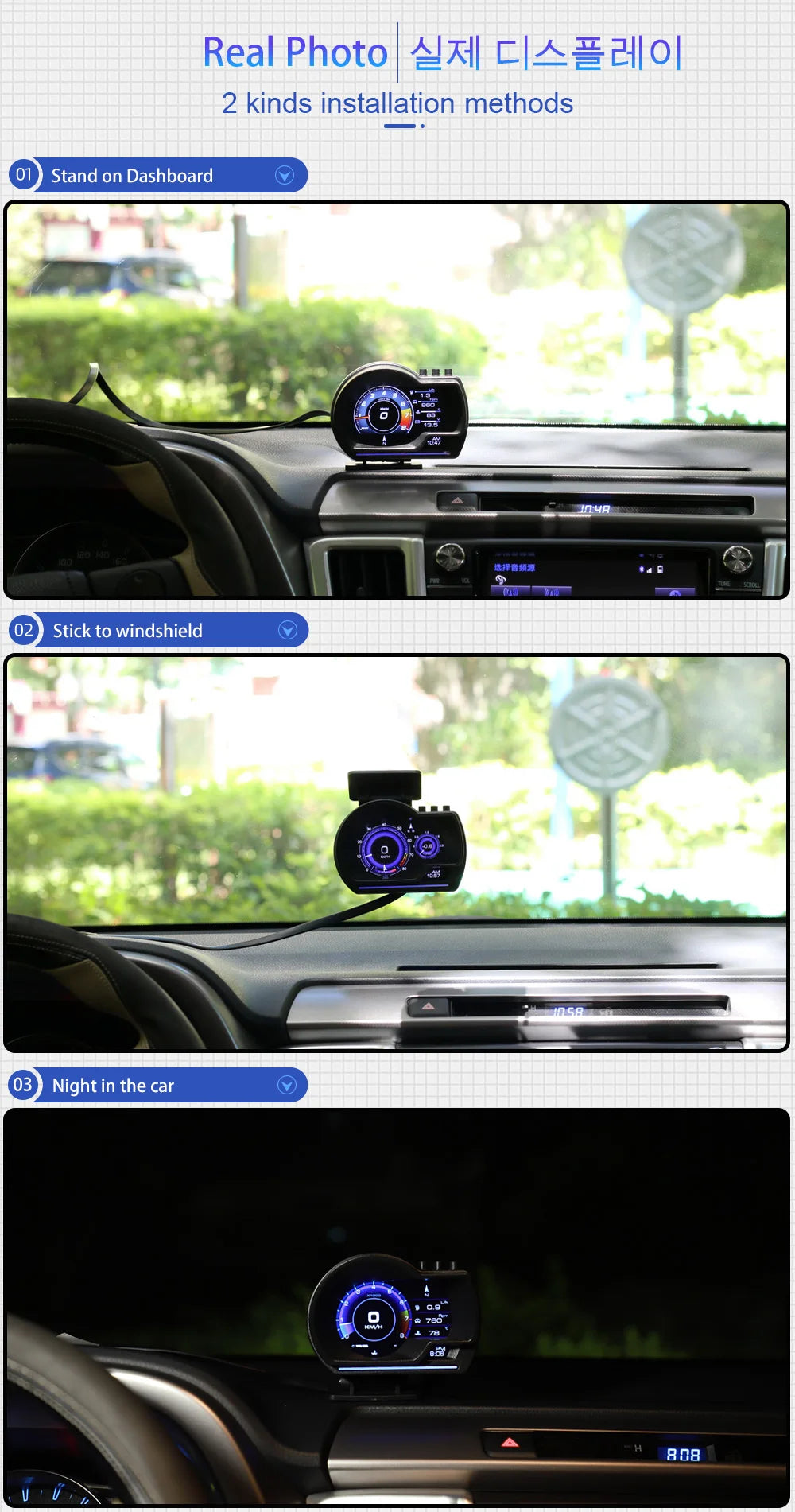

Vjoycar V60 HUD product image: 2 kinds of installation methods. Stand on dashboard installation, suitable for daytime use. Windshield stick installation, suitable for nighttime use.

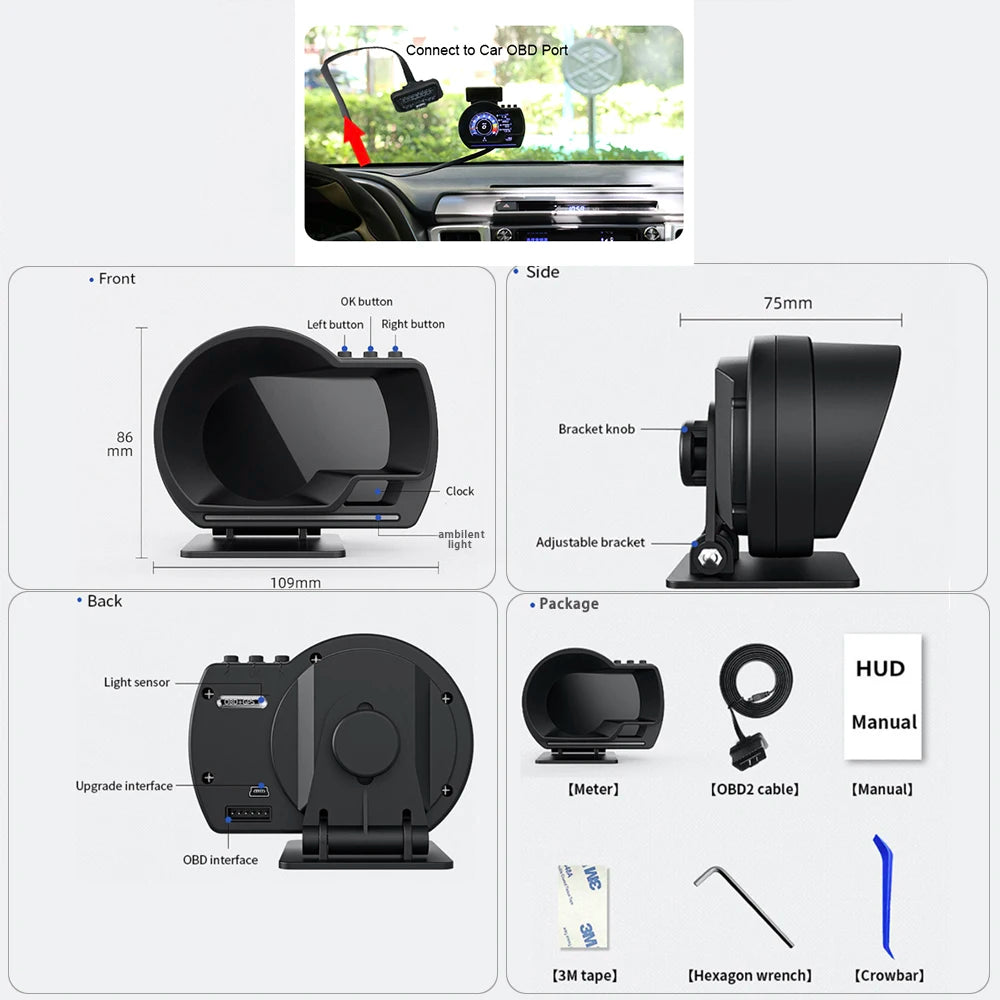

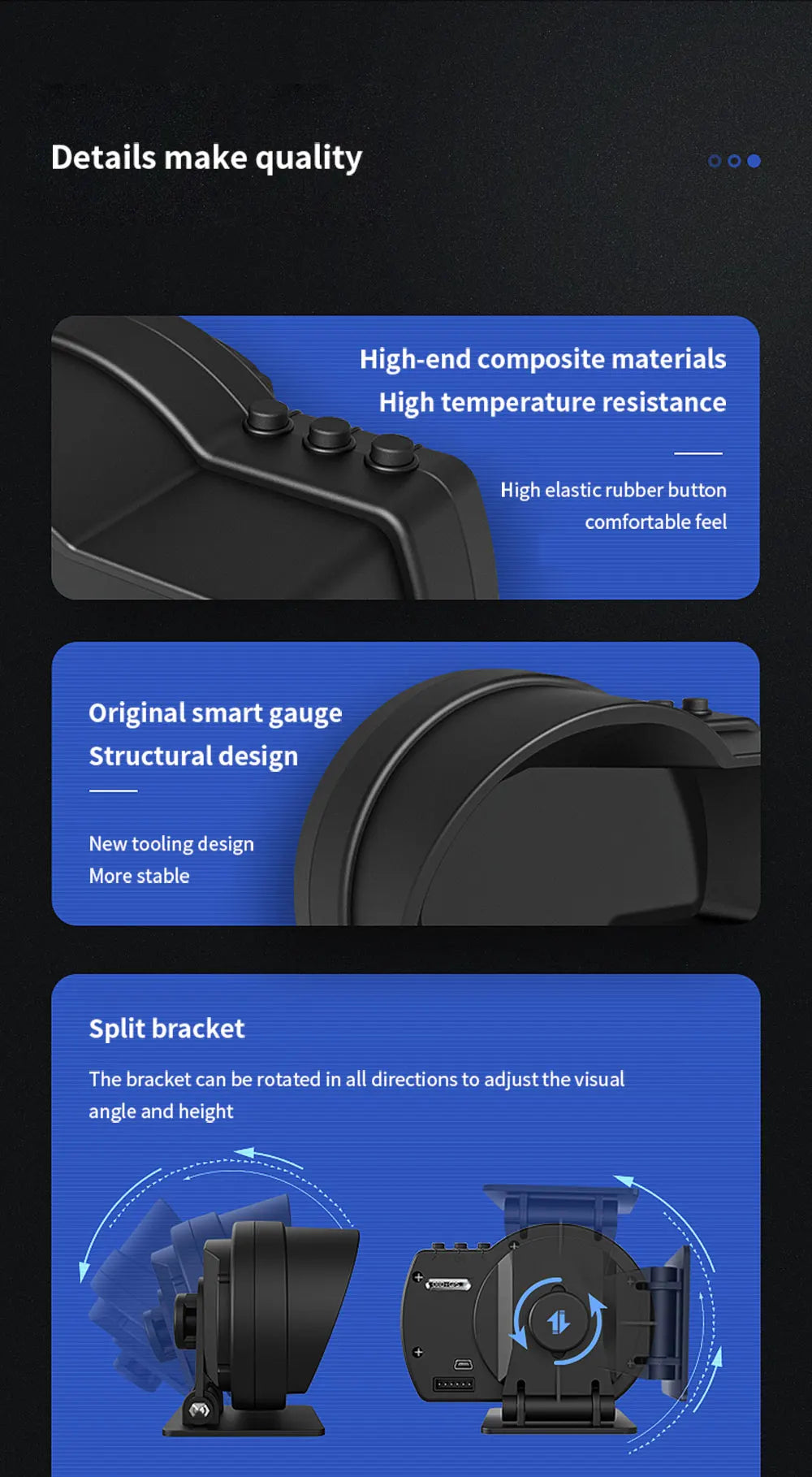

Details Makes Quality
The Best Device for Best You, OEM ODM are welcome:
The Vjoycar V60 HUD features high-end composite materials, high temperature resistance, and elastic rubber buttons for a comfortable feel. It also boasts an original smart gauge design with structural stability and a split bracket that can be rotated for adjustable visual angles and heights.

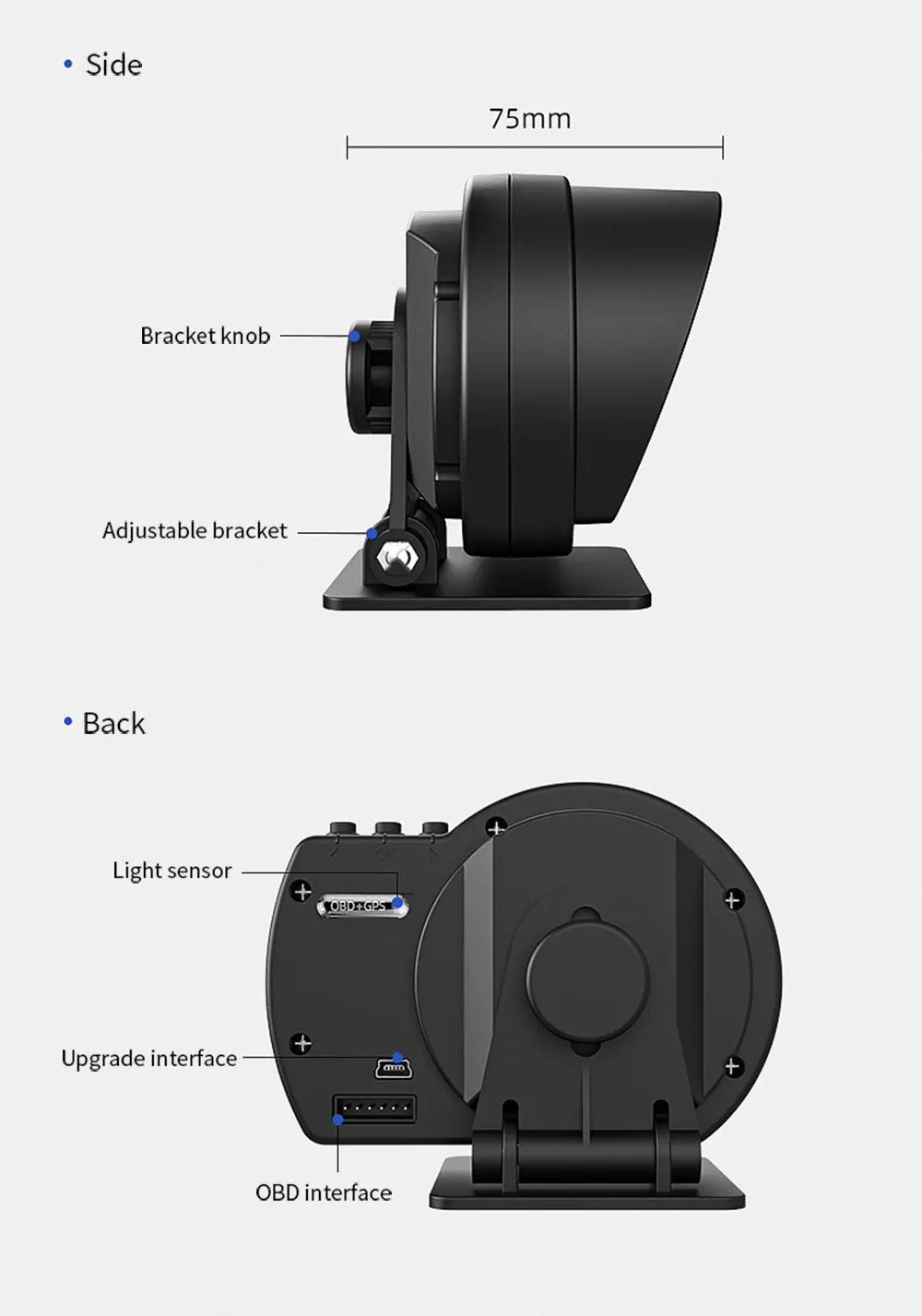

Side mount bracket, 75mm diameter, with adjustable knob and back light sensor, upgrade interface for O8DEGES, OBD compatible
Standard Package: OBD cable plug and play, start safety driving with a lot of fun:
Package List:
• Smart HUD Gauge VJOYCAR V60
• OBD connecting cable
• Velcro sticker
• Operating instructions

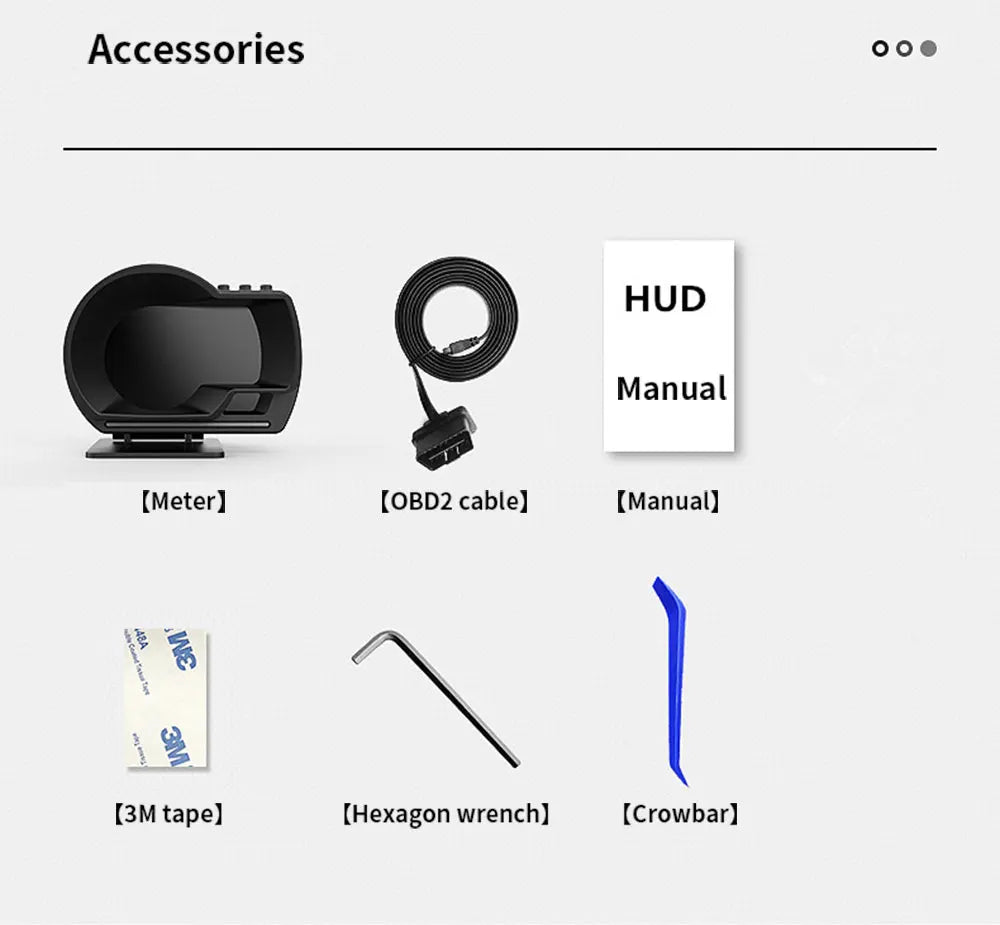

Accessories for Vjoycar V60 Head-Up Display (HUD) includes manual, meter, OBD2 cable, and tools like 3M tape, hexagon wrench, and crowbar.
Attention:
1. If set speed unit to KM/H, the water temperature unit will automatically be℃, driving distance unit will automatically be KM, fuel conusmption unit will automatically be L/100 KM.If set speed unit to MPH, the water temperature unit will automatically be℉, driving distance unit will automatically be Mile, fuel consumption unit will automatically be MPG.
2. The default display is in OBD2+GPS dual mode at the same time, but if the car don't have OBD2 protocol or the OBD2 protocol is incompatible, then pls go to "set" and off the OBD, it will switch to GPS working mode.
OBD2 working mode are not compatible with follow vehicles (Please switch GPS mode):
1. OBD mode can't work well on almost 80% cars before the year 2008
2. OBD mode can't work well on most oil and electricity mixing cars (hybrid cars), Pick up, Mini Bus...
also can't work on some old diesel powered cars, SUV, ORV...
3. Few Special Cars
if not sure, please contact us in advance.
