SPECIFICATIONS
Brand Name: VJOYCAR
Origin: Mainland China
Wire or Wireless: wired
Rated Power: 11V~18Vdc(12Vdc/200mA)
Size Name: 114*89*80mm
Output Frequency: Vjoycar V60 OBD2 HUD Car GPS Head Up Display
Product Name: Vjoycar V80 OBD2 HUD Meter
Model No.: V80
OBD2 HUD: Suitable for most cars after 2008 with EUOBD Standard
OBD data: RPM, Fuel Consumption, Voltage, Water Temperature, total Mileage, turbo boost..
Temperature Meter: Oil / Water / CVT temperature...
Display Mode: Car Speed Projector On-Board Computer
Display page: 10 kinds of different display pages
Display channel: HD LCD Display
Work voltage: 11V~18Vdc(12Vdc/200mA)
Unit of Fual Consumption: KM/L, L/100KM, L/H
Speed Unit: KMH,KPM
Special Feature: Ambient light, multi-section performance test curves and customized car logos
Multi-languages: EN / RU / KR / ES / TH / JP
Vjoycar V80 2024 Newest Dashboard Head Up Display OBD2 HUD Total Mileage Car Logo Turbo Boost Security Alarm Water&Oil Temp. RPM
Please Read Carefully before Place the Order:
1. Our V80 OBD HUD can be compatible with most cars with below protocols:
-ISO 15765-4 (named CAN and SAE J2480 also);
- K-line → ISO 14230-4 (named KWP2000 also, it include KWP FAST and KWP 5BAUD);
- K-line → ISO 9141-2
2. But if some car manufacturers don't open the protocols completely, some data can't read out from the car.
We keep upgrading our software all the time to improve the protocols/functions/features, and V80 supports software upgrading. After receive the order, please kindly test it on your car asap. If it's not compatible, please contact with us with " your car manufacture / model / year / protocol and ask for the latest software supporting asap.
3. V80 OBD is not compatible with some special vehicles, eg, electric vehicle, few diesel car / hybrid vehicles / pick-up, bus...and so on. If you still have questions, please contact with us before buy , and it's better to tell us your car manufacture / model / year / protocol before buy.
Product Functions:
Can read OBD data from car direcrly:
Speed, water temperature, voltage, fuel consumption, RPM, total driving mileage, single travel mileage, single travel time, system time, intake pressure, oil temperature, gearbox oil / transmission Temperature, air-fuel ratio, turbo pressure, intake pressure, acceleration test, brake test, read data stream, multi-section performance test curves and customized car logos...
Alarm: Over-speed alarm, Speed alarm, High water temperature alarm, Low voltage alarm, Engine fault alarm, Clear fault code, Ambient light warning
Product Highlights:
1. 2024 Latest OBD2 HUD, can read more than 100+ data;

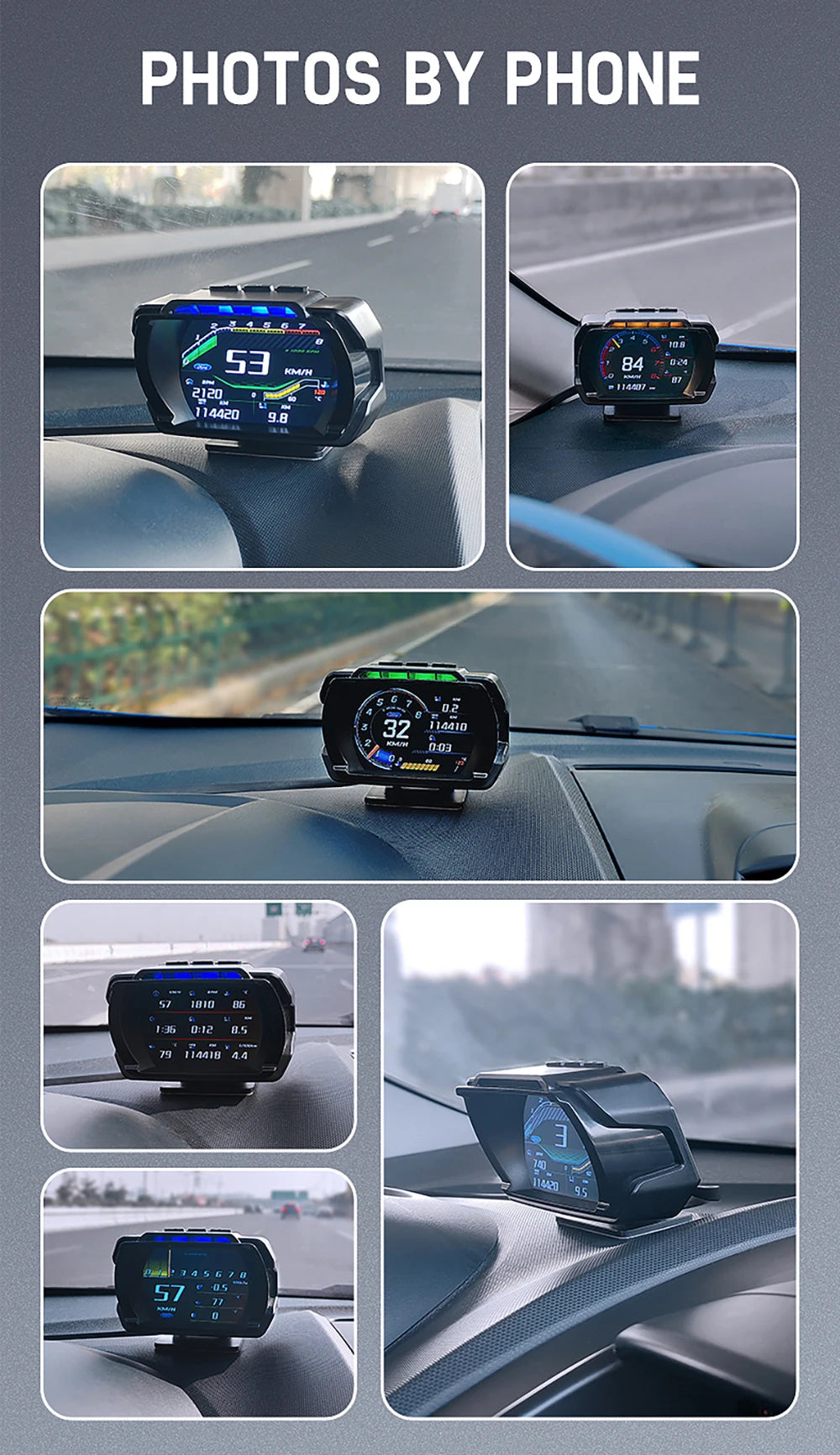

2. Two installation methods:1) stand on dashboard, 2) upside down on windshield
3. The bracket can be rotated in 360 degree to adjust the visual angle and height.
4. Speed Unit KM/H & MPH Switch freely;
5. Turbine pressure: PSI and KPA switch freely.
6. Fuel consumption units: KM/L and L/100KM, L/H;
Engine is on but Stationary (Speed is at 0): show instant fuel consumption, unit is L/H.
When car is in motion, the interface will automatically change into KM/L or L/100KM as your setting;
7. Add AMBIENT LIGHT;
8.Compared V60 HUD, V80 adds total driving mileage, multi-section performance test curves and customize car logo;
9.10 kinds of different interface, you can choose any display interface you prefer.
10. 6 different languages are available now: English, Russian, Korean, Spanish, Japanese and Thai;
11. Support Update Software Remotely;
12.-Accept OEM & ODM Orders: Add Start-up Screen with your logo; Customize Package; Add new functions and display interfaces...

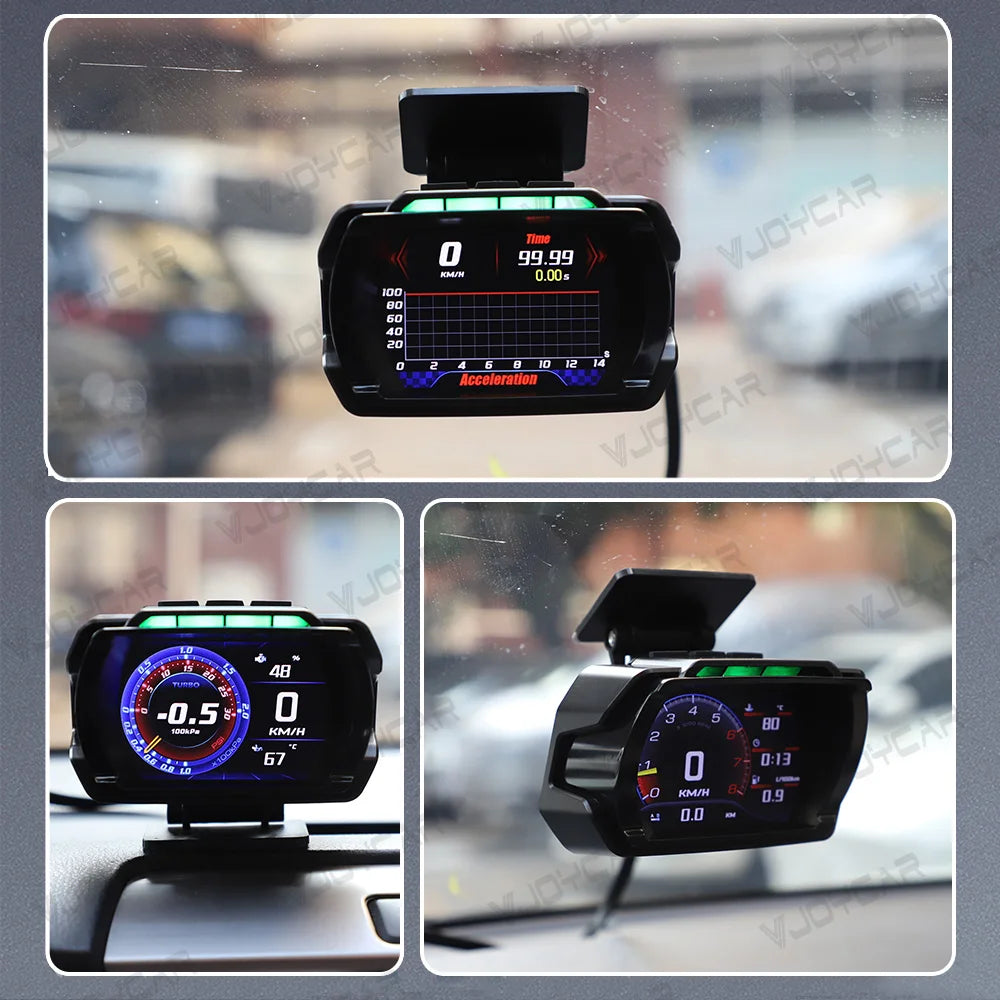

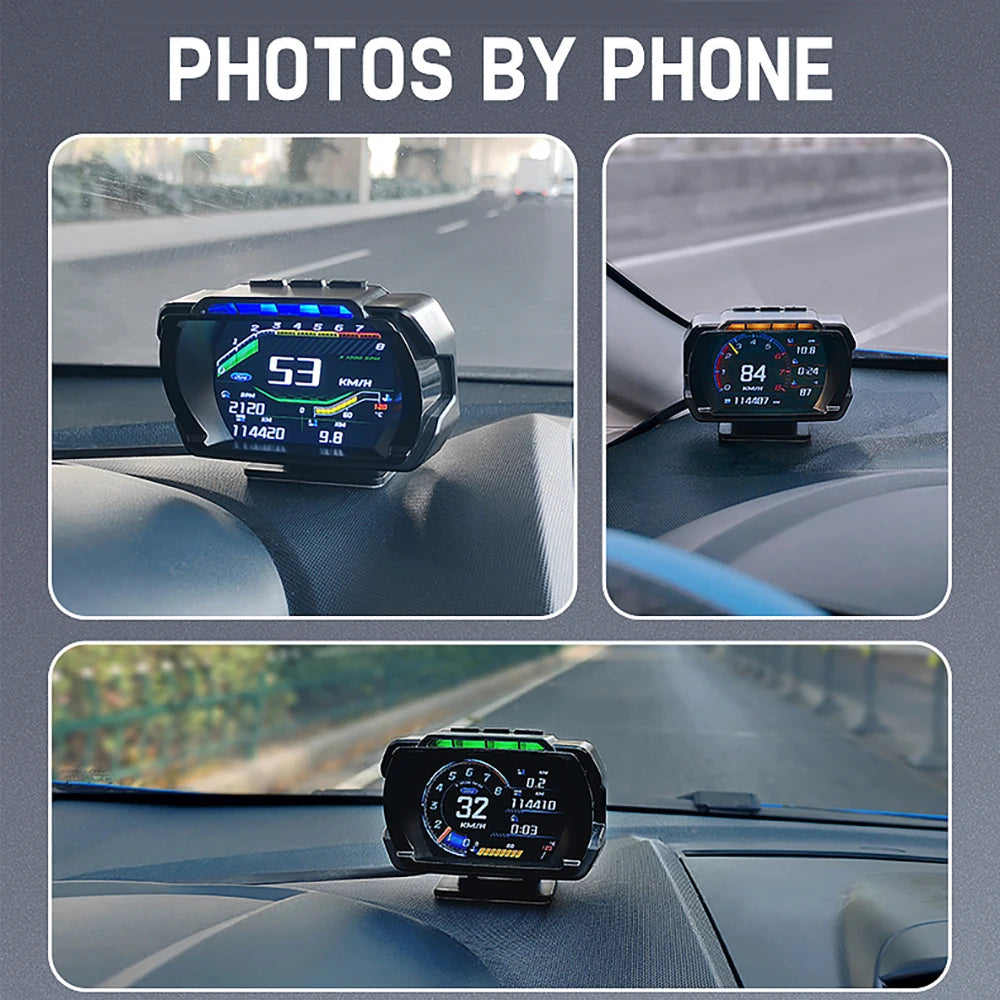

Two installation methods:
1) stand on dashboard, 2) upside down on windshield
Vjoycar V80 High Definition (HD) Head-Up Display (HUD) provides a clear and intuitive driving experience with a resolution of 480x64 pixels, a refresh rate of 100Hz, and an operating temperature range of -40°C to 85°C. It also features a high-brightness LCD display and supports various input modes.

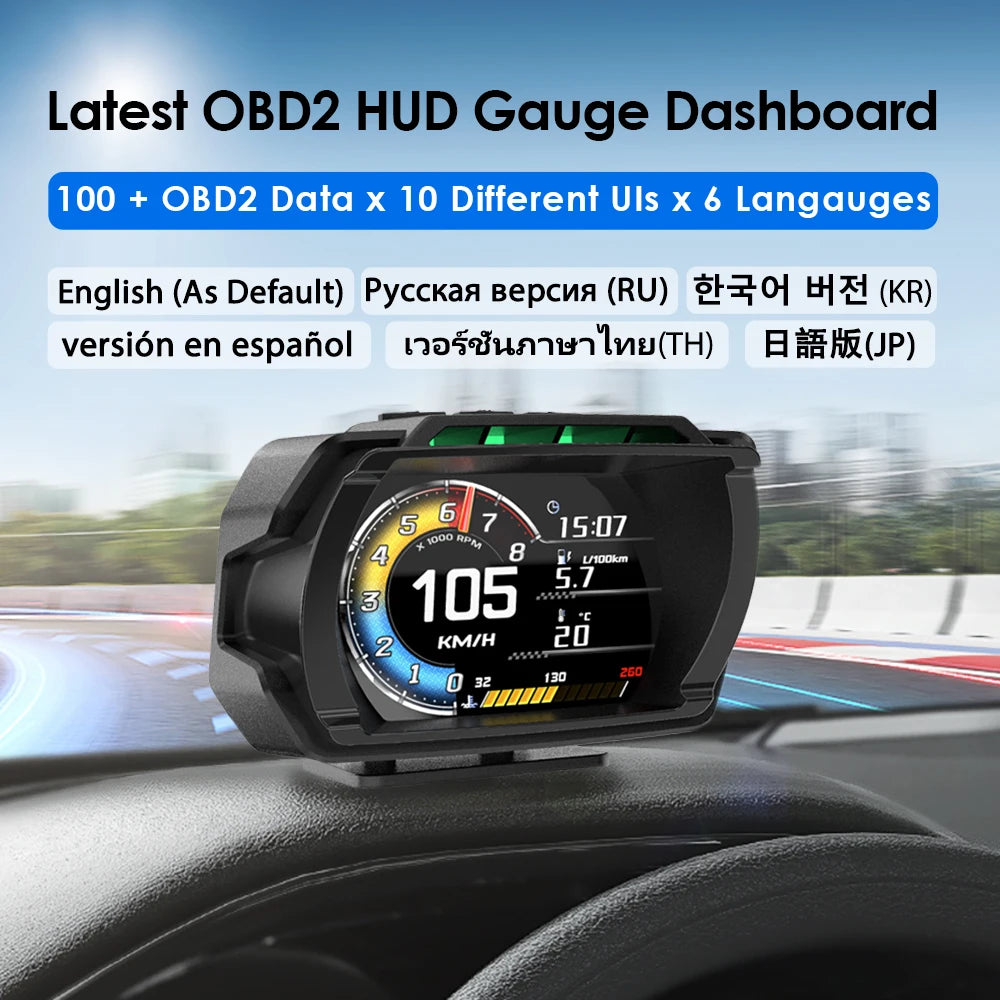

Multi-function OBD2 HUD Dashboard: can read 100+ OBD2 data from cars:

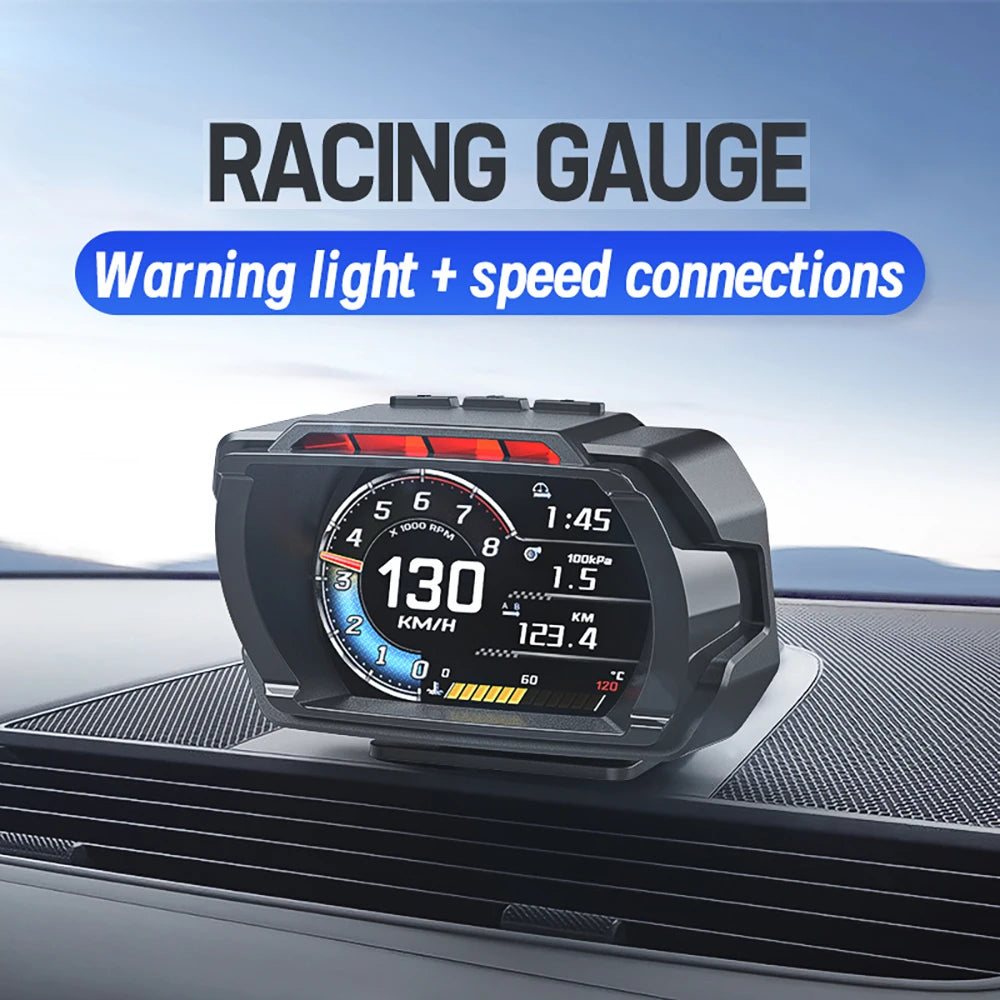

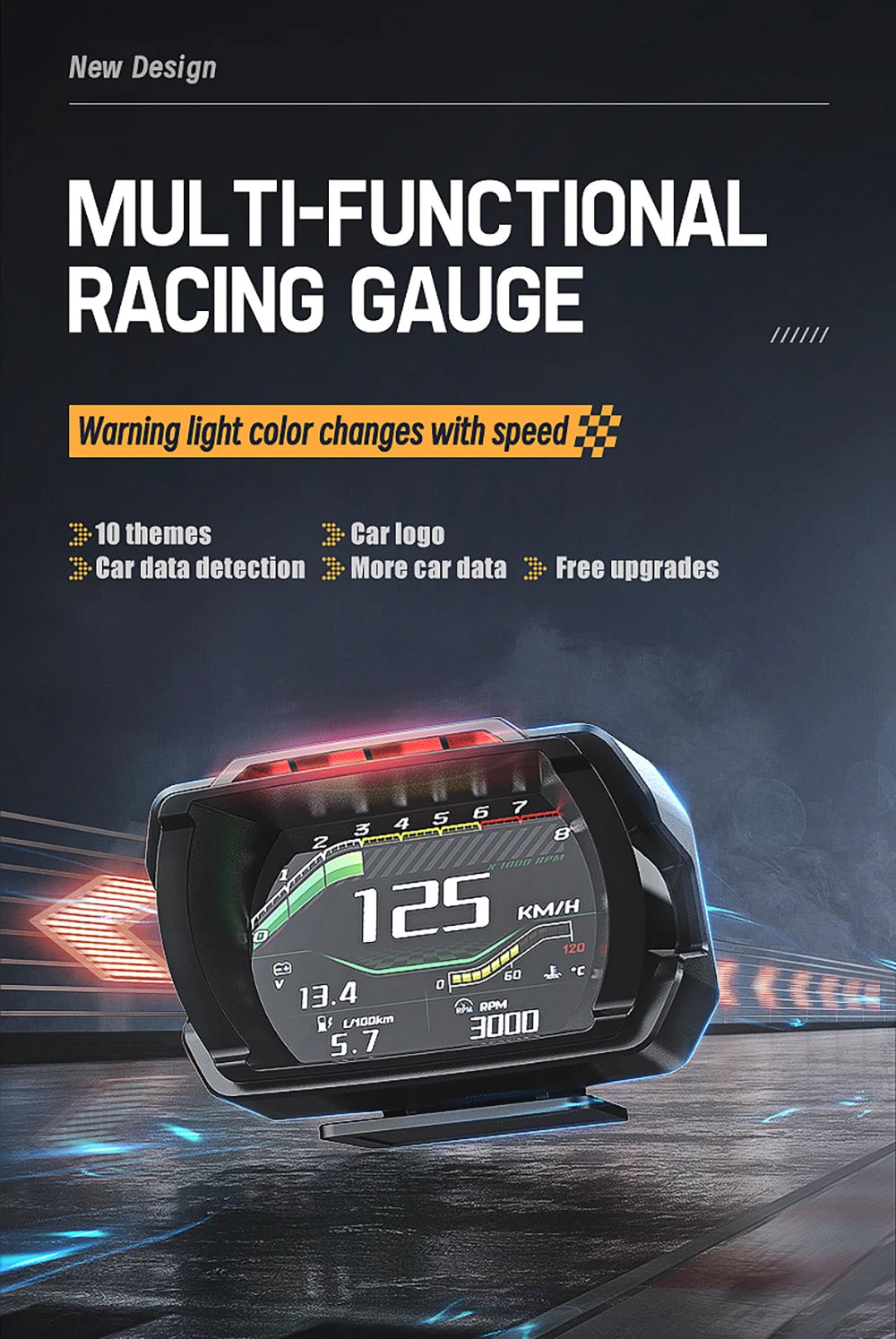

New Design Multi-Functional Racing Gauge. Warning light color changes with speed, featuring 10 themes. Displays car logo and detects more car data. Offers free upgrades. Key specs: 7-inch display, 3-zone layout, 120 mph top speed, 60 mph cruise speed, 4 theme modes.

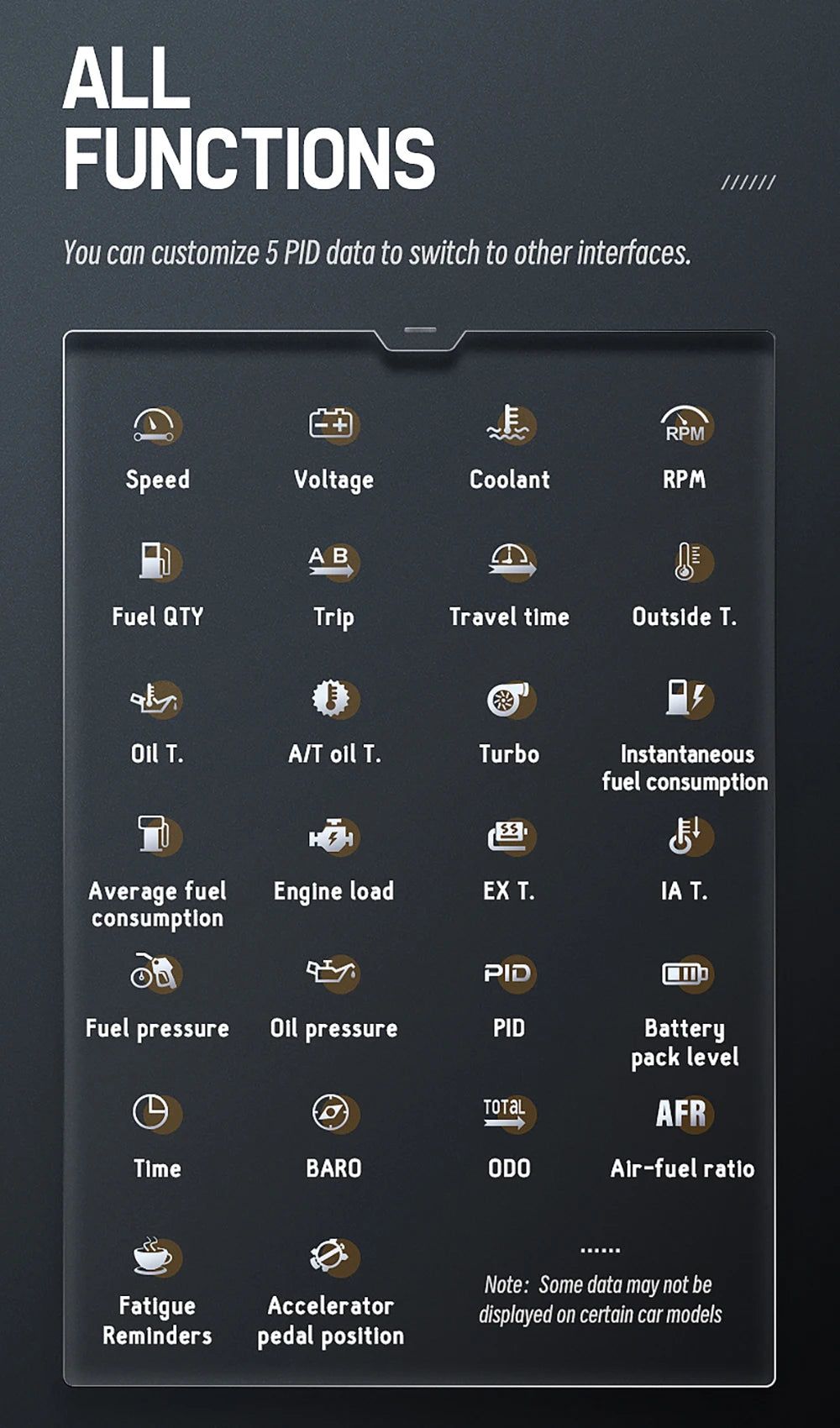

Input: ALL FUNCTIONS allows you to customize 5 PID data to switch between various interfaces. These include: RPM speed, coolant temperature, fuel quantity, trip time, outside temperature, oil temperature, and more. Note that some data may not be displayed on certain car models. Reminders include position, voltage, pack pedal, and others.

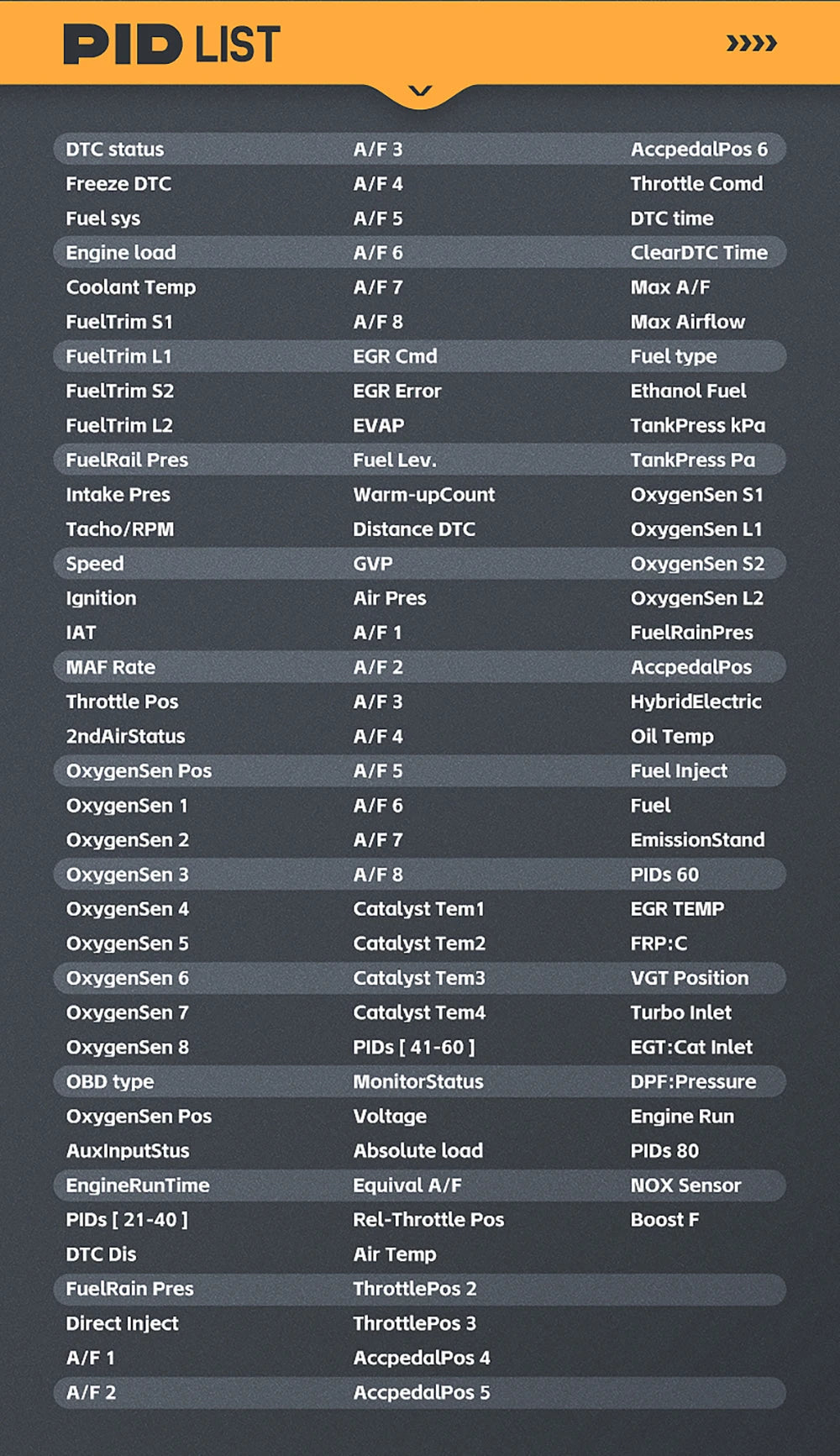

PID List: DTC Status, Accelerator Position (6), Freeze Frame Data, Throttle Command, Fuel System Information, DTC Time, Engine Load, Clear DTC, Coolant Temperature, Max Air/Fuel Ratio, Fuel Trim, EGR Command, Fuel Type, EGR Error, Ethanol Fuel, EVAP Tank Pressure, Fuel Rail Pressure, Intake Pressure, Warm-Up Count, Oxygen Sensor Data, Speed, Distance, and more.

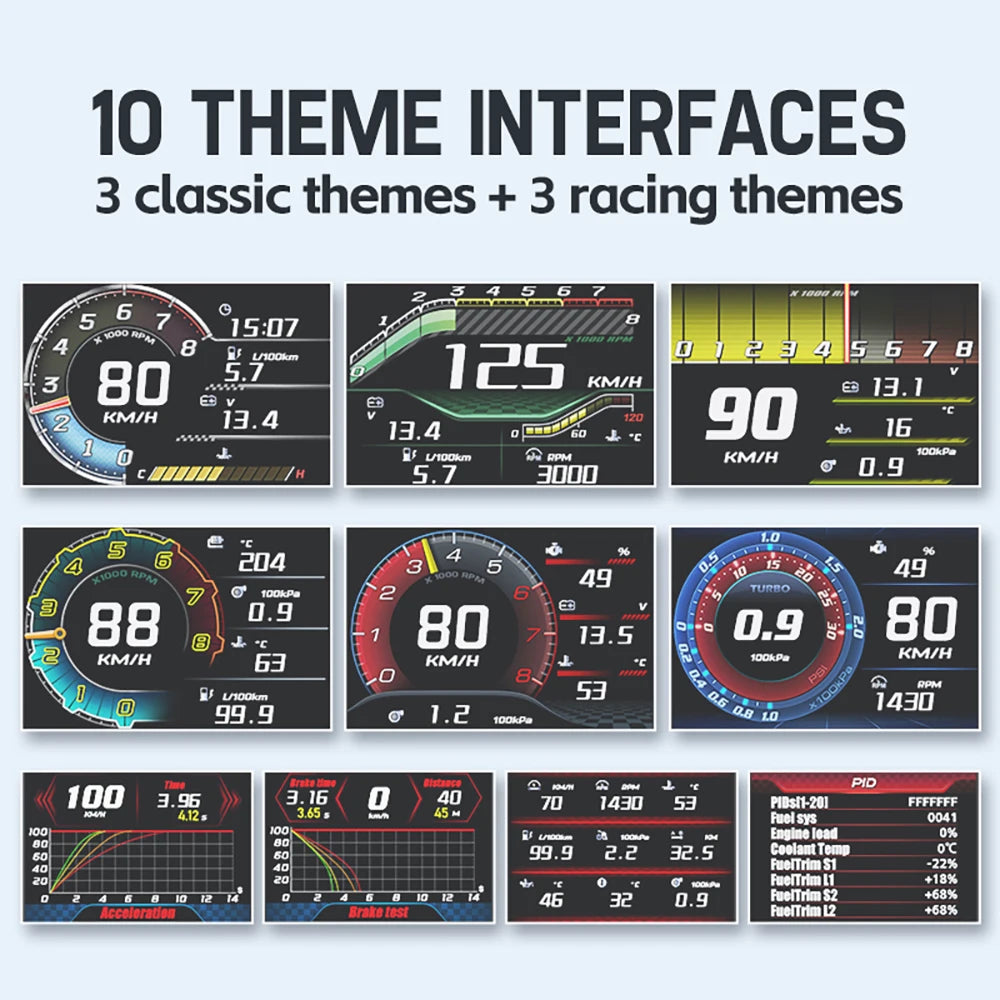

10 Kinds of display interface, freely switch:
This device has built-in 10 kinds of interfaces, just click to the "OK" button to choose your favourite interface.

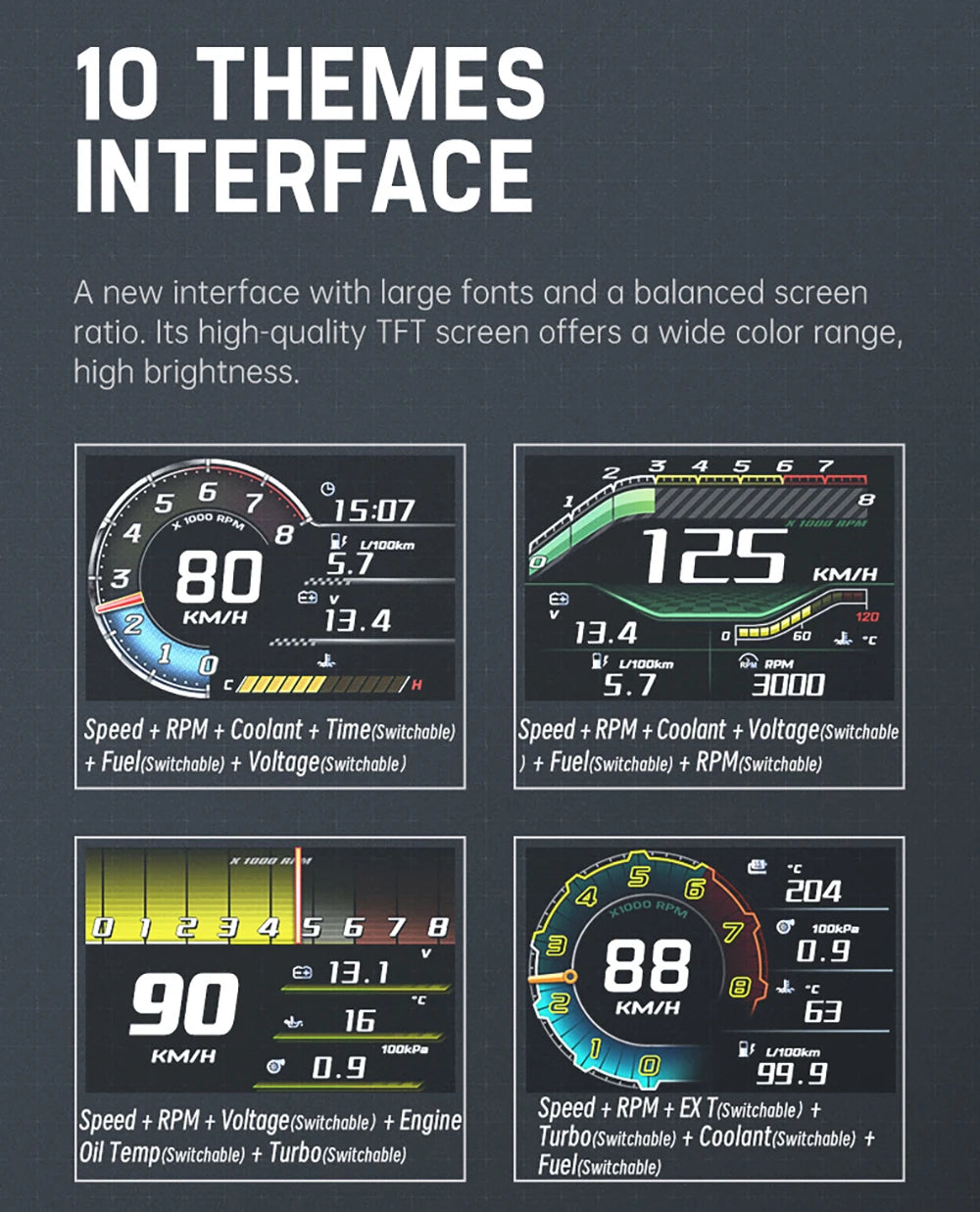

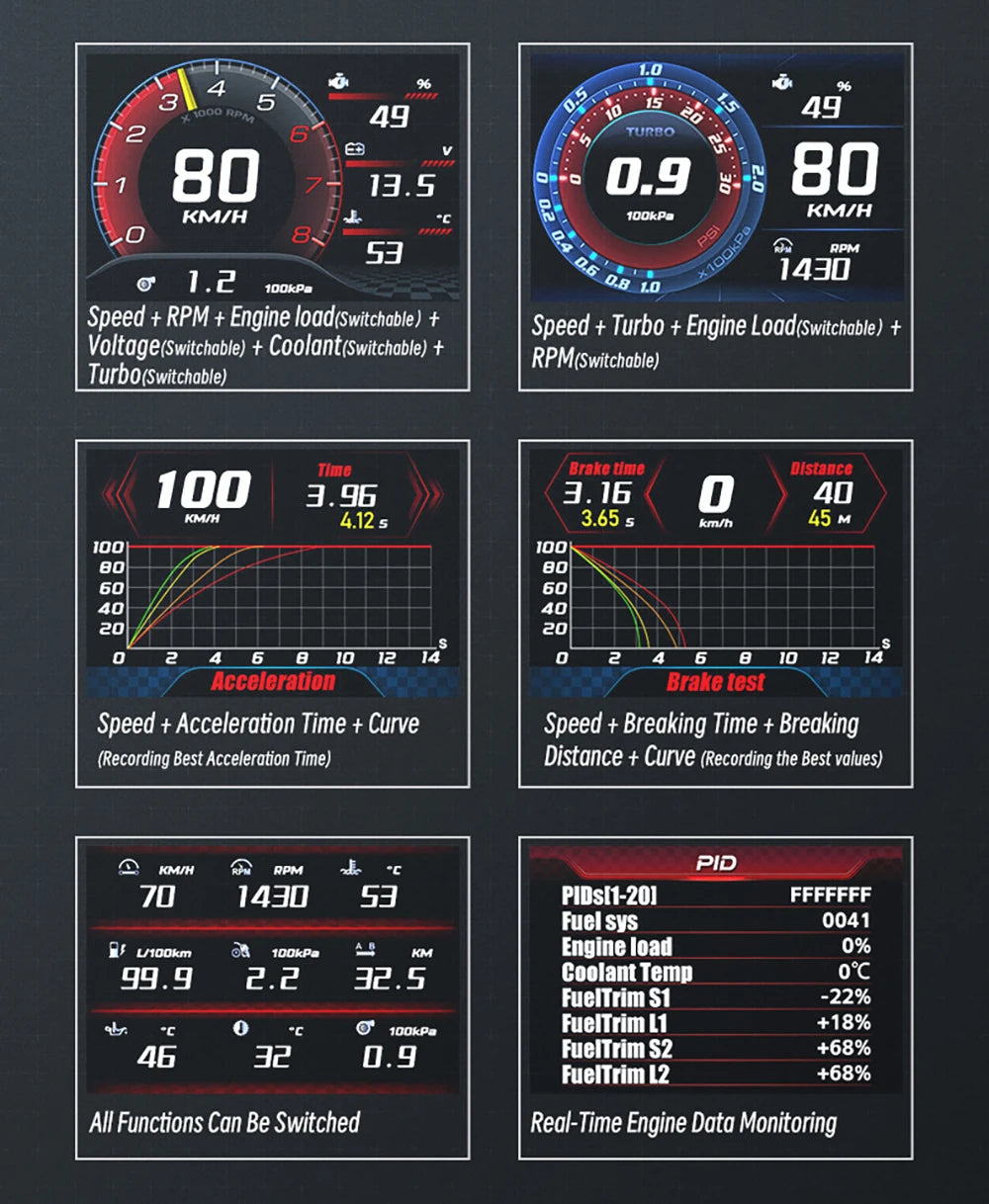

The Vjoycar V80 HUD features a user-friendly interface with large fonts and an optimized screen ratio. The high-quality TFT display offers a wide color range and high brightness. Key performance indicators include RPM, speed, coolant temperature, time, and voltage. Additional features include fuel level, engine turbo boost, oil temperature, and EX T mode. The HUD also displays important safety information such as Jodd Speed, which shows the vehicle current speed.
Vjoycar V80 HUD Product Image: Display Screen: Vehicle Information Speed (km/h): 0 - 240 km/h RPM: 0 - 6,000 RPM Engine Load: 0 - 100% Turbo Boost: Switchable Coolant Temperature: 0°C - 150°C Fuel Trim: S1: -22%, L1: +18%, F2: +68% Performance Data: Best Acceleration Time: - Best Distance: - Acceleration Test Speed: 0-240 km/h Braking Test Speed: 0-60 km/h Engine Data Monitoring: Engine Load: 0% - 99.9% Coolant Temperature: 0°C - 150°C Fuel Trim: S1: -22%, L1: +18%, F2: +68% Real-Time Engine Data: Turbo Boost: Switchable RPM: 0 - 6,000 RPM Engine Load: 0 - 100% Coolant Temperature: 0°C - 150°C

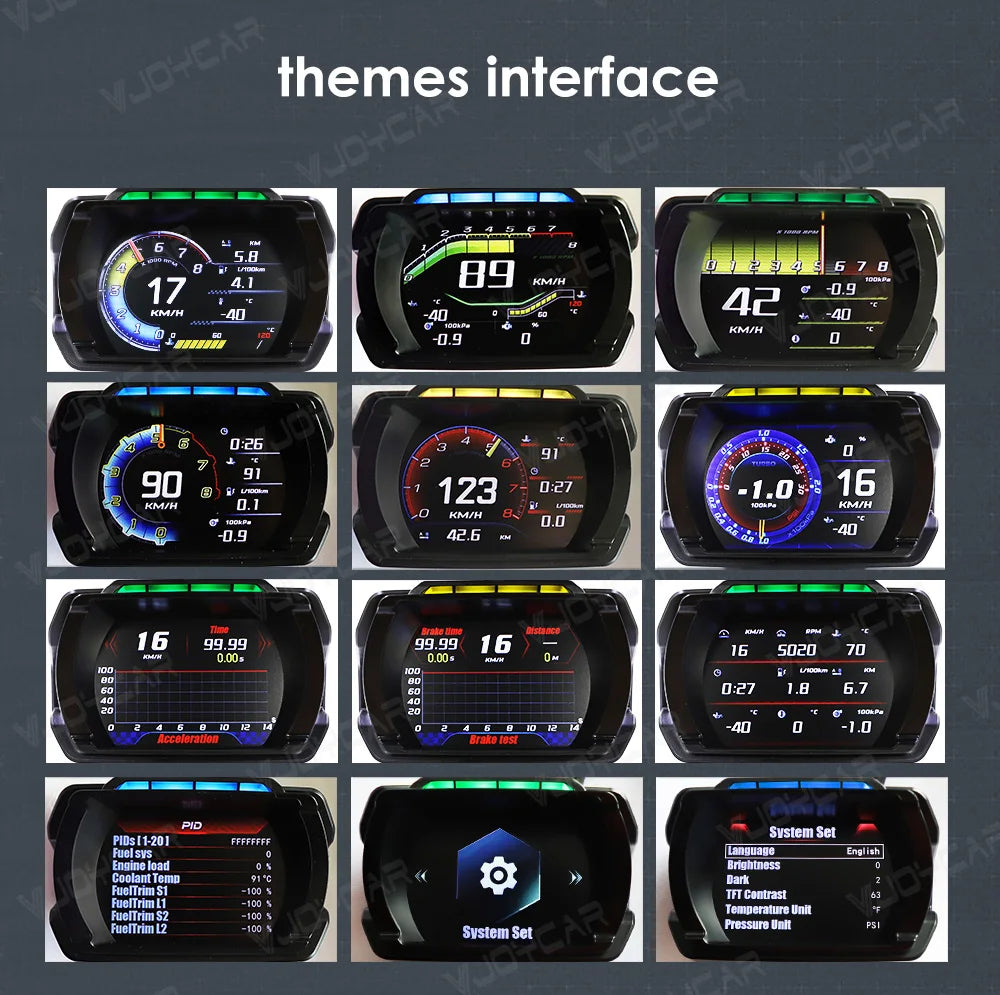

Real Images of 10 Kinds display interfaces:
Vjoycar V80 HUD product features include: theme interface with 5.8-inch display, supporting 6/7/8 themes; A 17-inch display; -0.9 degree tilt adjustment for comfortable viewing; LAN4 support for easy connectivity; a 40-degree vertical angle adjustment for optimal viewing; a 42-degree horizontal angle adjustment for wide viewing angles; KRT KMIA support for GPS navigation; a 0.9-degree accuracy for precise navigation; Vioo display with high-definition graphics; Elny Tdolpt supports multiple languages; a 4.9-inch height-adjustable arm for comfortable use; and a range of PIDs (parameters) including fuel trim, coolant temperature, and more.

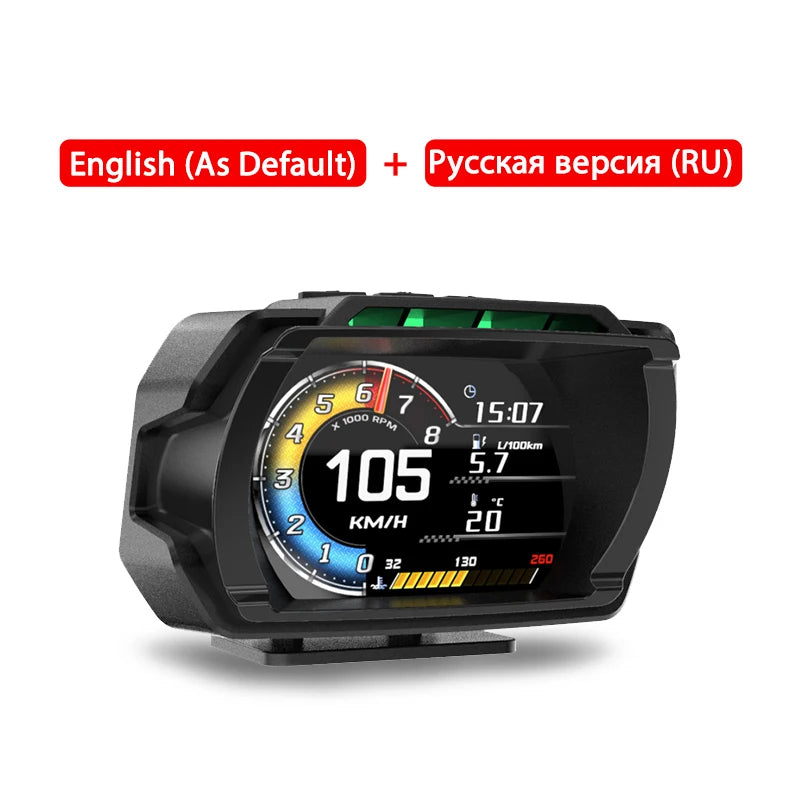

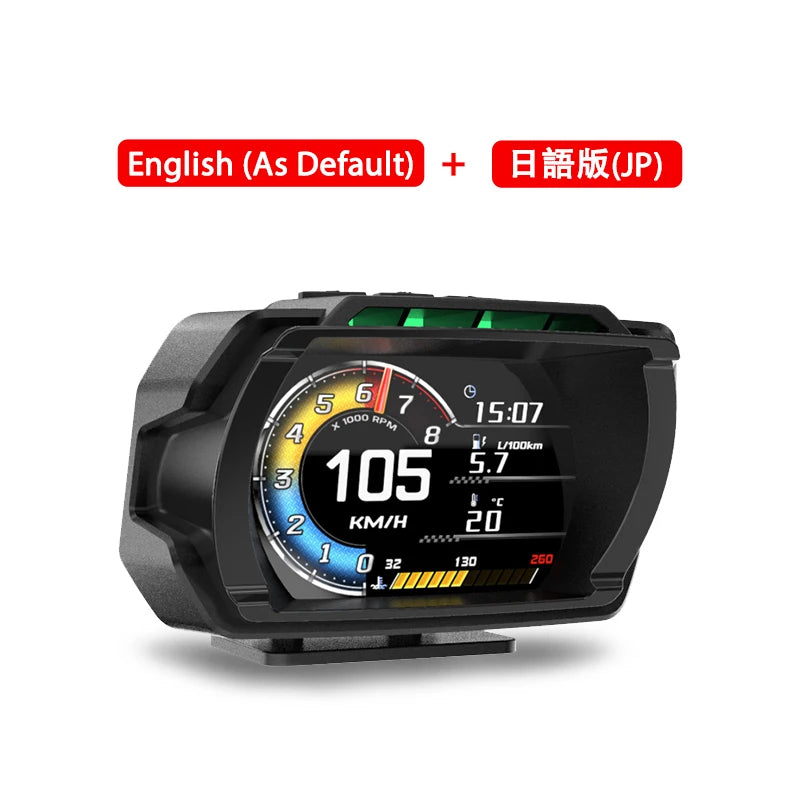

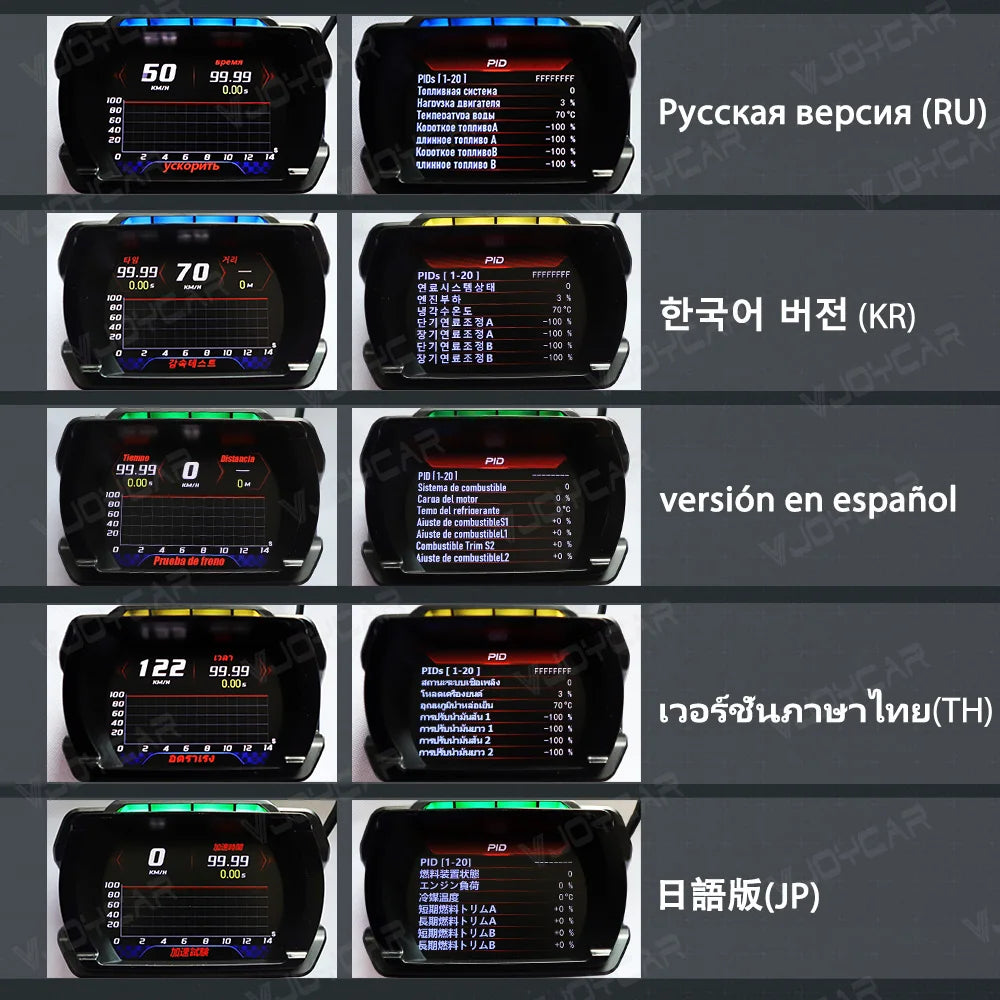

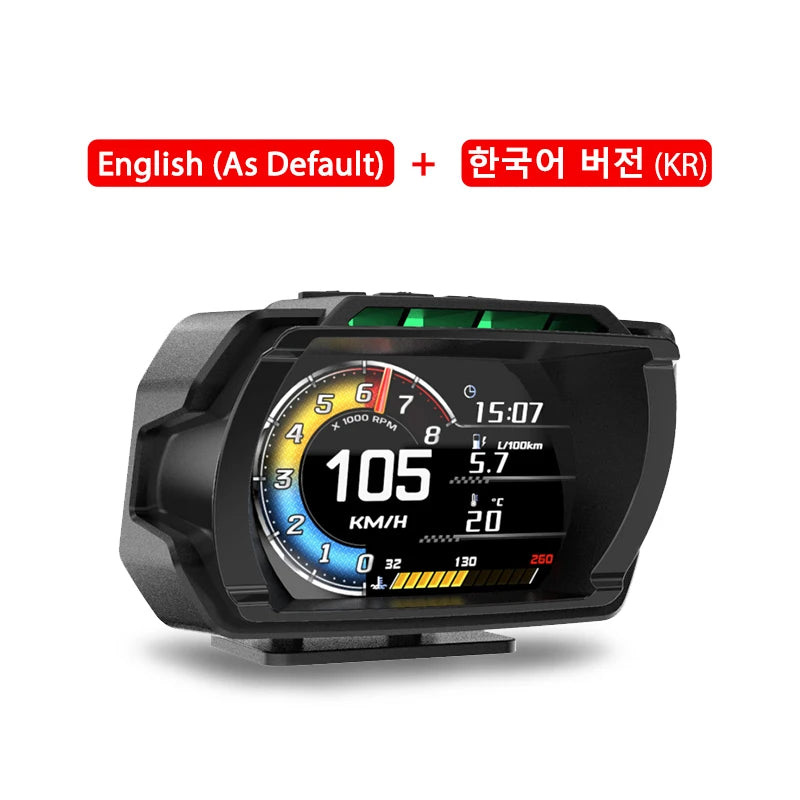

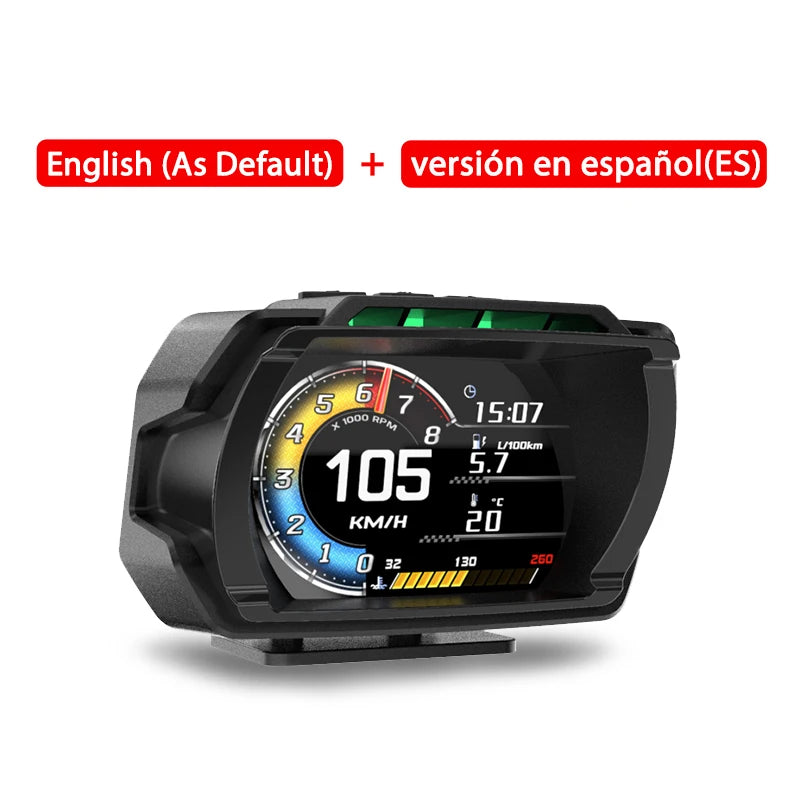

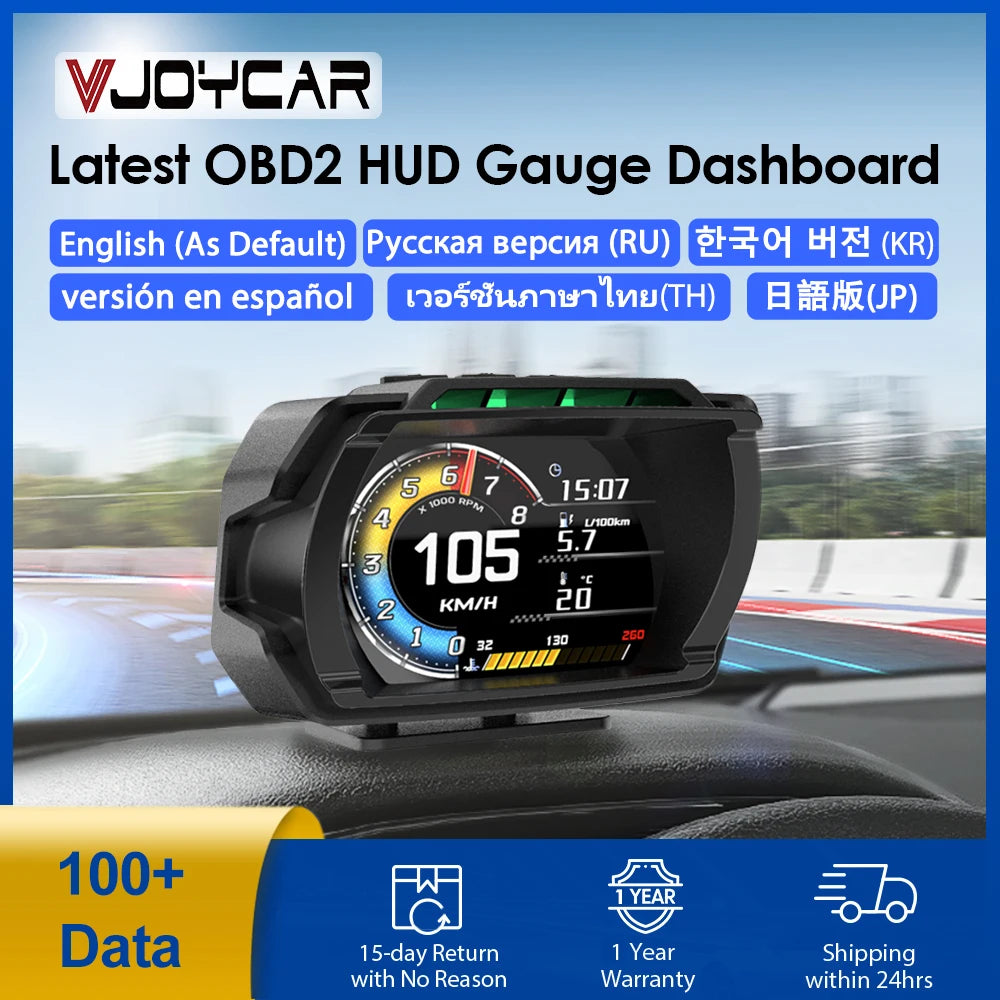

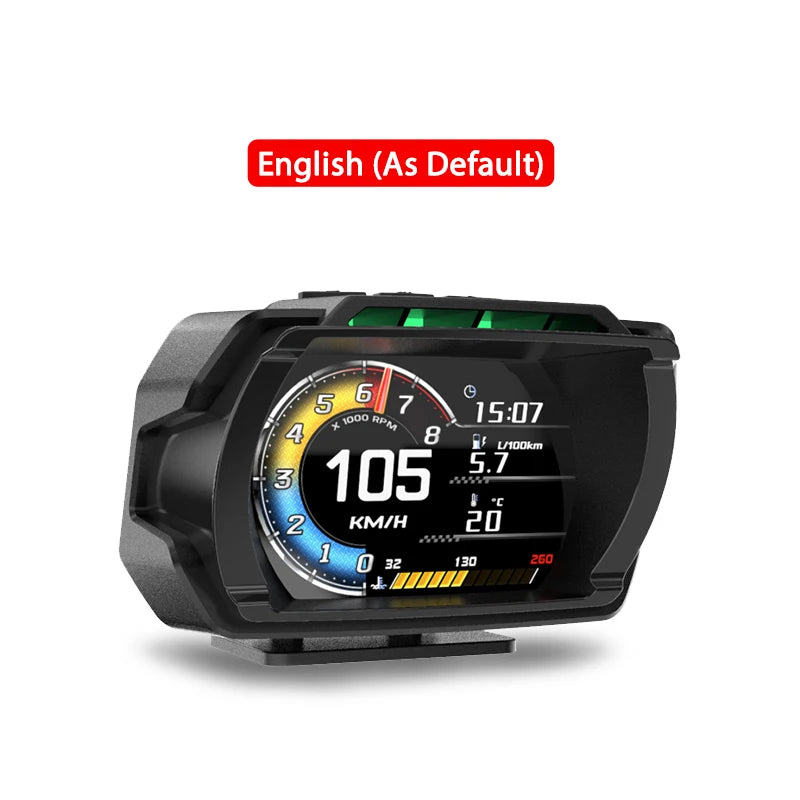

6 Different Languages are available:
English, Russian, Korean, Spanish, Japanese, Thailand.
Joycar V80 HUD Product Image Hood Display: 50.99 km/h PIDs: [1-20] FF FF FF FF FF 0.00 D. Tunnel Hardwax DeMatena Technology BOLM Too Check Box (RU) Kodothoe Tonnkboa Mmhhqe Tonnkbo KoLOT Koe TOnLM BoB YcropMTB Ma TOnJMB O 99.99 70 PIDs [1-20] Effect: 0.00 CO2 924484E 013E0 4 3228J4 2+30 HT (KR) 871921JA 8718523 3129 8714623B Range: 130 km Combustible Setema Combustible Terua It Efrtoerante Version En Español Aiuste Comhustible Irim 52 Probability Trono Four Combustible Pid 122 99.99 PIDs [1-20] Effect: FFFFFF 0.00 Eutabunul Joltgy Hhaaienujuler Anutnuthhaoluu Mktuininiu (7358 Un717 Lvu) (TH) Mtuini Am Mtuinalu 2 Malhuhini 60657050 99.99 Pid [1-20] Range: 0.00 RAG Atne Ijwan Rage ARR KR (JP) Irhatatt ULA Eme A VLA JJk LB Sixtirt44 "LB Din JO He AR Dee Jong JAYEAR VJe 'O YeAR
Sync data display as car's, no any delay:
Real-time monitoring of vehicle data is a car gauge that also serves as a vehicle detector. It can monitor over 100 data points from the ECU in real-time and be used for daily maintenance to track the vehicle status at all times, making driving more secure and convenient. Key features include engine status, A/T status, battery pack level, TC detection, and fuel consumption tracking.
MORE FEATURES: The dedicated car mode adds features such as Engine Oil Temperature, Automatic Transmission Oil Temperature, Fuel Level and outside updates for gear, seat belt reminder, door status, handbrake status, and car lights status are coming soon. This mode also provides real-time data on various parameters including engine oil temperature, coolant temperature, fuel quantity, and gear position.

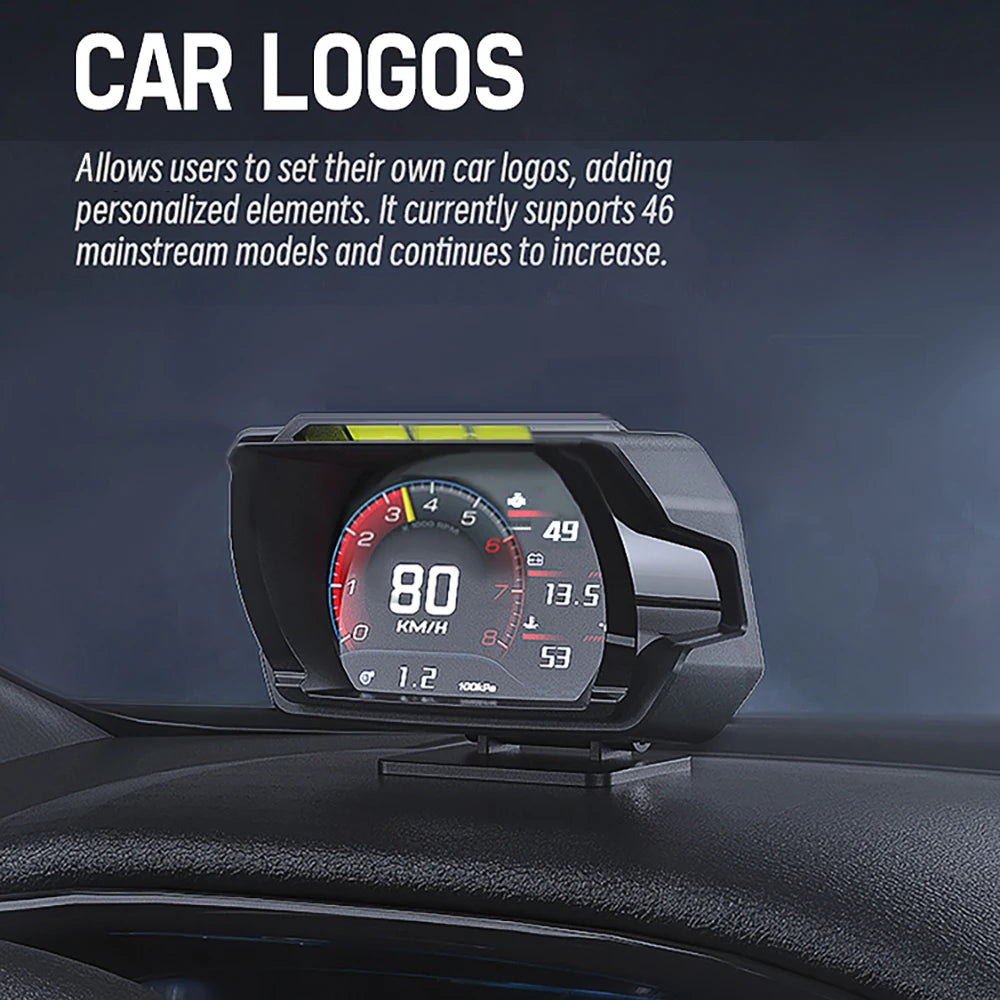

Customized Car Log:
The Vjoycar V80 HUD product features CAR LOGOS, allowing users to set their own car logos with personalized elements. It currently supports 46 mainstream models and continues to expand.
Ambient Light:

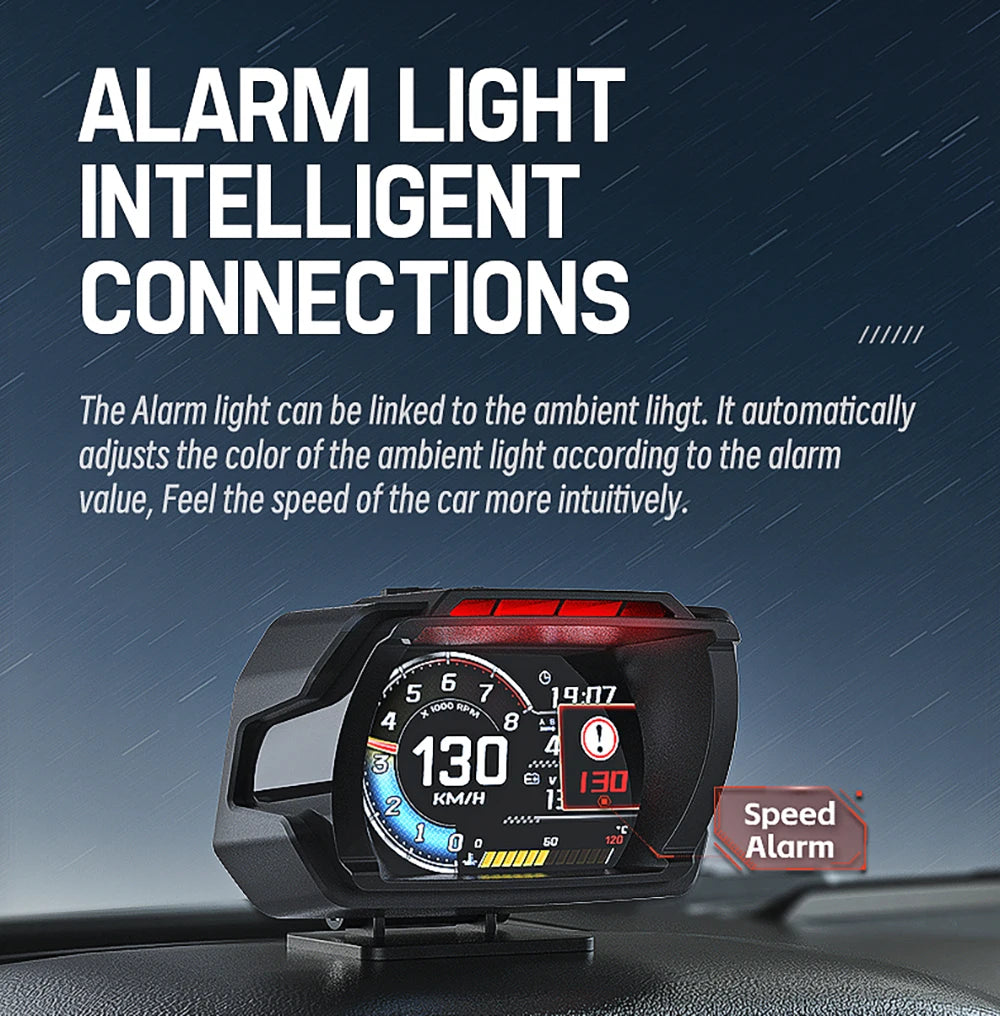

The Alarm Light Intelligent Connections: The Alarm light can be linked to the ambient light. It automatically adjusts the color of the ambient light according to the alarm value, allowing you to feel the speed of the car more intuitively.

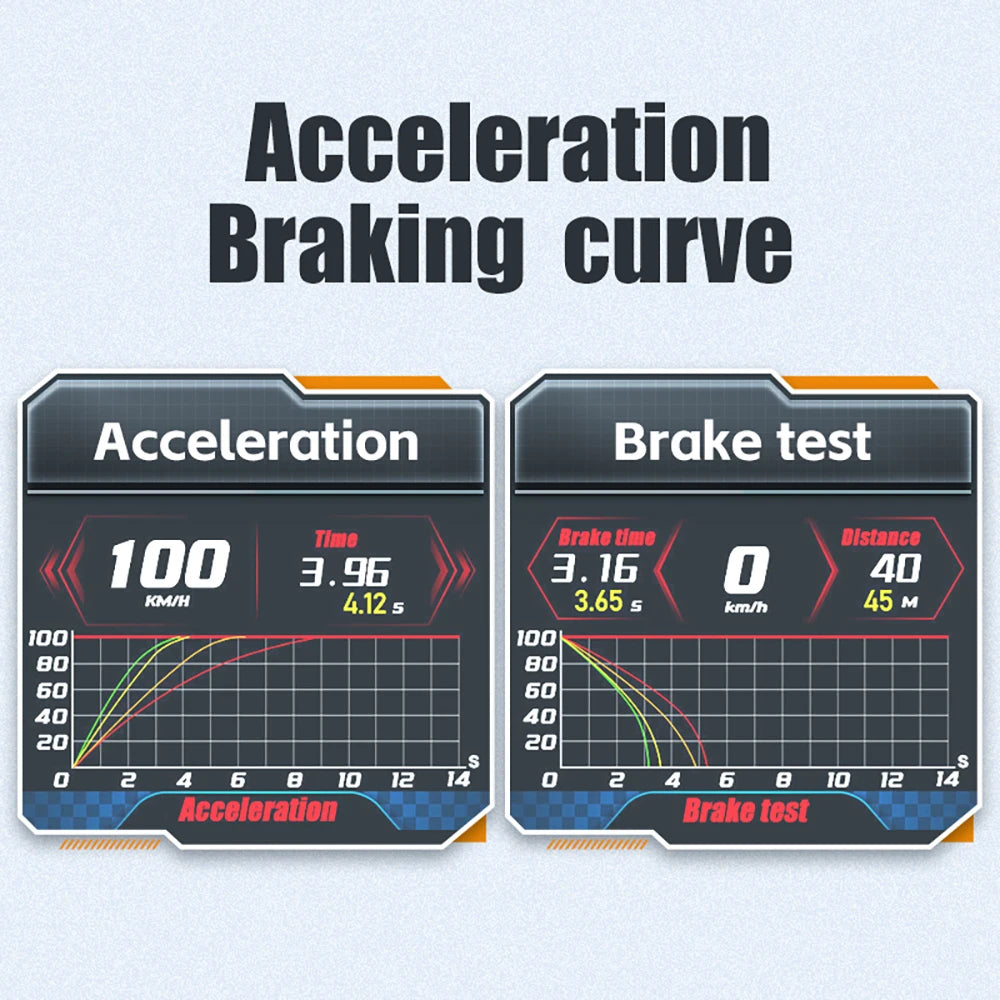

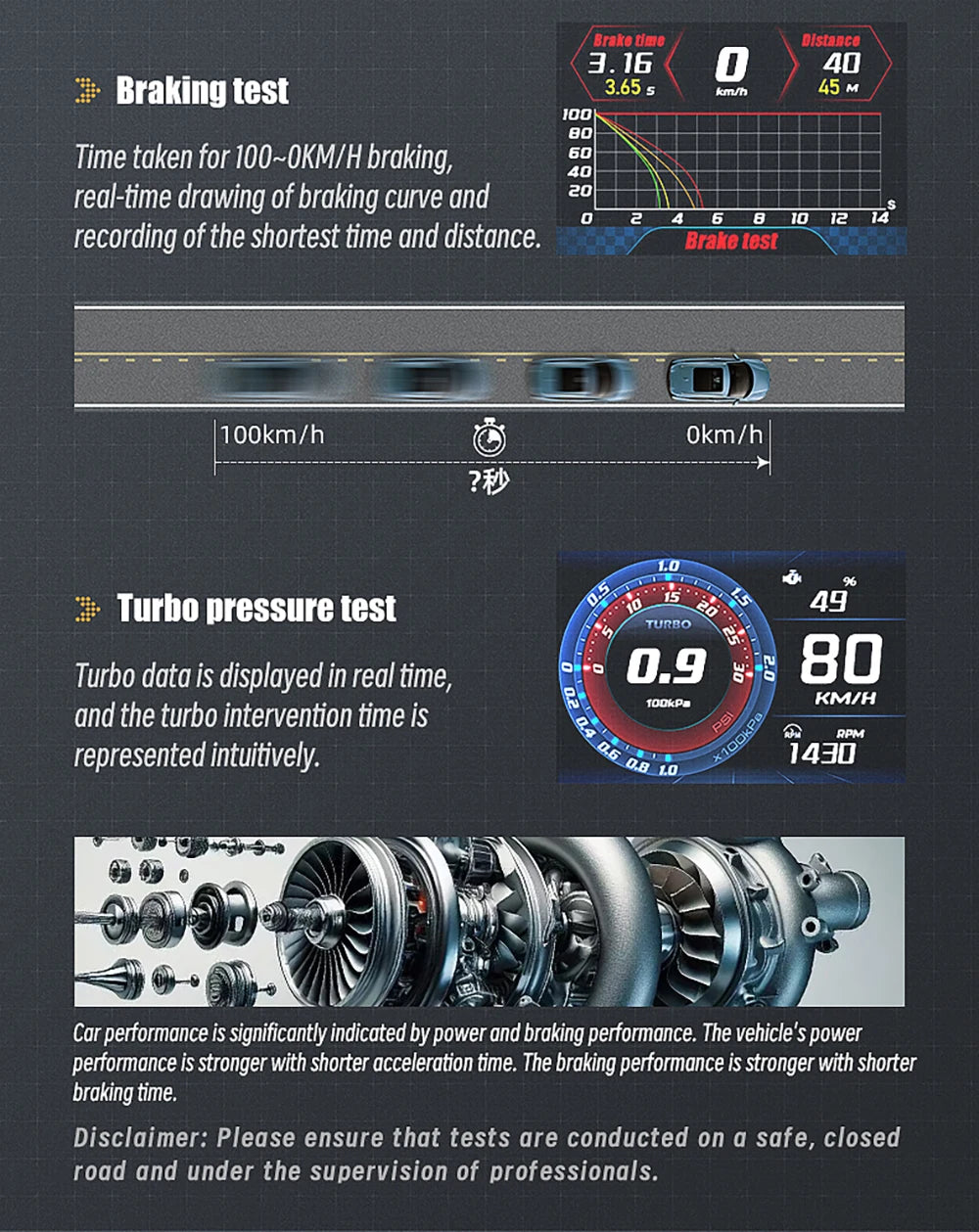

Performance Tests:

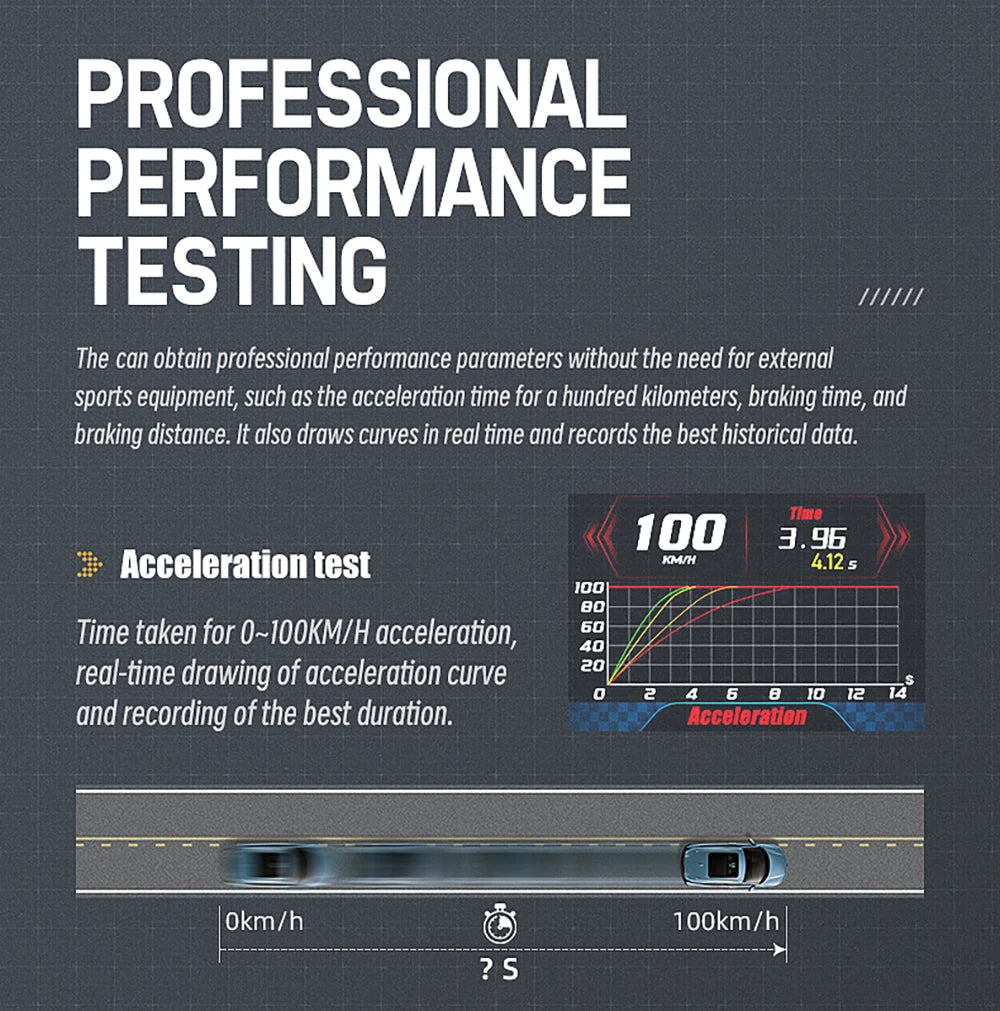

The following text can obtain professional performance parameters without the need for external sports equipment. This includes acceleration time to a hundred kilometers, braking distance and time: It also draws curves in real-time and records the best historical data.

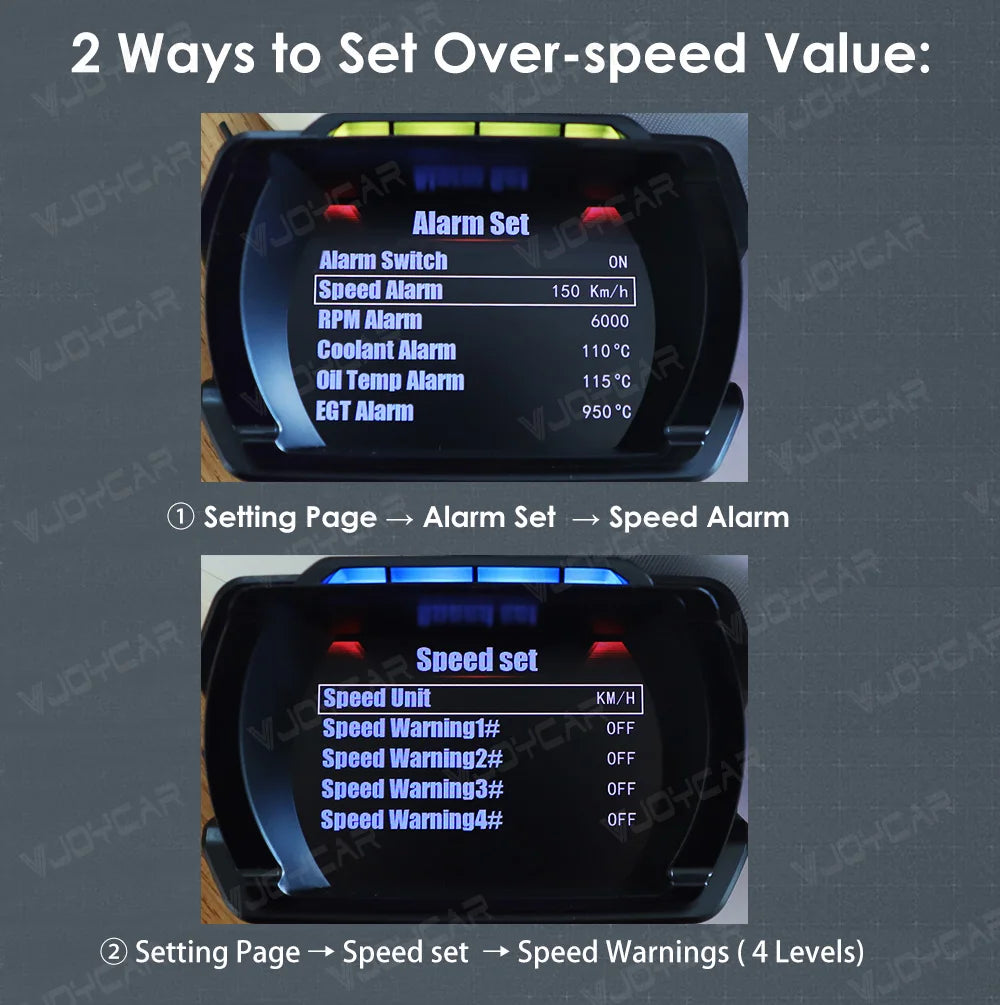

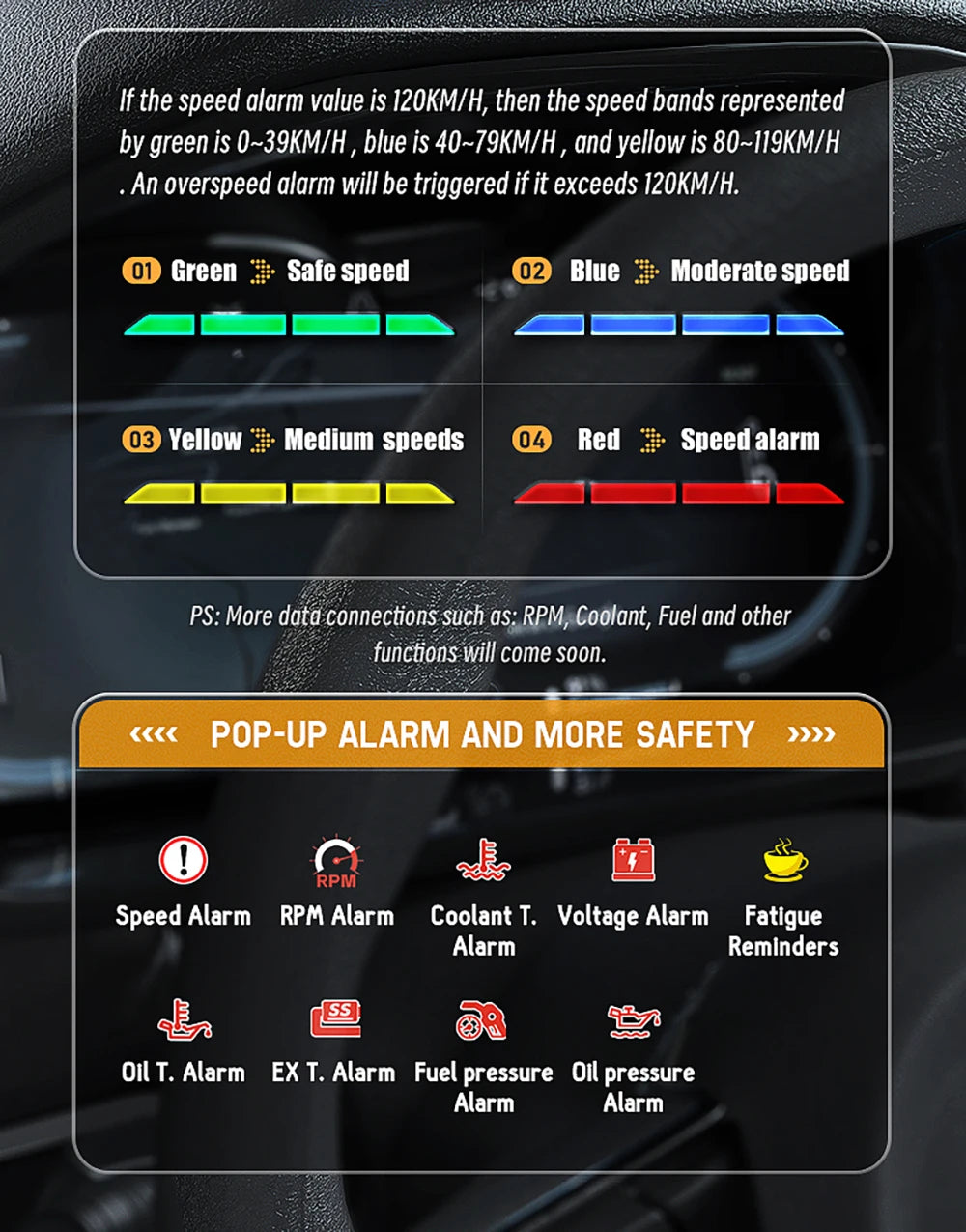

Two Methods to Adjust Over-speed ( Range: 20~199 kmh/mph):
Two Ways to Set Over-speed Value: Auto Alarm Set Alarm Switch ON Speed Alarm 150 km/h RPM Alert Coolant Temperature 110% Oil Temperature Alarm 115% Exhaust Gas Temperature Alarm 950 ' Setting Page + Alarm Set Speed Alarm Speed set Unit km/h Speed Warning (4 Levels) Setting Page 3
Details Makes Quality:
The Best Device for Best You, OEM ODM are welcome:

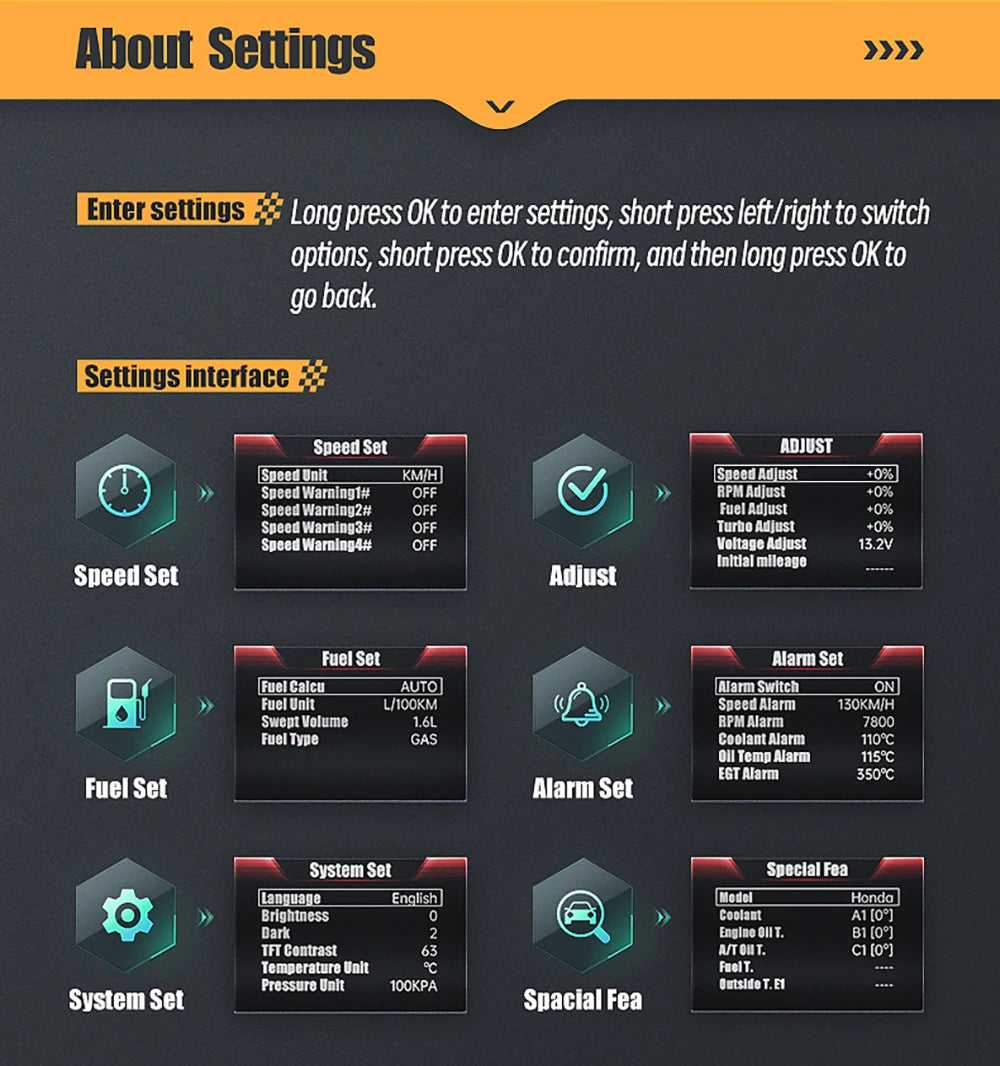

About Settings: Enter settings by pressing OK to enter, short press left/right to switch options, and short press OK to confirm. Then, navigate through the settings interface to adjust various parameters such as speed, fuel, turbo, voltage, and more.

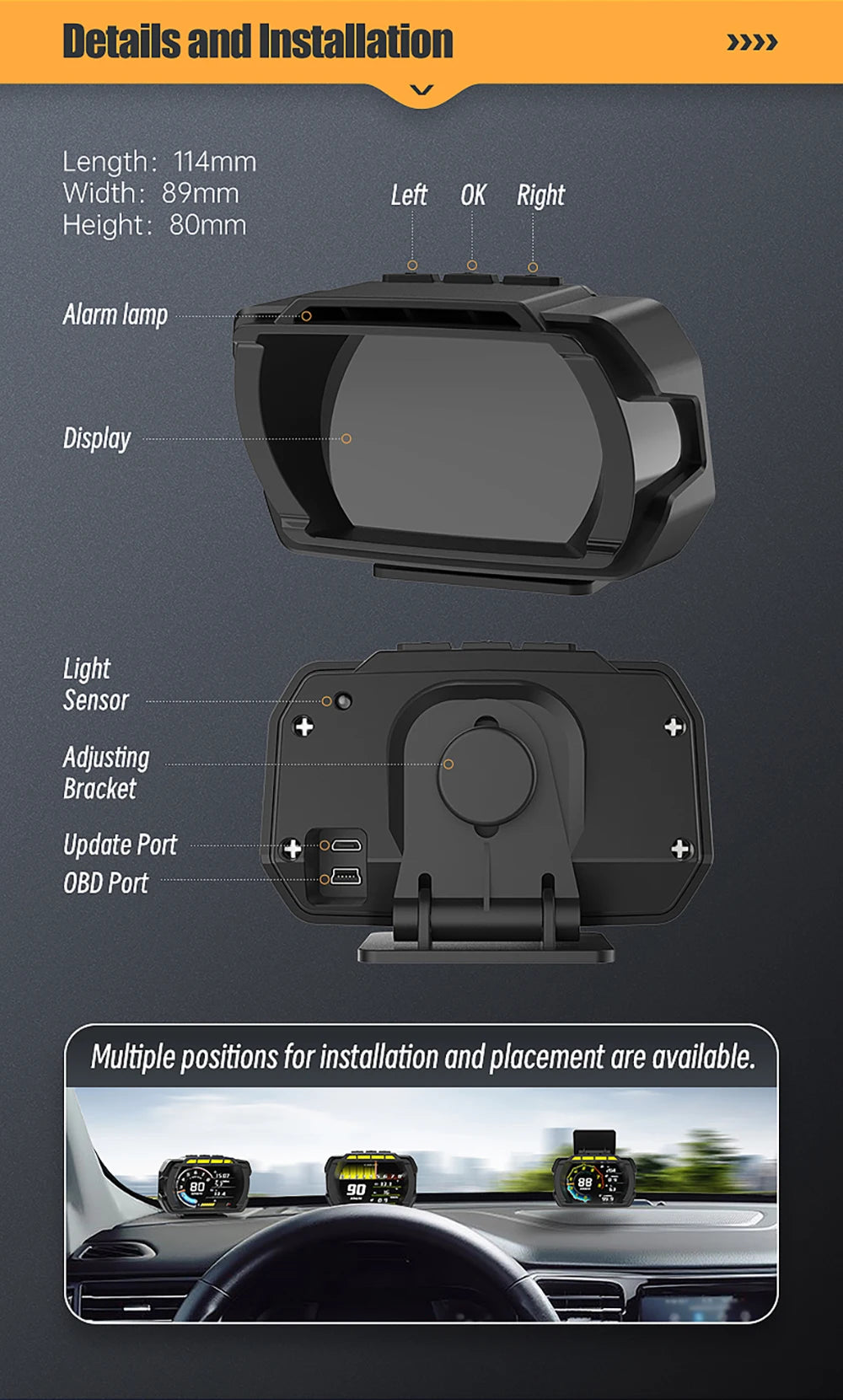

Details and Installation Dimensions: 114mm Width: 89mm Height: 80mm Alarm Lamp, Display, Light, Sensor, Adjusting Bracket, Update Port, OBD Port, Multiple Positions for Installation and Placement Available: 80, 90, 88
Package List:
• Smart HUD Gauge VJOYCAR V80
• OBD connecting cable
• Velcro sticker
• User Manual

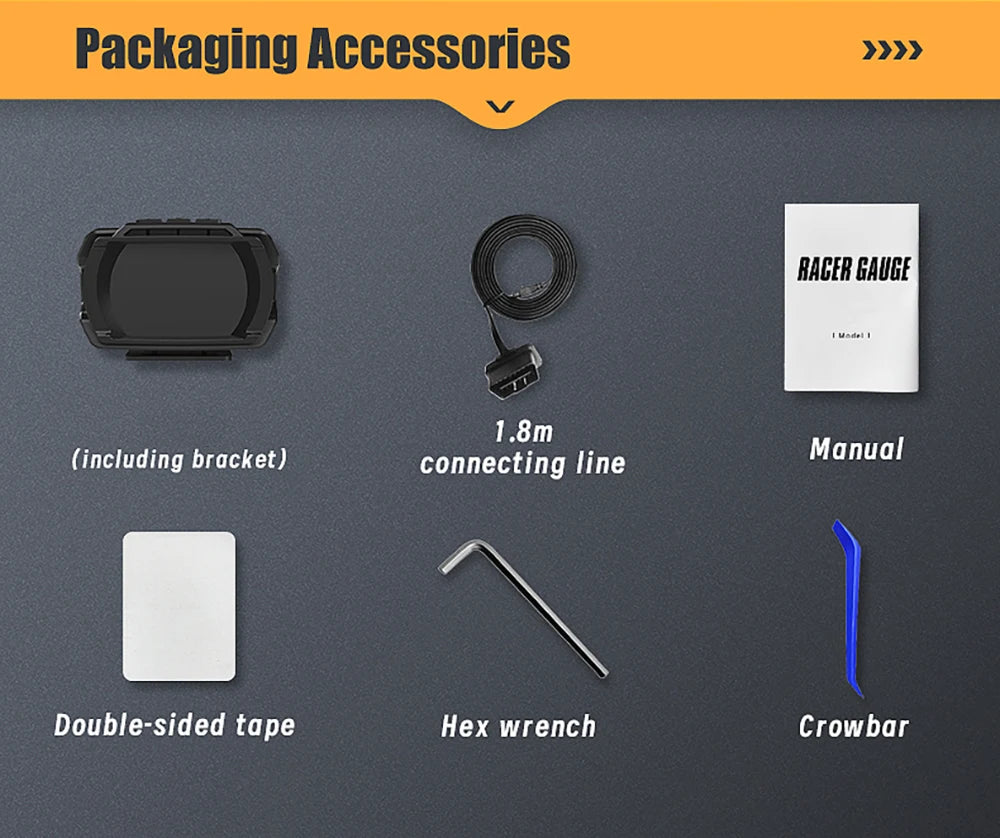

Packaging includes accessories for RACER gauge V80, featuring a 1.8m cable with bracket, manual, double-sided tape, hex wrench, and crowbar.
